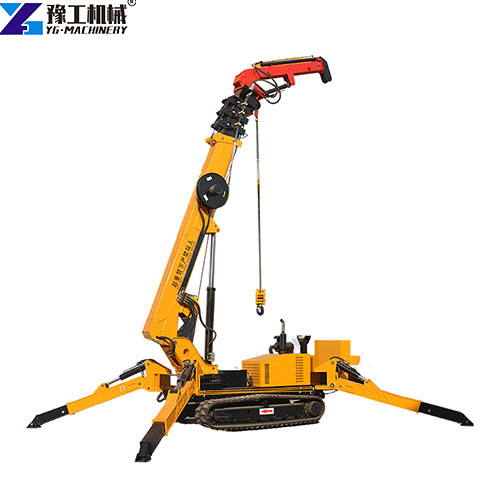

With its extended arms resembling a spider, the 3-ton spider crane can easily navigate narrow alleys, indoor spaces, and areas with dense equipment. Its non-marking tracks protect the floor while performing precise lifting tasks. The core advantage lies in its ability to overcome spatial limitations, meeting the needs of urban development. With high equipment utilization and low wear, it is an efficient and convenient choice for lifting. YG offers models with capacities of 3 tons, 5 tons, and 8 tons, along with various attachments like lifting baskets and glass suction cups, making it suitable for a wide range of scenarios.If you’re interested, please contact YG for more detailed information.
Parameters of YG Spider Crawler Crane
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
6 Common Use Cases for the 3 Ton Spider Crane
- Interior Decoration: For lifting large glass partitions, air conditioning units, or heavy decoration materials in indoor spaces like malls or office buildings. The tracks and outriggers protect the floor and allow it to pass through standard doorframes.
- Equipment Installation: Precise installation of production line equipment in factories, server racks in data centers, or large hot water boilers in hotels or hospitals. It can move and position equipment in dense areas.
- Municipal Maintenance: Used for replacing streetlights, installing traffic lights, or transplanting large trees in narrow streets and parks. It adapts to various terrains like sidewalks and slopes, taking up minimal space and causing little disruption to public life.
- Historic Buildings: In the renovation of narrow alleys in ancient towns, traditional cranes can damage the building itself. The 3-ton spider crane can pass through narrow alleyways, protect slate pavements with its non-marking tracks, and safely transport stones and wooden beams, ensuring the safety and accuracy of historic building restoration.
- Factory Maintenance: In existing workshops, it allows for partial repairs of heavy production lines and the replacement of large components without halting production or dismantling roofs and walls, greatly improving maintenance efficiency.
- Construction Climbing: Lifting materials vertically to higher floors in stairwells or through windows to deliver balcony enclosure materials for high-rise apartments. It’s the key equipment to solve the “last mile” vertical transportation challenge.
4 Reasons to Choose YG’s 3 Ton Mobile Spider Crane
- Overcome Space Limitations: No need to block roads or apply for road closures. The compact spider crane can access spaces that traditional cranes cannot reach, taking on orders that competitors can’t handle and expanding your business opportunities.
- Adapt to Urban Development Trends: As urban development shifts towards “indoor and old city areas,” the use of large cranes is becoming less common. By preparing with a spider crane, you can meet the emerging demands for urban renewal, historic building restoration, and interior decoration, gaining an edge in the industry.
- Long-Term Profit Guarantee: With high equipment utilization and low wear, whether used for your own projects or leased to others, it brings steady income. The dual power mode and ability to adapt to multiple attachments maximize its value across different scenarios, making long-term ownership more cost-effective.
- Additional Attachments: Choose from 10+ specialized attachments: vacuum suction cups for glass lifting, extended booms for long-distance work, soft lifting straps for fragile items, and more. One machine covers all scenarios, eliminating the need for additional equipment purchases.
9 FAQs About YG 3 Ton Spider Crane
A: Not really. While its unique outriggers ensure stable operation on uneven ground and the tracks are suited for harsh environments, it generally needs to stop working in extreme weather like strong winds or heavy rain to ensure safety.
A: No problem! The remote control is designed with simple buttons and clear functions, so anyone can quickly learn to use it. We offer free online or on-site training, and you’ll be proficient within 1-2 days.
A: The remote control is not free. It is an optional accessory for all models, not a standard feature. Once purchased, we will provide free setup and calibration services to ensure the remote works correctly with the crane.
A: The remote control range is approximately 10-20 meters, allowing for precise control.
A: Yes, you can add a fly jib, which extends the main boom’s length and flexibility. The typical extension is 2m or 3m, but we can customize it based on your needs.
A: There are two options: 1) Switch to a different model with a longer boom, or 2) We can customize an extended version based on the required height, though the load capacity may be limited.
A: Yes, we offer all-electric versions for the 3-ton, 5-ton, and 8-ton models.
A: Of course! We offer a full machine warranty and annual maintenance services, giving you peace of mind.
A: The crane is typically shipped in containers or wooden crates. YG will choose the most cost-effective shipping method based on your delivery address and provide tracking services to ensure the safe arrival of your equipment.
If you need more product information, please contact YG, and we’ll provide you with professional service!
