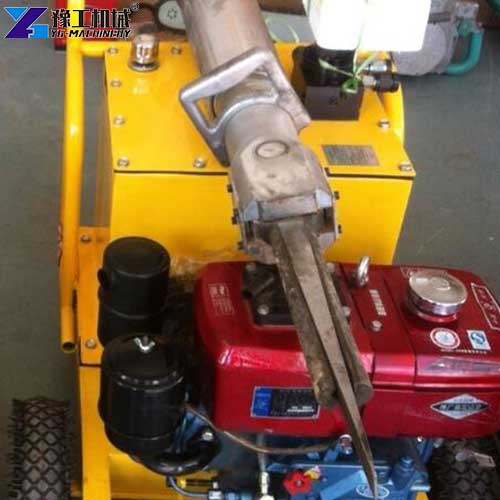

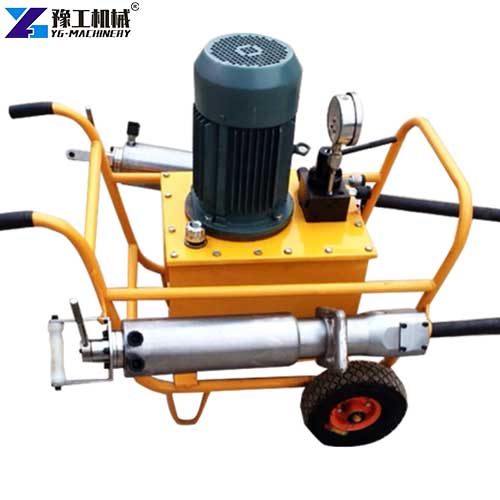

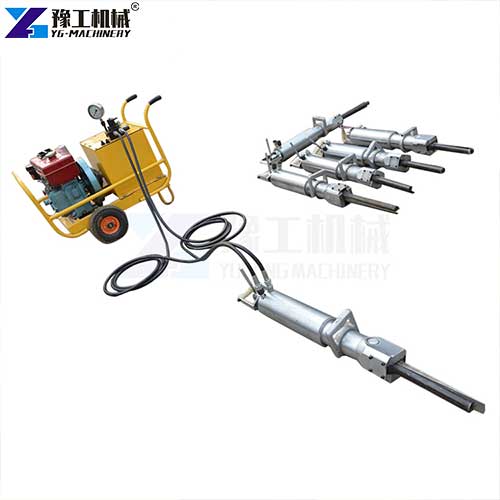

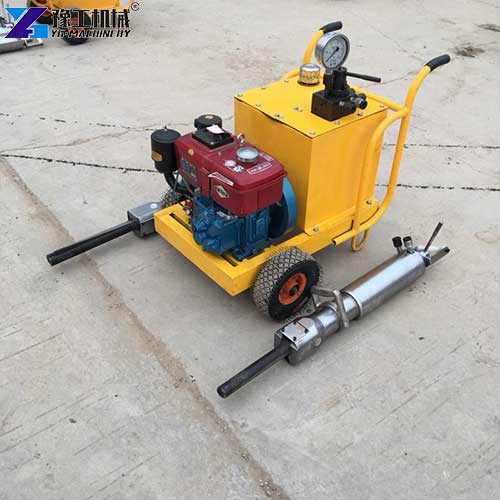

The hydrasplit stone splitter is a popular static demolition and rock-breaking machine widely listed as a hydraulic stone splitter for sale on the global construction equipment market. Different from traditional hydraulic breakers, drilling hammers, and explosive blasting methods, this hydraulically driven splitting equipment adopts a pure static pressure working mode to crack hard rock, boulders, and reinforced concrete structures safely and controllably. The complete machine set consists of a hydraulic power station, high-pressure oil pipelines, and precision splitting wedge groups. After pre-drilling holes on the target surface, the splitter head is inserted into the holes, and ultra-high hydraulic pressure pushes the internal wedge assembly to expand outward. It generates hundreds of tons of splitting force to separate hard materials in seconds. The hydra-split stone splitter completely solves the common drawbacks of traditional breaking equipment: fierce vibration, loud noise, flying debris, structural damage, and strict blasting restrictions. It is fully adaptable to urban renovation, quarry mining, tunnel excavation, foundation pit rock breaking, and indoor demolition. With safe operation, zero pollution, and low comprehensive cost, it has become the preferred static breaking equipment for global engineering contractors. If you are interested, please get in touch with YG immediately for more information.
Hydraulic Splitter for Rock Parameters
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
6 Core Advantages of Hydrasplit Stone Splitter
1. Zero Vibration & Ultra-Low Noise Static Breaking
This hydraulic stone splitter performs pure static hydraulic splitting without impact striking. It produces almost no noise, vibration, or flying stone dust during operation. It can work normally in residential areas, school surroundings, and old building zones where breakers and blasting are prohibited, fully complying with urban environmental protection regulations.
2. Super Strong Splitting Force & Fast Construction Speed
Equipped with a high-pressure hydraulic system, the hydraulic splitter for rock delivers powerful and stable splitting force. Hard granite, limestone, and thick reinforced concrete can be split open within 5–10 seconds per point. Continuous cyclic operation greatly improves breaking efficiency compared with manual chiseling and low-power impact equipment.
3. Precise & Controlled Breaking Effect
Operators can freely control the splitting position, direction, and scope according to construction needs. It only cracks the preset rock or concrete parts without damaging surrounding intact walls, foundation structures, and buried pipelines, effectively avoiding secondary repair work.
4. Compact Body & Strong Space Adaptability
The lightweight splitting gun features a small size and flexible movement. It can easily enter narrow foundation trenches, indoor cramped spaces, tunnel inner walls, and limited working areas where large breaking machinery cannot reach, realizing full dead-angle-free construction.
5. Durable Alloy Structure & Low Failure Rate
Core wedge components of the hydrasplit stone splitter are made of high-strength wear-resistant alloy steel, resisting long-term friction and strong extrusion. The whole hydraulic system runs stably with few vulnerable parts, greatly reducing the daily failure rate and equipment downtime.
6. Simple Operation & Wide Material Compatibility
No complex technical operation or professional certification is required. Ordinary workers can master the whole process quickly. It adapts to all common hard materials, including multiple types of rock, plain concrete, and reinforced concrete.
5 Authentic Customer Feedback about YG Hydraulic Stone Splitter
Customer 1 – Urban Demolition Contractor, Italy
“We work in downtown areas with strict noise and vibration limits. Traditional breakers always cause resident complaints and construction stops. This hydrasplit stone splitter runs quietly with zero vibration. It splits concrete walls and foundation rock accurately without damaging nearby buildings. After switching to this machine, we have no more shutdown penalties, and project acceptance speed is much faster.”
Customer 2 – Quarry Mining Operator, Brazil
“We used blasting before, which caused massive stone fragmentation and huge material waste. This hydraulic splitter for rock achieves neat splitting for granite and limestone. The complete stone block rate increases greatly, bringing higher sales profit. The operation is simple, and one team can finish large-area rock splitting efficiently. It is our most cost-effective mining equipment.”
Customer 3 – Tunnel Engineering Team, Malaysia
“Tunnel rock breaking requires ultra-high safety and stability. Ordinary impact machines easily cause loose surrounding rock and hidden collapse risks. This hydraulic stone splitter for sale uses static splitting with stable force. It protects tunnel wall integrity perfectly, reduces supporting work, and shortens our tunnel construction cycle significantly.”
Customer 4 – Residential Renovation Builder, France
“Our projects are mostly old villa renovations with narrow indoor working space. Large breaking machines cannot enter at all. This hydraulic stone splitter is compact and flexible, suitable for indoor concrete foundation and wall removal. No dust and no noise trouble, and all renovation projects pass community inspection smoothly.”
Customer 5 – Water Conservancy Contractor, Philippines
“Our river slope and water channel rock renovation projects have complex working conditions. This hydrasplit stone splitter adapts to various hard rock strata with stable power output. It has a low daily failure rate and almost no maintenance trouble. After one year of continuous use, we confirm it greatly saves labor and time costs, and we plan to purchase more units for team expansion.”
5 Benefits of Purchasing Hydraulic Stone Splitter
1. Eliminate Policy Restrictions & Expand Project Scope
Most cities and scenic areas completely ban explosive blasting. Owning this hydraulic stone splitter for sale enables contractors to undertake various restricted urban renovation and close-range demolition projects that competitors cannot access, greatly expanding their business scope and sources of orders.
2. Significantly Reduce Comprehensive Construction Costs
It saves expensive blasting approval fees, safety protection costs, and secondary trimming labor costs. The low energy consumption and ultra-low maintenance frequency cut daily operating expenses. Compared with long-term breaker wear and fuel consumption, the static splitter has a faster investment return cycle.
3. Improve Construction Safety & Avoid Accident Risks
No blasting, no flying rocks, and no violent impact during operation. It eliminates major safety hazards such as structural collapse and personnel injury, helping construction teams pass safety inspections stably and avoid project shutdowns and penalty losses.
4. Improve Project Quality & Customer Satisfaction
Precise splitting ensures neat breaking sections without structural damage. The finished construction effect is far better than random impact breaking, helping contractors accumulate high-quality project cases and improve their local market reputation.
5. High Equipment Utilization Rate All Year Round
The equipment is suitable for municipal engineering, quarry mining, tunnel construction, house demolition, and water conservancy projects without seasonal restrictions. It maintains a high utilization rate and avoids long-term equipment idling waste.
Hydrasplit Stone Splitter Price-Choose YG Machinery
If you are searching for a reliable hydraulic stone splitter for long-term rock-breaking and concrete demolition work, the YG hydrasplit stone splitter unit is a wise investment. Unlike noisy impact hammers and restricted blasting, it delivers quiet, vibration-free static splitting to fit urban zones, residential surroundings, and sensitive construction sites. It works well for both hard rock excavation and partial concrete removal, with a flexible split gun adapting to narrow trenches and cramped indoor spaces. Easy operation and low daily maintenance cut your long-term running costs significantly. Whether you run a quarry, municipal renovation firm, or tunnel engineering team, YG hydrasplit stone splitter helps you grab more restricted projects and boost overall business profits steadily.
