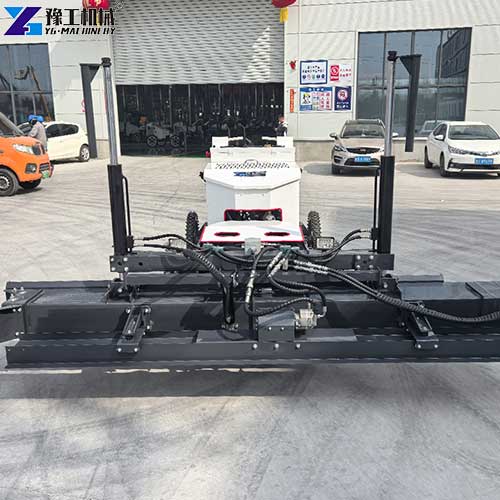

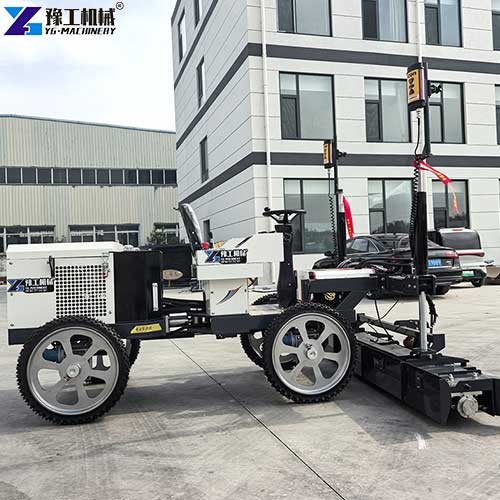

A laser concrete leveling machine is a high-precision flooring construction equipment that uses an advanced laser control system for large-area concrete leveling. The machine establishes a unified horizontal reference through a laser transmitter, combined with a receiver system and automatic control technology, to adjust the screed head in real time and achieve millimeter-level accuracy in floor construction. Compared with traditional manual methods or standard equipment, it offers higher efficiency, better flatness, improved density, and reduced labor dependency. The automatic concrete leveling machine is widely used in industrial factories, logistics warehouses, commercial centers, parking lots, and airport projects. It significantly shortens construction time, improves project quality, and reduces overall construction costs, making it an ideal solution for modern high-standard flooring applications.
Laser Concrete Leveling Machine Technical Parameter
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
Case Study 1 – Poland Industrial Flooring Contractor Project
Client Background
The customer is a senior project manager from a mid-to-large construction company in Poland, mainly responsible for industrial flooring projects such as logistics warehouses, manufacturing plants, and distribution centers. The company has been operating for over 10 years and typically handles government and private industrial construction contracts ranging from 3,000 m² to 15,000 m² per project.
Challenges
Before introducing the equipment, the client mainly relied on traditional screed and manual leveling methods, which caused several issues:
- High labor costs due to skilled worker requirements in Europe
- Inconsistent floor flatness in large-area warehouse projects
- Rework risk when meeting strict industrial flooring standards
- Long construction cycles are affecting project delivery deadlines
These problems became more serious as project standards increased and competition intensified.
Solution
The client decided to introduce a concrete laser leveling machine to improve efficiency and quality stability.
We provided:
- Laser-guided automatic leveling system
- High-frequency vibration system for better concrete compaction
- Hydraulic control leveling head for stable operation
- On-site operation, training support, and remote technical assistance
The goal was to replace manual leveling dependency and improve large-area construction consistency.
Results
After applying the machine in a warehouse project of approximately 5,000–7,000 m²:
- Construction efficiency improved by around 2–2.5 times
- Labor requirements reduced by about 25–30%
- Floor flatness consistency significantly improved
- Project completion time shortened by nearly 20–30%
The company was able to take on more projects within the same time period, improving overall project turnover.
Client Feedback
“The equipment helped us stabilize quality on large industrial floors. Previously, we depended heavily on experienced workers, but now the machine ensures consistency. It also helped us reduce overtime and improve project scheduling efficiency.”
Case Study 2 – Philippines Subcontracting Engineering Team Project
Client Background
The second customer is a small-to-medium subcontracting team led by a site supervisor in the Philippines, mainly focusing on commercial buildings, parking lots, and small industrial projects.
The team usually consists of 8–15 workers, depending on project size, and often works as a subcontractor for general contractors.
Challenges
Before using the equipment, the team mainly used manual leveling methods, which caused several limitations:
- Heavy reliance on manual labor coordination
- Uneven surface quality across large concrete pours
- Low efficiency during large-area parking and commercial projects
- Difficulty competing for higher-standard contracts
These issues limited their ability to expand into larger and more profitable projects.
Solution
We recommended an automatic concrete leveling machine suitable for medium-scale subcontracting work.
Key features provided:
- Automatic laser leveling control system
- High-frequency vibration for better surface density
- Easy-to-operate control panel suitable for new operators
- Training videos and step-by-step operation guidance
The focus was on improving ease of use and reducing dependence on highly skilled labor.
Results
After using the machine in a 3,000–5,000 m² commercial parking project:
- Construction speed increased by approximately 2–3 times
- The number of workers required for leveling was reduced
- Surface consistency improved significantly
- The team successfully upgraded its bidding capability for larger projects
The client was able to move from small subcontracting jobs to more stable mid-sized commercial contracts.
Client Feedback
“This machine changed the way we work. We no longer rely heavily on manual skills, and even new workers can operate it after training. It helped us complete projects faster and gave us more confidence when bidding for larger jobs.
