Traditional large truck-mounted cranes are often restricted by narrow roads, limited indoor space, and complex terrain, unable to complete precise lifting tasks in compact construction environments. The 5 ton spider crane adopts a compact crawler chassis and multi-group independent hydraulic outriggers, perfectly solving the access difficulty of large lifting equipment. It integrates strong bearing capacity, flexible mobility and high safety performance, widely exported to Central Asia, Russia, Europe, and other regions. If you are interested, please contact YG for a discount.
Parameters of YG Spider Crawler Crane
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
7 Core Features of 5 Ton Spider Crane
- Compact Body Design with Excellent Trafficability: The 5t mobile spider crane features a narrow folded body width, which can smoothly pass through standard doorways, narrow urban alleys, and indoor passages. Unlike bulky truck cranes, this 5t tracked mini crane can even enter building interiors, basements, and high-rise atriums for lifting operations, breaking the space limit of traditional lifting equipment.
- Rubber Track Chassis Adapts to Complex Terrain: Equipped with wear-resistant rubber crawlers, the 5-ton spider crane runs stably on muddy ground, gravel roads, gentle slopes, and icy roads. It will not damage asphalt, marble, and finished ground, with strong climbing and anti-slip capacity, perfectly adapting to the harsh climatic and site conditions of Russia and Kazakhstan.
- Four Independent Hydraulic Spider Outriggers for Ultra-High Stability: Four groups of outriggers can be adjusted independently in height and angle, realizing automatic leveling on uneven ground. Even on slopes and rugged construction sites, the machine maintains horizontal balance during 5-ton full-load lifting, effectively preventing tipping risks and greatly improving construction safety.
- Telescopic High-Strength Boom for Wide Lifting Range: The multi-section manganese steel telescopic boom achieves a large working height and 360-degree full-range rotary operation. It supports both long-distance high-altitude hoisting and short-distance precise heavy-load handling, balancing lifting capacity and operating radius to meet diverse construction lifting requirements.
- Dual Power System for Indoor and Outdoor Switchable Use: It supports diesel engine drive for outdoor field construction without power supply, and electric drive for indoor, closed, noise-sensitive construction sites. The electric mode realizes zero emission and low noise, complying with environmental construction standards, while the diesel mode guarantees long-time continuous operation in remote areas.

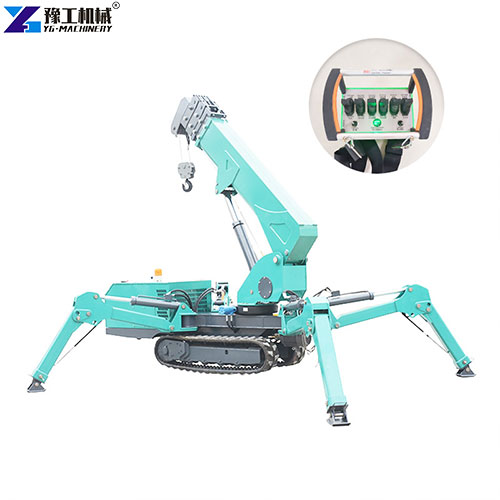

- Dual Control Modes for Precise Safe Operation: Both a wired joystick and a wireless remote control are available. Operators can stand in a safe area to control lifting, luffing, and rotation, realizing centimeter-level precise positioning for glass curtain walls and precision equipment installation, greatly reducing on-site safety hazards.
- Complete Safety Protection Configuration to Avoid Overload Risks: Built-in load moment limiter, overload protection, emergency stop device, and tilt alarm system. Once the lifting weight exceeds the rated 5 tons or the machine tilts abnormally, the equipment will automatically lock the action to avoid safety accidents, fully meeting international construction safety inspection standards.
7 Main Applications of 5 Ton Spider Cranes
- Glass Curtain Wall & Exterior Facade Installation: It is the most mainstream application of the 5-ton spider crane. The compact body enters building courtyards and high-rise floors to lift large glass panels, realizing precise installation of exterior curtain walls in narrow working spaces where large cranes cannot reach.
- Indoor Factory Equipment Installation & Maintenance: In narrow workshops, production workshops, and underground equipment rooms, the 5t tracked mini crane transports heavy machine tools, pipeline components, and air-conditioning units, avoiding the high cost of dismantling factory frames for large crane access.
- Urban Old Community & High-Rise Building Renovation: Used for rooftop equipment hoisting, exterior wall maintenance, steel structure transformation, and building material transportation in old urban residential areas with narrow roads, effectively solving the problem that large cranes cannot enter residential blocks.

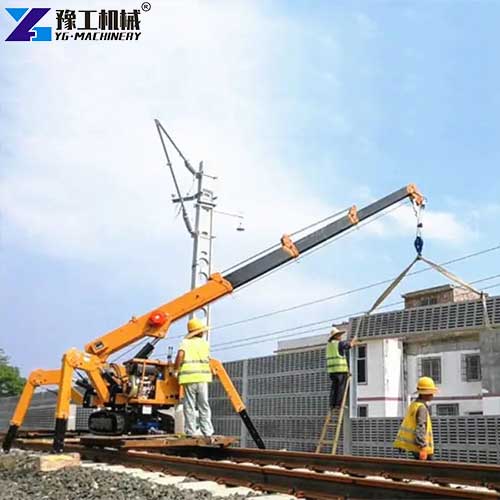

- Municipal Bridge & Public Infrastructure Construction: Suitable for pedestrian bridge maintenance, street lamp installation, municipal pipeline laying, and narrow road engineering construction. The crawler chassis adapts to temporary construction roads and protects urban pavement from damage.
- Landscape & Garden Greening Projects: For large tree transplantation, stone sculpture hoisting, and waterscape facility installation in parks and scenic spots. The lightweight rubber track will not damage green lawns and landscape pavement, with flexible steering in complex garden terrain.
- Petrochemical & Power Industry Maintenance: Widely applied in power station equipment overhaul, transformer replacement, chemical pipeline maintenance, and substation construction, completing heavy component hoisting in compact equipment intervals.
- Warehouse, Logistics & Prefabricated Building Construction: Used for prefabricated component hoisting, steel frame assembly, and cargo turnover in large warehouses and logistics parks, improving the efficiency of indoor and semi-outdoor bulk material handling.
Real Customer Cases about 5 Ton Spider Crane
Case 1: Kazakhstan Customer – Factory Steel Structure Installation
- Customer Background: The customer is a local engineering contractor in Kazakhstan, specializing in industrial plant construction and equipment installation. They needed a flexible 5t mobile spider crane for narrow workshop interior lifting and outdoor steel structure hoisting.
- Main Difficulties: Factory passages are narrow, and large truck cranes cannot enter. Uneven gravel ground causes poor stability during hoisting. Old small cranes have short boom height and insufficient working radius, limiting construction efficiency.
- Solution: We supplied the 5-ton spider crane. It features 16.8m max lifting height, 14m max working radius, and 5-section pentagonal telescopic boom. With 360° continuous slewing and 25° gradeability, the hydraulic crawler drive adapts to rugged terrain. It supports manual and remote control, perfectly fitting indoor and outdoor complex site demands.
- Operation Effect: The 6200kg lightweight body with dimensions 500015001900mm easily accesses narrow workshops. 12m/min fast hook speed greatly improves working efficiency. Independent outriggers ensure stable leveling on uneven ground, eliminating tipping risks and improving construction safety.
- Customer Feedback: “This 5t tracked mini crane is very suitable for Kazakhstan complex construction sites. Long boom height and large working radius solve our lifting limits. Stable performance and flexible operation save us a lot of rental costs.”
Case 2: Russia Customer – Urban Building Renovation Project
- Customer Background: The Russian client is a professional building renovation company, mainly engaged in urban high-rise facade repair, glass installation, and indoor equipment hoisting. They require a low-temperature-resistant and space-saving 5t mobile spider crane for downtown narrow-site operations.
- Main Difficulties: Urban construction areas have strict space limits. Icy and snowy winter terrain leads to slippery working conditions. Traditional cranes cannot achieve precise and quiet indoor hoisting.
- Solution: We recommended the 5-ton spider crane. Equipped with a hydraulic crawler walking system (0~2.5km/h walking speed), strong climbing capacity, and stable 360° continuous rotation. The 80m long Φ11mm steel rope and reliable winch device ensure safe and stable heavy lifting in low-temperature environments. An optional remote control guarantees precise and safe operation.
- Operation Effect: The tracked chassis runs stably on icy and snowy roads. High lifting height and full-angle rotation meet high-rise exterior renovation needs. Low-noise operation adapts to urban indoor construction, greatly improving the project qualification rate.
- Customer Feedback: “The 5t tracked mini crane runs perfectly in Russia’s cold weather. Compact size, strong power, and precise control help us finish all renovation tasks efficiently. It is our most reliable mini lifting equipment.”
FAQs about YG 5 Ton Spider Crane
Q1: What is the max working height and radius of YG-5 spider crane?
A: It reaches 16.8m maximum lifting height and 14m maximum working radius, covering most medium-height construction work.
Q2: What is the full machine size and weight?
A: Overall dimension 500015001900mm, total weight 6200kg, flexible for narrow space entry.
Q3: Does it support full-angle rotation?
A: Yes, 360° continuous slewing at stable speed for all-direction hoisting operation.
Q4: Can it work on slopes and rough ground?
A: It supports 25°(36%) gradeability, perfectly adapting to rugged, snowy and muddy construction sites.
Q5: What is the maximum rated lifting capacity of this spider crane?
A: The rated load capacity is 5 tons, with multi-section telescopic boom supporting different load capacities at various working radii to meet heavy and light hoisting demands.
Q6: Can the 5 ton spider crane work indoors?
A: Yes. The compact folded body can pass through standard doorways, equipped with electric silent drive mode, suitable for indoor factory, shopping mall and basement lifting operations.
Q7: What control methods does the 5t mobile spider crane support?
A: It is equipped with both wired manual control and wireless remote control, allowing operators to work in safe areas for precise load positioning.
Q8: What after-sales services are provided for overseas buyers?
A: We supply multi-language operation manuals, remote video training, one-year whole-machine warranty, long-term spot supply of vulnerable spare parts and 24-hour online technical troubleshooting.
5 Ton Spider Crane Price-Choose YG Machinery
As a professional compact lifting device, the 5 ton spider crane breaks the space and terrain limitations of traditional large cranes. With wide application coverage in construction, municipal, industrial, landscape and power industries, it provides an efficient and safe lifting solution for narrow and complex construction scenarios. Choosing high-quality 5-ton spider crane equipment can effectively reduce construction costs, improve hoisting efficiency and guarantee on-time project delivery, helping global contractors enhance market competitiveness in the construction industry. If you are interested, please contact YG for a discount.
