Hydraulic Pile Breaker Machine Sold to Australia

The hydraulic pile breaker machine, also known as a hydraulic pile cutter or a hydraulic pile crushing machine, is a specialised construction equipment used to break and cut concrete pile heads efficiently using hydraulic power. It is typically installed on an excavator. In simple terms, it uses high-pressure hydraulic oil provided by the excavator or hydraulic station to drive cylinders that clamp and squeeze the concrete pile head from all sides, breaking it without damaging the internal steel reinforcement. This machine is an efficient replacement for manual pneumatic hammers in pile foundation projects. YG offers models from 4 modules to 18 modules. Want to learn more? Contact YG now, and we’ll recommend a suitable machine for you!

YG Excavator Pile Breaker Parameter

Module Number	PCS	4	8	9	10	11	12	13	14	15	16	17	18
Single-module weight	KG	1600	2640	2970	3300	3630	3960	4290	4620	4950	5280	5610	5940
Pile diameter range	mm	400-600	600-800	800-1000	1000-1150	1150-1300	1300-1500	1500-1650	1650-1800	1800-1970	1970-2200	2200-2360	2360-2500
Hydraulic excavator	T	20T-30T			30T-40T				Hydraulic system/pump station
Max.Thrust		300KN		Max.Cylinder required		20L/min		Machinery Tonnage		≥20T		Location pinΦ35
Max.Cylinder Trip		300mm		Chisel diameter		110mm		Singlemodule weight		335KG
Max.Cylinder Pressure		300MPa		Max.Hoist Capacity		≤500mm		Singlemodulesize		A combination of the total weight

GET YOUR FREE QUOTE

Case Study 1: Australia Municipal Infrastructure Project

I: Client Background

The client is a large municipal engineering contractor in Australia, specialising in bridge foundations and urban road renovation projects. They have high demands for construction efficiency and environmental protection.

II: Challenges Encountered

• Low Efficiency: Traditional pile breaking methods were inefficient, leading to significant delays in project timelines.
• Irregular Pile Head: The pile heads were broken unevenly, affecting the quality of subsequent construction.
• Environmental Pollution: High noise and dust levels made it difficult to meet local environmental regulations.
• High Costs: Labour costs were high, and the risk of safety incidents was also significant.

III: Solution Provided

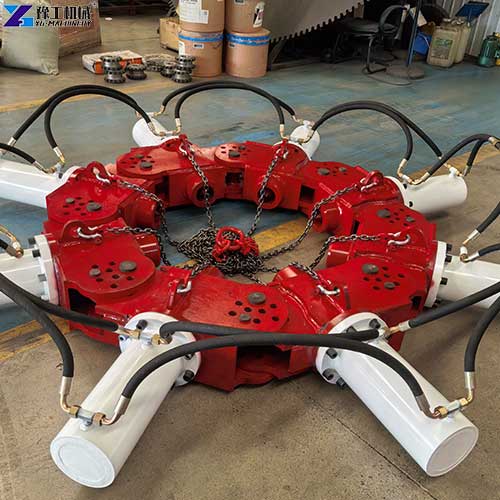

Based on the client’s requirements, we recommended the 8-module hydraulic pile breaker machine:

• Suitable Pile Diameter: 600–800mm
• Single Module Weight: 2640kg
• Compatible Excavator: 30T–40T
• Max Thrust: 300KN

The equipment is designed with a modular setup, which can be quickly mounted onto the excavator to efficiently break the pile heads using the hydraulic system.

IV: Results Achieved

• Efficiency Boost: Construction efficiency increased by about 3 times, significantly shortening project timelines.
• Standardised Construction: The pile heads were uniformly broken, reducing the need for secondary corrections.
• Environmental Compliance: Noise and dust were significantly reduced, meeting environmental standards.
• Cost Reduction: Labour costs were reduced by about 60%, optimising overall construction expenses.
• Enhanced Safety: The use of hydraulic equipment reduced manual operations, improving site safety.

V: Client Feedback

“This pile breaker machine has completely changed the way we work. It’s not only highly efficient but also extremely stable. Compared to traditional methods, we saved a lot of time and labour costs. It has become an essential piece of equipment for our future projects.”

GET YOUR FREE QUOTE

Case 2: Malaysia Residential Building Foundation Project

I: Client Background

The client is a Malaysian construction company that primarily undertakes high-rise residential and commercial complex projects. They are very sensitive to construction speed and cost control.

II: Challenges Encountered

• Large Pile Diameter: They needed to break large concrete piles with diameters of 1300–1500mm, which traditional equipment could not handle efficiently.
• Uneven Pile Head: The pile heads were broken unevenly, affecting the quality of subsequent construction.
• Project Delays: Prolonged manual pile breaking led to project delays and slow progress.
• High Temperature Environment: Due to Malaysia’s hot climate, equipment stability was a concern, and construction efficiency was low.

III: Solution Provided

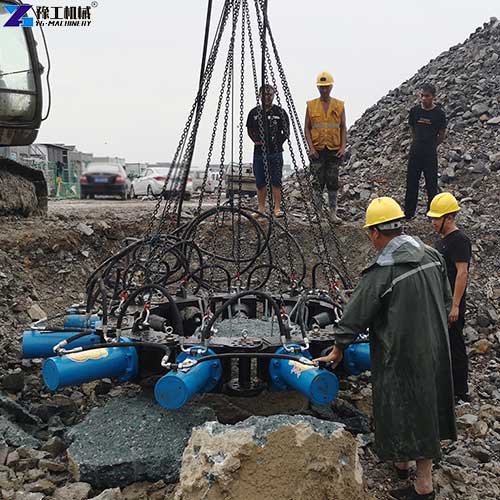

We recommended the 12-module hydraulic pile breaker machine:

• Suitable Pile Diameter: 1300–1500mm
• Single Module Weight: 3960kg
• Max Thrust: 300KN
• Compatible Excavator: ≥20T

The equipment utilises multi-point synchronous squeezing to quickly break large diameter piles, ensuring even force distribution.

IV: Results Achieved

• Efficient Pile Breaking: The time required to break each pile was reduced to one-third of the original time, significantly improving efficiency.
• Precise Construction: The pile heads were smooth and uniform, ensuring smooth subsequent construction.
• Stable Operation: The equipment proved to be stable even in high-temperature conditions, maintaining long-term operation efficiency.
• Cost Reduction: Labour costs were drastically reduced, leading to overall cost savings.
• Accelerated Project Timeline
• The construction progress was expedited, reducing the overall project timeline.

V: Client Feedback

“This machine performed exceptionally well when breaking large diameter piles. Its efficiency far exceeded our expectations. It’s easy to operate, stable, and has greatly accelerated our construction progress. It’s definitely a worthwhile investment.”

Summary

Whether dealing with medium or large diameter piles, the hydraulic pile breaker machine offers clear advantages:

• Modular design, adaptable to various pile diameters
• High-efficiency pile breaking, accelerating construction progress
• Environmentally friendly, reducing noise and dust
• Lower labour costs and increasing safety

It has been widely used in bridge construction, municipal engineering, and residential building projects, making it an essential piece of equipment for modern pile foundation construction.
