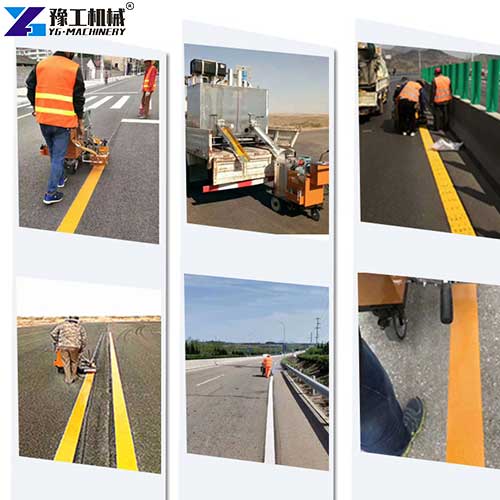

A thermoplastic road marking machine is the core equipment for building high-standard and long-lasting road marking systems. The coating material is heated and melted inside the machine’s melting tank, then transported through insulated pipes to the marking shoe for application. At the same time, reflective glass beads are evenly spread onto the surface. After contacting the road surface, the material cools and solidifies quickly. The finished road markings usually reach a thickness of 1.5-1.8 mm, providing excellent wear resistance and strong night-time reflectivity. A high-quality thermoplastic road marking paint machine is widely used for highways, airports, logistics parks, ports, parking lots, and municipal road projects. It has become an essential piece of equipment for professional road construction contractors worldwide.

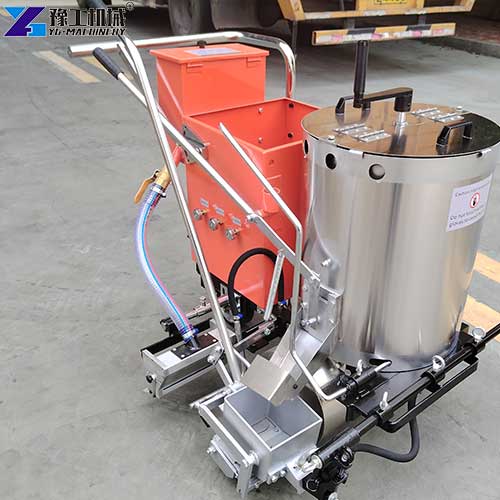

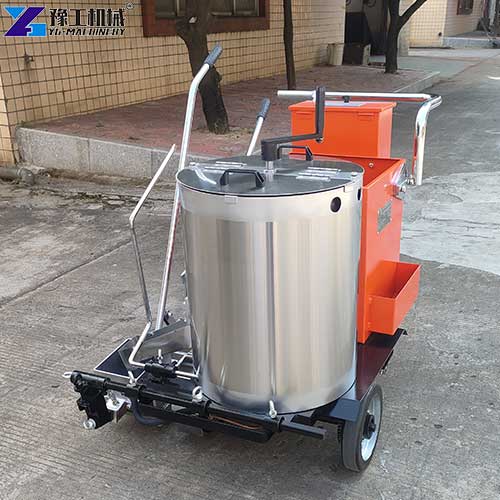

YG Thermoplastic Road Marking Machine

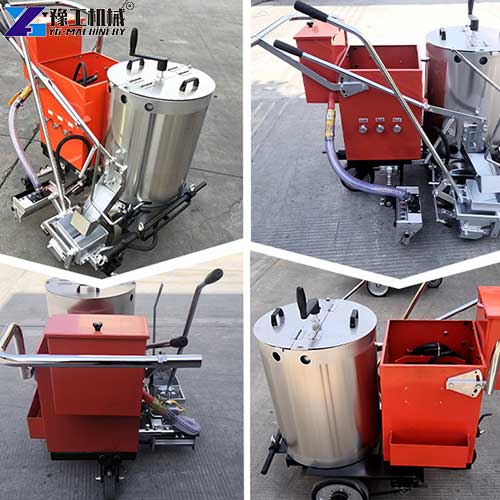

| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
Case Study 1: The United States — Winning Government Contracts Through Efficiency and Compliance
Client Background
Mark Thompson is the founder of a professional road marking contractor company in the Midwest United States. His company mainly works on highway marking projects for state transportation departments and local governments.
Challenges
The company faced strong market competition and strict contract requirements. Most U.S. road projects require:
- Uniform line thickness (usually 1.5-1.8 mm)
- Precise reflective glass bead application
- High night-time visibility
- Strict construction schedules
Their old equipment had low efficiency and unstable marking quality, making it difficult to compete for large government projects.
Solution
Mark purchased the YG-CK380S thermoplastic striping machine. The machine helped solve several major problems:
- Accurate Marking Quality: The machine uses an integrated melting tank and insulated transfer system to keep the paint temperature stable between 180-220°C. The adjustable glass bead dispenser ensures consistent line thickness and reflectivity, helping projects pass inspections successfully.
- Higher Construction Efficiency: The machine can work at speeds of 1-8 km/h. Road markings dry within 3-5 minutes, allowing roads to reopen quickly and reducing traffic delays.
- Lower Long-Term Costs: The machine structure is strong and durable. Thermoplastic road markings can last 2-4 years, much longer than cold paint markings. This reduces maintenance costs and improves customer satisfaction.
Results
After using the new equipment:
- Project acceptance rate reached 100%
- Construction efficiency increased by about 30%
- The company won more highway marking contracts
- Annual profit increased by around 15%
Client Feedback
“We used to work with older road marking equipment, which was slow and often produced inconsistent line thickness and reflectivity. After purchasing the YG thermoplastic road marking machine, our construction efficiency has improved significantly. The heating system is stable, the marking lines are uniform, and the nighttime reflectivity is excellent. Most importantly, we are now able to pass government project inspections much more easily. The YG technical support team is also very professional and helped us complete the machine setup quickly.”
Case 2: Poland — Reducing Municipal Costs with Environmentally Friendly Technology
Customer Background
Katarzyna Nowak works for a public municipal maintenance company in Poznań, Poland. She is responsible for purchasing road maintenance equipment.
Challenges
The company needed to complete city road marking projects with a limited annual budget while meeting European environmental regulations.
They required equipment that could:
- Reduce long-term maintenance costs
- Improve construction efficiency
- Minimize traffic disruption
- Meet environmental standards
Solution
The company selected the YG-CK360S thermoplastic paint machine after a public bidding process.
- Environmentally Friendly Operation: Thermoplastic paint is transported in solid form, reducing solvent pollution and packaging waste. Its long service life reduces repainting frequency and lowers material consumption.
- Flexible Urban Construction: The compact design allows easy operation on city streets, bicycle lanes, crosswalks, parking lots, and roundabouts. The steering wheel design helps improve flexibility in curved areas.
- Fast Drying and Low Noise: The machine uses a 48V lithium battery system with low noise and no exhaust emissions. It is ideal for night construction in residential areas.
Results
After introducing the new equipment:
- Annual project completion increased by 25%
- Road marking maintenance costs decreased by about 20%
- Traffic safety improved
- Public complaints were reduced
Client Feedback
“The YG thermoplastic road marking machine is very suitable for urban road construction. The equipment runs stably, operates with low noise, and the markings dry quickly, which effectively reduces traffic disruption. Compared with our previous machine, the new equipment has lower maintenance costs and higher efficiency. It is especially flexible when working on sidewalks, bicycle lanes, and complex curved roads. We are also very satisfied with YG’s after-sales service.”
Why Choose YG Thermoplastic Road Marking Machines?
- High Marking Efficiency, Faster Construction Speed: YG’s thermoplastic road marking paint machine employs an efficient heating system and a stable extrusion screed, enabling continuous and uniform line application. This significantly boosts road construction efficiency. Compared to traditional manual marking methods, the construction speed is much faster, making it more suitable for large-scale road projects, municipal engineering, and parking lot applications.
- Clear Marking Results, Superior Adhesion: The YG thermoplastic striping machine allows for precise control over material thickness and application temperature. This results in neater edges and sharper, more defined lines. The thermoplastic paint forms a strong bond with the pavement, is resistant to peeling, and offers a longer service life.
- Stable and Durable Equipment, Ideal for Long-Term Projects: Manufactured using high-quality steel and high-temperature-resistant core components, YG machines feature an overall more robust and stable structure. Even under high-temperature conditions and during prolonged, continuous operation, they maintain excellent working conditions, reducing the rate of failures and downtime.
- Simple Operation, Reduces Labor Costs: The equipment features a user-friendly design and is convenient to operate, allowing even beginners to learn quickly. The automatic temperature control system and stable marking device minimize operational complexity, reducing the labor intensity for construction personnel and thereby lowering overall labor costs.
- Comprehensive After-Sales Service and Technical Support: With extensive export and field experience, YG can provide equipment installation guidance, video training, technical support, and long-term after-sales service. When clients encounter issues during use, they can promptly receive effective solutions, ensuring greater peace of mind throughout their construction projects.
