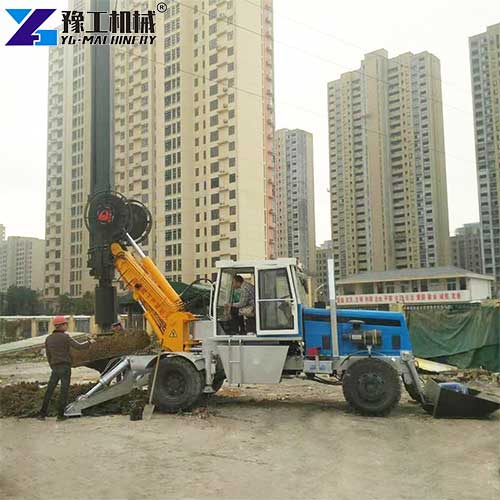

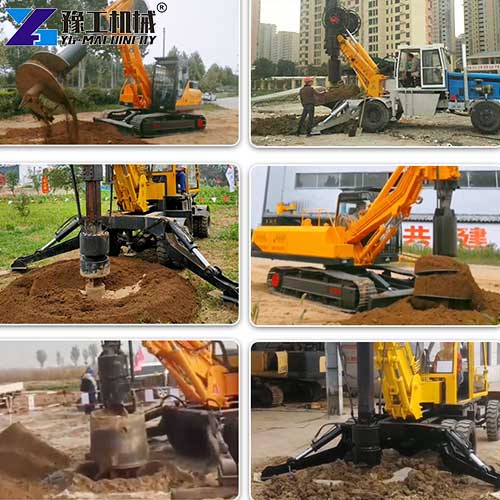

Rotary piling machines are construction machines suitable for hole-forming operations in building foundation engineering. They are primarily suitable for construction in soil layers such as sand, cohesive soil, and silty soil. They are widely used in various foundation constructions, including cast-in-place piles, continuous walls, and foundation reinforcement. It is an engineering machine that uses a hydraulic power system as its core, driving the drill rod and drill bit to rotate and cut through rock and soil via a power head. It uses a drill bucket to extract soil and circulates the operation to ultimately complete the hole-forming of the pile foundation. It integrates mechanical, hydraulic, and electrical control technologies and is suitable for pile foundation construction in buildings, bridges, railways, highways, and other engineering projects. If you are interested, please contact YG for a discount.
Rotary Drilling Machine Parameter
| Model | YG13 | YG15 | YG16 | YG20 |
| Max.Drilling Diameter | 1000mm | 1600mm | 1500mm | 1600mm |
| Max.Drilling Depth | 13m | 15m | 16m | 20m |
| Max. Rotary torque | 50KN.m | 45kN .m | 46KN.m | 36KN.m |
| Rotary angle | 360° | 180° | 180° | 360° |
| Rotary speed | 10-45r/min | 17-45r/min | 20-46r/min | 22-43r/min |
| Dimension(m) | 3.1×1.92×3.5m | 6.8×2.27×3.2m | 10 x 2.3x 3.2 m | 9.5×2.6×3.5m |
| Weight | 9ton | 13 ton | 11 ton | 17.8 ton |
Case 1: Export to the United States — YG13 Compact Rotary Drilling Rig
1. Customer Background & Identity
The customer is a local medium-sized foundation engineering contractor headquartered in Texas, USA, mainly engaged in shale gas well site construction, small industrial plant foundation projects and suburban commercial building piling work. As North America is the world’s largest rotary drilling rig market, accounting for 38.7% of global market share, the company undertakes numerous scattered infrastructure renovation and energy supporting construction projects. The contractor previously used outdated heavy-duty drilling equipment and intended to purchase a flexible, low-failure hydraulic rotary drilling rig to replace old machines, improve construction efficiency and meet local strict construction emission and safety standards.
2. Key Difficulties Encountered
- Most construction sites are narrow suburban industrial zones and well-site temporary yards, large rotary drilling rigs cannot flexibly turn and transfer, and the transportation cost of oversized equipment is extremely high.
- Local shale and soft soil geology is prone to hole collapse during piling; old equipment with fixed rotary speed cannot adjust drilling parameters according to stratum changes, resulting in unqualified hole forming and frequent project rework.
- Small-scale foundation projects only require shallow pile construction within 15 meters, large torque heavy rigs lead to high fuel consumption and serious equipment idle waste, greatly raising operating costs.
- The United States has strict noise and exhaust emission requirements for construction machinery; traditional drilling equipment fails to meet local environmental inspection standards, restricting the scope of project bidding.
3. Targeted Solution: YG13 Rotary Drilling Rig Matching Local Demand
Combined with North America’s market characteristics and the customer’s project attributes, we recommend the YG13 rotary drilling rig machine:
- YG13 features a compact overall dimension of 3.1×1.92×3.5m and a total weight of only 9 tons, supporting highway transportation and rapid transfer between scattered well sites and suburban construction plots, which greatly cuts vehicle transportation and road approval costs for oversized equipment.
- This model is equipped with a maximum drilling depth of 13m and a maximum drilling diameter of 1000mm, perfectly matching the shallow foundation construction demand of industrial parks and shale gas auxiliary facilities in Texas; the maximum rotary torque reaches 50KN·m, which can easily cope with local shale, clay and loose sandy strata.
- The adjustable rotary speed ranges from 10 to 45r/min, and the 360° full-range rotary angle allows flexible drilling in narrow working areas. Operators can adjust rotation speed in real time according to geological conditions to effectively prevent hole collapse and ensure one-time qualified hole forming.
- The whole machine adopts low-emission power configuration, meets North American environmental protection standards, helps the customer pass construction site environmental audits, and expands the range of government and energy enterprise bidding projects. We provide English operation manuals, remote technical training and a full set of vulnerable spare parts to solve the difficulty of local after-sales maintenance.
4. Actual Operation Effects
- Compact body realizes fast cross-site transfer, the equipment relocation cost is reduced by 62%, and the daily number of pile forming rises from 5 piles to 11 piles, significantly shortening the construction cycle of each project.
- Adjustable rotary speed effectively avoids hole collapse accidents in shale strata, the one-time acceptance rate of pile holes reaches 100%, and the rework loss caused by unqualified hole forming is completely eliminated.
- The small-tonnage design avoids equipment idle and excessive fuel consumption, the daily fuel cost is reduced by nearly 40%, and the comprehensive project profit margin is significantly improved.
- The low-emission configuration meets local regulatory requirements, the customer successfully obtained bidding qualifications for three energy infrastructure supporting projects, and the company’s market competitiveness in the southern United States has been greatly enhanced.
5. Customer Feedback
“Our YG13 rotary piling machine perfectly adapts to our scattered industrial and shale gas foundation projects in Texas. Its compact size saves us a huge amount of transportation and site use costs, and the strong 50KN·m rotary torque handles local complex shale geology very well. The adjustable rotating speed ensures stable hole forming quality, and the low-emission design helps us win more government construction tenders. We will recommend this reliable hydraulic rotary drilling rig to our peers in Oklahoma and Louisiana, and we plan to place a repeat order for two more units within this year.”

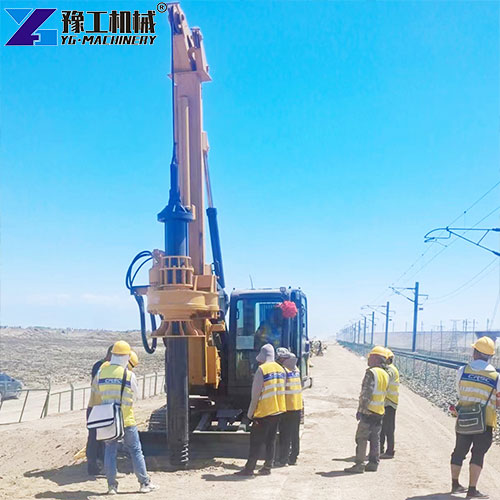

Case 2: Export to Germany — YG20 High-Standard Hydraulic Rotary Drilling Rig
1. Customer Background & Identity
The client is a well-known infrastructure engineering enterprise based in Hamburg, Germany, focusing on offshore wind power foundation, urban underground space development and cross-regional municipal bridge pile foundation construction. The European rotary drilling equipment market attaches great importance to environmental protection, intelligent control, and equipment safety performance. The customer undertakes multiple offshore wind supporting foundation projects in Northern Europe, requiring high-depth, high-precision piling equipment to complete deep foundation construction. Before cooperation, the customer compared multiple international brands and finally chose our high-standard rotary drilling rig machine to expand its wind energy engineering business.
2. Key Difficulties Encountered
- Offshore wind auxiliary foundation and urban bridge projects require a maximum pile depth of nearly 20 meters and a large pile diameter of 1600mm; the original medium-sized drilling rig cannot meet the deep drilling construction requirements, resulting in many large bidding projects being missed.
- Northern Europe has complex geological conditions, including gravel layers, weathered rock, and dense clay; insufficient rotary torque leads to slow drilling speed and frequent drill jamming, which seriously delays the project progress of wind power parks.
- European construction projects have extremely strict requirements for equipment emission, intelligent operation, and safety protection; ordinary drilling rigs lack stable intelligent control systems and cannot pass local engineering equipment access certification.
- Construction sites are mostly located in coastal areas and downtown narrow zones, requiring the drilling rig to have flexible rotation performance to complete multi-directional piling within a limited operation space.
3. Targeted Solution: YG20 Rotary Drilling Rig
According to the European high-standard market demand and the customer’s wind power project attributes, we recommend the YG20 hydraulic rotary drilling rig:
- YG20 supports a maximum drilling depth of 20m and a maximum drilling diameter of 1600mm, fully meeting the deep foundation construction standards of German municipal bridges and offshore wind power auxiliary projects. The rotary speed ranges from 22 to 43r/min, which can adapt to dense clay, gravel and weathered rock geological environments in Northern Europe.
- Equipped with 360° full-range rotary angle design, the equipment can flexibly adjust the drilling direction in coastal narrow construction sites and urban underground engineering areas, effectively making up for the space limitation of European compact construction yards.
- The whole machine is equipped with low-emission power units and intelligent hydraulic control systems, which fully complies with European environmental protection and construction machinery safety access standards. We provide German version operation specifications, professional on-site remote commissioning guidance and a long-term global spare parts supply system.
- The total equipment weight is 17.8 tons with a reasonable structural layout, which can resist the humid and corrosive coastal working environment, and the reinforced hydraulic system ensures stable continuous operation for long-term wind park construction.
4. Actual Operation Effects
- The 20m maximum drilling depth and 1600mm pile diameter fully meet the bidding technical indicators of offshore wind power projects, and the customer successfully signed two large wind farm foundation construction orders.
- The stable hydraulic system effectively solves the problem of drill jamming in gravel and weathered rock strata, the single-hole drilling efficiency is increased by 55%, and the overall project delivery period is completed ahead of schedule.
- The equipment successfully passed European environmental and safety certification, the customer’s business scope expanded from northern Germany to Norway and Denmark, and the brand influence in the European new energy infrastructure field was significantly improved.
- The 360° rotary design adapts to various narrow coastal and urban construction sites, the equipment transfer and position adjustment time is greatly shortened, and the overall labor and time cost of pile construction is effectively controlled.
5. Customer Feedback
“The YG20 rotary piling machine is an excellent piece of construction equipment that fully meets Europe’s strict environmental and construction standards. Its 20-meter maximum drilling depth and flexible 360-degree rotation function perfectly match our offshore wind power and urban underground foundation projects. The intelligent hydraulic control system runs stably in the humid coastal environment, and reliable after-sales spare parts support eliminates our worries about long-term continuous construction. This hydraulic rotary drilling rig has helped us expand our engineering business across Northern Europe, and we will establish a long-term strategic cooperative relationship with your company.”
6 FAQs about YG Rotary Piling Machine
A: Chassis, crawler, luffing mechanism, mast, power head, kelly bar, drilling bucket, hydraulic system, engine, cab, hoisting system.
A: Provides rotational torque and down pressure to the kelly bar. It is the core executive component of the rig, controlling drilling speed and cutting force.
A: Three, Mechanical Lock Bar, Friction Bar, Hybrid Bar.
A: Short auger bit, single/double bottom bucket, sand bucket, underreamer bit, rock core bit, adapted to soil, sand, rock, and other geology.
A: Dry drilling: No mud, direct soil extraction, suitable for stable soil; Wet drilling: Mud wall protection to prevent hole collapse, suitable for sand, silt, soft soil, and groundwater-rich formations.
A: Medium rig (200–360kN·m): 15–25L/h; Large rig (400–500kN·m): 25–40L/h (greatly affected by geology and working conditions).
Rotary Piling Machine-Choose YG Machinery
Benefiting from global large-scale infrastructure investment, energy development, and new energy construction, the market demand for rotary drilling rig machines continues to expand across all continents. North America dominates the global market share with mature energy and infrastructure upgrading projects, while Europe focuses on high-emission-standard intelligent low-carbon drilling equipment.
Yugong Machinery’s hydraulic rotary drilling rig series covers compact shallow piling to deep large-diameter foundation construction, which can meet the diversified procurement demands of contractors in mainstream global hot-selling regions. With stable equipment performance, standardized environmental configuration, and a perfect global after-sales system, YG rotary drilling equipment can help overseas customers reduce construction costs, expand project bidding scope, and obtain stable long-term economic benefits in the booming global infrastructure market. If you are interested, please contact YG for a discount.
