An excavator ripper attachment, also commonly known as a root ripper for mini excavator, is a high-strength hydraulic or mechanical accessory installed directly on the arm of mini and standard excavators. As one of the most cost-efficient construction attachments among all ripper attachment for mini excavator available on the market, this tool is widely promoted and supplied as excavator ripper for sale to global engineering contractors, farm operators, municipal maintenance teams and land renovation companies.
Different from standard digging buckets designed for shoveling loose soil, the ripper adopts a single thickened alloy tooth structure, specially built to break hard compacted ground, frozen soil, tree roots, weathered rock, asphalt layers and old concrete fragments. It can effectively loosen hard materials first, then cooperate with digging buckets to finish material loading and transportation. With simple installation, strong compatibility and extremely low failure rate, the root ripper quickly upgrades a regular excavator into a multi-functional construction machine, greatly improving equipment utilization. Whether for small residential land development, farmland sorting or urban road demolition, this durable excavator ripper attachment always delivers stable and reliable performance in various harsh working environments. If you are interested, please contact Yugong Machinery immediately for more information.
Mini Excavator Ripper Parameter
| Category | Unit | YG-00 | YG-01 | YG-02 | YG-04 | YG-06 | YG-08 | YG-08S | YG-10 | YG-14 | YG-17 | YG-20 |
| Total Length A | mm | 523 | 523 | 656 | 656 | 885 | 1080 | 1080 | 1290 | 1290 | 1500 | 1550 |
| Width B | mm | 130 | 130 | 180 | 180 | 240 | 345 | 345 | 400 | 400 | 465 | 465 |
| Thickness F | mm | 36 | 36 | 55 | 55 | 80 | 90 | 90 | 90 | 110 | 110 | 110 |
| Carrier | Ton | 1-2 | 3-4 | 4-6 | 6-9 | 12-16 | 20-23 | 23-26 | 26-30 | 30-40 | 40-52 | 50-90 |
| Weight | kg | 30 | 40 | 80 | 85 | 185 | 400 | 410 | 600 | 760 | 1030 | 1200 |
7 Steps Process of Excavator Ripper Attachment
1. Power Source of Mechanical Ripper
A standard ripper attachment for mini excavator uses only the excavator’s original mechanical power. It does not need any extra hydraulic drive. It relies on the excavator boom’s down pressure, forward crowd force, and arm pulling force to work.
2. Tooth Penetration Process

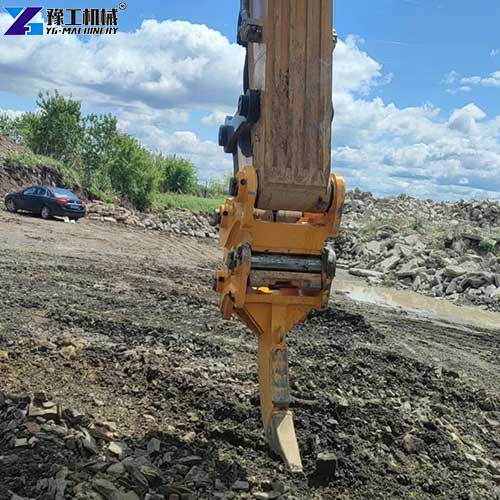

The operator lowers the excavator arm, pressing the sharp ripper tooth excavator firmly against hard ground, compacted soil, tree roots, or soft weathered rock. The concentrated pressure allows the tooth to wedge into the hard surface smoothly.
3. Material Loosening & Prying Action
After the tooth penetrates the stratum, the operator pulls back the excavator arm. The strong prying force lifts and splits the hard material. This step breaks up compacted soil, root clusters, fragmented rock and old pavement layers in a continuous, smooth movement.
4. Enhanced Working Principle of Hydraulic Ripper

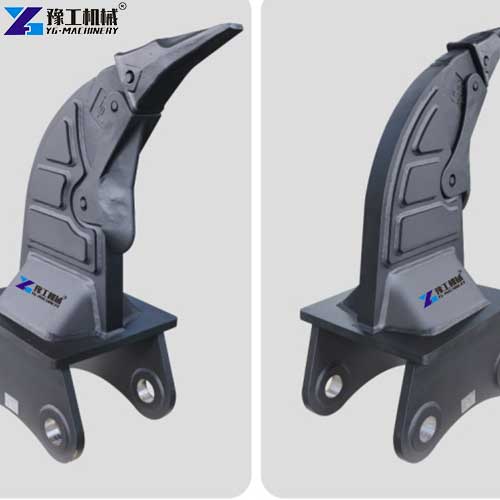

The hydraulic root ripper for mini excavator upgrades the working performance further. It connects to the excavator’s auxiliary hydraulic system. The built-in hydraulic cylinder provides extra thrust and impact force that mechanical rippers cannot offer.
5. Deep Penetration for Tough Working Conditions
With hydraulic assistance, the excavator ripper attachment can penetrate deeper into high-hardness materials, including thick frozen soil, tough asphalt layers, and heavily weathered rock. It solves the problem of insufficient penetration of ordinary mechanical rippers in harsh terrain.
6. Manual Operation Control
Operators fully control the working state through the excavator lever, including the ripper angle, penetration depth, and moving speed. The operation is flexible and precise for different construction needs.
7. Complete Construction Process
After ripping and loosening the hard stratum, the operator switches back to the standard digging bucket to collect loose soil, rock and debris. This forms a complete one-stop loosening and excavation workflow.
5 Key Features for Excavator Ripper Attachment
1. Ultra-Strong Wear-Resistant Alloy Ripper Tooth
The core working part of our excavator ripper attachment is made of high-strength quenched alloy steel. The ripper tip undergoes special wear-resistant treatment, effectively resisting friction, impact and extrusion when prying hard soil, tree roots and rocks. It avoids frequent tooth fracture or serious abrasion, greatly extending the service life of the whole attachment and cutting frequent replacement costs of vulnerable parts. This advantage makes our excavator ripper for sale stand out among ordinary low-cost ripper accessories.
2. Excellent Compatibility with Most Mini Excavators
Our standard ripper attachment for mini excavator can match most mainstream mini excavators ranging from 1 ton to 10 tons without complicated main machine modification. Users only need to replace the bucket pin to complete installation within ten minutes, and the disassembly process is equally fast. After installation, the original digging, rotating and lifting functions of the excavator will not be affected at all, allowing users to switch between ripper and bucket freely according to different construction procedures.
3. High Working Efficiency to Avoid Manual Labor
Traditional ways of clearing tree roots, breaking frozen soil and loosening hard ground rely on manual picks and small jackhammers, which consume massive labor resources and take several times longer to finish the same workload. A single root ripper for mini excavator can complete the ground loosening work of dozens of workers within a few hours, shortening the overall project cycle and avoiding extra labor expenditure and construction delay losses.
4. Compact Structure Suitable for Narrow Working Spaces
Compared with large breaking hammers and other heavy attachments, the single-tooth ripper has a compact and slender body. It can easily enter narrow spaces such as backyard renovation areas, roadside green belts, pipeline trenches and small farm plots, where large construction equipment cannot work normally. It achieves flexible operation with no construction dead angles, perfectly meeting the construction demands of scattered small-scale projects.
5. Low Failure Rate & Simple Daily Maintenance
The mechanical structure of the excavator ripper attachment is very simple, with few internal transmission parts and almost no risk of hydraulic oil leakage. Daily maintenance only requires regular lubrication of pin shafts and checking the tightness of fixing bolts. Even construction teams without professional maintenance personnel can complete routine inspection quickly, effectively reducing equipment downtime caused by mechanical faults.

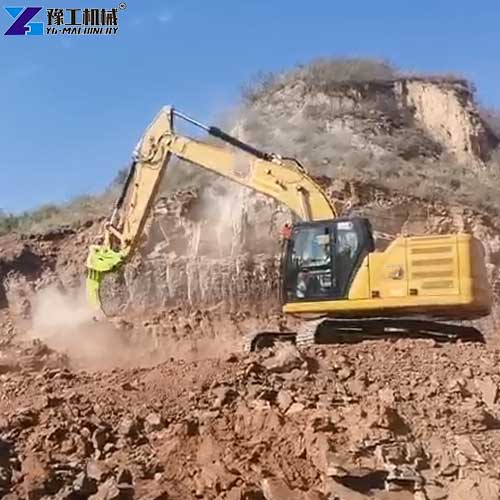

5 Applications for Excavator Ripper Attachment
1. Farmland & Orchard Renovation
The root ripper for a mini excavator is highly popular among agricultural investors. It is used to pull out old tree root clusters, loosen hardened farmland soil, clear waste shrubs, and level wasteland, greatly improving the efficiency of orchard reconstruction and farmland consolidation.
2. Municipal Road Maintenance & Demolition Projects
Construction teams use the ripper attachment for a mini excavator to pry up old asphalt pavement, loosen hardened road foundations, and break fragmented concrete layers during road renovation. It cooperates with digging buckets to quickly clean waste pavement materials, effectively accelerating urban road maintenance progress.
3. Residential Yard & Landscape Construction
In villa courtyard renovation, park greening and landscape engineering, the excavator ripper attachment clears underground root networks, loosens planting soil and shapes terrain. Its flexible operation ensures no damage to surrounding buildings, garden facilities, and buried pipelines.
4. Frozen Soil Construction in Cold Regions
In northern high-latitude areas, soil will freeze hard in winter. Ordinary buckets cannot dig into frozen ground, while our heavy-duty excavator ripper for sale can smoothly penetrate frozen soil layers to complete foundation excavation, pipeline trenching, and land leveling work.
5. Small Foundation & Pipeline Trench Engineering
Before pipeline laying and small building foundation construction, the ripper loosens compacted hard soil and weathered rock, making subsequent trenching and excavation smoother, avoiding bucket jamming and greatly improving overall construction safety and efficiency.
4 FAQs about YG Excavator Ripper Attachment
A: Our standard ripper attachment for mini excavator is suitable for 1–90 ton excavators. We can customize the connecting pin size, ripper thickness and structural strength according to your excavator model to achieve perfect matching.
A: It can efficiently handle compacted hard clay, frozen soil, tree root clusters, weathered soft rock, asphalt pavement, fragmented concrete and wasteland shrubs. It is not recommended for use on extra-hard granite to prevent ripper tooth deformation.
A: Installation only needs replacing connecting pins, which can be finished within 10 minutes. Operators use the original excavator operating lever to control the ripper; no additional learning system is needed, and novice drivers can master operation quickly.
A: Excavators under 40 tons are generally in stock and can be shipped within 3-5 days.
Excavator Ripper Attachment Price-Choose YG Machinery
Whether you are engaged in municipal engineering, agricultural land renovation, landscape construction or small demolition projects, our durable excavator ripper attachment and cost-effective root ripper for mini excavator can greatly upgrade your construction capacity. With flexible model selection, stable quality and competitive market price of excavator ripper for sale, this versatile ripper attachment for mini excavator helps global users reduce equipment investment and labor costs while maximizing project profits. If you are interested, please contact YG for a discount.
