YG spider crane is a compact lifting solution designed for confined spaces and complex working conditions. As a practical mobile spider crane, it is easy to transport and can quickly move between different job sites. With its flexible outriggers and crawler system, it also works efficiently as a mini crawler crane or spider crawler crane in narrow or uneven environments. The machine is suitable for indoor lifting, glass installation, equipment handling, and light construction work. It offers stable performance, precise control, and reliable operation, helping users complete lifting tasks more safely and efficiently.

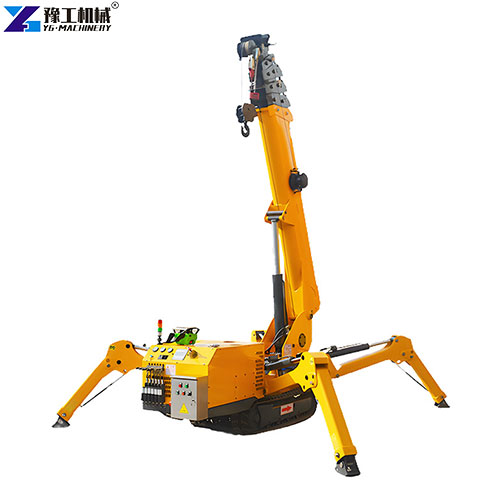

Parameters of YG Spider Crawler Crane
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |

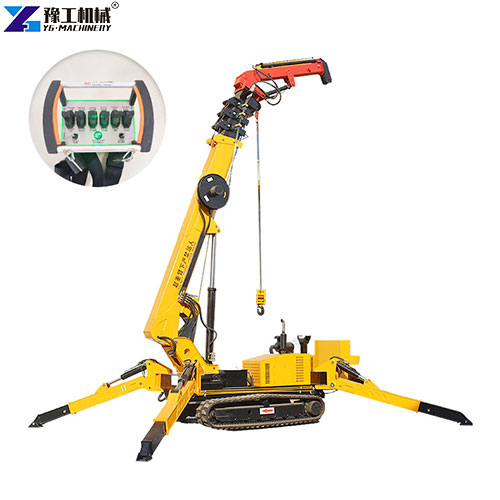

| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Case Study 1: Glass Installation Project in France
Client Background
The client is a glass installation contractor in France, mainly working on residential and commercial buildings. Many projects require lifting glass panels in tight urban environments.
Challenges
- Limited Working Space: Construction areas were narrow, making it difficult for large cranes to enter.
- Indoor Lifting Needs: Some lifting tasks had to be completed inside buildings with restricted access.
- Manual Handling Risks: Traditional manual lifting posed safety risks and reduced efficiency.
Solution
We recommended a compact mobile spider crane, featuring:
- Small size for easy access through narrow spaces
- Lightweight design suitable for indoor operation
- Flexible outriggers for stable positioning
- Precise control for delicate lifting tasks
This mini crawler crane could be easily transported and positioned near the work area.
Results
- Better Accessibility: The spider crane successfully operated in tight job sites where larger machines could not.
- Improved Safety: Reduced manual handling lowered risks during installation work.
- Stable Operation: The machine maintained good balance and control throughout the lifting process.
- Higher Efficiency: Work became more organized and slightly faster compared to traditional methods.
Client Feedback
“This mobile spider crane is very practical for our projects. It works well in narrow spaces and improves both safety and efficiency.”
Case Study 2: Equipment Installation Project in Kazakhstan
Client Background
The client is a construction service company in Kazakhstan, focusing on equipment installation and small-scale construction projects in areas with challenging ground conditions.
Challenges
- Uneven Terrain: Some job sites had soft or uneven ground, affecting equipment stability.
- Transport Difficulties: Large cranes were not convenient for remote or smaller projects.
- Slow Setup: The client needed equipment that could be deployed quickly and easily.
Solution
We supplied a spider crawler crane, configured with:
- Crawler chassis for improved mobility and ground adaptability
- Compact structure for easier transport
- Simple setup process
- Stable lifting performance for routine tasks
This mini crawler crane provided a reliable solution for both outdoor and semi-confined environments.
Results
- Improved Mobility: The crawler system allowed the crane to move smoothly across uneven surfaces.
- Flexible Use: The compact design made it suitable for different types of job sites.
- Reliable Performance: The crane handled lifting tasks steadily without complicated adjustments.
- Better Workflow: Faster setup helped improve overall work efficiency.
Client Feedback
“The spider crawler crane is easy to transport and works well on uneven ground. It’s a practical solution for our daily projects.”
Summary

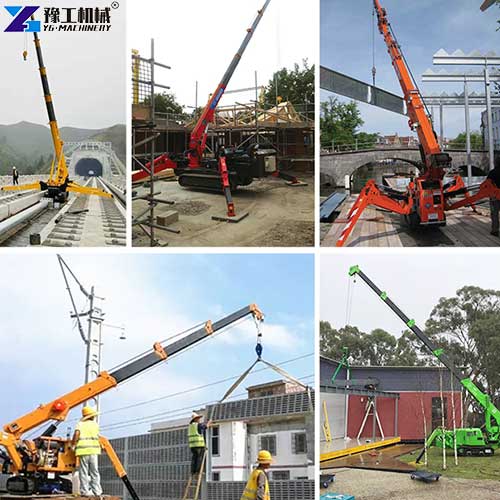

YG mobile spider crane solutions are widely used in construction, installation, and maintenance work, offering key advantages:
- Compact size for confined and indoor spaces
- Easy transport and flexible movement
- Stable operation with crawler and outrigger support
- Suitable for various working environments
Our mini crawler crane and spider crawler crane models have been successfully used in France, Kazakhstan, and many other countries, providing reliable lifting solutions for complex job sites.
