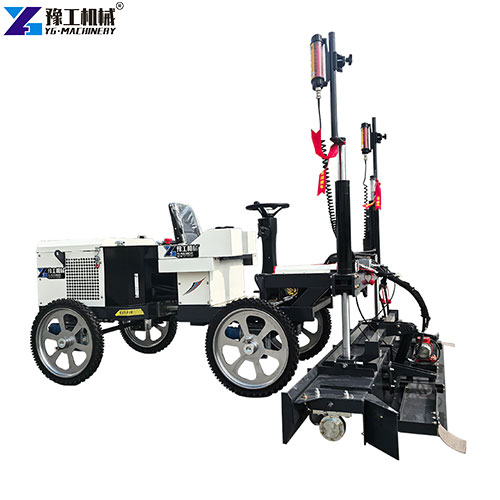

A concrete laser leveling machine is an advanced piece of equipment that uses laser technology to achieve high-precision and efficient leveling of concrete surfaces. By projecting a rotating laser beam as a reference plane and using a laser receiver to control the leveling head in real time, the concrete laser leveling machine ensures superior flatness and accuracy. Compared with a traditional concrete floor leveling machine, this system significantly improves surface flatness, levelness, and density. It is widely used in large-scale construction projects such as industrial plants, shopping malls, and warehouses. With automation and precision control, a concrete laser leveling machine can greatly enhance productivity while reducing labor costs.
YG Concrete Laser Leveling Machine Technical Parameter
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
4 Steps Working Process of Laser Concrete Leveling Machines
- Laser Reference Establishment: The laser transmitter emits a rotating beam to create a stable horizontal reference plane. This ensures that every laser concrete leveling machine operates based on a consistent benchmark.
- Signal Reception and Deviation Detection: The receiver collects laser signals and analyzes them through a control system, allowing the concrete laser leveling machine to detect real-time height differences.
- Closed-Loop Automatic Adjustment: Deviation data is fed back to the control system, which automatically adjusts the scraper height via actuators, ensuring high precision similar to that of an automatic concrete leveling machine.
- Leveling and Vibration Synchronization: The leveling head operates via a hydraulic system, while a high-frequency vibrator (up to 4000 vibrations per minute) compacts the concrete, resulting in a dense, uniform final surface.
6 Core Advantages of the YG Concrete Laser Leveling Machines
- Superior Construction Quality: The concrete laser leveling machine improves flatness over large areas, reduces construction joints, and minimizes cracks, ensuring structural integrity.
- Improved Surface Performance: Unlike a basic concrete floor leveling machine, it effectively eliminates hollowing, peeling, and uneven surfaces, reducing long-term maintenance costs.
- High Efficiency: A laser concrete leveling machine can increase efficiency by up to 3 times compared to traditional methods, especially for large, simple layouts.
- Reduced Construction Costs: By minimizing formwork requirements (up to 74% reduction), a concrete laser leveling machine for sale becomes a cost-effective investment for contractors.
- High Automation, Lower Labor Intensity: An automatic concrete leveling machine reduces manual workload, allowing fewer operators to complete more work efficiently.
- Lower Maintenance Costs: Using a concrete laser leveling machine can save 2–3 RMB per square meter by reducing joints and improving durability.
5 Applications of the Concrete Floor Leveling Machines
- Industrial Factory Floors: A concrete laser leveling machine is ideal for manufacturing plants requiring high flatness and load-bearing capacity.
- Warehousing and Logistics Centers: Compared with a traditional concrete floor leveling machine, it ensures smoother surfaces for forklifts and automated systems.
- Commercial Complexes: A laser concrete leveling machine is perfect for malls and parking structures, delivering fast and high-quality results.
- Airports and Infrastructure: Large-scale areas like runways and parking zones benefit from the efficiency of a concrete laser leveling machine for sale.
- Data Centers and Precision Facilities: An automatic concrete leveling machine provides millimeter-level accuracy required for sensitive equipment installations.
5 Reasons to Buy a Concrete Laser Leveling Machine
- Higher Profit Per Project: With a concrete laser leveling machine, you can offer higher-quality results and win premium projects, increasing profit margins.
- Faster Project Turnaround: Compared to a traditional concrete floor leveling machine, efficiency improves 2–3 times, enabling faster completion and quicker payments.
- Dual Income Streams: Investing in a concrete laser leveling machine for sale allows you to earn from both construction and equipment rental.
- Reduced Labor Dependency: An automatic concrete leveling machine minimizes reliance on skilled workers, reducing hiring risks and labor costs.
- Access to High-End Projects: Many modern projects require a laser concrete leveling machine, giving you access to larger and more profitable opportunities.
5 FAQs about the YG Laser Concrete Leveling Machines
A: Poland, Brazil, Mexico, the United States, Peru, the Philippines, Indonesia, and many other countries and regions.
A: Yes. We have CE certification and factory inspection reports. If you need them, we can provide them to you.
A: Yes. We will provide an operation manual or video guidance, so even beginners can quickly learn how to operate it.
A: It can improve efficiency by 2–3 times.
A: Yes. All YG machines come with a warranty. If you have any problems during use, you can contact us at any time.
As construction standards continue to rise, the concrete laser leveling machine is becoming essential equipment for contractors and intermediaries. Whether you aim to improve efficiency, reduce costs, or expand into higher-end markets, investing in a concrete laser leveling machine is a strategic move that delivers long-term returns.
