The small water well drilling machine is a portable water well solution. It features a highly integrated, modular design that allows for easy operation and transport by a single person, significantly lowering the barriers and labor costs of well drilling. Its core advantage is transforming traditionally inaccessible professional drilling into a transparent, controllable, standardized service. Whether for household water, farm irrigation, or small project supply, this small water drilling machine empowers you to secure your own water source, offering a smart, economical way to drill your own reliable well. If you are interested, please contact Yugong Machinery immediately for more information.

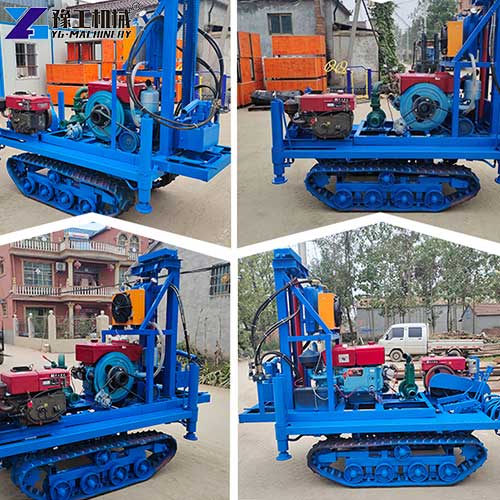

Small Water Well Drilling Rig Parameter
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
6 Core Features of Small Water Well Drilling Machine
1. Compact Portable Wheel Trailer Design

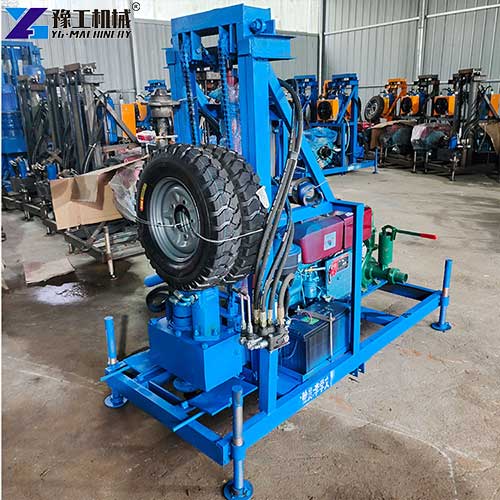

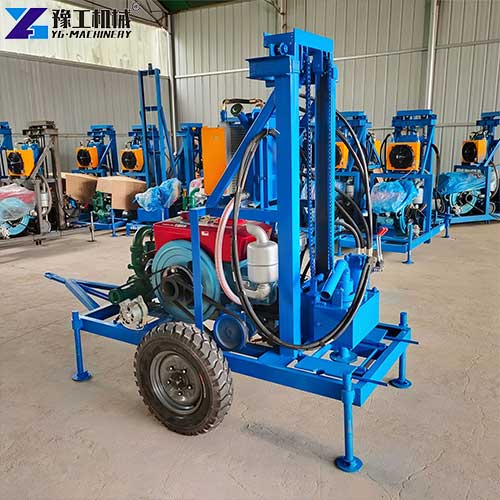

This small water well drilling machine adopts an integrated blue wheeled trailer structure with a lightweight body. It can be towed by ordinary pickup trucks and easily passes narrow rural roads, farm lanes and courtyard gates where large drilling equipment cannot enter. The whole machine can be deployed within 30 minutes on site, greatly saving preparation and transportation time for frequent cross-region drilling tasks.
2. Stable Diesel Power with Electric Start
Equipped with a high-torque diesel engine and an electric starting system, the small water drilling machine can start smoothly in remote areas without a commercial electricity supply. It matches a high-efficiency mud pump to realise stable mud circulation, effectively cooling drill bits and discharging rock soil residues, avoiding drill jamming and hole collapse during continuous drilling.
3. Strong Geological Adaptability
Matched with multiple wear-resistant drill bits, the small borehole drilling machine works well in clay, sandy soil, weathered soft rock and other common strata. It supports adjustable drilling diameter and can reach a maximum drilling depth of 150 meters, fully meeting the water intake demands of household drinking wells, farm irrigation wells and small livestock breeding water wells.
4. Simple Hydraulic Control & Easy Operation
The centralised hydraulic operating handle has a clear layout, with functions of lifting, rotating and feeding concentrated in one control area. Novice operators can master the whole drilling process through short video training; no professional drilling technical background is required, effectively solving the problem of difficult recruitment of senior drillers in rural areas.
5. High Safety with Overload Protection
Built-in hydraulic overload protection and emergency stop device. When encountering a hard stratum that causes drill sticking, the machine will automatically release pressure to protect the drill rod and engine from damage. Four stable support legs fix the whole equipment firmly on uneven ground to prevent tipping accidents during high-speed rotary drilling.
6. Low Maintenance & Durable Structure
The main frame is made of thickened steel with anti-rust blue paint spraying, which resists rain, dust and mud erosion in field construction. Vulnerable parts such as drill bits, sealing rings and water pipes are universal standard accessories, with low purchase price and convenient global procurement, greatly reducing long-term equipment maintenance costs.
6 Key Benefits of Purchasing Small Blue Water Well Drilling Machine
1. Cut Long-Term Well Drilling Rental Costs
Many farmers and small engineering teams used to rent drilling equipment at high daily prices for water well construction. Purchasing one set of small water well drilling rigs for sale eliminates repeated rental expenses. With continuous batch drilling work, the equipment investment can be recovered in a short period.
2. Expand Business Service Scope to Gain More Orders
After owning independent drilling equipment, contractors can provide door-to-door well drilling services for surrounding villages, farms and small processing factories. They no longer need to outsource drilling projects, and can undertake more residential and agricultural water well orders to increase overall operating income.
3. Solve Local Water Shortage Problems for End Customers
In arid rural and mountainous areas, unstable municipal tap water often restricts agricultural planting and livestock breeding. With this portable drilling machine, you can quickly dig stable groundwater wells for customers, helping local users get safe and sustainable water resources and win stable word-of-mouth repeat orders.
4. Save Labor Input and Improve Drilling Efficiency
One or two workers can complete the whole process of moving, fixing, drilling and pipe lowering with this machine. Compared with traditional manual drilling and large rig operation that requires 4 to 6 staff, it greatly reduces labor expenditure and shortens the construction cycle of a single water well.
5. Adapt to Complex Rural Terrain and Remote Working Sites
Whether it is mountain sloped farmland, remote village courtyards or greenhouse planting bases, the compact trailer-type drilling rig can reach the construction location smoothly. It breaks the geographical limitation of large drilling equipment and lets you tap the rural water well market that competitors cannot cover.
6. High Cost Performance with Low Fuel Consumption
The small-displacement energy-saving diesel engine effectively controls daily fuel consumption. Combined with low-cost maintenance and wide market applicability, this blue small drilling rig has become the most cost-effective choice for individual drillers and small rural engineering teams among all small water well drilling rigs for sale.
Real Customer Cases about Small Water Well Drilling Machine
Case 1: Mexico – Rural Farm Irrigation Well Project
- Customer Background: The Mexican buyer runs a local agricultural service team, providing irrigation and domestic water well drilling for rural farms and fruit plantations. Frequent drought pushes high demand for well drilling, so he purchased the YG-240-22P small water well drilling machine.
- Difficulties:
- Narrow rural farm roads cannot accommodate large drilling rigs.
- Remote farmland has no grid electricity, electric rigs cannot work on site.
- Previous rented equipment often got stuck underground, delaying delivery and causing customer complaints.
- Solution: We supplied a portable rig with 200kg light weight, compact 145015501970mm dimension, 22HP diesel engine, 42mm automatic threaded drill rods and maximum 200m drilling depth. Its 1000kg lifting force effectively prevents drill jamming and adapts to local clay and sandy soil.
- Effect: The lightweight unit is easily towed by pickup trucks into narrow farm courtyards. Diesel drive supports fully off-site operation, and automatic rod replacement greatly improves efficiency. The rig drills to 200 meters smoothly, with a maximum borehole diameter under 280mm, perfectly meeting farm irrigation water needs. Drilling failure rates drop sharply, and the customer completes more orders monthly.
- Customer Feedback: “This small water drilling machine is lightweight and powerful. The 200m maximum depth fully meets our rural drilling demands, no more drill sticking issues. These reliable small water well drilling rigs for sale help us greatly raise profit margins.”
Case 2: Chile – Mountain Rural Domestic Drinking Well Project
- Customer Background: The Chilean client works as a municipal engineering contractor, undertaking government rural safe drinking water projects in mountainous villages. He ordered YG-240-30P small borehole drilling machine for batch well construction tasks.
- Difficulties:
- Steep, muddy mountain roads require compact, easy-to-transport drilling equipment.
- Local weathered rock strata need strong lifting power to avoid hole collapse.
- Government projects have tight deadlines, requiring high-efficiency automatic drilling equipment.
- Solution: We offered a rig with a 200kg weight, 30HP diesel engine, 51mm automatic threaded drill rods, 2000kg maximum lifting force and 2.5m lifting height. It supports 100–240mm borehole diameter and 200m drilling depth, perfectly fitting mountain complex geology.
- Effect: Compact size enables flexible transportation between scattered mountain villages. Strong 2000kg lifting force effectively avoids hole collapse in mixed rock and soil strata. Automatic threaded rod changing saves plenty of working time, helping the team finish all government well-drilling tasks ahead of schedule and pass official acceptance smoothly.
- Customer Feedback: “We chose this small water well drilling machine for its strong 30HP power and high lifting capacity. It performs steadily in Chile’s mountain areas, allowing us to win more government water conservancy projects.”
5 FAQs about YG Small Water Well Drilling Machine
A: This small water drilling machine can drill up to 200 meters deep, suitable for clay, sandy soil, loam and weathered soft rock strata, ideal for shallow water well projects.
A: Only 1 to 2 skilled workers can finish all drilling work, and new operators can master the operation skill after 1 to 2 hours of professional training.
A: We provide one-year whole machine warranty, multi-language operation tutorials, 24-hour online technical support and long-term global supply of drill bits, sealing rings and other vulnerable spare parts.
A: It is widely used in rural household drinking wells, farmland irrigation wells, livestock breeding water wells, greenhouse water intake and small geothermal shallow hole drilling projects.
A: Absolutely, we can configure different sizes of alloy drill bits to match local strata and meet different well diameter construction requirements for our global customers purchasing small water well drilling rigs for sale.
Small Water Well Drilling Machine Price-Choose YG Machinery
The small blue small water well drilling machine has become the mainstream preferred equipment for rural water conservancy and agricultural well-drilling service industries. With portable mobility, stable diesel power, wide geological adaptability, simple operation and low maintenance cost, these small water well drilling rigs for sale help drilling contractors break geographical restrictions, reduce comprehensive operating costs and continuously expand local market share. Choosing this reliable small water drilling machine will bring stable income growth and long-term competitive advantages for your business. If you are interested, please contact YG for a discount.
