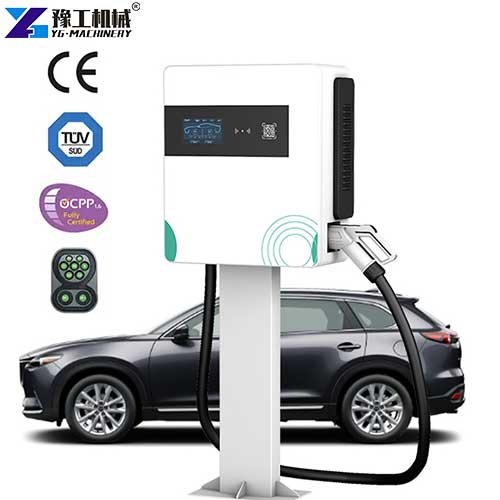

EV Charging Pile

EV charging piles are your reliable partners in embracing the electric future. They integrate high-efficiency fast charging, multiple safety features, and intelligent connectivity, and are compatible with mainstream vehicle models, making charging safe and worry-free. Whether installed in a home garage or deployed in a commercial location, they are perfectly suited for your needs. Choosing our charging stations is not just about choosing a convenient charging method, but also an investment in long-term energy conservation, asset appreciation, and a sustainable lifestyle. If you are interested, please contact YG for a discount.

GET YOUR FREE QUOTE

Commercial EV Charging Stations Parameter

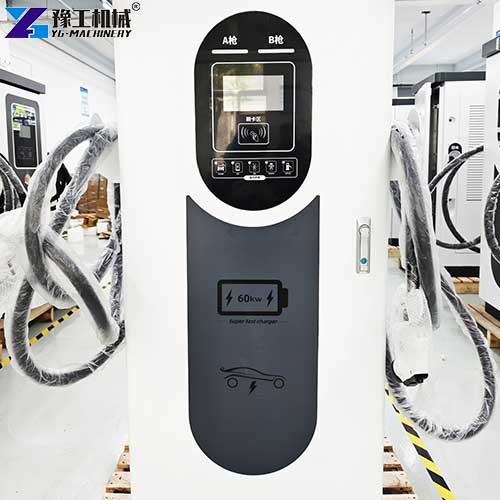

Product number		YG-60KW	YG-80KW	YG-120KW
Detailed specification	rated power	60KW	80KW	120KW
Charging equipment	User Interface	7-inch LCD color display touchscreen
	installation	Floor-standing/Down in down out
	Routing mode device size	635*423*1600(mm)
	Input voltage	AC380V±20%
	Input frequency	45~65Hz
	The output voltage	200-750VDC
	Single gun output current range	200V-500V	200V-500V	200V-500V
	The output voltage	0-90A	0-120A	0-160A
	Single gun output current range	200V-750V	200V-750V	200V-750V
	The output voltage	0-60A	0-80A	0-107A
Charging equipment	Single gun output current range	0-112A	0-150A	/
	Cable length	5m
Electrical index	Measurement accuracy	Level 0.5
	Current limit protection value	≥110%
	Voltage regulation accuracy	≤±0.5%
	Steady flow accuracy	≤±1%
	Ripple coefficient	≤±0.5%
	effectiveness	≥94.5%
	Power factor	≥0.99 (50% load or more)
	Harmonic content THD	≤5% (50% load or more)
Feature design	HMI	7-inch LCD color display touch screen, LED indicator
	Charging mode	Auto full / fixed power / fixed amount / fixed time
	payment method	Credit card payment / APP payment /Scan code payment
	Communication Interface	Ethernet 2/3/4G (optional)
Safety design	Executive standard	GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008
	security function	Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection
Environmental indicators	Operating temperature	-25°C~+50°C
	Working humidity	5%~95% non-condensing cream
	Working elevation	<3000m
	Protection level	IP54
	cooling method	Forced air cooling
	Noise control	≤60dB
	MTBF	100,000 hours

GET YOUR FREE QUOTE

7 Features of EV Charging Pile

1. Ultra-fast DC Charging Performance: The standard DC charging pile adopts high-power DC output. It can charge an EV from 20% to 80% in 30 to 40 minutes, greatly reducing wait times and perfectly meeting the demands of high-traffic public charging stations.
2. Comprehensive Multi-level Safety Protection: Built with over-current, over-voltage, leakage, over-temperature, and lightning protection systems. It will automatically cut off power under abnormal conditions, ensuring safe operation in harsh outdoor environments year-round.

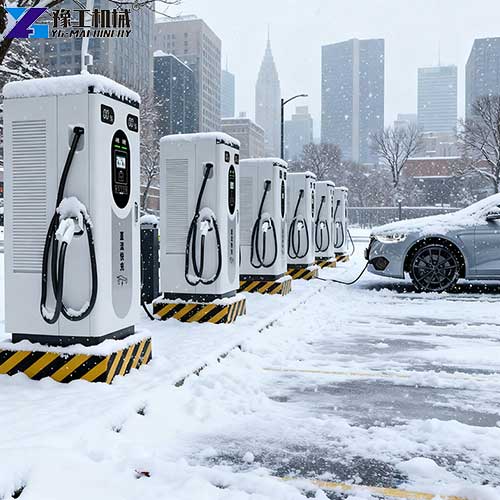

3. Wide Temperature Adaptability: Optimized internal components and heat dissipation system support normal operation at -25℃ to +50℃. It can adapt to Russia’s cold without performance decline.
4. Intelligent Remote Management System: Equipped with a cloud platform connection function. Operators can monitor real-time working status, check charging data, realize remote start, stop, and fault diagnosis, and reduce daily maintenance costs effectively.
5. High Compatibility with Most EV Models: Standard CCS and mainstream charging interfaces match most electric cars, electric buses, and electric trucks in European, American, and Latin American markets, with no need for extra adapters.

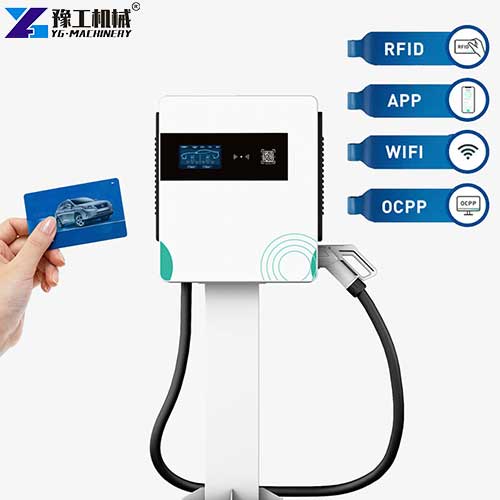

6. Integrated Metering & Billing Function: Accurate electric energy metering supports multiple payment methods, including card swiping, QR code scanning, and app payment. It is convenient for commercial operation and unified revenue management.
7. Sturdy Outdoor Waterproof & Dustproof Design: Reach IP54 high protection grade. The sealed cabinet prevents rain, dust, and snow erosion, suitable for long-term outdoor installation along highways, parking lots, and service areas.

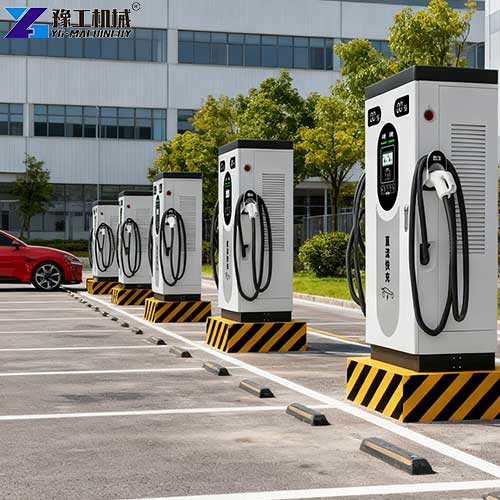

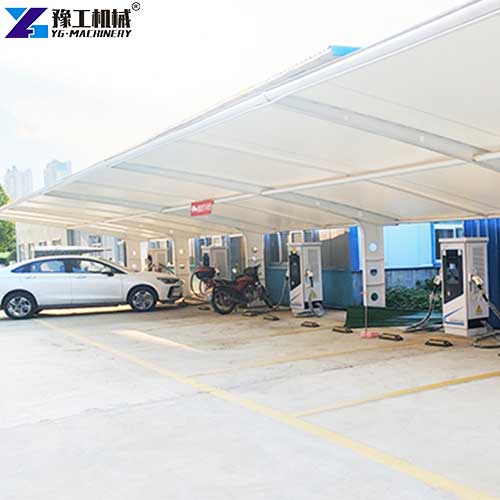

7 Main Applications of EV Charging Pile

1. Highway Service Areas & Gas Stations: Large-scale DC charging pile clusters are installed to provide fast energy supplement for long-distance traveling EVs, becoming the core supporting facility of highway charging networks.
2. Urban Public Parking Lots: Deploy mixed AC and EV charging piles to serve private car owners. It balances charging speed and cost, improving the convenience of urban public travel.
3. Commercial Complexes & Shopping Malls: High-power fast chargers allow customers to finish charging while shopping. It enhances customer experience and adds new profit points for commercial operators.
4. Residential Communities & Apartment Parks: Install wall-mounted and vertical electric vehicle charging piles for household EV users, solving the daily charging problem of residents.
5. EV Fleet & Logistics Vehicle Stations: Dedicated charging areas for electric taxis, delivery cars, and company fleets. High efficiency ensures the continuous operation of transport vehicles.
6. Industrial Parks & Factory Zones: Meet the charging demands of employee private cars and factory electric transport vehicles, supporting the green development of industrial parks.
7. Tourist Attractions & Scenic Spots: Build public charging stations in scenic areas to serve tourist vehicles, improving the overall service level of tourist destinations.

GET YOUR FREE QUOTE

Real Customer Cases about EV Charging Pile

Case 1: Russian Local New Energy Operator

• Client Background: A professional public charging station operator in Russia, responsible for urban and highway new energy charging infrastructure construction, focusing on stable outdoor charging equipment procurement.
• Difficulties: Local winter ultra-low temperature leads to ordinary chargers failing to start stably; most DC charging piles on the market have incomplete safety protection and low working efficiency, with an uncontrollable charger EV price.
• Solution: Purchased batch YG-120KW high-power electric vehicle charging pile, supporting -25°C low-temperature operation, IP54 protection, 94.5% high efficiency, and full safety protection functions. Adopts forced air cooling and multi-protection design to adapt to the Russian cold outdoor environment.
• Effect: The charging pile runs stably in cold winter with no startup failure. 120KW high power greatly improves charging speed, 0.99 high power factor reduces power consumption, effectively reducing station operating costs.
• Client Feedback: “This high-power EV charging pile adapts perfectly to Russia’s cold climate. Stable performance and cost-effective charger EV price bring great benefits to our charging station.”

Case 2: Mexican Commercial Property Developer

• Client Background: Mexican commercial real estate developer, committed to supporting EV charging facilities for shopping malls, parking lots, and residential communities.
• Difficulties: Local high-temperature and humid weather easily causes charger overheating failure; traditional charging piles have a single payment mode and poor compatibility, failing to meet public commercial charging needs.
• Solution: Adopted YG-60KW & YG-80KW DC charging pile, with 5%–95% non-condensing humidity resistance, forced air cooling, multiple payment methods, and 7-inch touch screen humanized design. Complete safety protection avoids high-temperature operation risks.
• Effect: The equipment maintains stable operation under high temperature and humid conditions. Diversified scanning code, APP, and card payment modes greatly improve user experience, fully meeting commercial public charging demands.
• Client Feedback: “These electric vehicle charging piles are durable and user-friendly. Reasonable charger EV price and low failure rate make them our long-term preferred charging equipment.”

5 Purchasing Guides for EV Charging Piles

1. Select Types According to Usage Scenarios: Choose a DC charging pile for public stations, highways, and places requiring fast charging. Select AC slow charging piles for residential parking spaces and private use to save costs.
2. Focus on safety performance: Confirm full protection functions like over-temperature, short circuit, and leakage protection to meet international construction standards.
3. Check intelligent configuration: Prioritize devices with multiple payment methods and optional 2/3/4G communication for convenient commercial operation.
4. Confirm Power & Interface Compatibility: Check the local mainstream EV models and matching charging interfaces in advance. Select appropriate power specifications to avoid insufficient charging power or waste of resources.
5. Verify After-sales Service Support: Choose suppliers that can provide overseas installation guidance, spare parts supply, and remote technical support, to ensure long-term stable operation of the

GET YOUR FREE QUOTE

5 FAQs about YG EV Charging Pile
