In mineral exploration, site investigation, and similar projects, choosing the right drill rig is the cornerstone of project success and profitability. The hydraulic core drilling machine and the core drilling rig represent solutions tailored for different exploration needs. Think of the hydraulic core drilling machine as the deep exploration specialist, delivering the highest core recovery and operational efficiency in holes over 300 meters, in hard rock, and complex formations. The core drilling rig is the versatile all-rounder, capable of both core sampling and water well construction, ideal for shallower (typically under 150 meters) prospecting, site investigation, and well drilling. Your choice depends on target depth, formation complexity, and your business plan. This guide helps you distinguish between them to find your perfect rig. Want to know more? Contact YG.
Hydraulic vs. Core Drilling: Choosing Your “Precision Scalpel” or “Multi-Tool”
The hydraulic core drilling machine and the spindle-type core drill represent two different technical philosophies, not simply “advanced” vs. “obsolete.” Understanding their core differences is your first step to avoiding costly investment mistakes and maximizing equipment value.

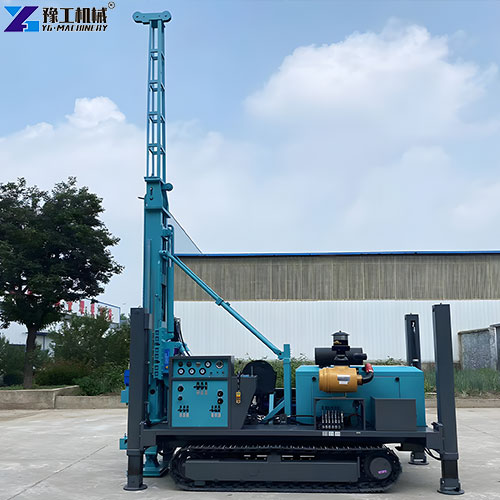

Hydraulic Core Drilling Machine: This is a precision data-gathering platform built for “high-quality, deep exploration.” Its heart is the wireline coring system. The hydraulic system provides infinite speed control and precise feed, allowing the core barrel to be retrieved on a wireline without pulling all the drill rods. This maximizes pure drilling time. It holds an overwhelming advantage in core recovery and efficiency for deep holes (often 300m+) and complex geology. However, as its tools, process, and circulation system are specialized for coring, the equipment is more complex and costly.

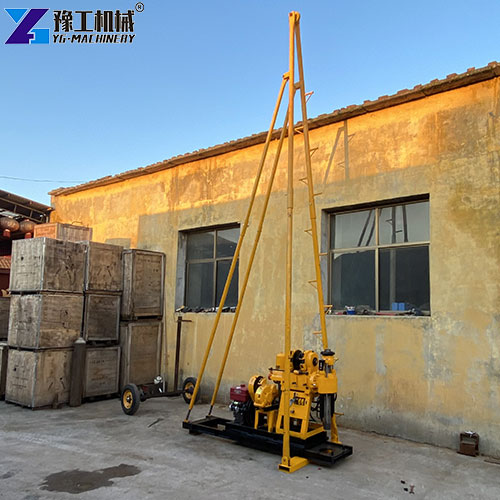

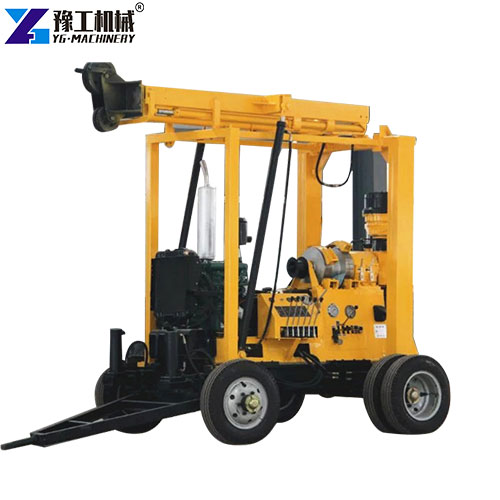

Core Drilling Rig: This is a rugged, multi-purpose “general rotation drill.” Its vertical spindle rotates the drill string. It can be fitted for coring or, paired with a mud pump, drill water wells and boreholes. Its strengths are flexible function switching, simple/reliable design, strong adaptability to moderate depths (~150m) and various formations, and significantly lower purchase/maintenance costs compared to a hydraulic core drilling machine.
Matching the Machine to the Mission: A Scenario Guide
Best for a Hydraulic Core Drilling Machine:
Deep Mineral Exploration: Target depth >300m, especially for metal deposits or deep geothermal projects needing high-quality, continuous core. High recovery and efficiency are key to ROI.
Complex/Fractured Formations: Operating in broken, altered rock where precise pressure/RPM control from a hydraulic core drilling machine protects the core and boosts recovery rates.
Data-Intensive Projects: Serving international mining firms or research institutes requiring digital logs of borehole trajectory and drilling parameters. Hydraulic rigs are natural data sources.
Medium-Deep Holes in High-Labor-Cost Regions: While expensive upfront, high automation reduces crew size. In developed countries or areas with labor shortages, its total cost can be competitive.
Best for a Core Drilling Rig:
Diversified or “Explore & Develop” Contractors: Your work mixes shallow mineral prospecting (<150m) with water wells, site investigation, and geothermal holes. One versatile core drilling equipment maximizes asset use.
Budget-Conscious SMEs & Startups: With limited initial capital, a spindle drill is a reliable partner to enter the industry, build capital, and gain experience at the lowest threshold.
Remote Areas with Poor Logistics: A simple design means faults are easy to diagnose and fix on-site. It has minimal need for hydraulic specialists or precision parts, ensuring better availability.
Shallow, Rapid Exploration/Sampling: For infill sampling at known sites or placer deposits where depth is shallow, and core quality demands aren’t extreme, spindle drills are efficient and cost-effective.
Primarily a Water Well Business: If well drilling is your main income with only occasional, very shallow exploration, a spindle drill optimized for wells, plus a separate core barrel kit, is the only economical choice.
Define Your Main Business: Ask: Where will 80% of my revenue come from in the next 3 years? If it’s deep-hole exploration contracts from large companies, a hydraulic core drilling machine helps you win these profitable jobs. If it’s wells and site investigation, a spindle drill’s versatility won’t let you miss money-making opportunities.
Check Depth & Hardness: Look at your three most common project types. If holes are typically under 200m in not-too-hard rock, a high-end hydraulic rig is overkill. A spindle drill is sufficient and saves money. But if you’re targeting 300m+ hard rock, the hydraulic rig’s efficiency and core quality make you more competitive and your schedule more reliable.
Calculate the Total Cost: Don’t just look at the price tag. A hydraulic core drilling machine costs more upfront, but may save fuel and labor. A spindle drill is cheaper to buy but may need more crew. Model a few projects—which machine puts more money in your pocket in 5 years?
Consider Service & Support: All equipment needs maintenance. Ask yourself: Can my team repair complex systems? Can I get expert technical support within 48 hours locally? Planning for service saves major costs and headaches later.
Don’t Mismatch Machine & Mission: Never use a specialized hydraulic exploration drill for water wells, or expect a basic spindle drill to handle deep, precise exploration efficiently. It’s like making a sprinter run a marathon—the machine suffers, and the project loses money. Your first rig must match your most profitable work. Unsure? Provide details, and YG will recommend the best fit, be it a hydraulic core drilling machine or other core drilling equipment.
Look Beyond the Spec Sheet: Don’t just focus on “max depth 1000m.” Ask: What’s the actual daily meterage in your rock? What’s the guaranteed core recovery rate? Consistent, reliable “average performance” is better than “high performance” on paper that constantly breaks down, preventing you from finishing on time and getting paid. YG provides real data, not just impressive numbers.
Check Parts & Supply First: Before ordering, find out if special rods, hydraulic filters, etc., are expensive and available. If your rock core drilling machine sits idle for two weeks waiting for an imported seal, you could lose a new project. For spindle drills, confirm standard bits are readily available locally. A smooth supply chain keeps your production line running. YG has a professional manufacturing team to supply high-quality parts, ensuring the machine meets your expectations and doesn’t halt your projects.
Plan Your Operator: The best machine needs a skilled operator. Hydraulic core drilling machines are generally simpler to run, while spindle rigs have a steeper learning curve. Before buying, solve the “who will run it” question. Whichever you choose, YG provides online or video guidance so you’re never stuck with a machine you can’t use.
