A helical pile driver is an engineering piece of equipment used to quickly drive steel piles, concrete piles, photovoltaic piles, wooden piles, and other foundation materials into the ground. It is widely used in construction engineering, photovoltaic power stations, highway guardrails, municipal projects, bridge construction, and foundation works. The equipment is usually driven by a hydraulic system, featuring high piling efficiency, stable operation, flexible movement, and strong adaptability to complex terrains. Compared with traditional manual construction, it greatly reduces labor costs and improves project efficiency. If you want more details, please contact YG.

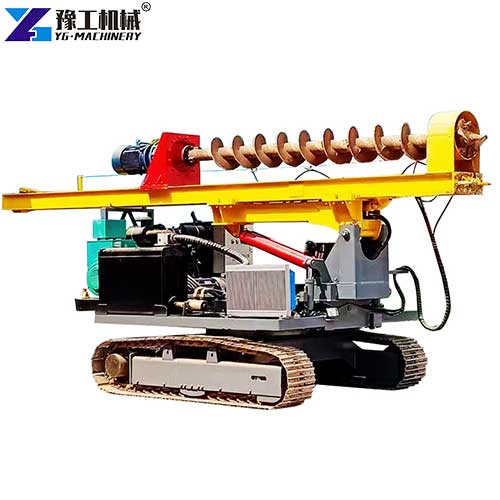

Helical Pile Driver Parameter
| Model | YG-32S helical pile driver |
| Rig weight | 1.2T |
| Dimensions (L×W×H) | 2300*1300*2200mm |
| Engine power | 32HP |
| Rotary head torque | 3500N.m |
| Hydraulic oil pump | Single pump |
| Hydraulic loading system | Cylinder chain pressure |
| Hydraulic working pressure | 20Mpa |
| Way of walking | Crawler gearbox walking |
| Walking speed | 7-15km/h |
| Cooling system | Hydraulic cooler |
| Carriage travel distance | 2.8m |
| Piling height | 1-3m |
| Borehole diameter | 50-300mm |
| Borehole depth | 1-30m |
| Air consumption | 6m³/min |
| Adapt to rock types | Medium hard rock, F=8-12 |
| Hydraulic legs | 4 |
| Climbing ability | 35° |
8 Working Process of YG Helical pile driver
- Positioning the Equipment: The operator moves the machine to the construction site and determines pile positions according to drawings. The chassis or outriggers ensure stability.
- Aligning the Pile: Steel piles, photovoltaic piles, or wooden piles are placed in the correct position and fixed using clamps or guiding devices.
- Adjusting Vertical Angle: The hydraulic system is used to ensure the pile remains vertical for accurate installation.
- Starting Power System: The hydraulic or vibration system is activated to provide driving force.
- Driving the Pile: Under vibration or impact force, the pile is driven into the ground. This is a key advantage of a helical pile driver for sale in modern foundation work.
- Reaching Design Depth: When the pile reaches the required depth, the system stops and completes one pile installation.
- Moving to Next Point: The equipment moves to the next position for continuous operation.
- Inspection and Maintenance: Check pile verticality, depth, and system condition after operation.

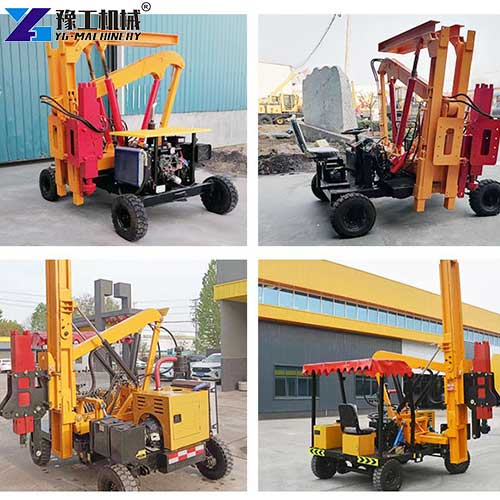

5 Features of the Pile Driver Machine
- High Efficiency Piling: The pile driver machine uses hydraulic or vibration systems for fast pile installation. Compared with manual work, efficiency is significantly improved. Many contractors prefer a helical pile driver for large-scale projects.
- Strong Power for Different Soil Conditions: The equipment can work on soil, sand, clay, and partially hard ground. It is also available as a portable helical pile driver for flexible field operations.
- Stable and Accurate Operation: The hydraulic system ensures precise vertical control, reducing deviation and improving construction quality.
- Flexible Movement: The machine can work in mountains, muddy areas, river zones, narrow sites, and complex terrain conditions.
- Easy Maintenance and Long Service Life: High-strength steel structure ensures durability and low maintenance cost.

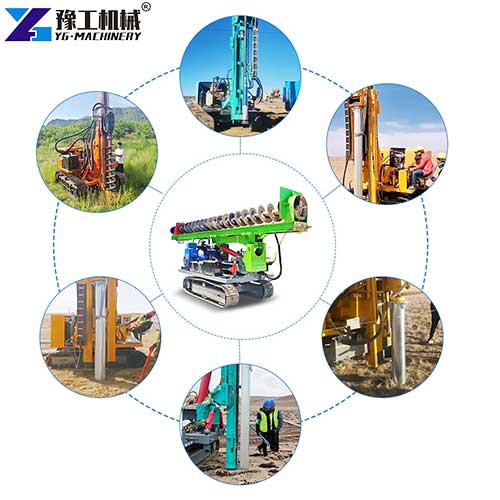

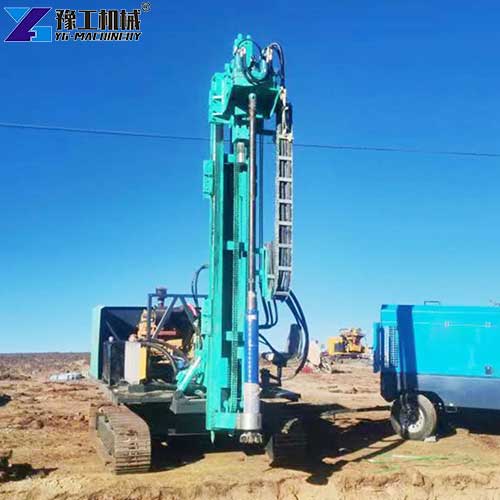

8 Applications of Hydraulic Pile Driver Machine
- Photovoltaic Power Plant Construction: Used for the rapid installation of solar support piles in large solar farms.
- Building Foundation Engineering: Used in residential, industrial, and bridge foundation construction.
- Highway Guardrail Installation: Suitable for road safety guardrails and traffic pole installation.
- River and Water Conservancy Projects: Used for sheet piles and foundation works in water environments.
- Port and Wharf Construction: Used in docks, breakwaters, and marine foundation engineering.
- Mining and Energy Projects: Works in mountain and remote mining areas.

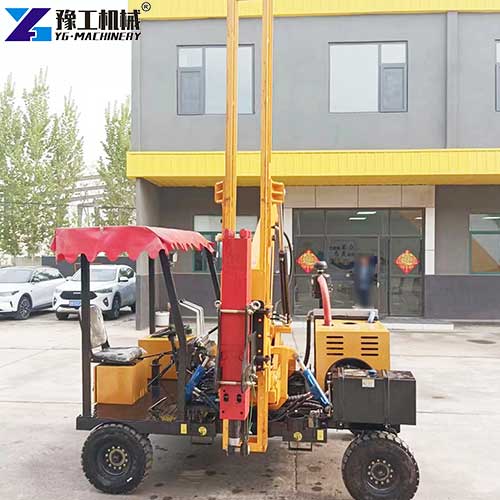

- Agricultural Fencing Projects: Used for farm fences, orchard supports, and vineyard structures. A mini pile driver is often used in these small-scale projects.
- Temporary and Municipal Projects: Used in exhibitions, temporary buildings, and municipal pipeline works.

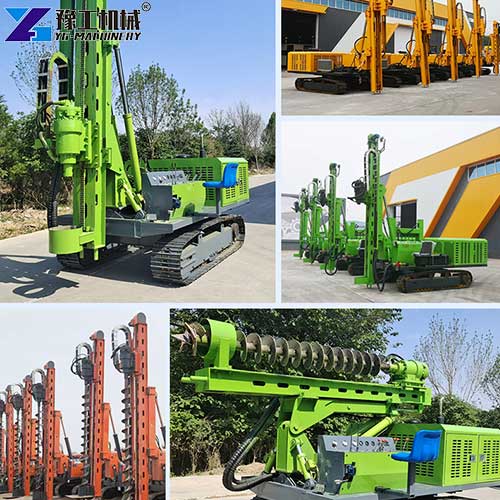

Why Choose YG Portable Helical Pile Driver

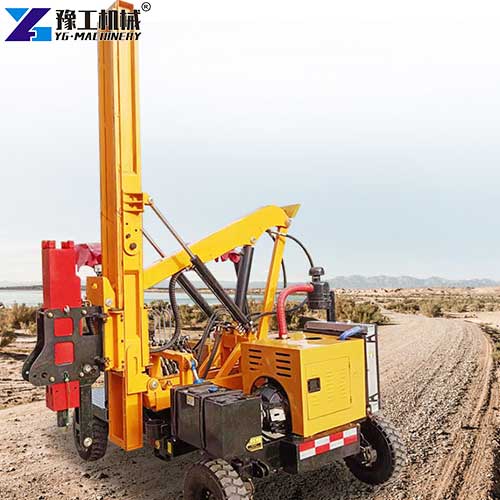

- Higher Construction Efficiency: YG equipment improves working speed and reduces project duration. Many clients choose a helical pile driver for sale for a fast return on investment.
- Durable and Stable Structure: High-quality steel materials ensure long-term stable performance even in heavy-duty conditions.
- Strong Adaptability: Suitable for mountains, mud, rivers, mining areas, and narrow construction spaces. A portable helical pile driver is especially useful in mobile construction projects.
- Multiple Pile Compatibility: Supports photovoltaic piles, steel piles, concrete piles, wooden piles, and guardrail piles.
- Full After-Sales Support: YG provides installation guidance, video training, technical support, and long-term service.
6 FAQs about YG Helical Pile Driver
A: It is widely used in building foundations, highway guardrails, river projects, bridge works, municipal construction, and port engineering. Many contractors search for a helical pile driver for sale for these applications.
A: Standard depth is up to 6 meters and diameter up to 600mm. Customized models are available.
A: A piling machine directly drives piles into the ground, while drilling rigs first drill holes before pouring concrete piles.
A: Usually 1–2 operators are enough.
A: Yes, tracked or wheeled systems make it easy to relocate. A mini pile driver is more suitable for small sites.
A: No, only hydraulic system, oil pipes, lubrication parts, and driving components need regular checks.
The YG piling machine is a highly efficient and versatile foundation equipment suitable for global construction projects. YG provides reliable solutions for different working conditions and project requirements. If you want to learn more, please contact YG today.
