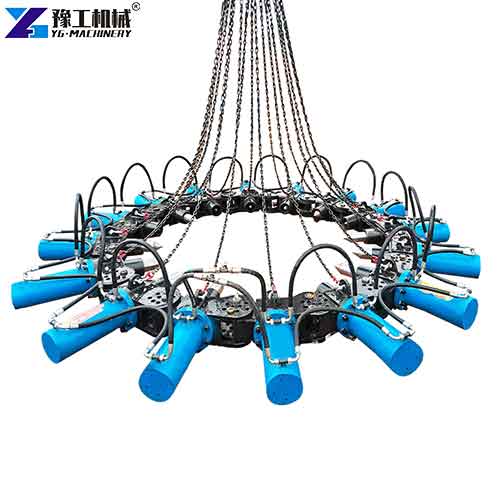

A hydraulic pile breaker is a powerful, mechanized attachment designed specifically for breaking off the tops of exposed concrete piles to a predetermined level after they have been driven into the ground. Unlike traditional demolition methods that rely on impact force, this pile breaker machine utilizes high-pressure hydraulic power to apply controlled, static pressure, causing the concrete to fracture cleanly along a defined line. The hydraulic pile breaker is simple to operate, highly efficient, low-noise, and low-cost during construction, making it suitable for pile group construction projects. For more information, please contact YG anytime.
YG Excavator Pile Breaker Parameter
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | A combination of the total weight | ||||||||
How Does a Hydraulic Pile Breaker Work?
The operation of a hydraulic pile breaker is based on a sophisticated yet straightforward mechanical principle that prioritizes controlled force over impact. Here’s the step-by-step process:

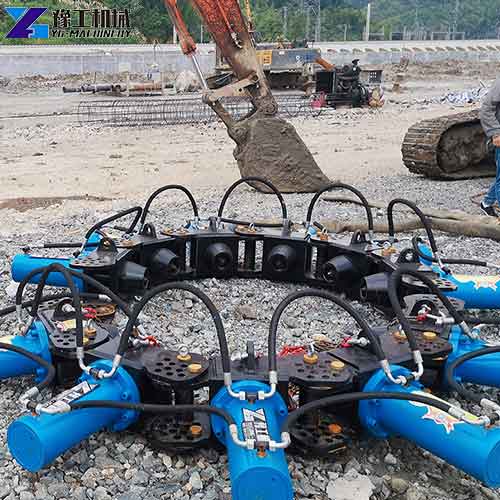

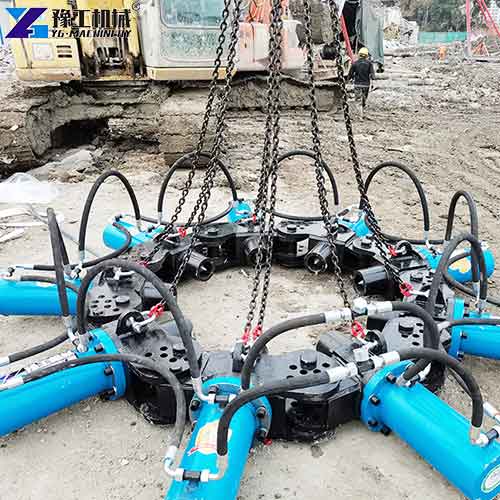

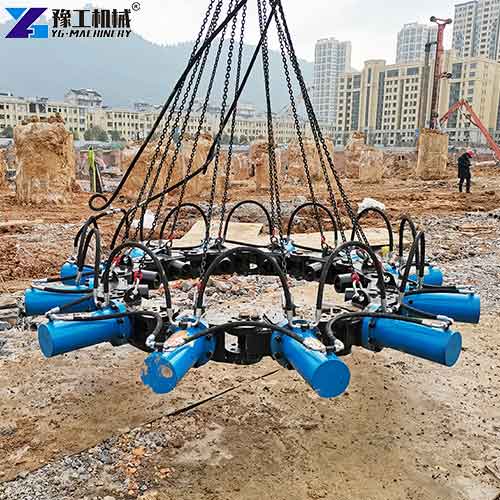

Step 1: Positioning and Clamping
The pile crusher is lowered onto the exposed concrete pile using an excavator, crane, or dedicated carrier. Its hinged or modular frame opens to wrap around the pile circumference, then closes securely using hydraulic clamps that grip the pile firmly. This ensures perfect alignment and prevents movement during operation.
Step 2: Force Application
Once securely clamped, the hydraulic system activates multiple synchronized pistons or breaking jaws positioned radially around the pile. These components apply immense, concentrated pressure (typically ranging from 300 to over 1,000 tons of force) directly against the concrete surface at the predetermined cutting line.

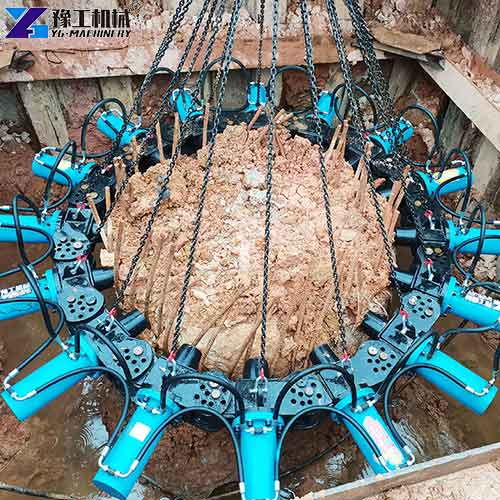

Step 3: Controlled Fracturing
Unlike impact tools that shatter concrete through vibration, the hydraulic pile breaker applies steady, increasing pressure. This causes the concrete to fail in tension and shear along natural stress lines, creating a clean, horizontal fracture. The reinforcing steel (rebar) within the pile remains intact and undamaged, ready for integration into the new structure.
Step 4: Completion and Removal
After the break is complete, the hydraulic pressure is released, the clamps disengage, and the pile breaker machine can be lifted away. The broken concrete section typically remains in place or falls away cleanly, leaving a precisely leveled pile top with exposed rebar ready for the next construction phase.
6 Key Features and Advantages of Hydraulic Pile Breakers
The transition from traditional methods to hydraulic pile breaker technology offers numerous compelling advantages:
1. Unmatched Efficiency and Productivity
- A single machine can break 20-40 pile heads per day
- Dramatically reduces project timelines, especially on sites with hundreds of piles
- Minimal setup time compared to complex rigging for alternative methods
2. Superior Safety Profile
- Eliminates risks associated with swinging tools, flying debris, and explosive blasting
- Operators control the machine from a safe distance using remote systems
- No vibration transmission to adjacent structures or the operator
- Significantly reduced noise pollution compared to pneumatic breakers
3. Precision Engineering and Clean Results
- Creates perfectly horizontal breaks at exact predetermined levels
- Preserves rebar integrity for proper structural connection
- Produces minimal concrete debris and waste
- Enables immediate progression to next construction phases
4. Environmental and Community Benefits
- Virtually vibration-free operation protects nearby structures
- Low noise output allows work in urban areas and noise-sensitive zones
- Reduced dust generation compared to impact methods
- Lower carbon footprint than explosive or heavy impact alternatives
5. Cost-Effectiveness and ROI
- Lower labor requirements (typically 1-2 operators vs. entire crews)
- Reduced ancillary costs (dust suppression, vibration monitoring, security)
- Minimal maintenance requirements compared to complex impact systems
- Faster project completion reduces overall financing and overhead costs
6. Versatility and Adaptability
- Adjustable models handle a wide range of pile diameters (400mm to 2500mm)
- Compatible with various carriers (excavators, cranes, and so on)
- Effective on different concrete strengths and reinforcement configurations
- Suitable for both new construction and demolition applications

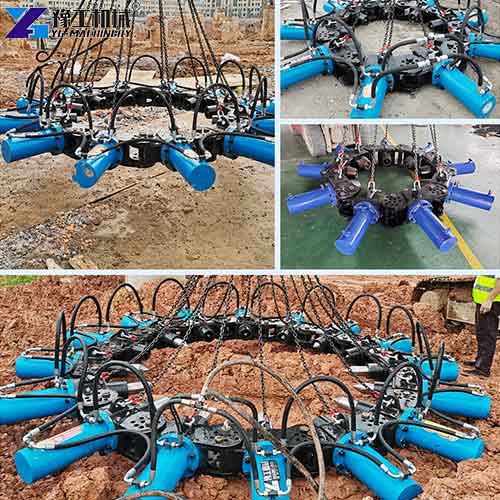

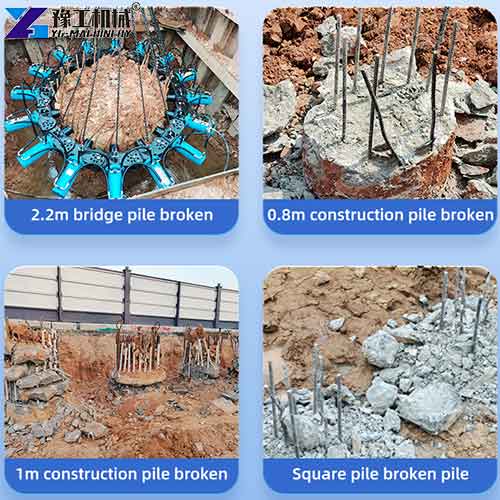

6 Applications of Hydraulic Pile Breakers
The pile breaker machine finds essential applications across multiple construction sectors:
1. High-Rise Building Foundations
- Preparing cast-in-situ or precast piles for pile cap construction
- Creating uniform levels across hundreds of foundation piles
- Working in confined urban construction sites with limited access
2. Bridge and Viaduct Construction
- Cropping abutment and pier piles to precise elevations
- Preparing piles for bearing seats and structural connections
- Working over water or in other challenging environments
3 Industrial Plant Construction
- Preparing foundations for heavy machinery and equipment
- Creating level surfaces for factory floors and structural slabs
- Handling large-diameter piles common in industrial applications
4. Transportation Infrastructure
- Highway and railway bridge projects
- Tunnel portal and retaining wall foundations
- Sound barrier and signage foundation preparation
5. Demolition and Redevelopment
- Removing unwanted pile heads during site clearance
- Preparing sites for redevelopment with minimal disturbance
- Selective demolition in sensitive historical areas
6. Energy Sector Projects
- Wind turbine foundation preparation
- Power plant and substation construction
- Oil and gas facility foundations in remote locations
6 Purchasing Guide: Choosing the Right Pile Breaker
Selecting the appropriate concrete pile breaker requires careful consideration of several factors:
1. Project Requirements Assessment
- Maximum and minimum pile diameters to be broken
- Concrete strength specifications
- Reinforcement type and density (rebar size and configuration)
- Required production rate (piles per day/week)
- Site access limitations and working space constraints
2. Machine Specifications Evaluation
- Breaking force capacity (measured in tons or kilonewtons)
- Jaw opening range and adjustability
- Hydraulic flow and pressure requirements
- Weight and dimensions for carrier compatibility
- Special features (automatic pressure regulation, remote control)
3. Carrier Compatibility
- Excavator size and hydraulic capacity (for excavator-mounted models)
- Crane lifting capacity (for suspended models)
- Available hydraulic flow and pressure from the power source
- Mounting system compatibility (quick coupler type)
4. Operational Considerations
- Ease of positioning and alignment on piles
- Setup and takedown time requirements
- Maintenance accessibility and service requirements
- Availability of spare parts and technical support
5. Manufacturer and Supplier Factors
- Company reputation and industry experience
- Warranty terms and after-sales support
- Training and documentation provided
- Local service and parts availability
- Compliance with relevant safety and quality standards
6. Total Cost of Ownership Analysis
- Initial purchase price vs. long-term operational costs
- Expected service life and residual value
- Fuel or power consumption rates
- Maintenance and repair cost projections
- Productivity gains and labor savings

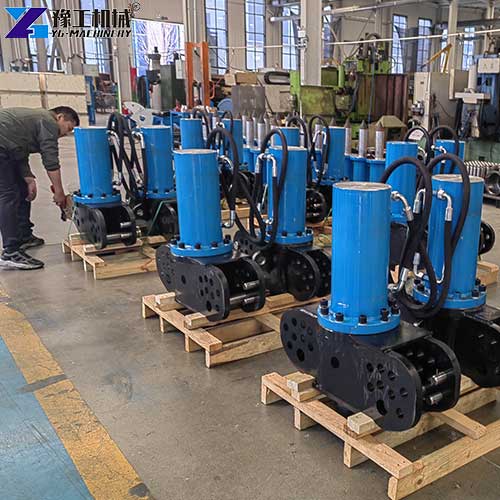

Why Choose YG Hydraulic Pile Breakers?
When selecting a hydraulic pile breaker, YG Machinery stands out for several compelling reasons:
1. Engineering Excellence and Innovation
- Over 20 years of specialized experience in demolition equipment
- Continuous R&D investment leading to patented technologies
- Custom engineering solutions for unique project requirements
- ISO 9001-certified manufacturing processes ensure consistent quality.
2. Superior Product Performance
- Higher breaking force-to-weight ratio than industry averages
- Advanced hydraulic systems with intelligent pressure regulation
- Special alloy steel components for extended service life
3. Global Application Success
- Sold in multiple countries and regions: YG pile breakers have been sold to numerous countries and regions, including Malaysia, the Philippines, Pakistan, Kazakhstan, Singapore, Saudi Arabia, Iraq, the UAE, Israel, Estonia, the Netherlands, Romania, and Nigeria.

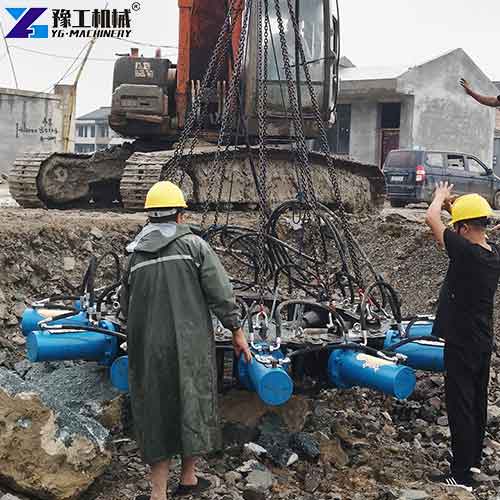

- Client feedback from Kazakhstan: “The YG pile breaker is the cornerstone of the reliability of our pipeline projects in remote areas. Its exceptional efficiency directly ensured that we met critical international project deadlines on time.”
- Client feedback from Romania: “This breaker was our passport to operate in densely populated historical districts. Its low noise and high efficiency earned us the trust of the community and solidified our reputation for responsible construction.”
4. Comprehensive Support Ecosystem
- 24/7 technical support with multilingual engineers
- Global spare parts network with regional warehouses
- On-site training and commissioning services
- Detailed operation and maintenance documentation
- Flexible financing and leasing options available

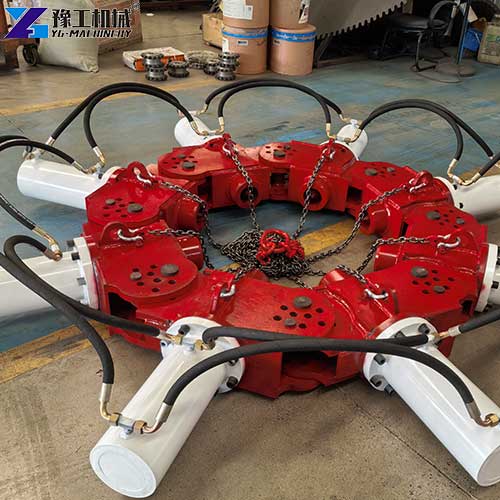

5. Customization and Adaptability
- Modular designs adaptable to specific project needs
- Special configurations for marine, mining, or extreme climate applications
- Compatibility with all major carrier brands and models
- Quick delivery of custom jaw sets for unusual pile diameters
6. Sustainability Commitment
- Energy-efficient designs reduce fuel consumption by up to 30%
- Remanufacturing and rebuild programs extend equipment life
- Comprehensive recycling programs for end-of-life equipment
- Noise and emission levels exceeding international environmental standards
7 FAQs about YG Hydraulic Pile Breaker

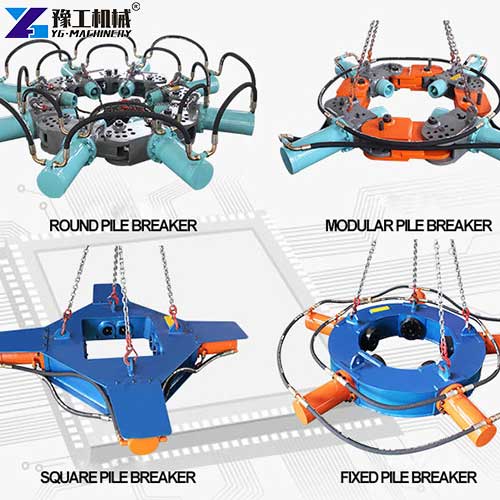

A: Universally compatible with round and square piles; module quantity depends on pile diameter, commonly covering 400–2500mm, custom modules available for special pile diameters.
A: Most excavators on the market can be used.
A: Yes.
A: Select according to pile diameter: 4–6 modules for small piles, 8–10 modules for medium piles, 12 modules and above for large piles. The larger the pile diameter, the more modules are needed.
A: Positioning → Clamping → Leveling → Simultaneous crushing → Cleaning → Finishing. The entire process involves uniform, circular force distribution without uneven loading.
A: Very low noise, meeting the environmental protection requirements of most construction sites.
A: Our machines typically come with a one-year warranty. We provide after-sales service. If you encounter any problems with the machine, you can contact us, and we have professional personnel to help you resolve them.
Hydraulic Pile Breaker Price-Choose YG Machinery
YG Machinery has established itself as a global leader in pile breaker machine technology through continuous innovation, proven performance in challenging environments, and unwavering commitment to customer success. Our concrete pile breakers combine robust engineering with intelligent design to deliver reliable performance that translates directly to your bottom line. Whether you’re preparing piles for a new skyscraper, renovating century-old infrastructure, or working on specialized industrial projects, investing in the right pile crusher technology is one of the most impactful decisions you can make for your operation’s productivity and profitability. Contact YG Machinery today to discuss how our hydraulic pile breaking solutions can transform your next project.
