In modern construction projects, excavators play an irreplaceable role. Their real power, however, comes from interchangeable hydraulic attachments that turn them into versatile machines. Among the most widely used tools are the excavator drum cutter and concrete breaker for mini excavator.
Both are designed to handle hard materials such as rock and reinforced concrete, but their working principles, performance characteristics, and ideal applications are completely different. One behaves like a precision “sculpting tool,” while the other acts like a powerful “demolition force.”
This article provides a clear and practical comparison to help you choose the right attachment for your project.

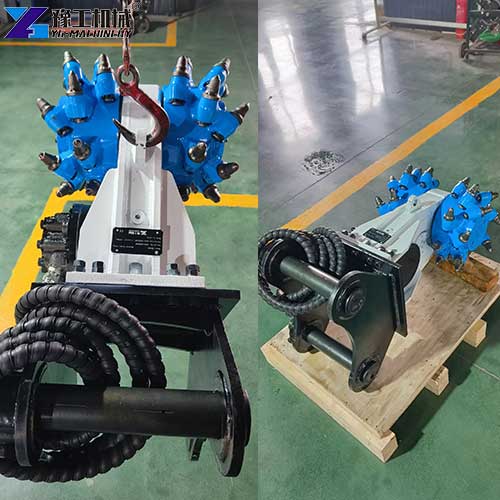

Excavator Drum Cutter Parameter
| Model | YG140 | YG160 | YG180 | YG240 |
| H | 650mm | 820mm | 830mm | 1395mm |
| W | 410mm | 650mm | 780mm | 960mm |
| D | 390mm | 460mm | 480mm | 620mm |
| Excavator weight | 5~10T | 10~15T | 15~21T | 20~24T |
| Max power | 22Kw | 45Kw | 55Kw | 65Kw |
| Speed | 0~120r/min | 0~100r/min | 0~80r/min | 0~90r/min |
| Flow | 40L/min | 100~110L/min | 130~180r/min | 200~250r/min |
| Max Torque | 3200N.m | 5400N.m | 5600N.m | 12800N.m |
Excavator Hydraulic Breaker Attachment Parameter
| Model | ChiselDiameter | SuitableCarrierWeight | Main bodyWeight | OperatingPressure | HydraulicOil Flow | Blow Frequency | HoseDiameter |
| mm | Ton | kg | Kg/cm 2 | I/min | bpm | inch | |
| YG350 | 35 | 0.5-1 | 40 | 90-120 | 15-25 | 800-1300 | 1/2 |
| YG400 | 40 | 1-3 | 53 | 90-120 | 15-25 | 800-1300 | 1/2 |
| YG450 | 45 | 1.2-3.0 | 67 | 90-120 | 20-30 | 700-1200 | 1/2 |
| YG530 | 53 | 2.5-4.5 | 85 | 90-120 | 25-50 | 600-1100 | 1/2 |
| YG600 | 60 | 2-5 | 140 | 90-120 | 25-50 | 600-1100 | 1/2 |
| YG680 | 68 | 4-7 | 152 | 110-140 | 40-70 | 500-900 | 1/2 |
| YG750 | 75 | 6-9 | 210 | 120-150 | 50-90 | 400-800 | 1/2 |
| YG850 | 85 | 7-14 | 278 | 130-160 | 60-100 | 400-800 | 3/4 |
| YG100 | 100 | 10-15 | 475 | 150-170 | 80-110 | 350-700 | 3/4 |
| YG1250 | 125 | 15-18 | 616 | 150-170 | 80-110 | 350-700 | 3/4 |
| YG1350 | 135 | 16-26 | 846 | 160-180 | 130-150 | 400-800 | 1 |
| YG1400 | 140 | 18-26 | 916 | 160-180 | 120-180 | 350-500 | 1 |
| YG1400A | 140 | 18-26 | 952 | 160-180 | 120-180 | 350-500 | 1 |
| YG1500 | 150 | 27-35 | 1088 | 160-180 | 150-190 | 350-700 | 1 |
| YG1550 | 155 | 28-36 | 1309 | 180-200 | 200-260 | 250-400 | 1-1/4 |
| YG1650 | 165 | 30-40 | 1438 | 180-200 | 200-260 | 250-400 | 1-1/4 |
| YG1650P | 165 | 30-40 | 1586 | 180-200 | 200-260 | 250-380 | 1-1/4 |
| YG1750 | 175 | 35-40 | 1929 | 180-200 | 210-290 | 200-350 | 1-1/4 |
| YG1850 | 185 | 35-45 | 2411 | 190-220 | 220-270 | 200-250 | 1-1/4 |
| YG1990 | 190 | 40-55 | 2626 | 190-220 | 220-290 | 180-200 | 1-1/4 |
| YG2100 | 210 | 60-80 | 3396 | 200-240 | 290-350 | 150-200 | 1-1/4 |
I. Working Principles: Rotational Cutting vs Impact Breaking

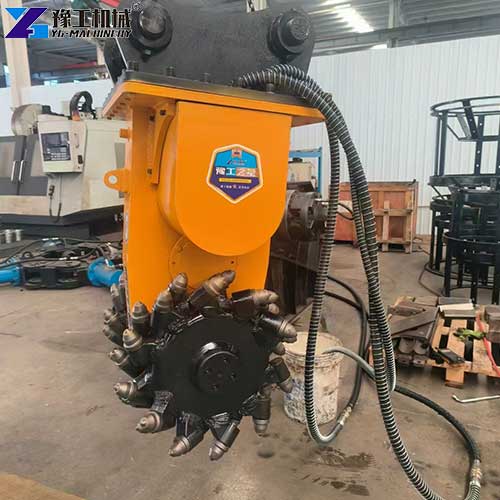

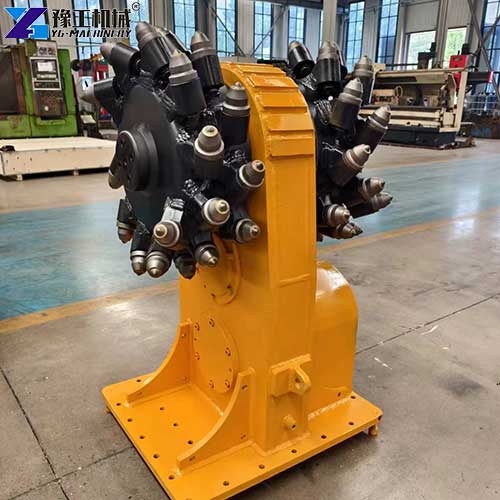

Excavator Drum Cutter
An excavator drum cutter is a hydraulic attachment equipped with a rotating drum fitted with cutting teeth. It is driven by the excavator’s hydraulic system, and the drum rotates at high speed to continuously cut and mill materials.
How it works:
- The hydraulic motor drives the drum rotation
- Cutting teeth continuously grind and shear the material
- Excavated fragments are discharged through the rotation force
- The operation is continuous and smooth, similar to milling or carving
In simple terms, it “scrapes and cuts” the surface layer by layer.

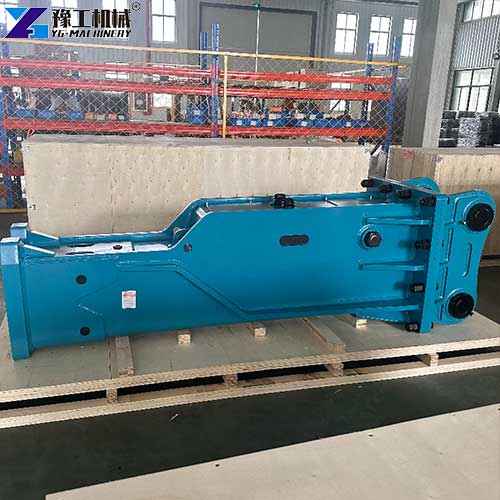

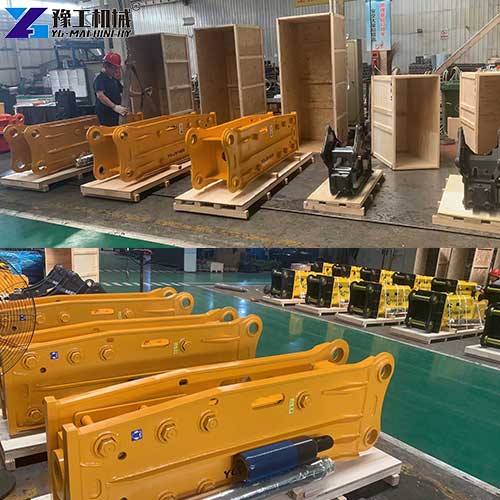

Concrete Breaker For Mini Excavator
A hydraulic hammer for excavators works on a completely different principle. It uses hydraulic pressure to drive an internal piston that repeatedly strikes a chisel (moil point), generating powerful impact energy.
How it works:
- Hydraulic oil pushes the piston forward
- The piston strikes the chisel at high speed
- Impact force is transmitted into the rock or concrete
- Material fractures under repeated high-frequency blows
This process is fast, powerful, and highly destructive.
Key Difference Summary
- Drum cutter = continuous rotational cutting
- Hydraulic hammer = high-frequency impact breaking
This fundamental difference determines all performance characteristics.
II. Performance Comparison: Precision vs Power
Advantages of Excavator Drum Cutter
- Low vibration and low noise: The cutting action produces minimal vibration compared to impact breaking. This makes the excavator drum cutter ideal for urban environments such as tunnels, metro projects, and residential areas.
- High precision and smooth surface: Operators can control cutting depth accurately, allowing the machine to:
- Shape tunnel profiles
- Create smooth trench walls
- Perform precise profiling work
- Versatility: It can handle
- Rock
- Concrete
- Asphalt
- Frozen soil (in moderate conditions)
- Safer and more environmentally friendly: Lower vibration reduces structural risk, and dust generation is easier to control.
- Limitations of the Excavator Drum Cutter:
- Less efficient in extremely hard rock (e.g., granite)
- Higher wear on cutting teeth in tough conditions
- Generally higher initial investment compared to breakers

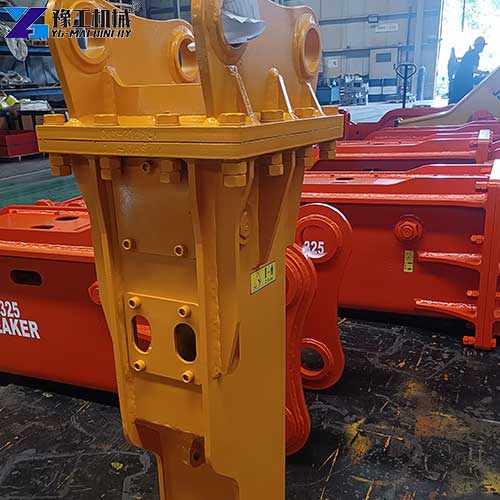

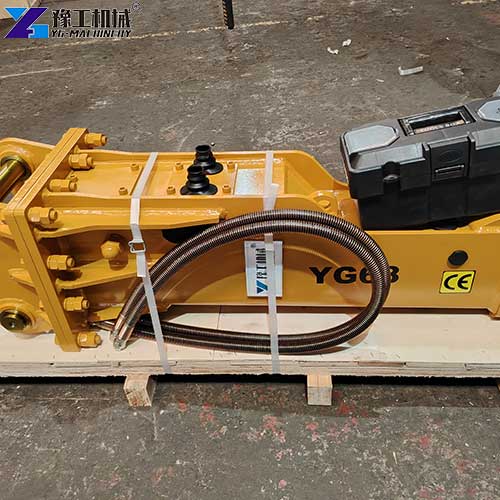

Advantages of Hydraulic Hammers for Excavators
- Extremely strong breaking force: A hydraulic hammer for excavators delivers powerful impact energy, making it highly efficient for breaking large, hard structures.
- Wide application range: It is one of the most universal attachments used in:
- Demolition projects
- Mining operations
- Road breaking
- Rock excavation
- Lower initial cost and easy maintenance: The technology is mature, widely available, and cost-effective.
- Flexible installation: It can be mounted on a wide range of excavator sizes, including mini machines such as a concrete breaker for mini excavator.
- Limitations of Hydraulic Hammers:
- High vibration and noise
- Rough and uneven breaking surfaces
- Higher stress on the excavator structure
- Dust and flying debris during operation
III. Application Scenarios: Precision Work vs Heavy Demolition

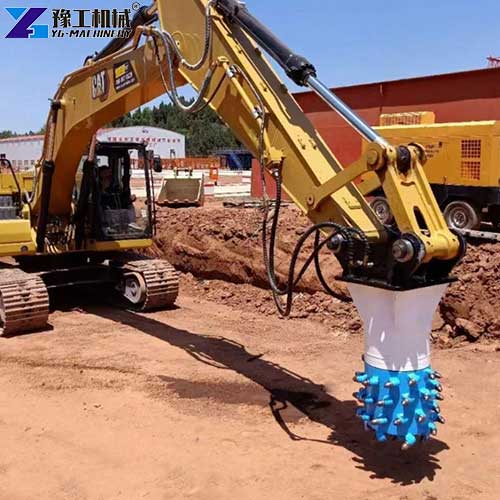

Excavator Drum Cutter Applications
The excavator drum cutter is best used in precision-controlled environments:
- Tunnel excavation and profiling
- Urban trenching for pipelines
- Slope shaping and grading
- Asphalt milling and surface removal
- Controlled concrete cutting in sensitive areas
It is ideal where accuracy, smoothness, and low vibration are required.
Concrete Breaker For Mini Excavator Applications
Concrete breaker for mini excavator are designed for heavy-duty breaking tasks:
- Mining rock fragmentation
- Building demolition
- Bridge and foundation removal
- Road surface breaking
- Frozen soil breaking in cold regions
Overlapping but Different Use Logic
Both tools can be used in demolition, but the method differs:
- Drum cutter: controlled layer-by-layer cutting
- Hydraulic hammer: direct impact destruction
If precision and limited impact are required, drum cutters perform better. If speed and brute force are priorities, hydraulic hammers win.
IV. How to Choose the Right Attachment
Choosing between an excavator drum cutter and concrete breaker for mini excavator depends on several key factors:
- Project requirements:
- Need smooth surface or precise shape → choose drum cutter
- Need fast breaking of large materials → choose concrete breaker for mini excavator
- Working environment:
- Urban areas, tunnels, near buildings → drum cutter
- Open fields, mining sites, demolition zones → hydraulic hammer
- Material hardness:
- Medium-hard rock, asphalt, concrete → both are suitable
- Extremely hard rock → hydraulic hammer is more efficient
- Reinforced concrete requiring clean edges → drum cutter performs better
- Equipment compatibility: Each attachment must match the excavator:
- Hydraulic flow
- Operating pressure
- Machine weight class
- Cost and return on investment:
- Drum cutter: higher initial cost, better long-term efficiency in precision projects
- Hydraulic hammer: lower purchase cost, high versatility for general construction
- Long-term business strategy:
- If your business focuses on tunneling, urban engineering, and precision work → drum cutter is a strategic investment
- If your business focuses on demolition, mining, and general earthwork → hydraulic hammers for excavators are essential tools
The excavator drum cutter and concrete breaker for mini excavator are not competitors but complementary tools.
- Drum cutter = precision, low vibration, controlled cutting
- Concrete breaker for mini excavator = power, speed, and heavy demolition capability
Actually, the smartest approach is not choosing which is better, but selecting the right tool for the right job. In many projects, combining both attachments allows excavators to handle everything from delicate tunnel shaping to large-scale demolition efficiently and economically. Ultimately, understanding these differences ensures higher productivity, lower costs, and better project outcomes in modern construction work. Want to know more details? Contact YG now!
