A floor shot blasting machine is a mechanical surface treatment device that uses a high-speed rotating blasting wheel to throw steel shots onto the ground surface at high speed. After the steel shots hit the surface, they quickly remove laitance, oil stains, rust, old coatings, and other impurities, creating a uniform rough surface. This process greatly improves the adhesion of coatings, waterproof layers, and paving materials. The floor shot blasting machine mainly consists of two parts: the blasting machine body and a reverse-pulse dust collector. The two systems are connected through a 20-meter dust collection hose and a 23-meter power cable. The equipment is widely used in highway construction, bridge engineering, airport runway maintenance, industrial workshops, parking lots, and epoxy floor projects. Compared with traditional grinding methods, a floor shot blasting machine offers higher efficiency, better cleaning performance, and environmentally friendly construction. If you want to know more about this equipment, contact YG today. Our professional team will provide detailed product information and technical support.
Floor Shot Blasting Machine Parameter
| Item | YG-270 | YG-550 | YG-850 |
| The motor of the shot blast wheel | 11KW | 2x11KW | 2x15KW |
| Walking motor | 0.75kw | 1.5kw | 1.5kw |
| Diameter of shot blast wheel | φ200mm | φ200mm | φ200mm |
| Work width | 270mm | 550mm | 850mm |
| Walking speed | 0.5～30m/min | 0.5～33m/min | 0.5～33m/min |
| Steel plate surface cleaning efficiency | ＞80㎡/h | ＞80㎡/h | 100-160㎡/h |
| Dust removal connecting pipe diameter | 120mm | 150mm | 150mm |
| Suggest the diameter of the steel shot | 1.2-1.5mm | 1.5-1.8mm | 1.5-1.8mm |
| Consumption of steel shot | 10g/㎡ | 10g/㎡ | 10g/㎡ |
| Dust collector | 6-core automatic counter blowing | 8-coreautomatic counter blowing | 12-core automatic counter blowing |
| Dimensions（L*W*H） | 1000mm*300mm*1100mm | 1950mm*720mm*1200mm | 1950mm*1020mm*1550mm |
| Weight | 150kg | 595kg | 700kg |
5 Working Principles of Floor Shot Blasting Machines
- High-Speed Blasting: After the equipment starts, the blasting system rotates at high speed and throws steel shots onto the ground at a specific angle and speed.
- Surface Impact: The high-speed steel shots continuously impact the working surface, creating a uniform rough texture while removing laitance, oil stains, old coatings, and other surface residues.
- Steel Shot Recycling: The machine includes an automatic recycling system that collects used steel shots and reuses them, reducing material consumption and operating costs.
- Impurity Separation: The vacuum airflow generated by the dust collector separates steel shots from dust and impurities removed during construction.
- Dust-Free Collection: Dust enters the dust collection system for centralized processing, allowing low-dust and environmentally friendly construction while improving the working environment. A modern automatic shot blasting machine can perform these processes continuously, which greatly improves construction efficiency.
4 Working Conditions of Portable Shot Blasting Machines
- Ground Conditions: The ground should be uneven by less than 10mm. The surface should be dry, without standing water, and the slope should be less than 25°.
- Temperature Requirements: The working temperature range is from -20℃ to 60℃. The steel plate surface temperature should be at least 3℃ above the dew point.
- Humidity Requirements:
Relative humidity for steel surface blasting should not exceed 90%.
Relative humidity for concrete blasting should not exceed 95%. - Altitude and Weather: The operating altitude range is 0–3000 meters. The equipment should not be operated in rainy or snowy weather.
8 Features of Concrete Shot Blasting Machines
- High Construction Efficiency: A floor shot blasting machine can quickly complete large-area surface cleaning and roughening work, greatly shortening the construction period compared with manual grinding.
- Uniform Surface Treatment: The high-speed steel shots evenly impact the surface, removing impurities and creating a consistent rough texture for better coating adhesion.
- Environmentally Friendly Dust-Free Operation: The equipment includes a professional dust collection system that simultaneously recovers dust and impurities, reducing pollution during construction.
- Reusable Steel Shots: The machine automatically recycles steel shots for repeated use, reducing material waste and operating costs.
- Reduced Labor Costs: Mechanical construction reduces the need for manual labor. One machine can replace several workers, improving efficiency and reducing labor expenses.
- Wide Application Range: The floor shot blasting machine is suitable for highways, bridges, airport runways, industrial floors, parking lots, and steel structure rust removal.
- Easy Operation and Durability: Modern equipment usually adopts intelligent control systems for easy operation. Core parts are made of high-strength wear-resistant materials for long service life.
- Improved Construction Safety and Quality: The machine can work continuously and stably while reducing direct worker exposure to dust and dangerous environments.
7 Applications of Automatic Shot Blasting Machines
- Highway Construction: Used for highway surface cleaning, roughening, and old road renovation to improve friction and adhesion performance.
- Bridge Waterproofing Projects: Before bridge waterproofing construction, blasting treatment improves the adhesion of waterproof materials.
- Epoxy Floor Construction: The machine is widely used for surface preparation before epoxy floor coating applications.
- Airport Runway Maintenance: Used to remove rubber marks, oil stains, and impurities from airport runways to improve safety performance.
- Industrial Workshop Floors: Suitable for cleaning and renovating factory floors, warehouses, workshops, and parking areas.
- Steel Structure Rust Removal: Some models can also be used for rust removal and paint cleaning on steel structures and steel plates.
- Municipal Road Renovation: During city road renovation projects, a portable shot blasting machine can quickly clean old road surfaces and improve paving quality. A concrete shot blasting machineshot blasting machine for sale is especially popular in modern infrastructure projects because it combines efficiency and environmental protection.
Why More Construction Companies Choose Shot Blasting Machines
- Higher Construction Efficiency: Compared with traditional manual grinding methods, a floor shot blasting machine can process large working areas much faster and improve overall project progress.
- More Uniform Surface Treatment: The blasting process creates consistent roughness on the surface, making it ideal for coatings, waterproof layers, and road paving applications.
- Lower Labor Costs: Mechanical construction significantly reduces labor requirements and improves productivity.
- Better Environmental Performance: The dust collection system reduces airborne dust and pollution during operation, meeting modern environmental standards.
- Improved Material Adhesion: Blasted surfaces provide stronger bonding performance for epoxy flooring, waterproof coatings, and paving materials.
- Recyclable Steel Shots: The automatic recycling system reduces material consumption and lowers operating costs.
- Adaptability to Different Construction Environments: Whether on highways, bridges, industrial floors, or airport runways, the machine can handle different construction needs efficiently.
Today, more contractors are searching for a concrete shot blasting machineshot blasting machine for sale because demand for efficient and environmentally friendly floor treatment equipment continues growing.
7 FAQs About YG Floor Shot Blasting Machines

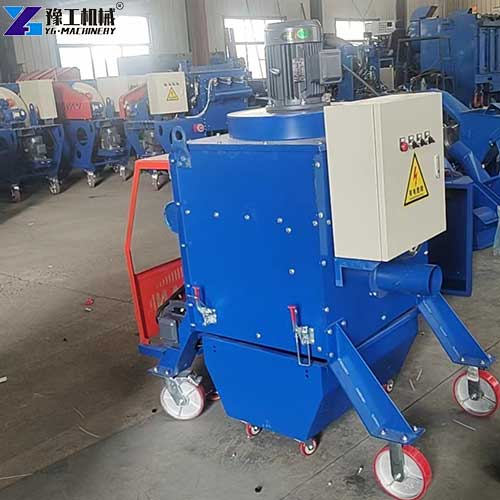

The blasting machine mainly includes the blasting motor, electric control box, traveling motor, directional sleeve, blasting wheel, and storage hopper. The dust collector includes a fan, air compressor, filtration system, and dust storage system.
The ground unevenness should be less than 10mm, without standing water, relatively dry, and with a slope below 25°.
A floor shot blasting machine is suitable for concrete floors, asphalt roads, bridge decks, epoxy floors, steel structures, and industrial workshop floors.
No. The machine is equipped with a professional dust collection system that can recover dust and impurities during operation for low-dust construction.
After blasting, the surface becomes clean and evenly roughened, which improves the adhesion performance of coatings and paving materials.
Yes. Every YG machine includes an instruction manual. We can also provide operation videos and remote guidance after purchase.
Yes. Every YG shot blasting machine includes warranty service.
If you are looking for a reliable portable shot blasting machine or a high-performance floor shot blasting machine, YG can provide professional equipment solutions and technical support for your construction projects. Contact YG today.
