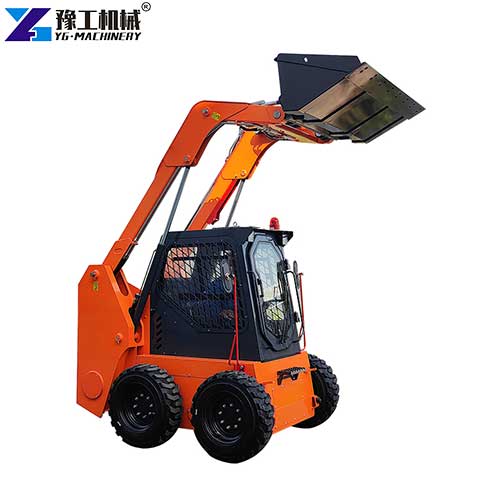

A skid steer loader mini is a widely used construction machine in building projects, mining work, road construction, port logistics, and agricultural operations. It mainly uses the front bucket to complete loading, carrying, pushing, leveling, and short-distance transportation work. Modern loaders are usually equipped with a high-performance engine, hydraulic system, driving control system, and different attachments to adapt to various working environments. Compared with traditional manual labor, the skid steer loader mini can greatly improve working efficiency while reducing labor costs, so it has become one of the most important machines in many construction projects today. If you want to know more details about the skid steer loader mini, welcome to contact YG.
Want to Know More Detailed Product Information? Contact YG Now!
YG Skid Steer Loader Mini Technical Parameter
| Model | W45（Wheel-type） | W65（Wheel-type） | T50（Crawler-type） | T65（Crawler-type） |
| Operating load (kg) | 700 | 1050 | 700 | 1000 |
| Max Speed（km/h） | 10 | 10 | 10 | 12 |
| Rated flux (L/min) | 80 | 89 | 80 | 89 |
| Rated power (Kw) | 36.7KW | 55KW | 45KW | 55KW |
| Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
| self weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
| Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
| Hheight to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2909 | 2862 | 2500 | 2790 |
| Without bucket length（mm） | 2325 | 2527 | 2170 | 2450 |
| Overall length with bucket(mm) | 3276 | 3428 | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 37.5 | 32 | 40 | 40 |
| Dumping height(mm) | 2342 | 2410 | 1990 | 2270 |
| Dumping reach(mm) | 550 | 850 | 1040 | 1120 |
| Rollback o bucket on ground(° ) | 20.5 | 23 | 30 | 30 |
| Rollback of bucket at full height(° ) | 96.5 | 95 | 100 | 100 |
| Wheelbase(mm) | 991 | 1074 | 1230 | 1500 |
| Ground clearance(mm) | 185 | 205 | 230 | 200 |
| Angle of departure(° ) | 20 | 20 | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1188 | 1320.5 | 1064 | 1230 |
| Front tuning radius(mm) | 2030 | 2095 | 1825 | 2010 |
| Rear tuning radius(mm) | 1630 | 1680 | 1264 | 1720 |
| Rear axle to bumper (mm) | 929 | 1057 | 590 | 730 |
| Tread width (mm) | 1462.5 | 1498 | 1022 | 1482 |
| Width (mm) | 1726.5 | 1805 | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 | 1727 | 1828 |
Want to Know More Detailed Product Information? Contact YG Now!
6 Working Process of Infront Mini Skid Steer
- Engine Provides Power: After the machine starts, the diesel engine begins running and provides stable power for the whole machine.
- Hydraulic System Operates: The hydraulic pump starts working and sends hydraulic oil to the boom, bucket, and steering system.
- Bucket Loading Operation: The operator controls the bucket to move forward and load sand, soil, coal, or construction materials.
- Lifting and Transportation: The hydraulic system lifts the boom, and the machine transports materials to the target area.
- Unloading Operation: The bucket tilts forward and unloads materials quickly to improve work efficiency.
- Continuous Working Cycle: The skid steer loader mini can continuously complete loading, carrying, and unloading work to improve project progress.
8 Advantages of Affordable Skid Steer Tracks
- High Working Efficiency: Compared with manual labor, the skid steer loader mini can quickly handle large amounts of material loading work.
- Lower Labor Cost: One machine can replace many workers and improve long-term construction profits.
- Flexible Operation: The machine has flexible steering and is suitable for complicated working environments.
- Wide Application Range: It can be used in construction, mining, ports, agriculture, and road projects.
- Strong Power: The high-performance engine can handle heavy-duty continuous work.
- Easy Maintenance: The machine structure is mature, and maintenance is relatively simple.
- Multiple Attachments Available: It can work with forks, sweepers, wood grabbers, and many other attachments.
- Comfortable Driving Experience: Modern machines usually have enclosed cabins and shock absorption systems for better operator comfort.
Want to Know More Detailed Product Information? Contact YG Now!
7 Applications of the YG Skid Steer Loader Mini
- Construction Projects: Used for loading and transporting sand, cement, and building materials.
- Mining Projects: Suitable for ore loading, slag transportation, and site cleaning.
- Port Logistics: Can handle bulk cargo transportation and loading work.
- Road Construction: Helps complete roadbed filling and material transportation.
- Agricultural Industry: Suitable for feed transportation, farm cleaning, and grain loading.
- Factory Warehouses: Used for transporting raw materials and finished products.
- Municipal Engineering: Helps with garbage cleaning and road maintenance work.
Many customers working in soft ground conditions also prefer using affordable skid steer tracks to improve machine stability and traction.
Why Are More People Buying Skid Steer Loader Mini?
- One Machine Replaces Many Workers: In the past, many construction sites needed over ten workers for material transportation. Now one skid steer loader mini can complete the work quickly and reduce labor costs.
- Faster Construction Speed: Shorter construction time means contractors can take on more projects faster. Especially in road construction, mining, and building sites, the skid steer loader mini can maintain high efficiency continuously.
- Suitable for More Projects: Modern loaders can change different attachments such as buckets, grain buckets, grabs, and snow sweepers. One machine can complete more jobs and help owners earn more money.
- Easier to Operate: Modern equipment is becoming smarter and easier to use. Many beginners can learn basic operations after simple training. For new business owners, entering the construction equipment industry is now easier than before.
- Global Infrastructure Growth: Many countries continue building roads, bridges, and mining projects, and these projects all require loaders. Growing market demand is pushing more people to invest in the loader business.
- Lower Operating Cost: Many users choose electric skid steer models because electric machines can reduce fuel costs and lower daily operating expenses.
Want to Know More Detailed Product Information? Contact YG Now!
How to Choose the Right Infront Mini Skid Steer?
- According to Working Environment: Small construction sites are suitable for compact loaders, while large mines need heavy-duty machines.
- According to Materials: Different materials require different bucket capacities and power output.
- Focus on Engine Performance: Stable engine power directly affects long-term working efficiency.
- Pay Attention to Fuel Consumption: Low fuel consumption can reduce long-term operating costs.
- Choose a Manufacturer with Good After-Sales Service: Stable spare parts supply and technical support are very important.
Today, many companies are also searching for electric skid steer machines to meet environmental requirements and reduce operating noise.
Want to Know More Detailed Product Information? Contact YG Now!
6 FAQs about YG Skid Steer Loader Mini
They are widely used in construction, mining, roads, agriculture, ports, and factory transportation industries.
Yes. After basic training, most beginners can quickly learn how to operate the machine.
Yes. Many loaders support different working attachments.
High-quality machines can handle long-term heavy-duty construction work.
Yes. The machine uses mature technology and standard parts, making maintenance simple and cost-effective.
The skid steer loader mini is becoming more and more popular because it combines flexibility, efficiency, and low operating cost. Whether you are doing farm work, construction, mining, or warehouse handling, the skid steer loader mini can help improve working efficiency and create more business opportunities. Please contact YG today.
