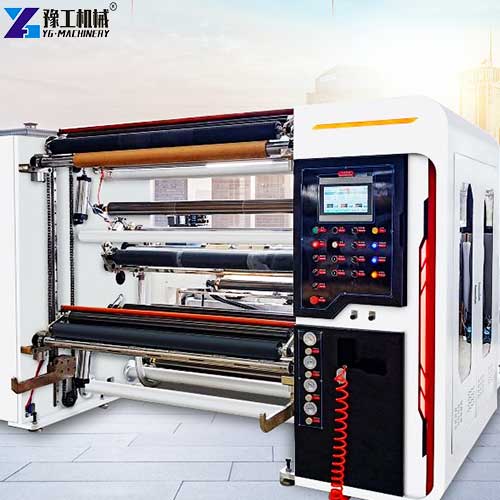

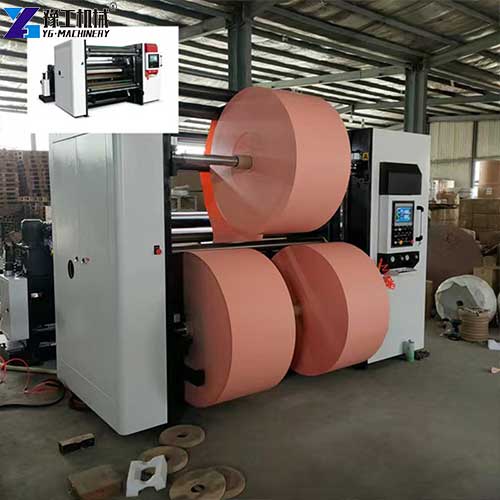

The paper slitter rewinder machines are indispensable automatic processing equipment for paper mills, packaging factories, film processing plants, and daily paper production industries. Different from traditional manual cutting equipment, the auto slitting machine realizes fully automatic unwinding, precise slitting, edge trimming, and rewinding. It also has a professional customized version, such as the toilet paper slitting machine, specially for household paper production. This equipment supports the processing of almost all roll materials, including various paper types, plastic films, aluminum foil, non-woven fabrics, and adhesive materials. With stable performance and wide compatibility, it is widely exported to America, Africa, Southeast Asia, and other regions. If you are interested, please contact YG for a discount.

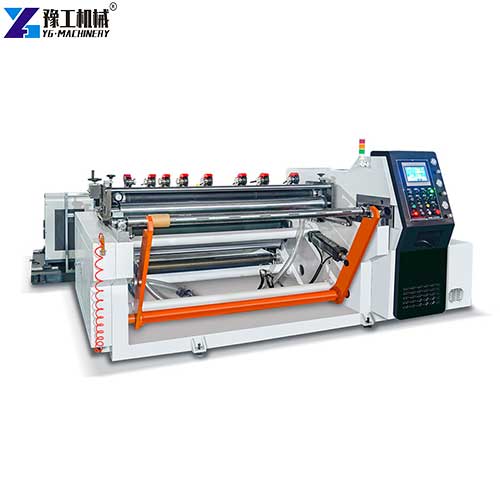

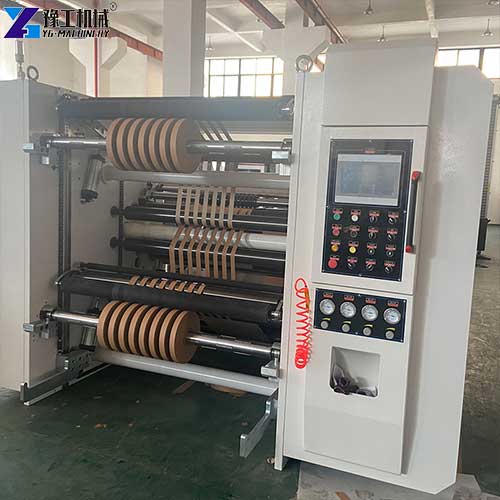

YG Paper Slitting and Rewinding Machine Parameter
| Model | YG- 1300 | YG- 1600 | YG- 1800 |
| Max width | 1300mm | 1600mm | 1800mm |
| Max Diameter for unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| Min width of slitting | 30mm | 30mm | 30mm |
| Max Diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| Speed | ≤350m/min | ≤350m/min | ≤350m/min |
| Total Power | 24kw | 26kw | 30kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 4000kg | 4500kg | 5500kg |
| Overall dimension(LxWxH) | 3300x3150x1930(mm) | 3300x3450x1930(mm) | 3300x3650x1930(mm) |

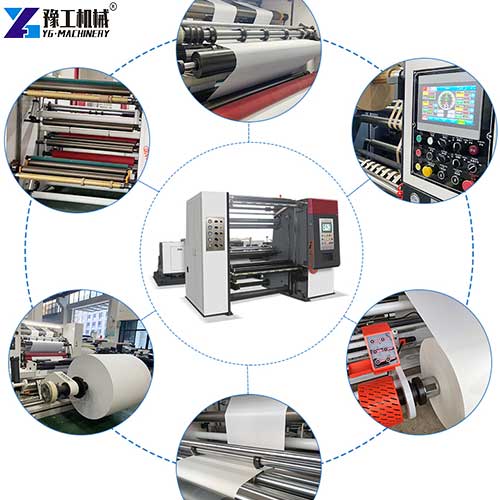

5 Working Principle of Paper Slitter Rewinder Machine

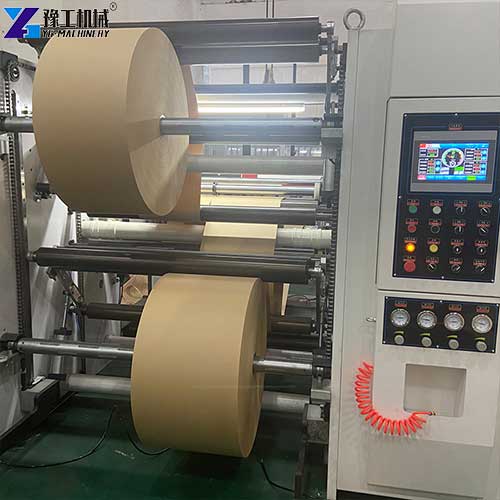

1. Automatic Unwinding & Tension Stabilization
The whole production starts with the unwinding system. Operators fix the large original raw material roll on the unwinding shaft. The auto slitting machine adopts intelligent constant tension control system to release materials evenly at a stable speed. This design prevents thin paper, soft toilet paper and flexible film from stretching, wrinkling and breaking during operation, laying a foundation for high-precision slitting.
2. Automatic Deviation Correction & Positioning
During continuous operation, the automatic deviation correction system monitors the material running track in real time. It automatically adjusts left and right offset to ensure straight material transmission. For high-standard materials such as coated paper, self-adhesive paper and PET film, accurate positioning ensures consistent finished roll width and neat cutting edges.
3. Precision High-Speed Slitting & Edge Trimming
This is the core process of the paper slitting and rewinding machine. According to the preset width parameters, high-speed circular blades cut the wide master roll into multiple narrow finished rolls. The machine can switch different blades to adapt to paper, film, aluminum foil and industrial strips. It also automatically trims uneven edge waste to improve finished product quality.
4. Constant-Tension Automatic Rewinding
After slitting, the qualified narrow materials are rewound tightly by the rear rewinding shaft. The independent tension system keeps uniform tightness for every finished roll, avoiding loose rolls, uneven edges and material deformation. The customized toilet paper slitting machine optimizes tension parameters for soft household paper to prevent paper breakage.
5. Intelligent Counting & Automatic Stop
The system automatically counts the rolling length and production quantity. When reaching the preset standard, the machine stops slitting automatically and reminds roll replacement. The fully automatic operation reduces manual intervention and greatly improves continuous production efficiency.
8 Core Features of Paper Slitter Rewinder Machine
1. Fully Automatic Intelligent Operation
The paper slitter rewinder machine supports one-key setting of slitting width, running speed and roll length. The whole process from unwinding, slitting to rewinding is fully automatic. It greatly reduces manual operation difficulty and cuts labor costs for processing factories.
2. Ultra-Wide Material Compatibility

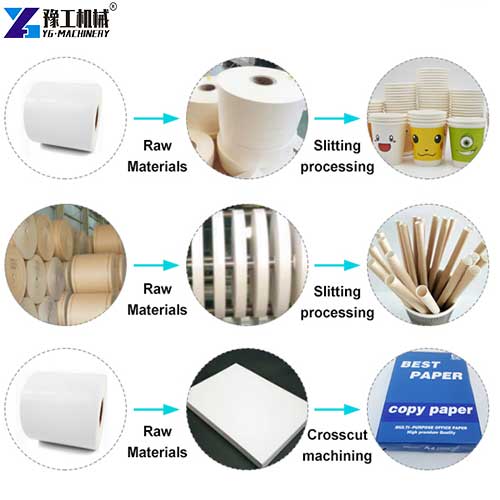

This auto slitting machine fits diverse materials, including toilet paper, kraft paper, double-adhesive paper, coated paper, white cardboard, thermal paper, BOPP, OPP, PET, PVC plastic film, aluminum foil, non-woven fabric and rubber strips. It meets multi-industry processing demands.
3. High-Precision Slitting with Zero Burrs
Equipped with advanced servo control system, the slitting width error is controlled within ±1mm. All cutting edges are smooth and flat without burrs, fully meeting strict standards for packaging printing and finished product sales.
4. Anti-Deformation Constant Tension System
Customized tension control technology adapts to ultra-thin and soft materials. It effectively solves common problems such as material stretching, wrinkling, and breaking during slitting, especially suitable for fragile toilet paper and thin plastic films.
5. Stable High-Speed Continuous Operation
The machine runs stably at high speed without jitter, deviation, or blockage. It supports long-time uninterrupted work, perfectly matching the mass production needs of large paper mills and packaging enterprises.
6. Anti-Stick & Anti-Blocking Structure
Optimized blade and conveying structure prevent glue accumulation and material sticking. It solves the core pain point of sticky material processing, ideal for self-adhesive paper and transparent tape slitting.
7. Durable Structure & Low Maintenance Cost
Adopting a thickened steel frame and brand core hydraulic and electrical parts, the whole machine is firm and wear-resistant. Daily maintenance is simple and fast, effectively reducing long-term failure rate and production loss.
8. Flexible Customization & High Utilization
The equipment supports customized slitting width and finished roll diameter. Factories can freely switch production of different products, avoiding single production limitations and maximizing equipment utilization.
Real Customer Cases about Paper Slitter Rewinder Machine
Case 1: USA Customer
- Customer Background: The customer is a medium-sized packaging processing factory in the United States, mainly processing coated paper, self-adhesive paper, and BOPP film for local packaging enterprises. They need a high-precision paper slitting and rewinding machine for mass customized slitting orders.
- Problems: The old equipment had a limited slitting width and could not process wide 1600mm raw rolls. Slow speed and unstable tension caused burrs and wrinkled products, failing to meet US high packaging standards. Low productivity restricted order delivery.
- Solution: We recommended the YG-1600 auto slitting machine. It supports a maximum working width of 1600mm, a high running speed of 350m/min, and a stable power of 26 kW. The minimum 30mm slitting width fully meets diverse small-sized finished roll demands. Standard 1400mm unwinding diameter and 1000mm rewinding diameter adapt to their large raw material rolls.
- Operation Effect: The machine runs stably at a max speed of 350m/min, greatly improving daily output. Precise slitting eliminates edge burrs and material wrinkles. The 1600mm super wide processing capacity avoids pre-cutting work, saving production time and material waste.
- Customer Feedback: “This YG-1600 paper slitter rewinder machine is very practical. Fast speed and accurate slitting help us pass all local quality inspections. It perfectly matches our wide roll processing needs, and we have greatly increased monthly order output.”
Case 2: African Customer
- Customer Background: The client is a local daily necessities manufacturer in Africa, focusing on toilet paper and kraft paper production for local supermarkets and retail markets. They need a cost-effective toilet paper slitting machine for stable daily mass production.
- Problems: The factory used old manual equipment with low efficiency, unable to keep up with market supply. Unstable power adaptation often caused paper breakage, and a narrow slitting range limited product types.
- Solution: We provided a YG-1300 paper slitting and rewinding machine, 1300mm max width, 24kw low energy consumption, 380V standard power supply suitable for the local power grid. 30mm minimum slitting width supports various small roll toilet paper specifications. A light 4000kg body is easy to install and maintain.
- Operation Effect: Fully automatic operation reduces labor costs. Low-power energy-saving design cuts daily power consumption. Stable tension control effectively avoids toilet paper breakage, improving finished product qualification rate and production volume.
- Customer Feedback: “The auto slitting machine is easy to operate and fits our local power conditions perfectly. It solves our low-output and paper-breaking problems. Reliable performance helps us steadily supply local toilet paper market.”
6 FAQs about Paper Slitter Rewinder Machine
±0.2mm
The machine cuts evenly and tightly.
Smooth and burr-free. If there are burrs, adjust the blade.
The equipment operates stably. A confirmation inspection will be sent to the customer before shipment. The machine will be shipped only after it has passed inspection.
One person can operate it. It is simple and convenient to operate and can be learned quickly.
One-year warranty and lifetime after-sales service.
The paper slitter rewinder machines are versatile, high-efficiency, and low-consumption processing equipment. With fully automatic operation, wide material compatibility, and high precision, they can meet both industrial packaging material processing and household paper production demands. If you are interested, please contact YG for a discount.
