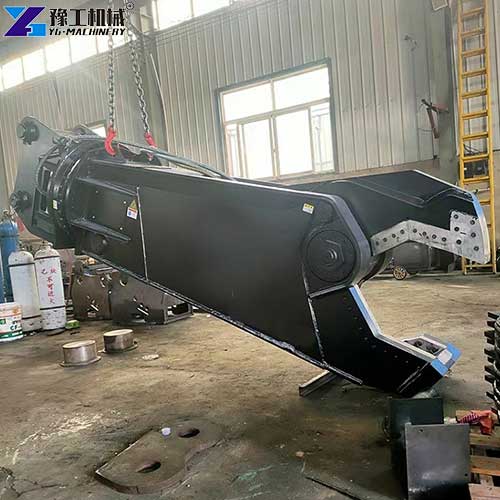

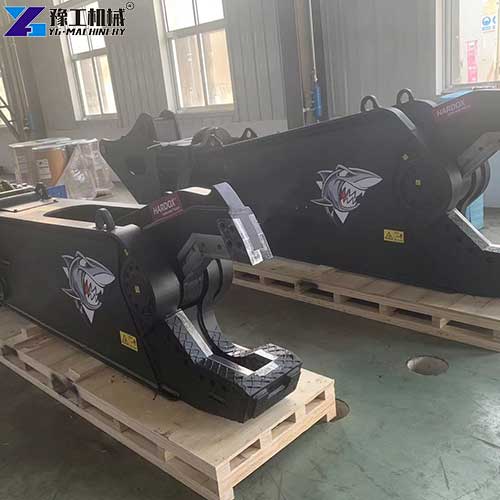

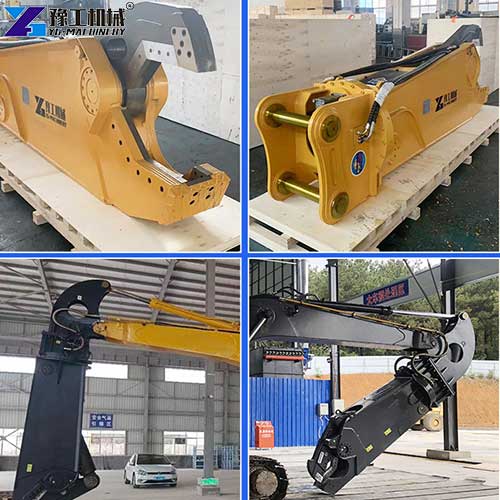

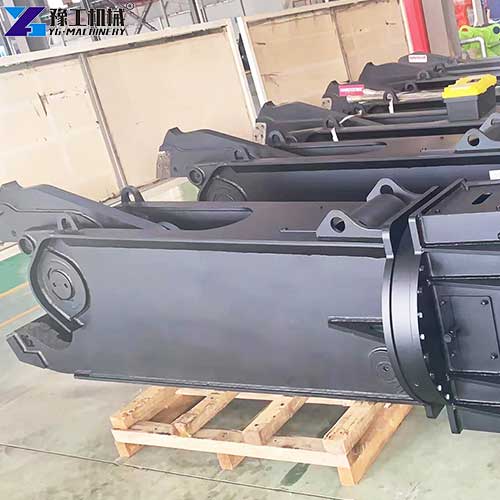

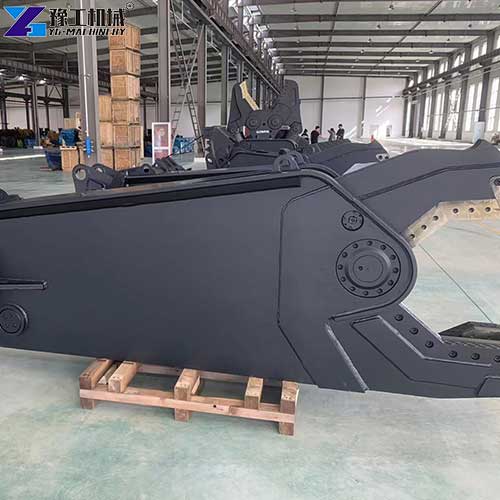

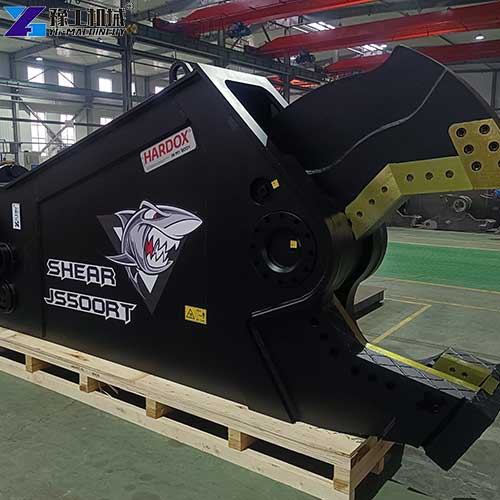

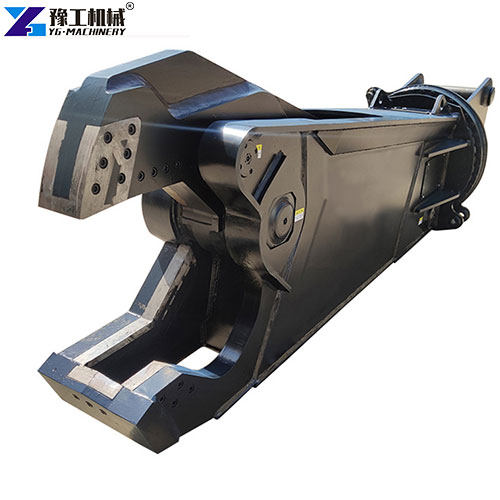

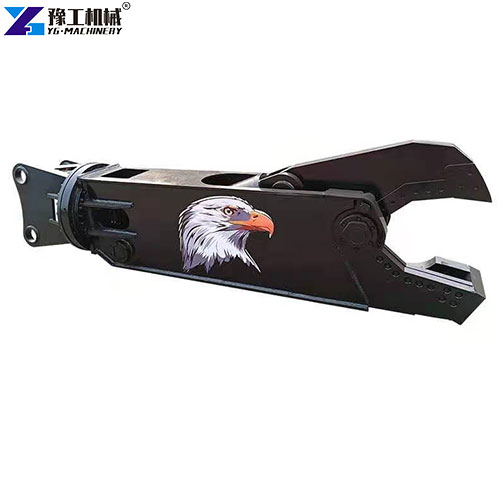

The Excavator Eagle Shear is a specialized demolition attachment for excavators. Powered by the excavator’s hydraulic system, it features a twin-cylinder synchronized drive and high-strength alloy steel blades, enabling the rapid shearing of various metal materials, including I-beams, steel plates, girders, and automotive frames. It is widely used in numerous engineering fields such as steel structure demolition, scrap metal recycling, end-of-life vehicle processing, ship dismantling, bridge demolition, and industrial plant decommissioning. Want to know more? Contact YG now.
Excavator Eagle Shear Parameter
| Product | Excavator-mounted hydraulic demolition shear for waste scrap rebar | ||||
| Item | YG-620 | YG-1413 | YG-2200 | YG-2977 | YG-4052 |
| Weight kg | 620 | 1413 | 2200 | 2977 | 4052 |
| Max. Open Size mm | 334.4 | 540 | 500 | 660 | 801 |
| Width mm | 864 | 1175 | 1370 | 1600 | 1700 |
| Height mm | 1521 | 2050 | 2380 | 2600 | 2700 |
| Effective Shear Depth mm | 286 | 348 | 486 | 578 | 736 |
| Rotating Way | 360 collision | 360 hydraulic | |||
| Working Pressure Bar | 235 | 300 | 320 | 320 | 320 |
| Bottom Shear Force T | 81.2 | 138.2 | 171.2 | 330.2 | 387.2 |
| Medium Shear Force T | 50.2 | 80.2 | 100.2 | 189.2 | 218.2 |
| Tip Shear Force T | 32.2 | 53.2 | 75.2 | 127.2 | 147.2 |
| Applied Excavator Weight T | 5-9 | 10-19 | 20-25 | 28-35 | 38-50 |
3 Key Specifications of the YG Excavator Eagle Shear
- Compatible Excavator Weight Range: The YG Excavator Eagle Shear can be adapted to fit excavators of different models and tonnages from brands like XCMG, Caterpillar, and others.
- Maximum Cutting Force: Depending on the model, the maximum cutting force can reach several hundred tons, meeting the demands of large-scale steel structure demolition.
- Rotation Capability: Features 360° hydraulic rotation, significantly enhancing operational flexibility on-site.
4 Advantages of the Excavator Eagle Shear
- Immense Shearing Power: Utilizing a twin-cylinder synchronized drive system, it delivers exceptionally stable power output. It can swiftly cut through thick steel plates, H-beams, I-beams, and heavy girders. Compared to standard single-cylinder shears, it is markedly more efficient. This robust performance defines a true steel-structure shear for an excavator.
- 360° Rotation Design: The attachment’s 360° hydraulic rotation capability allows operators to easily adjust the working angle. This is crucial for demolition tasks at height, in confined spaces, or when dealing with complex structural angles, dramatically boosting job site efficiency and versatility.
- High-Strength, Wear-Resistant Blades: The blades are crafted from premium wear-resistant alloy steel, offering high impact resistance, durability, and a long service life. The replaceable blade design further helps minimize long-term maintenance costs, ensuring your Excavator Eagle Shear for excavator remains a productive asset.
- Eco-Friendly & Low Disturbance: Compared to traditional methods like oxy-fuel cutting or demolition hammers, the excavator hydraulic eagle beak shear produces no open flame, minimal dust, lower vibration, and reduced noise. This makes it ideal for modern projects with stringent environmental and community impact requirements.
5 Applications of Excavator Hydraulic Eagle Beak Shear
- Steel Structure Building Demolition: Efficiently cuts I-beams, steel girders, columns, and more, greatly accelerating the demolition process for factories and warehouses.
- Bridge Demolition Projects: Ideal for cutting and removing steel bridge components. It offers a safer and more environmentally friendly alternative to thermal cutting methods.
- Scrap Metal Processing: Widely used in scrap yards to shear and size scrap metal, including plate steel, rebar, and pipes, enhancing the efficiency and value of recycled materials.
- End-of-Life Vehicle Dismantling: Capable of quickly processing car frames, body shells, and other metal components, reducing the difficulty and labor intensity of manual dismantling.
- Ship Dismantling: Suitable for cutting large hull steel structures. The 360° rotation is particularly valuable for adapting to the complex and confined spaces within a ship’s structure. This scenario perfectly illustrates the need for a versatile Excavator Eagle Shear.
Eagle Shear for Excavator of 3 Typical Applications
- Industrial & Bridge Demolition: Tasks include shearing columns, girders, crane rails in old plants, or cutting box girders and rebar cages in elevated bridges. The 360° rotation allows precise cutting at any angle, even at height. High cutting force ensures clean snaps on thick materials, preventing instability from repeated cuts. Its mobility enables the shear to follow the demolition front line closely.
- Scrap Yard Processing: Here, the excavator hydraulic eagle beak shear is used to process tangled rebar cages, old pipes, irregular plates, and machine housings into manageable, furnace-ready scrap. Mounted on a mobile excavator, it can move around the yard, processing materials in situ. This eliminates the need to move scrap to a stationary shear, streamlining the workflow and doubling efficiency.
- Vehicle & Ship Recycling: On dismantling lines or in dry docks, the shear quickly sections car bodies and ship hulls. It cleanly severs door pillars, engine bay frames, ship ribs, and deck plates. Its specialized jaw design securely grips curved surfaces and sheet metal. Unlike gas cutting, it poses no fire risk (crucial near fuel tanks) and doesn’t damage valuable non-ferrous metals with heat. Its speed is key to increasing processing line capacity, making an Excavator Eagle Shear for excavator a high-value investment.
Why Choose the YG Excavator Eagle Shear?
- Superior Hydraulic Stability: Incorporates high-quality hydraulic components for exceptionally reliable and stable operation, even under continuous heavy load.
- Enhanced Shearing Efficiency: The twin-cylinder synchronized drive structure delivers significantly higher efficiency compared to common single-cylinder models, getting the job done faster.
- Exceptional Structural Durability: Constructed from high-tensile steel, it is built to withstand the rigors of intense, continuous demolition work in challenging environments.
- Customization Capability: YG supports customization to perfectly fit various excavator makes and models, ensuring optimal performance for your specific projects and machinery.
- Proven Export Expertise: Our products have been successfully exported to numerous countries and regions. We are well-versed in international shipping logistics and understand diverse on-site requirements globally.
- Comprehensive After-Sales Support: YG provides complete support, including installation guidance, technical training, instructional videos, and long-term service, ensuring you can deploy your Excavator Eagle Shear quickly and effectively.
5 Hydraulic Eagle Shear FAQs
A: YG hydraulic eagle shears are widely used in: Steel structure demolition, bridge demolition, scrap steel recycling, scrap car dismantling, ship dismantling, municipal demolition projects, and so on.
A: The machine can quickly cut: I-beams, H-beams, Channel steel, Round steel, Steel plates, Vehicle frames, Ship steel structures, and so on. It is suitable for various metal demolition and recycling jobs.
A: Yes. YG hydraulic eagle shears use a 360° hydraulic rotation design, allowing flexible adjustment of working angles. This makes them ideal for high-altitude, narrow, and complex working environments.
A: YG hydraulic eagle shears can fit various excavator brands and sizes, including SANY, CAT, XCMG, and so on. Various models of excavators can be equipped.
A: Compared with traditional breaking equipment and flame cutting, hydraulic eagle shears produce less vibration and lower noise, making them more suitable for urban demolition projects.
The YG Excavator Eagle Shear is extensively used in steel demolition, bridge work, scrap recycling, auto dismantling, and shipbreaking. For clients seeking to increase job site efficiency, reduce labor costs, and meet environmental standards, the YG Excavator Eagle Shear represents a highly efficient, safe, and cost-effective engineering solution. Want to know more? Contact YG today.
