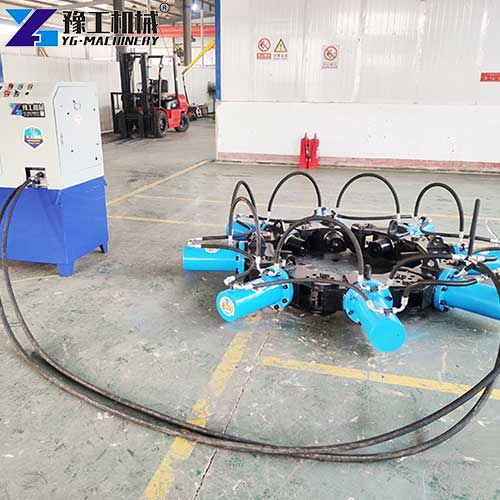

The pile breaker machine is a modern, efficient solution for pile foundation processing. It is designed for the rapid and safe removal of concrete pile heads. The equipment uses a power source to supply pressure to the hydraulic cylinders, which directly drive the drill rods, while also compressing the pile body to remove the pile head. During operation, the pile breaker machine is simple to use, highly efficient, and offers low noise and cost. It is ideal for pile group construction projects. For more information, please contact YG.
YG Excavator Pile Breaker Parameter
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | A combination of the total weight | ||||||||
7 Key Features of YG Pile Breaker Machines
- Versatility: With multiple power source options, the machine can be equipped with an excavator or hydraulic system depending on site conditions. It features flexible connection options, making it compatible with various construction machinery, ensuring product versatility and cost-effectiveness.
- Safety: The construction personnel do not need to make direct contact with the machine, allowing for safe operation in complex terrains.
- Environmental Friendliness: The full hydraulic drive ensures low-noise operation when breaking pile heads, minimizing disruption to the surrounding environment. The precise hydraulic radial action also prevents any damage to the mother pile or the equipment.
- Low Cost: The simple and user-friendly operating system reduces labor costs, while machine maintenance and other construction costs are also minimized.
- Multi-Functionality: The round pile machine and square pile machine share modular components, allowing for easy switching between round and square piles, making it a dual-purpose machine.
- Convenience: With a compact size, lightweight design, and easy transportation, the pile breaker machine is also quick to assemble or disassemble through its modular design, adapting to various pile diameters.
- Long Service Life: The machine is highly reliable and offers an extended service life.
3 Equipment Options for Concrete Pile Breakers
- Excavator: The excavator provides both power and lifting force.
- Hydraulic System + Crane: The hydraulic system supplies power, while the crane provides the lifting force.
- Hydraulic System + Carrier: The hydraulic system provides power, and the carrier provides the lifting force.
5 Major Applications of YG Pile Head Breaking Machines
- New Building Foundation Projects: Used for breaking pile heads to the required design elevation in high-rise buildings, factories, and large infrastructure projects.
- Old Building Renovation and Demolition: Used for processing old pile heads when constructing or reinforcing foundations on existing piles.
- Bridge and Wharf Construction: Used for breaking pile heads on quay piles and bridge foundation piles, creating a level and stable bearing surface.
- Municipal and Road Engineering: Utilized for handling pile obstacles encountered during pipeline laying or subway tunnel construction.
- Emergency Disaster Recovery: Quick cleanup of damaged foundation piles in the aftermath of disasters like earthquakes and floods.
5 Reasons to Buy Rather Than Rent a Pile Breaker Machine
- Long-Term Cost Control: For projects requiring the processing of numerous pile heads, owning the equipment allows for a return on investment within 1-2 construction cycles, which is significantly lower than long-term rental costs, offering a much lower total ownership cost.
- Autonomous Project Scheduling: Owning the equipment ensures it’s always available, giving you full control over the construction timeline. You can easily adjust to project changes or urgent tasks without worrying about rental equipment availability or penalty fees.
- Known Equipment Condition: Owned equipment receives the best care and regular maintenance, and you are familiar with its full operational history, avoiding unexpected breakdowns due to wear and improper use when renting.
- Exclusive Technical Data: All operational parameters and performance data are accumulated with owned equipment, helping you standardize construction processes and enhance your competitive edge in bids.
- Asset Depreciation: The equipment is a fixed asset on your company’s balance sheet, strengthening your financial position and improving your bank creditworthiness. High-quality brands have good resale value in the second-hand market.
4 Key Industry Trends for the Future of Pile crushers
- Intelligent Control: Pile breaker machines will integrate sensors and simple control systems to monitor breaking pressure and progress in real-time, preventing overloads and optimizing efficiency based on feedback.
- Green Power: The adoption of electric and hybrid models is increasing to comply with stricter emission regulations and to meet zero-emission requirements for enclosed spaces such as tunnels.
- Multi-Functional Integration: Machines are evolving from single-purpose units to integrated systems that combine functions like breaking, cutting, and leveling, reducing the need for multiple machines.
- Lightweight Design: By using higher strength materials and optimizing structure, the weight of the equipment is reduced, making it adaptable to a wider range of host machines and increasing its overall application range.
3FAQs about YG Pile Breaker Machines
Q1:Which is better, the square pile breaker machine or the round pile breaker machine?
A:There is no clear answer, as it depends on factors like pile dimensions, diameter, spacing, and quantity. We will help you choose the best equipment based on your project requirements.
Q2:How long does the machine last?
A:The lifespan depends on the usage and maintenance conditions of the machine.
Q3:What if I don’t know how to assemble the machine when it arrives?
A:We provide detailed installation instructions and after-sales services to ensure you can operate the machine without any issues.
