A pallet packing machine is essential logistics packaging equipment for standardized pallet cargo bundling. Equipped with PLC intelligent control and photoelectric height detection, it automatically completes wrapping, film cutting, and tail fixing with adjustable tension, wrapping layers, and pre-stretch ratio. The thickened steel frame ensures stable operation with strong load capacity, while multiple safety protections, including an emergency stop, effectively guarantee workshop safety. This wrapping machine for pallets greatly improves packaging efficiency, cutting stretch film consumption by nearly half and replacing manual packaging to save labor costs. It keeps palletized goods neatly fixed, preventing sliding, collision, and moisture damage during long-distance transportation. Suitable for manufacturing factories, cold chain logistics, and warehouses, it offers a competitive pallet wrapping machine price and long service life, ideal for enterprises pursuing standardized, high-efficiency packaging solutions. If you are interested, please contact Yugong Machinery immediately for more information.
Pallet Packing Machine Parameter

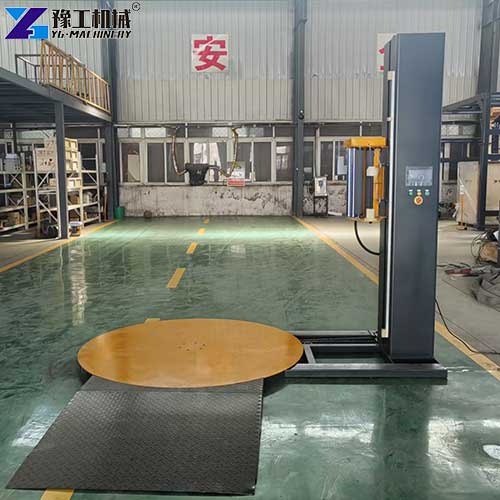

| Model | TP1650SP | TP1650SP-X（including ramp） |
| Turntable Diameter | 1650mm | 1650mm |
| Suitable Pallet Size | （500-1200）*（500-1200）mm | （500-1200）*（500-1200）mm |
| Packaging Height | 500-2000mm | 500-2400mm |
| Turntable Load Capacity | 2000kg | 2000kg |
| Machine Weight | 500kg | 600kg |
| Machine Power | 1.5kw | 1.5kw |
| Power Supply Voltage | 220V/50HZ | 220V |
| Turntable Speed | 0~12rpm | 0~12rpm |
| Applicable Film | 15~35 pre-stretch machine stretch film (25μ recommended) | 15~35 pre-stretch machine stretch film (25μ recommended) |
| Packaging Specifications | 1200*800mm,Height 600mm,Weight under2000kg | 1100*1100mm,Height 2300mm,Weight under 1000kg |
6 Working Process for YG Pallet Wrapping Machine
Our pallet packing machine, also widely known as auto stretch wrappers, adopts mature turntable or rotary arm automatic wrapping technology to fix palletized goods tightly with stretch film, and the whole working process can be divided into six simple steps.
- Place the stacked pallet goods steadily on the machine’s turntable; forklifts or manual handling can finish positioning quickly.
- Fix the head of stretch film on the corner of the pallet, and set wrapping parameters on the control panel, including wrapping layers, film tension, up-down carriage travel range and pre-stretch ratio.
- Start the equipment, the turntable drives the pallet to rotate at a stable constant speed, and the film carriage moves up and down along the vertical column synchronously.

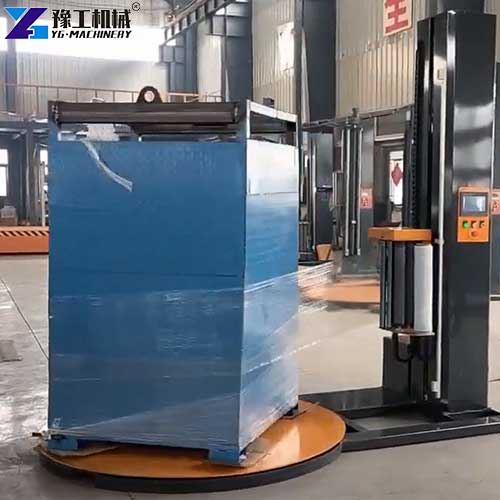

- The pre-stretch mechanism stretches the original film evenly, and the tensioned film is continuously wound around the pallet to bind scattered goods into a whole unit load.
- After completing the preset top, middle and bottom wrapping cycles, the machine automatically cuts the stretch film with a built-in cutting device and fixes the film tail to avoid loosening.
- Stop operation, the turntable resets, and workers can directly transport the packaged pallet to the warehouse or loading area to finish one complete packaging cycle.
6 Core Features for YG Wrapping Machine for Pallets
1. Adjustable Pre-Stretch Design to Save Consumables
Equipped with a powered pre-stretch film frame, the machine can stretch the film by 200%–250%. Compared with manual wrapping, it reduces stretch film consumption by 30%–50%, greatly cutting long-term packaging material costs and optimizing overall pallet wrapping machine price cost performance.
2. PLC Intelligent Control with Customizable Parameters
The human-machine operation panel supports one-key setting of wrapping layers, tension speed and up-down height. Users can store multiple packaging programs for different specifications of goods, switching modes quickly to adapt to mixed shipment orders. Both semi-automatic and fully automatic models are available to match different production capacities.
3. Stable Mechanical Structure & Strong Load-Bearing Capacity
The main frame adopts thickened carbon steel with anti-rust spray treatment, and the heavy-duty turntable can bear pallet loads from 1 ton to 3 tons. It runs smoothly without shaking even during long-time continuous high-frequency operation, effectively avoiding packaging deviation and film breakage.
4. Multiple Safety Protection Configurations
It is equipped with photoelectric height detection, emergency stop button, anti-collision safety protection and overload protection functions. The photoelectric sensor automatically identifies the height of pallet goods to avoid empty wrapping; once abnormal operation occurs, the machine stops immediately to protect equipment and on-site workers.
5. Flexible Model Selection for Different Working Conditions
We supply turntable type, rotary arm type and online conveyor type auto stretch wrappers. Rotary arm models are suitable for ultra-heavy, fragile and unstable pallet goods; online automatic types can be connected to assembly lines to realize unmanned continuous packaging.
6. Simple Maintenance & Low Failure Rate
Core electrical components adopt well-known international brands, with stable performance and long service life. The mechanical structure is simplified, vulnerable parts such as film rollers and cutting blades are universal standard accessories, which are easy to purchase and replace globally, greatly reducing later maintenance time and expense.
5 Wide Applications of Pallet Packing Machine
1. Logistics & Express Warehousing Industry
Large distribution warehouses, cross-border e-commerce storage centers use this wrapping machine for pallets to pack bulk outgoing pallets. Tight wrapping prevents goods from tilting, scattering and collision damage during long-distance road, sea and air transportation, greatly reducing freight compensation losses caused by cargo damage.
2. Food, Beverage & Daily Chemical Manufacturing
Bottled drinks, canned food, washing supplies and other palletized finished products need dust-proof, moisture-proof and anti-loose packaging. Stretch film can isolate dust and humid air, keep product packaging intact, and neat wrapped pallets also facilitate standardized warehouse stacking and inventory management.
3. Home Appliance, Electronic & Hardware Factory
Electrical components, hardware accessories, small household appliances are easily scratched and scattered during turnover. Uniform tension wrapping fixes the whole pallet load, avoids extrusion deformation, and also plays a certain anti-static and dust-proof protective effect for precision electronic products.
4. Building Materials, Chemical & Agricultural Product Industry
Cement bags, fertilizer bags, plastic raw material bags and other bulk bagged goods are prone to sliding and collapsing during forklift handling. Automatic pallet wrapping effectively binds loose bagged goods, improves loading safety, and avoids safety accidents caused by cargo collapse during transportation.
5. Port, Freight Yard & Third-Party Logistics Park
Freight terminals need high-efficiency continuous packaging to speed up container loading efficiency. High-speed auto stretch wrappers can complete dozens of pallet packaging tasks per hour, helping logistics companies shorten loading and delivery cycles and improve terminal turnover efficiency.
5 Reasons to Choose YG Pallet Wrapping Machine
1. Diversified Customization to Match Actual Production Needs
As a professional packaging equipment manufacturer, we can customize turntable load capacity, wrapping height, pre-stretch ratio, safety configuration, and online connection function according to customer pallet size, daily packaging volume and production line layout, avoiding overinvestment or insufficient equipment performance.
2. Transparent Pallet Wrapping Machine Price with High Cost Performance
We provide standardized configuration quotations without hidden charges. Compared with imported brands, our equipment has equivalent stable quality, more affordable purchase cost, and lower spare parts price, helping small and medium-sized enterprises quickly recover investment through labor and material savings within one to two years.
3. Strict Factory Inspection & Industrial-Grade Durability
Every pallet packing machine undergoes a continuous 72-hour aging test before delivery to eliminate hidden mechanical and electrical faults. The anti-rust frame, wear-resistant turntable, and stable control system ensure long-term stable operation in high-dust, high-humidity warehouse and factory environments.
4. Complete Global Pre-Sales & After-Sales Service
We provide English operation manuals, remote video installation guidance, online parameter debugging training, and a one-year whole-machine warranty service. Our global spare parts warehouse can quickly deliver vulnerable accessories to avoid production line shutdown losses caused by minor equipment faults.
5. Help Enterprises Realize Standardized Intelligent Management
Automatic wrapping replaces inefficient manual operation, making pallet packaging specifications unified and neat. Standardized packaging not only enhances the brand image of outgoing goods, but also lays a foundation for subsequent intelligent warehousing, automatic sorting, and unmanned logistics upgrading.
3 FAQs about YG Pallet Wrapping Machine
A: Yes, standard configurations are equipped with photoelectric height sensors, which can automatically identify the highest point of pallet goods and adjust the up-down travel of the film carriage to avoid unnecessary empty wrapping and film waste.
A: The equipment only needs simple horizontal fixing and power connection after arriving at the site. With our English operation guide and remote video training, ordinary warehouse workers can master parameter setting and daily operation within half an hour.
A: Industrial-grade auto stretch wrappers support long-time uninterrupted cyclic operation, which is very suitable for high-volume packaging scenes such as large logistics warehouses and finished product factories with two-shift production.
Pallet Wrapping Machine Price-Choose YG Machinery
If you are tired of high labor costs, unstable manual packaging quality and excessive stretch film waste, choose our cost-effective pallet packing machine and reliable auto stretch wrappers now. We offer reasonable pallet wrapping machine price, flexible customized solutions and full-cycle after-sales support to help you improve packaging efficiency, reduce comprehensive logistics costs and enhance the market competitiveness of your warehouse and manufacturing business! If you are interested, please contact YG for a discount.
