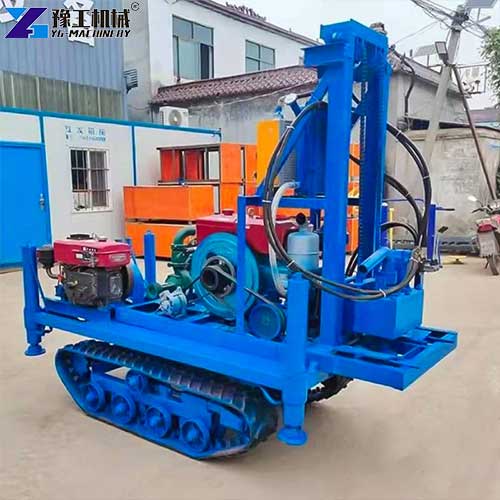

The YG small water well drilling rig, widely listed as a small water well drilling rig for sale, is a compact wheel-mounted mobile drilling device independently developed for shallow to medium-depth groundwater drilling. It adopts integrated diesel, matched with a supporting mud pump, drill rods, and alloy drill bits, supporting a maximum drilling depth of 200m.
Different from bulky large crawler drilling rigs, this mini rig features a lightweight body, a foldable frame, and traction wheel design, which can be towed by small trucks or motorcycles to reach narrow rural roads, mountain plots, and backyard construction sites inaccessible to heavy equipment. It adapts to soil, sand, gravel, and soft limestone geology and is mainly used for household drinking wells, farm irrigation wells, small construction foundation holes, and off-grid community water supply projects. The YG series balances portable mobility, stable drilling torque, and affordable overall cost, becoming mainstream small-scale water drilling equipment exported to Mexico, the UK, and dozens of other countries. If you are interested, please contact YG immediately for more information.
Small Water Well Drilling Rig Parameter
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |

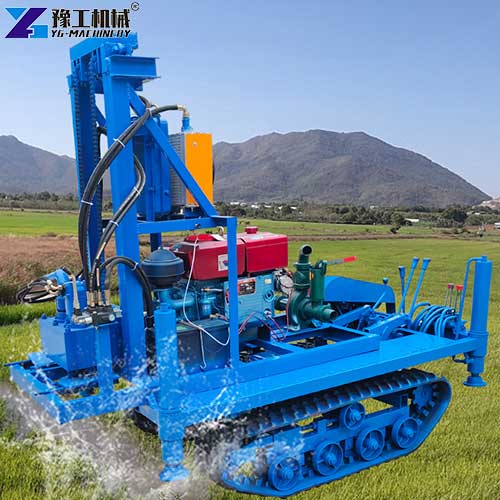

Case 1: Mexico Farm Irrigation Project
Customer Background
The customer is a local Mexican agricultural contractor, focusing on farm irrigation well drilling. He frequently purchases small water well drilling rigs for sale to serve rural self-water-supply projects and finally chose the YG small water well drilling rig for local shallow well construction.
Main Construction Difficulties
- Narrow rural farm roads cannot support large drilling equipment, causing difficult site access and high transportation costs.
- Local soil contains fine gravel, and low-power rigs are prone to drill rod jamming and unstable drilling.
- Most farm wells require 100–200m depth, while ordinary small machines cannot sustain deep drilling.
- Traditional equipment needs manual rod replacement, wasting time and lowering daily drilling output.
Customized Solution
We matched the YG-240-22P small water drilling machine with 22HP diesel power, 42mm drill rods and full automatic thread rod changing system. The 1000kg lifting force and 2.5m lifting height perfectly adapt to local farm shallow-deep well drilling and complex stratum conditions.
Actual Construction Effects
- Light 200kg body is easy to transport, freely entering mountain farm sites inaccessible to large rigs.
- Stable diesel power effectively avoids drill bit jamming in gravel stratum for smooth continuous drilling.
- Maximum 200m drilling depth fully meets all local farm irrigation well depth requirements.
- Fully automatic rod changing greatly saves labor and improves overall drilling efficiency.
Customer Feedback
“This YG small water well drilling rig is very suitable for Mexican rural farm projects. Compact size, stable power and automatic operation save us much time and cost. Among all small water well drilling machine options, this model offers the best cost performance for our daily irrigation well business.”

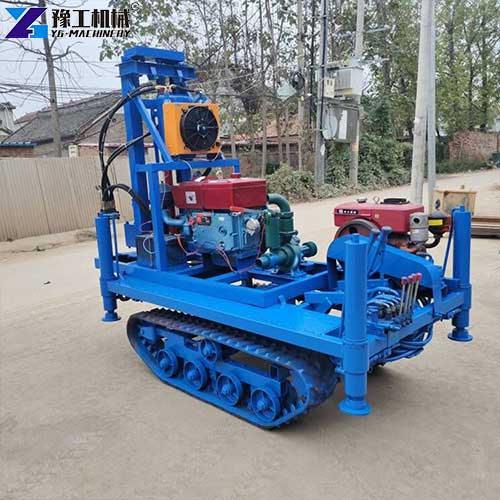

Case 2: UK Rural Household Water Supply Project
Customer Background
The client is a British domestic water well engineering contractor, specialized in private villa and countryside household water well drilling. He selected YG small water well drilling rig from various small water well drilling rigs for sale to meet high-standard residential drilling demands.
Main Construction Difficulties
- British villa yards have narrow construction space, limiting the use of bulky drilling equipment.
- Residential wells need a hole diameter between 100–240mm, while ordinary rigs have a fixed single aperture.
- A hard local clay stratum requires a strong lifting force to avoid the drill rod getting stuck and a hole collapse.
- Residential construction requires stable and low-failure equipment to avoid delayed project delivery.
Customized Solution
We provided YG-240-30P small water drilling machine with 30HP high-power diesel engine, 51mm thickened drill rods, 2000kg super lifting force, and an adjustable 100–240mm drilling diameter, fully adapting to UK residential well standards and hard stratum drilling.
Actual Construction Effects
- Compact overall dimensions fit narrow backyard construction without site expansion.
- Adjustable drilling diameter perfectly matches all specification requirements of British household wells.
- A 2000 kg strong lifting force effectively prevents hole collapse and drill jamming in hard clay layers.
- High-power configuration ensures stable long-hour operation with an extremely low failure rate.
Customer Feedback
“The YG small water well drilling rig is perfect for UK rural household projects. Adjustable aperture, powerful lifting capacity and stable operation solve all our construction troubles. It is the most reliable small water well drilling machine for our residential water supply business.”
6 Buying Advice for YG Small Water Well Drilling Rig
1. Match Power Type Based on Local Environment
Select diesel-powered models for remote mountain, farm, and off-grid areas without a stable electricity supply. Choose a small electric water well drilling machine for suburban residential zones, European and British regions with strict noise and emission limits.
2. Confirm Target Drilling Depth & Geological Conditions
For shallow household wells within 100m and soft soil, standard light-duty rigs work well. For 100–200m irrigation wells with gravel or soft rock, pick high-torque upgraded models with thickened drill rods and alloy anti-blocking bits.
3. Check Mobility Design According to Site Terrain
Mountain farms and villages with narrow roads prioritize wheel-traction portable rigs; flat suburban yards can select a lightweight, hand-push small water drilling machine with foldable brackets.
4. Compare Comprehensive Cost Performance Instead of Unit Price
Do not only focus on the quotation of small water well drilling rigs for sale. Evaluate supporting accessories, including mud pump, complete drill rod sets, and wear-resistant bits, as complete supporting kits reduce later extra purchasing costs.
5. Verify Hydraulic Lifting & Anti-Jamming Configuration
Prioritize rigs with an independent hydraulic lifting system and a circulating mud flushing structure. These core configurations effectively avoid drill rod sticking in gravel-mixed strata and lower failure rate during continuous drilling.
6. Confirm After-Sales Training & Spare Parts Supply
Formal manufacturers provide English operation manuals, remote video training, and global spare parts delivery channels. Stable after-sales support avoids long construction shutdowns caused by damaged drill bits or hydraulic parts.
Small Water Well Drilling Rig Price-Choose YG Machinery
For contractors and farmers looking for reliable portable drilling equipment, the YG small water well drilling rig delivers outstanding practical value for global water supply projects. It has diverse demands from farm irrigation to UK villa household wells, with adjustable hole diameters, automatic rod changing, and max 200m drilling depth. Whether you browse various small water well drilling rigs for sale or compare different small water drilling machine types, this yg small water well drilling rig stands out with light weight, strong lifting force and stable diesel power. It cuts transport and labor costs while handling gravel and clay strata smoothly. If you want to expand your well-drilling business and take more rural and residential orders, this durable small water well drilling machine is a long-term, profitable investment worth choosing. If you are interested, please contact YG for a discount.
