If you are browsing for a reliable concrete laser screed for sale, you may wonder how this intelligent construction equipment delivers ultra-flat concrete floors that manual construction cannot match. The concrete laser screed machine, also known as the concrete laser leveling machine or laser concrete screed machine, has completely transformed traditional concrete pouring methods. It integrates laser positioning, computer-automated control, and mechanical vibration compaction into one single device. This blog will break down its core working principle, step-by-step construction workflow, and seven prominent competitive advantages, showing why it has become essential machinery for warehouse, factory, and commercial concrete projects. All target keywords are naturally distributed throughout the article for search engine optimization, with a full text word count over 1000.

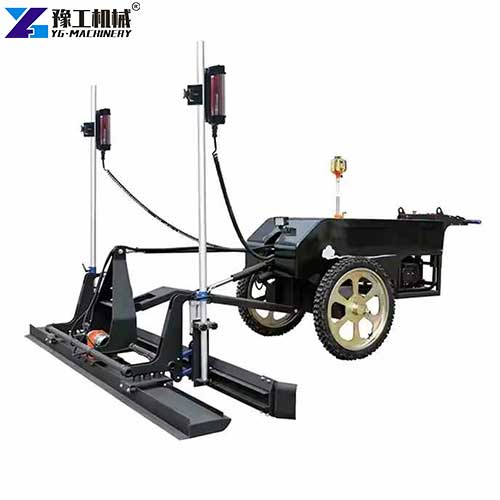

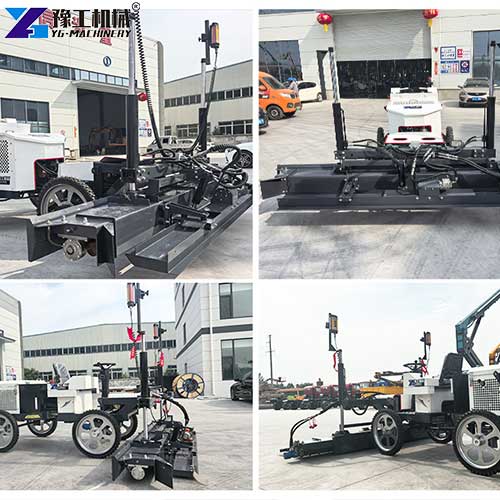

Concrete Laser Screed Machine Parameters
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
I. Core Working Principle of Laser Concrete Screed Machine

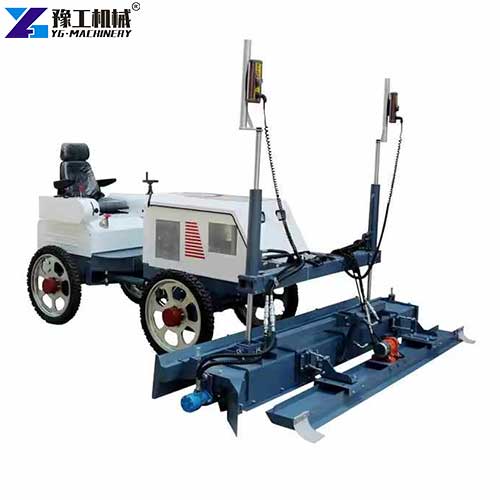

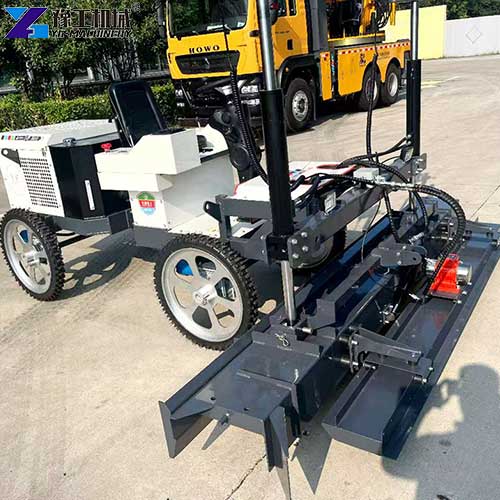

The leveling logic of the concrete laser screed machine relies on electric power to drive its integrated screed head, coordinated by a high-precision laser system and microcomputer control panel. The laser transmitter installed at the construction site emits fixed horizontal reference signals, which are captured by the laser receiver mounted on the screed machine. Once the sensor detects height deviations, the built-in computer instantly sends adjustment instructions to the hydraulic system, which automatically lifts or lowers the screed head to correct height errors in real time.
The all-in-one screed head combines three core functional components: spreading scraper, high-frequency vibrator, and flat leveling plate. During forward movement, the scraper spreads piled fresh concrete evenly, the vibrator eliminates air bubbles inside concrete through high-speed vibration for full compaction, and the flat plate finishes fine leveling and mortar lifting on the surface. All procedures of leveling, smoothing, vibrating, and compacting are completed in a single pass, removing repeated manual operations and drastically lifting overall construction efficiency.
II. 5 Steps Working Flow of Concrete Laser Leveling Machine
- Site Preparation and Laser Transmitter Setup: Clear the construction base and set up the laser transmitter at a stable position around the pouring area. Calibrate the laser reference height according to the designed floor elevation, and input slope parameters into the machine’s computer if drainage gradients are required.
- Fresh Concrete Delivery and Preliminary Spreading: Transport mixed concrete to the construction area. The operator drives the laser concrete screed machine to roughly distribute accumulated concrete with the front scraper.
- Automatic Laser Leveling & Integrated Vibration Compaction: Turn on the laser receiving system and activate the screed head. As the machine moves forward at the recommended working speed, the laser sensor continuously monitors height data, and the computer adjusts the screed head automatically. The built-in vibrator works simultaneously to compact concrete and remove internal voids.
- Continuous Large-Area Pouring: Move the machine orderly across the whole construction zone. Thanks to laser automatic calibration, workers do not need to set up side formworks for height reference, supporting uninterrupted large-area concrete pouring.
- Follow-up Finishing Curing: After the laser screed finishes its pass, conduct simple manual edge trimming for wall corners. Cover the finished concrete slab for moisture curing once the surface loses surface water.
III. 7 Advantages of Concrete Laser Screed for Sale
1. Superior Construction Quality with Ultra-Flat Floors
The concrete laser leveling machine achieves millimeter-level flatness control through laser positioning. It supports continuous large-area pouring and greatly cuts the number of construction joints. The integrated vibration system guarantees uniform concrete slump and stable structural strength, forming complete floor slabs with far fewer cracks. In addition, this machine effectively solves common floor defects, including hollowing, peeling, cracking, and uneven surfaces, slashing long-term floor maintenance expenses for project owners.
2. Remarkably Boosted Construction Efficiency
When pouring large-scale concrete surfaces such as warehouse floors and factory grounds, the working speed of a laser concrete screed machine is three times higher than traditional manual vibrating ruler teams. It is perfectly suitable for construction projects with simple geometric shapes and wide operation areas, helping contractors finish construction deadlines ahead of schedule and take on more engineering orders within the same time frame.
3. Significantly Cut Formwork and Material Costs
Traditional concrete construction demands a huge amount of side formwork for height marking and concrete containment. Adopting the concrete laser screed machine can reduce formwork usage by over 74%, which directly lowers procurement, installation, and removal costs of timber or steel formwork, creating obvious cost savings for every square meter of construction.
4. High Automation Reduces Labor Demand & Workload
This automated equipment replaces heavy manual concrete leveling labor with mechanical spreading, vibrating, elevation adjustment, and mortar lifting. A single operator can control the whole machine independently, cutting required on-site labor numbers by around 30%. Construction workers no longer need to carry heavy vibrating tools, largely lowering physical labor intensity and solving the problem of skilled concrete finisher shortages in many regions.
5. Lower Long-Term Floor Maintenance Expenses
Compared with floors made via traditional construction techniques, concrete slabs finished by the concrete laser screed for sale have fewer construction joints and more compact internal structures. The uniform flat surface avoids concentrated wear and local cracking. Statistically, this advanced construction method saves owners 2 to 3 US dollars of maintenance costs per square meter throughout the floor service cycle.
6. Stable Adaptability for Various Construction Projects
The laser leveling system supports preset drainage slopes, so the machine works well for parking lots that need anti-ponding gradients. Its wide screed head and adjustable traveling speed adapt to different concrete slump degrees, fitting industrial factories, logistics warehouses, shopping malls, parking lots, and municipal ground projects universally.
7. Long Service Life of Equipment with Low Daily Upkeep
The main body of the concrete laser screed machine uses thickened steel frames, while the laser sensor and hydraulic adjustment system adopt premium brand components. Daily maintenance only requires washing residual concrete off the screed head after each shift, without complicated disassembly. Low failure rates and simple maintenance further reduce equipment operating costs for construction companies.

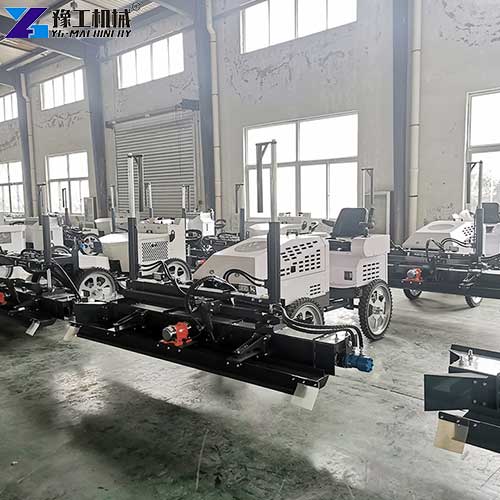

Concrete Laser Screed For Sale-Choose YG Machinery
The concrete laser screed machine relies on coordinated laser sensors and computer control to realize automatic real-time leveling. Its integrated screed head completes spreading, vibration compaction, and surface smoothing in one movement, bringing seven outstanding advantages covering construction quality, working efficiency, labor control, and long-term maintenance costs. From site laser calibration to final concrete curing, its standardized working flow simplifies large-area floor construction dramatically. If you need detailed model parameters, construction case videos, or official quotations, contact our professional sales team anytime.
