An Electric Transfer Cart is an advanced material handling solution designed for transporting heavy equipment and large industrial components. It uses an electric drive system to move heavy loads smoothly on flat surfaces, reducing dependence on manual labor and improving workplace safety. Compared with traditional handling methods, an Electric Transfer Cart provides many advantages: strong load capacity, stable transportation performance, easy operation, reduced labor requirements, improved working efficiency, and lower long-term handling costs. The equipment is widely used for factory material transportation, heavy machinery movement, steel structure handling, mold transportation, and industrial equipment installation. For companies looking for professional Heavy Duty Machine Moving Skate solutions, choosing the right capacity model is very important. The following two customer cases show how companies in the United States and Thailand improved their heavy load transportation projects by using electric transfer solutions.
Want More Case Studies? Contact YG For Customized Services.
YG Electric Transfer Cart Parameters
| Specification | YG-10 | YG-20 | YG-25 | YG-30 | YG-40 | YG-50 | YG-60 |
| Model | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Motor | 500W ×2, Brake, 104 Flange Heavy-duty Gearbox | 750W ×2, Brake, 104 Flange Heavy-duty Gearbox | 1000W ×2, Brake, 104 Flange Heavy-duty Gearbox | 1200W ×2, Brake, 120 Flange Heavy-duty Gearbox | 1500W ×2, Brake, 120 Flange Heavy-duty Gearbox | 2000W ×2, Brake, 120 Flange Heavy-duty Gearbox | 3000W ×2, Brake, 120 Flange Heavy-duty Gearbox |
| Controller | D2T80A Dual-channel Driver | D2T80A Dual-channel Driver | D2T100A Dual-channel Driver | D2T100A Dual-channel Driver | D2T200A Dual-channel Driver | D2T200A Dual-channel Driver | D2T220A Dual-channel Driver |
| Remote Controller | C7 Remote Controller | C6/C7 Remote Controller or Industrial Remote Controller | C7 Remote Controller | C7 Remote Controller | C6/C7 Remote Controller or Industrial Remote Controller | C7 Remote Controller or Industrial Remote Controller | C7 Remote Controller or Industrial Remote Controller |
| Battery Specification | 48V 30AH Ternary Lithium Battery | 48V 60AH Ternary Lithium Battery or LiFePO₄ Battery | 48V 60AH Ternary Lithium Battery or LiFePO₄ Battery | 48V 60AH Ternary Lithium Battery or LiFePO₄ Battery | 48V 120AH Ternary Lithium Battery or LiFePO₄ Battery | 48V 120AH Ternary Lithium Battery or LiFePO₄ Battery | 48V 120AH Ternary Lithium Battery |
| Working Current | 25A | 60A | 60A | 60A | 120A | 120A | 120A |
| Charging Current | 54.6A | 54.6A | 54.6A | 54.6A | 54.6A | 54.6A | 54.6A |
| Drive Wheels | 80×120×4, High Hardness Imported Polyurethane | 90×135×4, High Hardness Imported Polyurethane | 90×135×4, High Hardness Imported Polyurethane | 90×135×4, High Hardness Imported Polyurethane | 140×140×4, High Hardness Imported Polyurethane | 140×140×4, High Hardness Imported Polyurethane | 140×140×8, High Hardness Imported Polyurethane |
| Gear | Luomeng Titanium High-strength Gear, Module 3 | Luomeng Titanium High-strength Gear, Module 3 | Luomeng Titanium High-strength Gear, Module 3 | Luomeng Titanium High-strength Gear, Module 3 | Luomeng Titanium High-strength Gear, Module 3 | Luomeng Titanium High-strength Gear, Module 3 | Luomeng Titanium High-strength Gear, Module 3 |
| Steel Plate | 10mm Q355 Manganese Steel Plate | 10mm Q355 Manganese Steel Plate | 12mm Q355 Manganese Steel Plate | 12mm Q355 Manganese Steel Plate | 16mm Q355 Manganese Steel Plate | 16mm Q355 Manganese Steel Plate | 16mm Q355 Manganese Steel Plate |
| Towing Capacity | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Load Capacity | 10T | 10T | 12.5T | 15T | 20T | 25T | 30T |
| Overall Dimensions | 500×550×145mm | 670×620×165mm | 670×635×165mm | 740×640×185mm | 810×800×182mm | 810×800×182mm | 1110×800×185mm |
| Disc Flange | 2900mm Diameter | 2900mm Diameter | 2900mm Diameter | 2900mm Diameter | 2900mm Diameter | 2900mm Diameter | 2900mm Diameter |
| Travel Speed | Adjustable | Adjustable | 2–10 min Adjustable | 2–10 min Adjustable | 2–10 min Adjustable | 2–10 min Adjustable | 2–10 min Adjustable |
| Continuous Working Time | 2–3 Hours | 3–4 Hours | 3–4 Hours | 3–4 Hours | 4–5 Hours | 4–5 Hours | 4–5 Hours |
| Packaging Size & Weight | 600×570×360mm, 100kg | Export Wooden Case: 765×750×400mm, 136kg | Export Wooden Case: 765×750×400mm, 146kg | Wooden Case: 830×750×540mm, 165kg | Wooden Case: 920×860×260mm, 233kg | Wooden Case: 920×860×260mm, 236kg | 1350×950×360mm, 300kg |
Want More Case Studies? Contact YG For Customized Services.
Case Study 1: USA Machinery Manufacturer Improved Heavy Equipment Transportation with 30 Ton Electric Transfer Cart
Customer Background: A Large Machinery Company Serving the North American Market
The customer was a machinery manufacturing company located in the United States. Its main business included industrial equipment manufacturing, large machinery assembly, customized mechanical solutions, and heavy component production. The company mainly served customers in manufacturing, energy, construction equipment, and industrial automation industries. During production, the company frequently needed to move large machine parts, steel frames, and finished equipment between different workshops. The weight of some components exceeded 25 tons, creating challenges for daily transportation. After evaluating different solutions, the customer selected a YG 30 Ton Electric Machinery Skate system to improve internal transportation efficiency.
Project Challenges: Traditional Handling Methods Were Slow and Expensive
Before purchasing the equipment, the customer mainly used forklifts and cranes for heavy transportation.
However, several problems appeared during daily operation.
1. High Dependence on Large Equipment
Moving heavy machinery required:
- Crane assistance
- Multiple operators
- Complex preparation work
This increased operation difficulty and reduced production efficiency.
2. Low Transportation Efficiency
The company needed to move heavy components several times every day.
Traditional methods caused:
- Long preparation time
- Production interruptions
- Increased labor requirements
The customer wanted a faster transportation method.
3. Higher Safety Risks
When moving large industrial components, safety was a major concern.
Traditional handling methods could create risks such as:
- Load instability
- Equipment collision
- Worker safety problems
The company needed a safer and more stable solution.

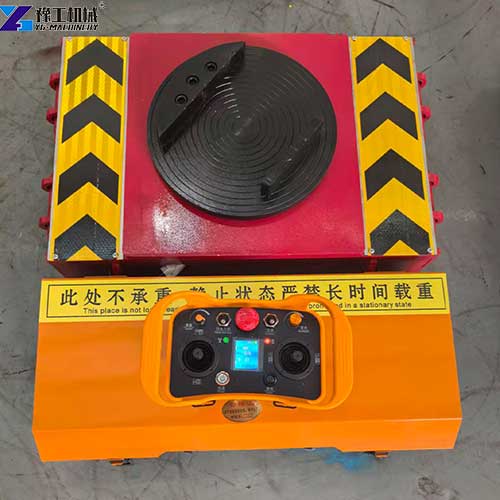

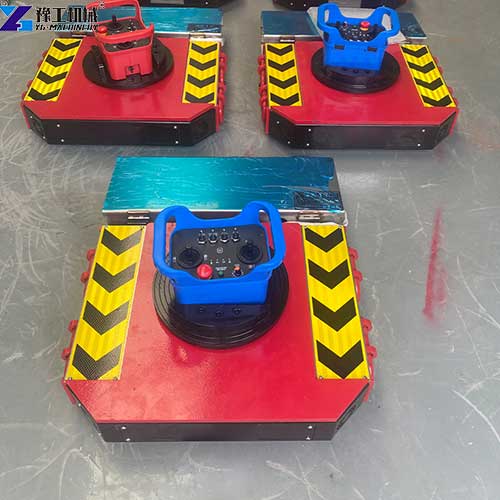

Solution: 30 Ton Electric Machinery Skate for Heavy Industrial Transportation
Based on the customer’s requirements, the supplier recommended a professional electric transfer cart with a 30-ton capacity.
The solution included:
- High-capacity electric drive system
- Stable load support structure
- Easy control operation
- Safety protection design
The 30-ton electric machinery skate allowed workers to move heavy equipment smoothly inside the factory. YG supplier also provided operation guidance to ensure the customer could quickly use the equipment.
Project Results: Faster Production and Lower Handling Costs
After applying the new transportation solution, the American customer achieved significant improvements.
- Transportation Efficiency Increased by 55%. The company reduced preparation time and improved daily transportation speed. Compared with crane-based movement, the working efficiency increased by approximately 55%.
- Production Schedule Improved by 20 Days. Because equipment movement became faster and more flexible, the company completed several production tasks earlier. The overall project delivery schedule was shortened by around 20 days.
- Labor Costs Reduced by 35%. The electric transportation system reduced dependence on multiple workers. The company reduced internal handling costs by approximately 35%.
- Improved Workplace Safety. The stable movement system reduced risks during heavy equipment transportation. Workers reported a safer and easier operating experience.
Customer Feedback: “The Equipment Made Heavy Transportation Much Easier”
The US customer shared:
“The 30-ton electric transfer solution changed our workshop transportation process. It reduced labor requirements and helped us move heavy equipment faster and more safely.”
The company planned to purchase additional units for other production areas.
Want More Case Studies? Contact YG For Customized Services.
Case Study 2: Thailand Factory Improved Production Efficiency with 20 Ton Electric Machinery Skate
Customer Background: A Growing Industrial Manufacturer in Southeast Asia
The second customer was a manufacturing company from Thailand.
The company served customers in automotive supply chains, construction industries, and machinery markets. During production, the company needed to frequently move heavy molds, steel components, and production equipment. Most loads were between 10 and 20 tons. The customer wanted a compact but powerful solution suitable for factory environments. After comparing different electric machinery skates, the company selected a YG 20ton electric machinery skate.
Project Challenges: Limited Space and Increasing Production Demand
The Thailand customer faced several difficulties.
1. Narrow Workshop Space
The factory had limited working space. Large cranes were not always practical because they required:
- More preparation area
- Higher operating costs
- Complex coordination
The customer needed flexible transportation equipment.
2. Increasing Production Volume
As orders increased, the company needed to move more materials every day. The existing transportation method could not keep up with production demand.
3. Need for Lower Operating Costs
The company wanted equipment that could:
- Reduce manpower
- Improve efficiency
- Control transportation expenses

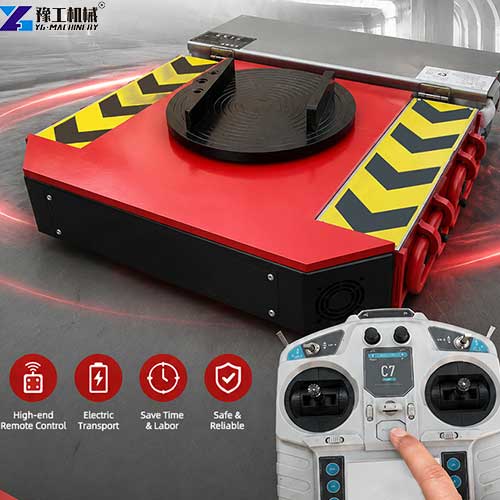

Solution: Compact 20 Ton Electric Machinery Skate for Factory Use
The supplier recommended a 20ton electric machinery skate according to the customer’s working environment.
The solution provided:
- Compact structure
- Strong load capacity
- Easy movement control
- Stable operation
The equipment worked well in limited factory spaces. The customer could transport heavy loads without relying on large lifting equipment. The electric transfer cart helped improve daily material handling efficiency.
Project Results: Increased Productivity and Reduced Costs
After using the equipment, the Thailand customer achieved excellent results.
- Material Transportation Speed Increased by 45%
- Delivery Time Shortened by 15 Days
- Operating Costs Reduced by 30%
- Better Workshop Management
Customer Feedback: “A Perfect Solution for Our Factory Environment”
The Thai customer said:
“The 20-ton electric machinery skate is very suitable for our factory. It is easy to operate, saves manpower, and helps us improve production efficiency.”
The company planned to use similar equipment in additional workshops.
Want More Case Studies? Contact YG For Customized Services.
Important Usage Tips for Electric Transfer Cart
To ensure safe and stable operation, users should follow these recommendations.
1. Choose the Correct Load Capacity
Before purchasing equipment, customers should confirm:
- Maximum load weight
- Transportation distance
- Working environment
Choosing the correct model avoids overload problems.
2. Check the Working Surface
The equipment should operate on:
- Flat ground
- Stable surfaces
- Suitable factory floors
Uneven surfaces may affect transportation stability.
3. Perform Regular Maintenance
Regular inspection should include:
- Battery condition
- Motor performance
- Wheels
- Control system
Proper maintenance extends equipment service life.
4. Follow Safe Operating Procedures
Operators should:
- Check load balance
- Avoid overloading
- Keep transportation routes clear
- Follow operation instructions
Safety should always be the priority.
Want To Get The Latest Electric Transfer Cart Information? Contact YG Now!
The successful projects in the United States and Thailand demonstrate how professional heavy-load transportation equipment can improve industrial efficiency. A reliable Electric Transfer Cart provides faster material movement, lower labor costs, safer operation, and better production efficiency. Whether you need a Heavy Duty Machine Moving Skate, electric machinery skates, or customized electric load moving skates, choosing the right solution can bring long-term value to your business. If you have a similar heavy equipment transportation project, contact YG today.
