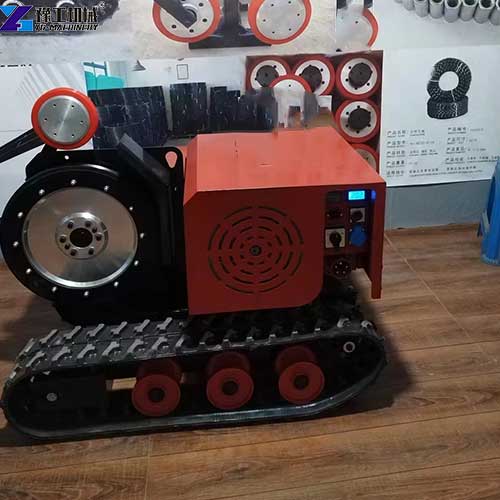

An electric wire saw is an advanced diamond wire cutting machine designed for cutting reinforced concrete, stone, bridges, walls, beams, columns, and other heavy structures. It uses an electric motor to drive the diamond wire at high speed, allowing the wire to cut through hard materials smoothly and accurately. Compared with traditional demolition tools, it provides cleaner cutting results, lower vibration, and better control during construction. If you are interested, please contact YG immediately for more information.
Want to Know More Detailed Product Information? Contact YG Now!
YG Electric Wire Saw Parameter
| Model | YG-37HT-6P | YG-45HT-6P | YG-55HT-6P |
| Main Motor Power | 37KW-6P(50HP) | 45KW-6P(60HP) | 55KW-6P(75HP) |
| Flywheel Diameter | φ800mm | φ800mm | φ800mm |
| Wire Saw Speed | 0-40m/s | 0-40m/s | 0-40m/s |
| Max. Wire Saw Length | 20-60m | 20-80m | 20-100m |
| Walking Motor Power | 0.75KW(1HP) | 0.75KW(1HP) | 0.75KW(1HP) |
| Rotation Angle(Electric) | 360° | 360° | 360° |
| Walking Speed of Machine | 0-60m/h | 0-60m/h | 0-90m/h |
| Rail Length | 7.3m | 7.3m | 7.3m |
| Allowed Working Temperature | -15~+40℃ | -15~+40℃ | -15~+40℃ |
| Crawler Power | 42KW(56HP) | 42KW(56HP) | 42KW(56HP) |
| Dimension: L*W*H | 7300*2380*2150mm | 7300*2380*2150mm | 7300*2380*2150mm |
| Net Weight | 7T | 7.3T | 7.5T |
Want to Know More Detailed Product Information? Contact YG Now!
What Makes Electric Wire Saw Stand Out? 7 Key Advantages
1. Heavy Saw Head Design Reduces Concrete Damage
One important advantage of an electric wire saw is its relatively heavy saw head design.
During actual construction, the weight of the saw head can provide strong stability. In many situations, operators do not need to install expansion bolts to fix the machine. Instead, the equipment can be positioned by pressing the bottom corner firmly against the working surface.
This design brings several benefits:
- Reduces drilling holes in concrete
- Minimizes structural damage
- Saves installation time
- Simplifies construction preparation
For renovation projects where the surrounding structure must remain intact, this feature is especially valuable.
Compared with traditional fixing methods, reducing the number of expansion bolts means less damage to the original concrete structure and faster equipment setup.
2. Requires Less Cooling Water and Supports Long-Time Operation
Cooling is very important during concrete cutting because diamond wires generate heat when cutting hard materials.
Traditional hydraulic wire saw systems often require additional cooling systems because the hydraulic power station needs temperature control.
However, an electric wire saw machine has a simpler cooling requirement.
It only needs cooling water at the cutting wire area to:
- Reduce cutting temperature
- Remove concrete dust
- Protect the diamond wire
- Extend working time
This makes the equipment suitable for areas where water resources are limited.
3. Lower Equipment Investment Cost
Cost is an important consideration for construction companies.
Compared with hydraulic systems, electric models have a simpler structure because they do not require:
- Hydraulic pump stations
- Complex hydraulic pipelines
- Additional cooling systems
This reduces manufacturing costs and maintenance requirements.
For contractors searching for an affordable cutting solution, checking the electric wire saw price is an important step before purchase.
4. Simple Power Supply and Easy Operation
Another major benefit of an electric wire saw is convenient power supply.
It can operate using standard industrial electricity, making it easier to use on many construction sites.
Advantages include:
- Easy installation
- Simple operation process
- Reduced equipment preparation time
- Lower maintenance difficulty
Operators can quickly learn the working process after basic training.
5. Precise Cutting Performance with Smooth Results
Electric wire cutting technology provides excellent precision.
The diamond wire cuts materials through continuous grinding, creating:
- Straight cutting lines
- Smooth cutting surfaces
- Lower vibration
- Better structural protection
It is especially suitable for projects requiring accurate separation of concrete structures.
6. Environmentally Friendly Demolition Method
Modern construction projects increasingly require cleaner demolition methods.
Compared with blasting or heavy impact demolition, an electric wire cutting system offers:
- Less vibration
- Lower noise
- Reduced dust
- Better control
7. Flexible Application with Different Construction Conditions
The equipment can perform different cutting directions, including:
- Horizontal cutting
- Vertical cutting
- Inclined cutting
A crawler electric wire saw version provides additional mobility for large projects and complex construction environments.
Want to Know More Detailed Product Information? Contact YG Now!
Where Can Electric Wire Saw Be Used? 5 Main Applications
1. Reinforced Concrete Building Demolition
Old buildings often require controlled demolition.
An electric cutting system can cut:
- Concrete walls
- Columns
- Beams
- Floor slabs
It allows contractors to remove structures section by section instead of using destructive methods.
2. Bridge Cutting and Reconstruction Projects
Bridge renovation requires high precision because surrounding structures must remain stable.
The equipment is used for:
- Bridge deck cutting
- Concrete beam removal
- Bridge expansion projects
Its low vibration characteristics help protect nearby structures.
3. Tunnel Construction and Modification
Tunnel projects often have limited working space.
An electric wire cutting solution provides:
- Accurate cutting
- Lower dust production
- Better operation control
It is suitable for tunnel repair and underground construction.
4. Stone Processing Industry
Besides concrete cutting, the equipment can also be used for stone applications.
Examples include:
- Granite cutting
- Marble processing
- Large stone block separation
5. Industrial Structure Dismantling
Factories and industrial facilities often require precise dismantling.
Applications include:
- Equipment foundation removal
- Steel-concrete structure cutting
- Factory renovation
Want to Know More Detailed Product Information? Contact YG Now!
4 Overseas Customer Feedback: Real Project Experiences
1. USA Customer Feedback: Bridge Renovation Project
A U.S. construction company used an electric wire saw for a bridge renovation project. The machine helped cut reinforced concrete sections accurately while reducing vibration damage. After use, the company reported that cutting efficiency improved by 35%, project completion was shortened by 10 days, and labor costs decreased by approximately 25%.
2. Mexico Customer Feedback: Industrial Building Demolition Project
A Mexican demolition contractor used an electric wire saw machine for factory structure removal. The equipment provided cleaner cuts and reduced dust compared with traditional demolition tools. The customer achieved a 40% improvement in working efficiency and completed the project 12 days earlier than planned.
3. Philippines Customer Feedback: Concrete Structure Modification Project
A Philippine engineering company used a crawler electric wire saw for large concrete cutting work. The machine performed well in complex construction conditions, reducing installation time and improving cutting accuracy. The company reported a 30% reduction in operating costs.
4. Australian Customer Feedback: Stone Processing Project
An Australian stone processing company selected the equipment for large stone cutting applications. The smooth cutting performance improved material utilization, reduced waste by 20%, and increased daily production capacity by around 35%.
Want to Know More Detailed Product Information? Contact YG Now!
5 FAQs About Electric Wire Saw
A: An electric wire saw can cut reinforced concrete, concrete walls, bridges, stone materials, and large structural components. It is widely used in construction and demolition industries.
A: Electric models have lower investment cost, simpler structure, less cooling water required, and easier maintenance than hydraulic models.
A: Compared with hydraulic systems, electric models require much less water.
A: No. The ropes used for concrete are sintered, 11.5mm in diameter, and have 40 beads per meter. The ropes used for metal are brazed and are generally 10.5mm in diameter.
A: The ropes can be connected using connectors. Each spool of rope comes with one pack of connectors free of charge. Hydraulic pliers are used to secure the connectors.
Choose Electric Wire Saw for Efficient and Cost-Effective Cutting
An electric wire saw is a modern concrete cutting solution that combines precision, efficiency, and economic advantages. For contractors working in demolition, construction, bridge renovation, and industrial projects, choosing the right equipment can greatly improve project efficiency. Whether you need a standard model or a crawler electric wire saw for large-scale projects, YG supplier can provide the right solution according to your application. Have a concrete cutting project? Contact YG today to get a customized electric wire saw solution and improve your construction efficiency.
