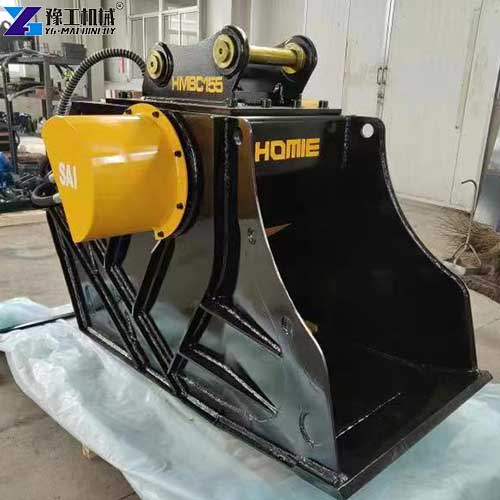

Excavator Crusher Bucket For Sale

An excavator crusher bucket is a hydraulic attachment installed on excavators. It is mainly used for on-site crushing of concrete, construction waste, bricks, stones, and waste materials. Driven by the hydraulic system, the internal crushing mechanism realizes fast material crushing and screening, greatly improving construction efficiency. Compared with the traditional mode of “transportation + centralized crushing”, the excavator crusher bucket for sale can finish crushing work directly at the construction site. It not only saves transportation costs but also realizes the recycling of construction waste. Therefore, the excavator crusher bucket is widely used in building demolition, road construction, mining engineering, municipal engineering, and waste recycling industries. With the growing demand for environmentally friendly construction and resource recycling, the excavator crusher bucket for sale has become essential equipment for more and more engineering projects. We also supply reliable rock crusher buckets for excavators, practical mini excavator crusher buckets, high-performance mini excavator crusher buckets, and standard hydraulic crusher buckets. If you want to know more details about the excavator crusher bucket for sale, welcome to contact YG.

GET YOUR FREE QUOTE

Excavator Rock Crusher Bucket Technical Parameter

SPECIFICATION	UNIT	YG-1	YG-2	YG-3	YG-4	YG-5	YG-6	YG-7	YG-8
Carrier Weight	Ton	8-12	14-18	120-25	25-30	30-35	35-50	50-75	≥ 75
Load Capacity	m³	0.15	0.55	0.66	0.70	0.90	1.30	1.60	2.30
Opening Dimensions	mm	L540 H250	L610 H510	L740 H510	L850 H510	L910 H540	L1205 H540	L1300 H600	L1450 H700
Output Setting	mm	15-60	15-60	15-130	15-135	15-140	15 – 145	40-150	100-200
Length (A)	mm	1240	1745	2000	2050	2185	2185	2930	3560
Width (B)	mm	1000	1000	1150	1300	1340	1620	1880	2090
Height (C)	mm	770	1100	1200	1400	1390	1390	170	2065
Weight	Ton	0.75	1.6	2.3	3	3.5a	4.8	7.5	10.5
Oil Flow	l/min	90	98	140	160	180	210	320	380
Pressure	bar	200	220	220	220	220	220	250	230
Counter	bar	10	10	10	10	10	10	10	10
Max. Production	m³/h	10	23	31	34	42	53	88	120

GET YOUR FREE QUOTE

5 Working Steps of YG Excavator Crusher Bucket

1. Start the Hydraulic System: After the excavator starts, the hydraulic system provides stable power to the crusher bucket and supports the operation of the internal crushing device.
2. Load Construction Materials: The operator controls the excavator to load concrete blocks, stones, construction waste, and other materials into the crusher bucket.
3. Internal Crushing Process: The hydraulic system drives the crushing mechanism to run at high speed, continuously squeezing, impacting, and crushing the materials.
4. Automatic Discharge of Crushed Materials: Materials reaching the required size are automatically discharged from the bottom of the bucket, convenient for backfilling, transportation, or reuse.
5. Continuous Cycle Operation: The equipment can complete feeding, crushing, and discharging continuously, improving overall construction efficiency.

GET YOUR FREE QUOTE

8 Advantages of Excavator Crusher Bucket

1. High Construction Efficiency: It crushes materials directly on site, greatly cutting down time for transportation and secondary processing.
2. Lower Transportation Cost: Traditional construction needs to transport waste to fixed crushing stations, while on-site treatment reduces freight charges effectively.
3. Resource Recycling Available: Crushed materials can be directly used for road backfilling, foundation bedding, and recycled aggregate production, raising the resource utilization rate.
4. Save Labor Cost: Mechanized construction reduces manual sorting and handling work and improves overall project efficiency.
5. Suitable for Narrow Space Construction: Compared with large fixed crushing equipment, it is more suitable for urban construction, underground engineering, and narrow working areas.
6. Better Environmental Performance: On-site crushing reduces the transportation frequency of construction waste and lowers dust and construction pollution.
7. Fit for Various Excavators: Different models match small, medium, and large excavators with a wide application range.
8. Stable Equipment Operation: High-quality models adopt wear-resistant steel and high-strength crushing tooth plates, ideal for long-term continuous operation.

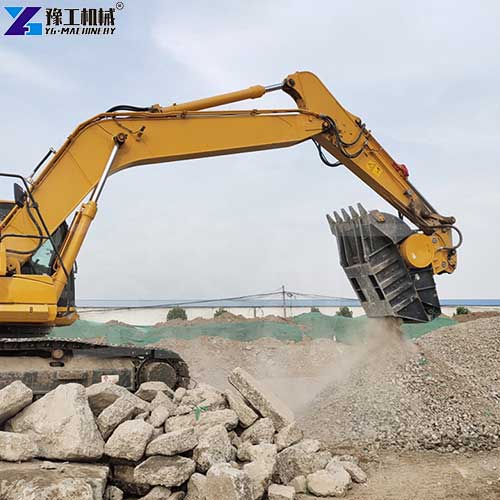

7 Applications of Hydraulic Crusher Bucket

1. Building Demolition Engineering: Used for crushing concrete blocks, bricks, and construction waste to speed up site cleaning.
2. Road Construction: Suitable for road renovation, cement pavement crushing, and the reuse of road base materials.
3. Mining Engineering: Applied to on-site crushing of stones, ores, and soft rock materials.
4. Municipal Engineering: Widely used in underground pipeline construction, road repair, and old building reconstruction projects.
5. Tunnel Engineering: Quickly process waste and rocks during tunnel construction.
6. Construction Waste Recycling: Help classify construction waste and realize resource recycling.
7. Water Conservancy Engineering: Suitable for river construction, canal renovation, and concrete structure demolition.

GET YOUR FREE QUOTE

Why More Engineering Projects Choose Excavator Crusher Bucket

1. One Excavator with Multiple Functions: After installing the crusher bucket, the excavator can not only do regular excavation, but also complete on-site crushing, waste disposal, and resource recycling, greatly improving equipment utilization.
2. Save Transportation and Disposal Costs: Traditional projects need to transport large amounts of construction waste; the crusher bucket handles waste on site and reduces transportation and dumping expenses.
3. Meet the Trend of Green Construction: With higher environmental standards, more projects focus on construction waste reuse. The crusher bucket helps enterprises achieve eco-friendly construction.
4. Improve Construction Efficiency: On-site crushing removes intermediate transportation links, speeds up construction progress, and boosts overall project efficiency.
5. Adapt to Complex Construction Environments: It works flexibly in urban demolition, mountain construction, and underground engineering.
6. Increase Corporate Profitability: On-site waste recycling cuts material purchasing costs and allows companies to take on more environmental protection construction projects.

How to Choose the Right Rock Crusher Bucket for Excavators

1. Choose by Excavator Tonnage: Match different specification buckets according to excavator tonnage to ensure stability and working efficiency.
2. Choose by Construction Materials: Materials with different hardness require corresponding crushing structures and tooth plates.
3. Match the Hydraulic System: Hydraulic flow and pressure must match the excavator parameters to avoid insufficient power.
4. Select Wear-resistant Material: High-strength wear-resistant steel extends equipment service life and reduces later maintenance costs.
5. Customized Functions Available: Customizable feed inlet size, discharge particle size, and special structural design for special engineering needs.

GET YOUR FREE QUOTE

6 FAQs about YG Excavator Crusher Bucket
