Glass Lifting Suction Cup VS Excavator Magnet Attachment

I. Product Brief Introduction

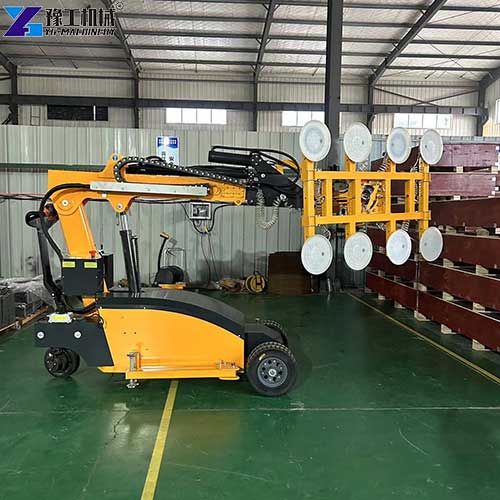

Glass Lifting Suction Cup

The vacuum suction cup glass lifter, also known as professional glass vacuum lifting equipment featuring premium glass lifting suction cups, is a dedicated mobile glazing machine independently developed for installing fragile flat materials. As the most popular glass vacuum lifter for sale in the global decoration and curtain wall industry, it adopts battery-powered vacuum negative pressure technology, multi-point rubber suction cup adsorption, self-propelled walking, and 180° electric flipping functions. This wheeled glass lifter is professionally customized for glass, marble, aluminum veneer, and acrylic panels. It features flexible movement, precise angle adjustment, zero damage to the plate surface, and ultra-high safety performance. It is specially designed for indoor and outdoor glass door & window installation, curtain wall construction, ceiling glass assembly, and small-area flat panel handling.

Excavator Magnet Attachment

The excavator magnet attachment and excavator hydraulic suction cup are general excavator accessory tools installed on the excavator arm. Driven by the excavator’s own hydraulic system, they are mainly matched with large construction machinery to realize lifting and handling work. Many construction teams mistakenly use a hydraulic magnet for excavators and excavator hydraulic suction cups to install glass. This kind of accessory belongs to general heavy-duty handling tools, designed for rough engineering scenarios such as steel plate handling, scrap metal lifting, and large stone moving.

Want To Know More Details? Contact YG Manufacturer!

Glass Vacuum Lifting Equipment Parameter

Model Type		YG-LD-300	YG-LD-400	YG-LD-500	YG-LD-600	YG-LD-800
Load Capacity		300kg(retract)150kg(extend)	400kg(retract)200kg(extend)	500kg(retract)250kg(extend)	600kg(retract)300kg(extend)	800kg(retract)400kg(extend)
Lifting Height		3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/1200W	24V/1200W	24V/1200W	24V/1200W	24V/1200W
Lifting Motor		24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/12L
Chassis L*W		2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
Packing Size(mm)		2560*1030*1700	2560*1030*1700	2580*1050*1700	2580*1050*1700	3000*1250*2300
N.W/G.W		1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1600/1650kg
Loading Qty		1x20GP/40GP: 6SETS/12SETS
Movement	Automatic(4 kinds)	1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. The hydraulic arm lifts electrically. 4. The base of the whole machine moves 100- 150 mm horizontally.
	Manual (2kinds)	1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional).
Usages		Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc.

Want To Know More Details? Contact YG Manufacturer!

Hydraulic Excavator Magnet Parameter

Item/Model	Unit	YGML02	YGML04	YGML06	YGML08	YGML10	YGML14	YGML20
Suitable Excavator	ton	4-6	7-11	12-16	17-23	24-30	31-40	41-50
Weight	kg	1400	1500	1890	2000	2200	2500	2800
Power	kW	5	8	8	10	10	15	15
Outer Diameter	mm	700	800	900	1100	1200	1300	1400
Working Flow	lpm	30-55	50-100	90-110	100-140	130-170	200-250	250-320
Working Pressure	bar	170	180	190	200	210	250	250

Want To Know More Details? Contact YG Manufacturer!

II. Core Functions of Two Types of Equipment

Main Functions of Glass Lifting Suction Cup

1. Professional fragile plate handling: Specially used for lifting, moving, flipping, and precise installation of large tempered glass, hollow glass, curtain wall glass, and decorative stone panels.
2. Multi-angle precise adjustment: Supports horizontal moving, vertical flipping, and arbitrary angle rotation, perfectly adapting to door window embedding, exterior wall vertical installation, and ceiling laying.
3. Indoor and outdoor dual-purpose: Lightweight self-propelled design, flexible walking on construction floors, narrow corridors, and outdoor temporary platforms, no need for large machinery occupation.
4. Safety anti-fall protection: Equipped with a double vacuum system, power-off pressure holding and pressure alarm device, effectively preventing glass from falling and breaking.
5. Zero-damage construction: Soft silicone glass lifting suction cups fit closely with the glass surface, no hard extrusion, no scratches, no edge chipping.

Main Functions of Excavator Magnet Attachment

1. Heavy-duty bulk material handling: Mainly used for lifting steel plates, scrap iron, large rough stone, and heavy building materials, suitable for earthwork and rough construction sites.
2. Single lifting action: It can only complete simple vertical lifting and horizontal dragging, unable to perform fine flipping and angle fine-tuning.
3. Site restriction operation: It must rely on the excavator’s walking and boom movement, which can only work in open outdoor sites and cannot enter indoor narrow spaces.
4. General mechanical clamping: The hydraulic suction cup and excavator magnet attachment pursue large suction force, lacking flexible protection for fragile materials, focusing on heavy load rather than precision.

Want To Know More Details? Contact YG Manufacturer!

III. 6 Core Advantages of Choosing a Glass Lifting Suction Cup

1. Professional Glass Protection, Zero Breakage Rate

Excavator magnet attachments are designed for hard metal and rough stone. Their hard contact structure and rigid hydraulic pressure easily cause local stress concentration on glass surfaces, leading to cracks, bursts, and edge damage during lifting.

In contrast, glass vacuum lifting equipment uses soft, high-elastic silicone glass lifting suction cups. The multi-point uniform adsorption design disperses pressure evenly on the whole glass panel. No hard extrusion, no local stress, perfectly protecting coated glass, hollow glass, and ultra-thin tempered glass. The glass breakage rate is reduced to nearly zero, avoiding huge material loss caused by broken glass.

2. Ultra-High Installation Precision, Suitable for Fine Decoration

Excavator boom has large mechanical shaking and hydraulic inertia during operation. When installing glass doors, windows, and curtain walls, slight shaking will cause alignment deviation, unable to meet millimeter-level installation standards. Moreover, excavator accessories cannot rotate and flip finely, resulting in a low installation qualification rate and repeated rework.

The vacuum suction cup glass lifter realizes electric stepless angle adjustment and stable hovering. Operators can fine-tune the glass angle and height slowly to achieve precise docking with installation gaps. It fully meets the fine construction requirements of high-end buildings, villa decoration, and commercial curtain wall projects, greatly improving construction quality.

3. Flexible & Portable, No Site Restrictions

Excavators are bulky and inflexible, unable to enter indoor construction sites, narrow corridors, basements, and small building courtyards. They can only operate in open outdoor areas, resulting in extremely low construction flexibility.

The mobile glass vacuum lifter for sale features a compact body and self-propelled design. One person can push and operate it freely indoors and outdoors. It adapts to narrow working spaces, indoor secondary decoration, and high-rise small balcony installation scenarios that excavator attachments cannot reach, realizing full-scene construction coverage.

4. Low Construction Risk & Higher Safety Factor

Excavator hydraulic attachments rely on the excavator’s whole machine operation. Once the hydraulic system fluctuates or the boom shakes, the glass will swing violently, easily causing falling accidents and safety hazards for surrounding workers. There is no pressure-holding protection function after power failure.

Professional glass vacuum lifting equipment is equipped with a dual vacuum backup system, automatic pressure maintenance, and a power-off 30-minute pressure holding function. Once abnormal pressure drop occurs, the system will trigger a sound and light alarm immediately. The whole process is stable and safe, effectively avoiding construction safety accidents.

5. Save Labor & Reduce Comprehensive Construction Cost

Using excavators to install glass requires 3–4 workers to assist in positioning and stabilization, with high labor cost and low efficiency. The excavator consumes large amounts of fuel, and the daily rental and fuel cost are extremely high.

One professional glass vacuum lifter only needs 1–2 operators to complete the whole handling and installation work. It is battery-powered with low energy consumption, no fuel cost, and no large machinery rental fee. It greatly reduces labor input and mechanical use cost, and shortens the project delivery cycle.

6. Multi-Scenario Adaptability & Strong Versatility

Excavator hydraulic suction cups and excavator magnet attachments can only lift heavy and hard materials, completely unable to adapt to lightweight and fragile decorative panels.

YG glass vacuum lifting equipment can not only lift all kinds of glass, but also handle marble, granite, aluminum veneer, acrylic, and other flat decorative materials. It supports multiple working conditions such as factory handling, warehouse stacking, indoor installation, and outdoor curtain wall construction, with a wider application range and a higher equipment utilization rate.

Want To Know More Details? Contact YG Manufacturer!

Glass Lifting Suction Cup Manufacturer-Choose YG-Factory Direct Sales

In the field of modern glass installation and decorative panel handling, professional glass vacuum lifting equipment completely outperforms traditional excavator hydraulic suction cups and excavator magnet attachments.

Although excavator hydraulic tools and hydraulic magnets for excavators are suitable for heavy rough construction, they have irreparable defects in glass protection, installation precision, site adaptability, safety, and construction cost. For curtain wall engineering, interior decoration, door and window installation, and high-end building projects, mobile glass lifting suction cup equipment is the most professional, safest, and most cost-effective choice.

YG glass vacuum lifters for sale adopt an industrial-grade vacuum system, wear-resistant glass lifting suction cups, and a humanized operation design, helping global construction companies reduce breakage loss, improve installation efficiency, and enhance project qualification rate. If you are looking for dedicated glass handling equipment, welcome to contact YG for professional solutions and exclusive quotations.
