In modern construction, mining, tunneling, and infrastructure projects, traditional excavation methods often face challenges when working with hard rock, concrete structures, and difficult geological conditions. Conventional excavator buckets may struggle with precise cutting, while blasting methods can create noise, vibration, and safety concerns. A hydraulic drum cutter is an advanced excavator attachment designed to solve these challenges. It uses a rotating cutting drum equipped with wear-resistant teeth to continuously cut and grind materials. Installed on excavators, this attachment transforms ordinary excavators into powerful cutting machines capable of handling rock excavation, concrete demolition, trenching, and surface profiling.
The following two cases show how customers in Mexico and Vietnam improved their project performance by using advanced hydraulic drum cutter solutions. Want to know more details? Contact YG Machinery!
Want More Case Studies? Contact YG For Customized Services.

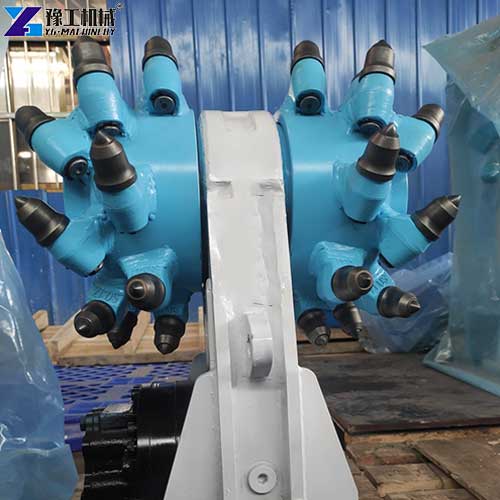

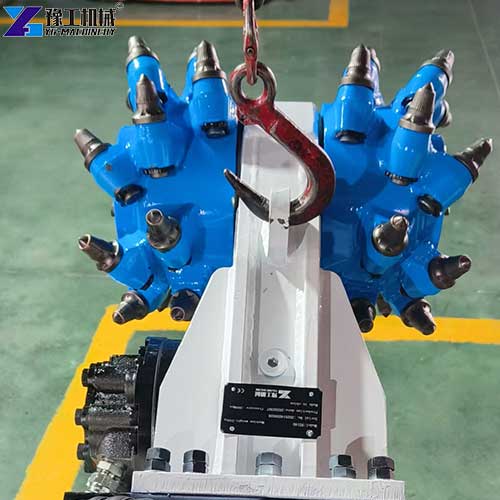

YG Hydraulic Drum Cutter Parameter
| Model | YG140 | YG160 | YG180 | YG240 |
| H | 650mm | 820mm | 830mm | 1395mm |
| W | 410mm | 650mm | 780mm | 960mm |
| D | 390mm | 460mm | 480mm | 620mm |
| Excavator weight | 5~10T | 10~15T | 15~21T | 20~24T |
| Max power | 22Kw | 45Kw | 55Kw | 65Kw |
| Speed | 0~120r/min | 0~100r/min | 0~80r/min | 0~90r/min |
| Flow | 40L/min | 100~110L/min | 130~180r/min | 200~250r/min |
| Max Torque | 3200N.m | 5400N.m | 5600N.m | 12800N.m |
Want More Case Studies? Contact YG For Customized Services.

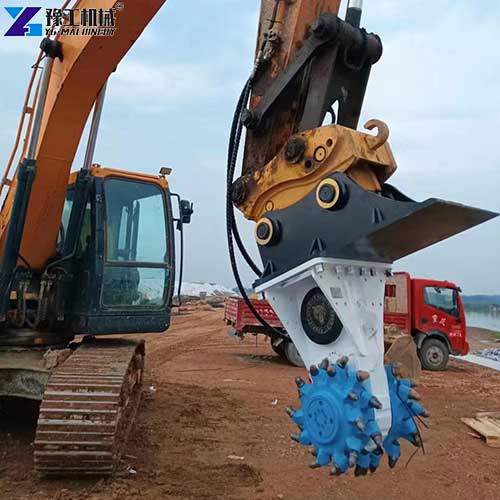

Case Study 1: Mexican Mining Contractor Increased Rock Excavation Efficiency with Rotary Drum Cutter
Customer Background: A Growing Mining Service Company in Mexico
The customer was a mining and engineering service company located in northern Mexico. The company had approximately 90 employees and more than 10 years of experience in the mining and construction industries. The company mainly served the Mexican mining market, providing excavation solutions for mineral processing companies and large construction contractors. After comparing different excavation attachments, the customer decided to invest in a YG hydraulic drum cutter.
Challenge: Hard Rock Conditions Reduced Project Efficiency
Before purchasing the new attachment, the customer mainly used hydraulic breakers and traditional excavation methods. Although these methods worked for basic demolition, they created several difficulties.
- Low Efficiency in Hard Rock Excavation. The project area contained hard rock layers, uneven geological structures, and difficult excavation conditions. Traditional equipment required repeated impact operations, which slowed down the entire process.
- Excessive Vibration and Noise. The mining project was located near environmentally sensitive areas. Hydraulic breakers created strong vibration, high noise levels, and potential impact on surrounding structures. The customer needed a quieter and more controlled solution.
- Difficult Surface Finishing. Some projects required precise rock shaping rather than simple removal. Traditional methods could not easily achieve this; the company needed a more flexible attachment.
Solution: Customized Drum Cutter Attachment for Rock Cutting Applications
Based on the customer’s excavator model and working conditions, the supplier recommended a suitable drum cutter attachment.
The solution included:
- Proper cutter size selection
- Wear-resistant cutting teeth
- Excavator compatibility adjustment
- Operation guidance

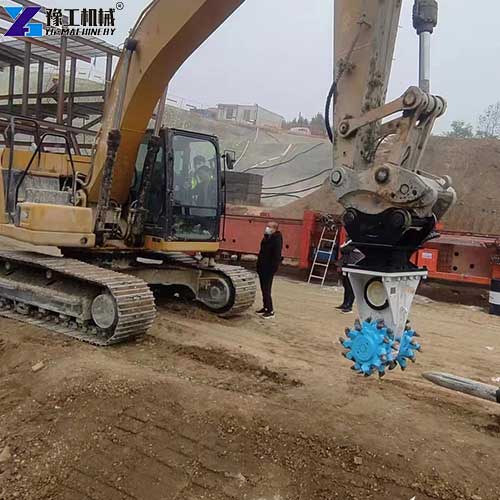

The rotary drum cutter allowed the excavator to perform precise cutting instead of aggressive impact breaking.
The supplier also provided technical support, including installation instructions and operator training. This helped the customer quickly integrate the equipment into existing mining projects.
Project Results: Faster Excavation and Lower Operating Costs
After using the new equipment, the customer achieved significant improvements.
- Excavation Speed Increased by 45%. Compared with the previous excavation method, the project speed increased by approximately 45%. The customer was able to complete more excavation work within the same working hours.
- Project Schedule Reduced by 15 Days. For one rock excavation project, the customer shortened the completion period by around 15 days. This helped the company deliver projects earlier, improve customer satisfaction, and accept additional contracts.
- Fuel Costs Reduced by 25%. Because the cutting process became more efficient, excavator operating time decreased. The company reduced fuel consumption by approximately 25%.
- Maintenance Costs Decreased. Compared with frequent hydraulic breaker maintenance, the new attachment required fewer repairs. This reduced equipment downtime and improved overall profitability.
Customer Feedback: “A Better Solution for Hard Rock Excavation”
The customer shared:
“The hydraulic drum cutter improved our excavation process significantly. It works smoothly on hard rock and provides much better control than traditional equipment. Our projects are completed faster and with lower costs.”
The company also mentioned that the attachment helped them expand their service capabilities in the mining market.
Want More Case Studies? Contact YG For Customized Services.
Case Study 2: Vietnamese Construction Company Improved Tunnel and Concrete Cutting Projects
Customer Background: An Infrastructure Contractor in Vietnam
The customer was a construction company from Vietnam with approximately 70 employees. The company served Vietnam’s rapidly developing construction market, where demand for transportation infrastructure and urban development projects was increasing. Their projects often involved underground construction, road expansion, concrete structure removal, and rock excavation. As project requirements became more complex, the customer needed equipment that could provide accurate cutting performance in limited spaces. They searched for an excavator drum cutter solution that could improve efficiency while reducing environmental impact. Finally, they chose the YG hydraulic drum cutter.
Challenge: Traditional Equipment Could Not Meet Precision Requirements
Before purchasing the new attachment, the company mainly used hydraulic breakers and manual cutting methods.
However, they encountered several problems.
1. Limited Precision During Concrete Removal
Some urban projects required removing concrete sections without damaging surrounding structures.
Traditional breaking methods caused:
- Excessive impact
- Secondary damage risks
- Difficult surface control
2. Restricted Working Areas
Many projects were located in:
- Urban areas
- Narrow construction sites
- Tunnel environments
Large equipment could not operate efficiently in these conditions.
3. Long Construction Periods
Because of limited equipment capability, some projects required additional workers and longer operation times.
This increased:
- Labor costs
- Project pressure
- Equipment expenses
The customer needed a compact but powerful solution.
Solution: Excavator Drum Cutter for Precise Construction Work
After analyzing the project conditions, the supplier recommended an excavator drum cutter designed for precise excavation and concrete cutting.
The equipment provided:
- Controlled cutting ability
- Low vibration operation
- Compact working performance
- High cutting accuracy
YG supplier also offered installation support, technical training, and maintenance recommendations. This helped the customer operate the machine efficiently from the beginning
Results: Improved Productivity and Better Project Quality
After applying the new solution, the customer achieved excellent results.
- Construction Efficiency Improved by 40%. The new equipment increased project productivity by approximately 40%. Workers completed cutting and excavation tasks much faster.
- Delivery Time Shortened by 12 Days. For an underground construction project, the customer reduced the construction period by about 12 days. This helped the company meet strict project deadlines.
- Labor Costs Reduced by 30%. Because the attachment improved automation, fewer workers were needed. The company reduced labor expenses by approximately 30%.
- Improved Working Environment. Compared with traditional impact equipment, the rotary cutting method created:
- Lower noise
- Less vibration
- Better working conditions
Customer Feedback: “The Equipment Helped Us Handle Difficult Projects”
The Vietnamese customer said:
“The excavator drum cutter gave us a more flexible way to complete tunnel and concrete projects. It provides accurate cutting performance and helps us finish difficult jobs more efficiently.”
They also appreciated the supplier’s professional support and fast technical response.
Want More Case Studies? Contact YG For Customized Services.
Conclusion: Need a Reliable Hydraulic Drum Cutter Solution?
The cases from Mexico and Vietnam demonstrate how advanced excavator attachments can help companies improve productivity, reduce costs, and complete challenging projects more efficiently. Compared with traditional excavation methods, a high-quality drum cutter attachment provides better precision, lower vibration, and more flexible operation.
Whether you need a rotary drum cutter for rock cutting or an excavator drum cutter for concrete and tunnel projects, choosing the right equipment can bring long-term value to your business. Do you have a similar excavation, mining, or construction project? Contact YG today to get a customized solution.
