The Little Blue is a portable water well solution. It features a highly integrated, modular design that enables easy operation and transport by a single person, significantly reducing the barriers and labor costs of well drilling.YG small water well drilling rigs are widely used for agricultural irrigation, residential water supply, and small-scale engineering projects. As a reliable portable water well drilling machine solution, they are compact, easy to operate, and suitable for various terrains. If you are looking for a portable well-drilling machine for sale, YG offers efficient, cost-effective options to meet various project needs.
Small Water Well Drilling Rig Parameter
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
Case Study 1: Farm Irrigation Project in Portugal

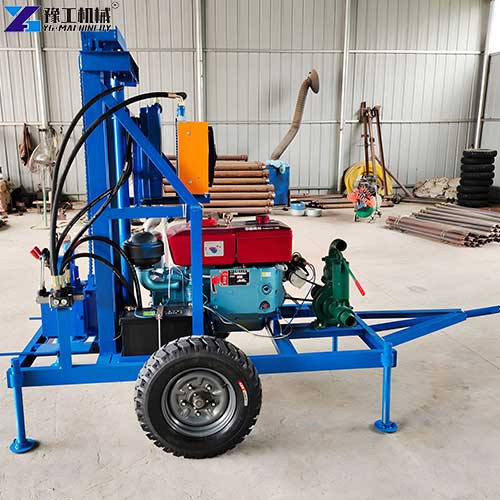

YG-240-22P small water well drilling rigs
| Model | YG-240-22P |
| Dimension | 1450*1550*1970mm |
| Weight | 200kg |
| Drill rod diameter | 42mm |
| Drill rod length | 1.5m/unit |
| Rod change method | Full automatic screw thread |
| Max drilling depth | 200m |
| Diesel engine power | 22HP |
| Drilling hole diameter | Within 280mm |
| Lifting height | 2.5m |
| Lifting force | 1000kg |
Client Background
The client is a farm owner in Portugal, mainly engaged in grape and olive cultivation. Due to an unstable local water supply, the client needed a reliable groundwater solution to support long-term irrigation.
Challenges
- Unstable Water Supply: Dependence on rainfall and external water sources could not meet irrigation demands.
- High Drilling Costs: Traditional drilling equipment was too large and expensive for small farm use.
- Difficult Operation: The client lacked professional drilling experience and required an easy-to-use machine.
Solution
We recommended a small water well drilling machine with the following features:
- Compact structure, ideal for farm environments
- Easy operation, suitable for beginners
- Capable of drilling shallow to medium-depth wells
- Adaptable to different soil conditions
This portable water well drilling machine can be easily transported and operated across different areas of the farm.
Results
- Stable Water Source: Successfully drilled wells ensured a reliable water supply for irrigation.
- Lower Costs: Reduced drilling and labor costs compared to large equipment.
- Easy Operation: Simple controls allowed quick setup and operation without complex training.
- Improved Efficiency: High drilling efficiency shortened the project timeline.
Client Feedback
“This small water well drilling rig is perfect for our farm. It’s easy to use, efficient, and has quickly solved our irrigation problem. A very worthwhile investment.”
Case Study 2:Mountain Water Supply Project in Peru (Crawler Type)

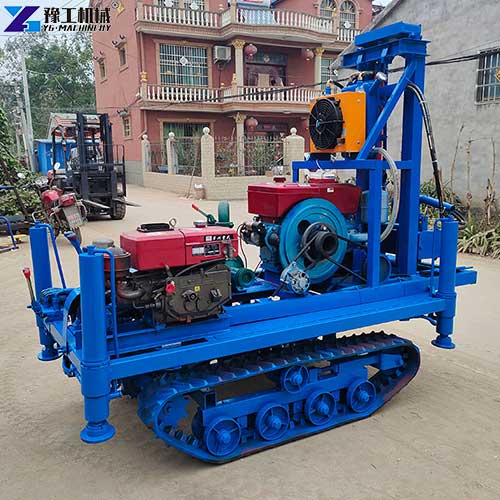

YG-240-30P portable water well drilling machine
| Model | YG-240-30P |
| Dimension | 2000*1230*2090mm |
| Weight | 200kg |
| Drill rod diameter | 51mm |
| Drill rod length | 1.5m/unit |
| Rod change method | Full automatic screw thread |
| Max drilling depth | 200m |
| Diesel engine power | 30HP |
| Drilling hole diameter | 100mm-240mm |
| Lifting height | Max 2.5m |
| Lifting force | 2000kg |
Client Background
The client is an engineering company in Peru, mainly engaged in small-scale infrastructure and rural water supply projects in mountainous areas. The project sites are often remote, with uneven terrain and limited access.
Challenges
- Difficult Terrain: Mountain roads are rough and narrow, making it hard for standard wheeled equipment to reach the drilling locations.
- Limited Accessibility: Some working areas require equipment that can move steadily on slopes and soft ground.
- Operational Stability: Unstable ground conditions affect drilling accuracy and overall efficiency.
Solution
We supplied a crawler-type small water well drilling machine, designed for complex environments:
- Crawler chassis for better traction and stability
- Compact structure for easier transport and site access
- Suitable for uneven, muddy, and sloped terrain
- Stable hydraulic system for continuous operation
This portable water well drilling machine allows the client to work efficiently in areas where traditional machines struggle to operate.
Results
- Improved Accessibility: The crawler design enabled the machine to reach most project sites without additional transport equipment.
- Stable Operation: The rig maintained steady performance on uneven ground, improving drilling consistency.
- Reliable Efficiency: Drilling progress became more predictable, helping the team better manage project timelines.
- Reduced Labor Effort: Less manual handling was required when moving the equipment across difficult terrain.
Customer Feedback
“This crawler-type portable well drilling machine works well in our mountain projects. It’s stable, easy to move, and much more practical than wheeled machines for our conditions.”
Summary
YG small water well drilling rigs provide efficient solutions for farms, residential water supply, and engineering projects:
- Compact and easy to transport
- Simple operation, reducing labor costs
- Suitable for various terrains and soil conditions
- Optional crawler design for complex environments
Our portable water well drilling machines have been successfully used in Portugal, Peru, and many other countries. If you are looking for a portable well drilling machine for sale, YG offers reliable and cost-effective solutions to support your business growth.
