A soundproof cabin is a modular, fully enclosed acoustic isolation structure designed to eliminate noise interference and create independent quiet spaces. Unlike fixed soundproof rooms that require on-site construction and decoration, this portable silent booth adopts integrated factory production and quick assembly design, needing no wall renovation or floor fixing. The YG high-performance soundproof cabin solves these pain points perfectly. It integrates multi-layer sound insulation, sound absorption, damping, and sealing technology. It can isolate external noise, eliminate internal echo, and ensure indoor sound clarity and privacy. With portable moving, flexible layout, beautiful appearance, and strong practicability, acoustic pods for offices have become standard supporting facilities for modern office, commercial, medical, and industrial scenarios, providing users with instant high-quality quiet environments.
YG Soundproof Cabin Parameter
| Model | Capacity | Style | External Dimension (W × D × H mm) | Internal Dimension (W × D × H mm) | Total Weight |
| S Single Booth | 1 Person | PC Type | W988×D1010×H2288 | W856×D900×H2156 | 233kg |
| S Single Booth | 1 Person | PR Type | W988×D1010×H2288 | W856×D900×H2156 | 233kg |
| S Single Booth | 1 Person | PE Type | W1164×D1010×H2238 | W1030×D876×H2177 | 233kg |
| M Double Booth | 2 Persons | PC Type | W1488×D1250×H2288 | W1356×D1140×H2156 | 345kg |
| M Double Booth | 2 Persons | PR Type | W1488×D1250×H2288 | W1356×D1140×H2156 | 345kg |
| M Double Booth | 2 Persons | PE Type | W1488×D1250×H2238 | W1354×D1116×H2177 | 345kg |
| L 4-Person Booth | 4 Persons | PC Type | W2188×D1610×H2288 | W2056×D1500×H2156 | 550kg |
| L 4-Person Booth | 4 Persons | PR Type | W2188×D1610×H2288 | W2056×D1500×H2156 | 550kg |
| L 4-Person Booth | 4 Persons | PE Type | W2188×D1610×H2238 | W2054×D1488×H2177 | 550kg |
| XL 6-Person Booth | 6 Persons | PC Type | W2188×D2210×H2288 | W2056×D2100×H2156 | 610kg |
| XL 6-Person Booth | 6 Persons | PR Type | W2188×D2210×H2288 | W2056×D2100×H2156 | 610kg |
| XL 6-Person Booth | 6 Persons | PE Type | W2188×D2210×H2238 | W2054×D2088×H2177 | 610kg |
Working Principle of Soundproof Cabin
1. Sound Insulation & Mass Blocking Principle
The cabin adopts a multi-layer dense wall structure with high-density sound insulation boards and mass-loaded vinyl materials. Dense physical layers can effectively block external airborne noise, preventing sound waves from penetrating the cabin wall. This principle mainly isolates medium and high-frequency noise such as human voices, keyboard sounds and traffic noise, achieving stable external noise shielding.
2. Internal Sound Absorption & Echo Elimination Principle
The inner wall of the silent booth is paved with high-density porous acoustic foam and rock wool materials. These soft porous structures can capture residual sound waves inside the cabin, convert sound energy into heat energy and consume it completely. It effectively eliminates indoor reverberation, echo, and sound resonance, ensuring clear voice during calls, meetings, and recording.
3. Damping & Decoupling Vibration Reduction Principle
Adopting the professional mass-spring-mass decoupling structure, the cabin wall layers are separated by damping gaskets and air gaps. This design cuts off the transmission path of structural vibration noise, preventing low-frequency noise such as equipment vibration and floor vibration from penetrating the cabin. It greatly improves the isolation effect of difficult low-frequency noise.
4. Full Sealing Noise Prevention Principle
Sound leakage is the main cause of poor sound insulation. The soundproof cabin is equipped with magnetic pressure sealing strips on doors, windows, and splicing gaps. All wiring holes and ventilation openings adopt special acoustic sealing design. It eliminates tiny sound leakage gaps, ensuring the overall sound insulation performance of the cabin will not be reduced by assembly gaps.
5. Silent Ventilation Circulation Principle
Ordinary closed sound insulation spaces are stuffy and airless. The professional acoustic ventilation system of the acoustic pods for offices uses silent ducting and noise-reduction ventilation fans. It realizes continuous fresh air circulation while blocking noise, ensuring a comfortable breathing environment without sacrificing the sound insulation effect.
6 Core Features of Soundproof Cabin
1. Excellent Multi-Frequency Noise Reduction Performance
The integrated sound insulation and absorption system can isolate 30–40dB mixed noise, effectively shielding low-frequency equipment vibration noise, medium-frequency human voice noise and high-frequency environmental noise. It meets high-standard quiet requirements for office calls, recording and rest.
2. Portable & Tool-Free Quick Assembly
As a flexible portable soundproof room, the cabin adopts modular splicing design. It requires no welding, no drilling and no professional construction. It can be assembled, disassembled and moved freely at any time, adapting to office layout adjustment and site replacement.
3. Humanized & Comfortable Internal Configuration
The YG silent booth is equipped with a silent ventilation system, LED soft lighting, an internal power socket, and a sound insulation tempered glass window. The transparent window design ensures light permeability and visual comfort while guaranteeing privacy, avoiding the dull feeling of fully closed spaces.
4. Fireproof, Environmental & Safe Material
All internal and external materials of the soundproof cabin are fire-retardant, environmentally friendly and odor-free. They comply with international environmental safety standards, with no formaldehyde release. The solid steel frame structure ensures stable and firm overall performance, not easy to deform or shake.
5. Strong Privacy & Anti-Interference Ability
The fully enclosed acoustic structure ensures internal conversation content will not leak out, and external noise will not interfere with internal work. It provides independent private space for confidential calls, one-on-one communication and remote video meetings.
6. Wide Compatibility & Customizable Design
The acoustic pods for offices support customized size, color, internal layout and functional configuration. It can adapt to small single-person call scenarios and large multi-person meeting scenarios, with strong scene compatibility.
6 Wide Applications for Soundproof Cabin

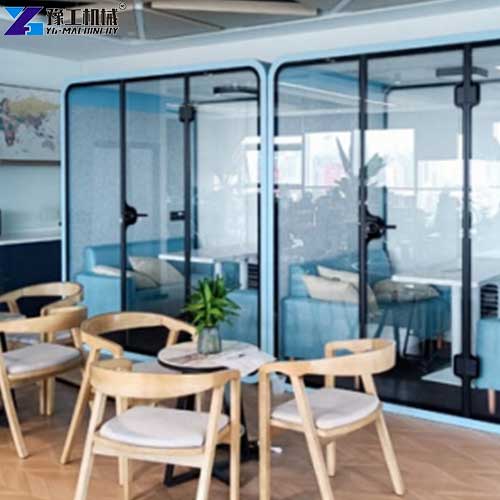

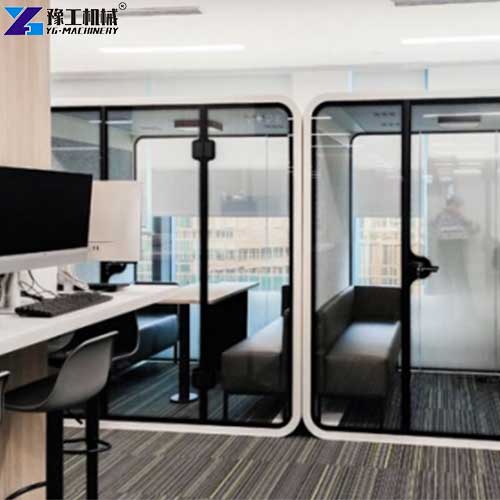

1. Modern Open Office & Co-Working Space
Open offices have dense personnel and complex noise. The soundproof cabin provides independent quiet areas for employee calls, remote office work and temporary meetings, effectively improving overall office efficiency and solving the noise chaos of open offices.
2. Enterprise Conference & Interview Room
Small portable portable soundproof room is suitable for temporary confidential meetings, job interviews, and client negotiations. It guarantees conversation privacy and avoids information leakage caused by noisy open environments.
3. Studio Recording & Live Broadcast Work
The professional noise reduction performance of the silent booth creates a clean acoustic environment for voice recording, podcast production, network live broadcast and dubbing work, effectively eliminating background noise and improving audio quality.
4. Public Service & Medical Institutions
It is widely used in hospital consultation rooms, library reading areas, government service halls, and bank business halls, providing temporary quiet service spaces and improving public service experience.
5. Industrial Workshop & Testing Room
In noisy factory workshops, the acoustic pods for offices can be used for staff rest, temporary office and acoustic equipment testing, isolating mechanical operation noise and creating a stable working environment.
6. Home & Education Scenarios
Families and educational institutions use soundproof cabins for children’s online classes, parent-child communication and personal study, isolating outdoor traffic noise and indoor environmental noise to create a focused learning space.
5 FAQs about YG Soundproof Cabin
A: It can completely filter daily chatter, traffic noise and equipment noise, ensuring ultra-quiet interior environment and clear sound quality.
A: No. Equipped with a professional silent noise reduction ventilation system, the cabin realizes uninterrupted fresh air circulation. It maintains air freshness all day long without noise penetration, supporting long-time indoor work and rest.
A: Yes. The modular assembly design allows free disassembly, movement and reassembly. It will not cause site damage or material waste, and can be reused for multiple times with extremely high cost performance.
A: Absolutely. We provide full-size customization from single-person cabins to 4–6 person meeting cabins. Users can also customize appearance color, internal sockets, lighting and ventilation modes according to site demands.
A: The whole process is tool-free assembly. Two workers can complete the installation in 60-120 minutes. No professional construction team or on-site decoration is required, which saves time and labor costs.
A: No. The internal high-density sound absorption layer can completely absorb reflected sound waves, eliminate indoor echo and reverberation, ensuring clear and smooth voice communication effect.
