In the construction industry, steel reinforcement is one of the most important materials for ensuring the strength and stability of concrete structures. From residential buildings and commercial projects to bridges, tunnels, and infrastructure construction, steel bars and stirrups are widely used to improve structural safety.
With the continuous development of construction automation, more companies are choosing advanced CNC reinforcement processing equipment.

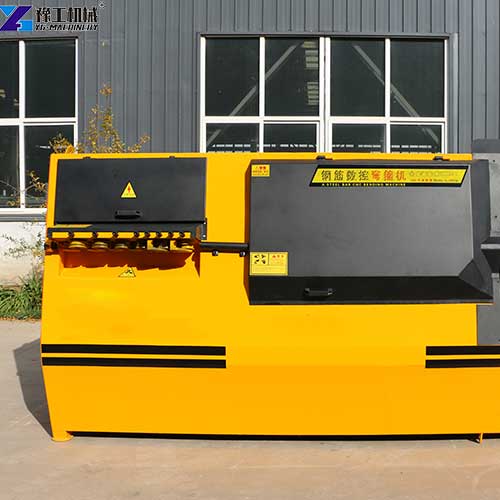

A stirrup bending machine is a modern automatic steel processing machine designed to straighten, measure, cut, and bend steel wire or coil steel into different stirrup shapes. Through PLC control technology and computer programming, the machine can complete the entire production process automatically. Compared with traditional manual production, a professional stirrup bending machine can provide higher production efficiency, more accurate dimensions, lower labor dependence, stable product quality, and easier operation. Today, this equipment has become an important solution for construction companies, steel processing factories, and engineering contractors who want to improve productivity and reduce operating costs. If you are interested, please contact YG immediately for more information.
Want To Know More Details? Contact YG Machinery!
YG Stirrup Bending Machine Parameters
| Model | YG-1 | YG-2 | YG-3 | YG-4 |
| Single wire(mm) | Round steel 4-10mmDeformed steel bar 4-8mm | Round steel 4-12mmDeformed steel bar 4-10mm | Round steel 5-14mmDeformed steel bar 5-12mm | Round steel 4-12mmDeformed steel bar 4-10mm |
| Double wire(mm) | Round steel 4-6mmDeformed steel bar 4-6mm | Round steel 4-8mmDeformed steel bar4-8mm | Round steel 5-10mmDeformed steel bar 5-10mm | Round steel 4-8mmDeformed steel bar 4-8mm |
| Max bending angle | ±180° | ±180° | ±180° | ±180° |
| Center pin diameter | 16、18、20 | 16、18、20 | / | 16、18、20 |
| Maximum towing speed | 60m/min | 60m/min | 110m/min | 110m/min |
| Maximum bending speed | 800°/sec | 800°/sec | 1000°/sec | 800°/sec |
| Machine size | 2600*800*1700mm | 3280*1000*1700mm | 3850*1200*2200mm | 3660*1110*1700mm |
| Device color | Yellow(customized) | Yellow(customized) | Yellow(customized) | Yellow(customized) |
| Pieces Processed | ≤2 | ≤2 | ≤2 | ≤2 |
| Air circuit system pressure | ≥0.8mpa | ≥0.8mpa | / | ≥0.8mpa |
| Total Power | 14kw | 20kw | 32kw | 23.5kw |
| Working temperature | -5°C~40° | -5°C~40° | -5°C~40° | -5°C~40° |
| Length accuracy | ±1mm | ±1mm | ±1mm | ±1mm |
| Angle accuracy | ±1° | ±1° | ±1° | ±1° |
| Average power | 4.5KW/h | 5KW/h | 5KW/h | 5KW/h |
| Total weight | 1150KG | 1350KG | 2200KG | 1550KG |
Want To Know More Details? Contact YG Machinery!
Why Should You Use a Stirrup Bending Machine? 8 Important Reasons
Many companies are upgrading from manual processing methods to automatic reinforcement equipment. The following advantages explain why investing in a CNC bending solution is becoming a popular choice.
- Greatly Improve Production Efficiency. The biggest reason to choose an automatic bending system is speed. Traditional manual stirrup production requires workers to complete multiple steps: measuring steel bars, cutting materials, adjusting bending angles, and checking finished products. This process is slow, especially when projects require thousands of stirrups. A modern stirrup bending machine can automatically complete steel straightening, length measurement, hydraulic cutting, and automatic bending. One machine can continuously produce large quantities of stirrups with stable quality.
- Reduce Labor Costs and Labor Pressure. The construction industry often faces increasing labor costs and worker shortages. Manual steel bending requires several workers to maintain production speed. Workers also experience high physical pressure because bending steel requires repetitive operations. A CNC bending machine reduces dependence on manual labor. Usually, one trained operator can control the whole production process. The benefits include lower labor expenses, easier production management, reduced worker workload, and improved workplace safety. For companies with large reinforcement requirements, an automatic stirrup bender is a practical investment.
- Achieve Higher Accuracy and Better Product Quality. The accuracy of reinforcement components directly affects construction quality. Manual processing may cause different stirrup sizes, incorrect bending angles, and inconsistent product shapes. A CNC-controlled system allows operators to set precise parameters through a touch screen. The machine can automatically control bending dimensions, production quantity, and processing speed. This ensures every stirrup has consistent quality.
- Reduce Steel Material Waste. Steel is a major cost in construction projects. A modern hoop bending machine uses digital measurement technology to improve material utilization. It helps companies reduce unnecessary steel consumption, lower production costs, and improve economic benefits. Over time, material savings can significantly reduce project expenses.
- Produce Different Types of Stirrup Shapes. Construction projects often require different reinforcement designs. A CNC bending machine can produce various stirrup forms, including square stirrups, rectangular stirrups, closed stirrups, and customized reinforcement shapes. Operators only need to adjust the computer program according to project requirements. This flexibility allows one machine to serve multiple applications.
- Improve Construction Project Management. For large engineering projects, delivery time is very important. If reinforcement production is delayed, the entire construction schedule may be affected. Using an automatic bending system helps contractors prepare reinforcement faster, maintain stable production, and reduce project delays. The machine allows companies to better control their production schedule.
- Easy Operation with Intelligent Control System. Many customers worry that automatic equipment may be difficult to operate. However, modern machines are designed for simple operation. The control system usually includes an PLC industrial controller, touch screen interface, and automatic parameter adjustment. Operators can quickly learn how to input sizes, how to start production, and how to monitor machine status. This makes the equipment suitable for different working environments.
- Better Long-Term Investment Value. When customers compare the automatic stirrup bending machine price, they should consider not only the purchase cost but also the long-term benefits. A high-quality machine can help businesses increase production capacity, reduce labor expenses, improve product quality, and accept more orders. Although the initial investment may be higher than traditional tools, the return value is usually much better over time.
Want To Know More Details? Contact YG Machinery!
Who Uses Stirrup Bending Machines? Main User Groups and Industries
A CNC steel bending machine is not limited to one industry. Many different users choose this equipment because of its efficiency and flexibility.
- Construction Companies. Construction companies are the largest users of automatic reinforcement equipment. They use machines for building foundations, concrete structures, reinforced columns, and beam reinforcement. For companies handling multiple construction projects, automatic production helps reduce preparation time.
- Bridge Construction Contractors. Bridge projects require large amounts of reinforced concrete. Stirrups are widely used in bridge beams, bridge piers, and supporting structures. A reliable bending machine helps bridge contractors maintain accurate reinforcement production.
- Tunnel Engineering Companies. Tunnel construction requires strong reinforcement systems. Companies use this equipment for tunnel support structures, concrete lining reinforcement, and underground construction projects. The stable output helps meet strict construction schedules.
- Precast Concrete Factories. Precast concrete manufacturers need large quantities of standardized steel components. A CNC machine helps factories produce reinforcement cages, concrete component steel frames, and customized stirrups. It improves factory automation and production capacity.
- Steel Processing Companies. Professional steel processing companies often provide reinforcement products for different customers. They use automatic machines to increase production volume, improve processing accuracy, and reduce manual operations. This helps them stay competitive in the market.
- Large Infrastructure Contractors. Companies involved in highways, railways, airports, and municipal projects. Often require continuous reinforcement production. A stirrup bending machine helps them handle large-scale projects efficiently.
Want To Know More Details? Contact YG Machinery!
What Benefits Can Businesses Get After Purchasing a Stirrup Bending Machine?
Investing in automatic equipment brings many practical advantages.
- Higher Production Capacity. A single machine can replace several workers and provide continuous operation. Companies can complete more orders within the same period.
- Lower Operating Costs. Reduced labor requirements and less material waste help lower overall expenses.
- More Stable Product Quality. Automatic control ensures consistent dimensions and bending angles.
- Faster Project Completion. Higher production speed helps shorten reinforcement preparation time.
- Improved Business Competitiveness. Companies can accept larger projects because they have stronger production capabilities.
- Better Working Environment. Automation reduces repetitive manual work and improves worker safety.
4 FAQs About YG Stirrup Bending Machine
A: A traditional manual method requires workers to measure and bend steel themselves. A modern hoop bending machine provides automatic processing, higher accuracy, faster production, and lower labor requirements.
A: Yes. Operators can change production parameters through the control system to produce different sizes and shapes.
A: Yes. Small and medium construction companies can also benefit from automatic equipment because it reduces labor costs and improves efficiency.
A: Yes
Want To Quickly Launch A New Project? Contact YG For Customized Services
The construction industry is moving toward automation, and efficient steel processing equipment has become increasingly important. A professional stirrup bending machine provides an effective solution for companies that want faster production, lower costs, and better reinforcement quality. By choosing an advanced CNC system, businesses can achieve higher productivity, more accurate processing, reduced labor dependence, lower material waste, and better project management.
Whether you are a construction contractor, steel processing factory, or infrastructure company, investing in an automatic reinforcement solution can create long-term value. If you want to learn more about models, technical specifications, or automatic stirrup bending machine price, contact YG’s professional team for a customized solution based on your production needs.
