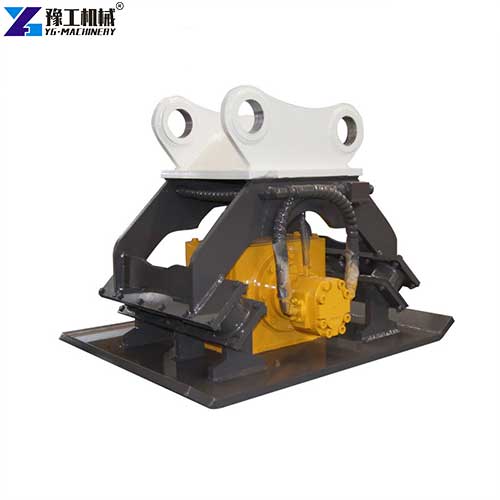

YG excavator vibratory plate compactor is a professional hydraulic attachment matched with excavators of various tonnages. As a cost-effective compaction tool, it replaces traditional manual compaction and small standalone compactors, addressing low efficiency and poor compaction at narrow or complex construction sites. This attachment is easy to install and disassemble, directly replacing the excavator bucket for quick switching. If you are interested, please contact YG immediately for more information.
Working Principle of YG Excavator Vibratory Plate Compactor
YG excavator vibrating plate adopts hydraulic drive and high-frequency vibration working principle. Connected to the excavator’s hydraulic system, it gets stable power to drive the internal vibration motor to run at high speed, generating strong and uniform vibration force. When working, the compaction plate is closely attached to the ground, and the high-frequency vibration is transmitted to the soil, gravel or backfill, making the particles rearrange and densify quickly. The vibration frequency and force can be adjusted according to the construction material and site conditions. The whole working process is controlled by the excavator operator, realizing flexible and efficient compaction without additional power supply, suitable for various complex construction environments.
Excavator Vibratory Plate Compactor Parameter
| Model | YG-32 | YG-50 | YG-80 | YG-107 |
| Vibration force(KN) | 40 | 65 | 110 | 150 |
| Excitation frequency(RPM) | ≥2000 | ≥2000 | ≥2200 | ≥2200 |
| Working pressure(MPA) | 15 | 15 | 15 | 15 |
| Maximum flow(L/min) | 60 | 100 | 160 | 160 |
| Suitable excavators(T) | 4-9 | 10-18 | 20-27 | 30-40 |
| Length/width/height(mm) | 900*550*750 | 1160*700*930 | 1350*900*1000 | 1350*900*1050 |
| Machine weight(KG) | 380 | 550 | 920 | 1050 |
| Hit area(mm) | 900*550 | 1160*700 | 1350*900 | 1350*900 |
Core Product Features of Excavator Vibratory Plate Compactor
1. High-Efficiency Vibration Performance
High-frequency vibration motor delivers strong and uniform compaction force to ensure excellent compaction effect on various materials.
2. Easy Installation & Flexible Operation
Quick connection design matches most excavator models, easy to disassemble and switch with bucket for flexible on-site use.
3. Durable & Heavy-Duty Structure
Thickened wear-resistant steel plate and reinforced frame extend service life, adapting to harsh construction site conditions.
4. Cost-Effective & Energy-Saving
Reasonable excavator vibratory plate compactor price and low energy consumption reduce overall construction costs for users.

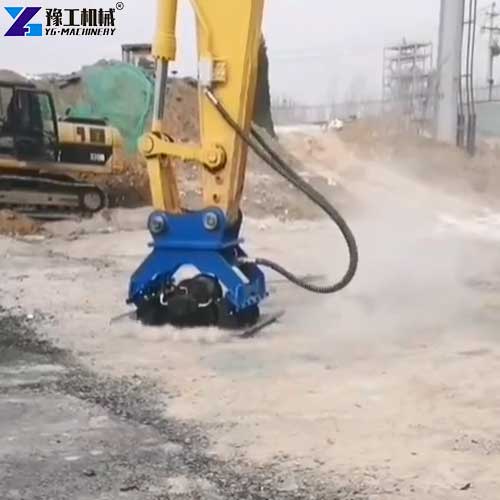

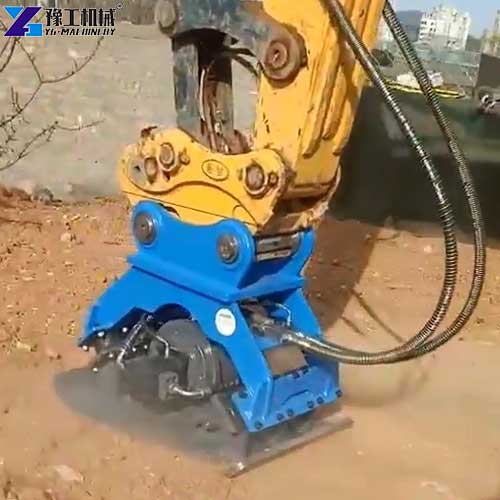

4 Main Applications of Excavator Vibratory Plate Compactor
1. Road & Highway Construction
Compaction of road foundations, subgrades and asphalt pavements, especially for narrow sections and edge compaction of roads.
2. Trench & Foundation Backfilling
Compaction of backfill soil in utility trenches, pipeline trenches and building foundation pits to prevent settlement.
3. Slope & Embankment Compaction
Compaction of slopes, embankments and retaining wall backfills, ensuring the stability of the structure.
4. Municipal & Garden Construction
Compaction of sidewalks, square grounds and garden greening areas, meeting the compaction requirements of small and medium-sized municipal projects.
Why Choose YG Excavator Vibratory Plate Compactor?
YG Machinery is a professional manufacturer of excavator vibratory plate compactors, providing high-quality vibrating plates for excavator with reliable performance and competitive excavator vibratory plate compactor price. We focus on product R&D and quality control, optimizing the vibration system and structure to adapt to global construction site needs. All products are tested strictly before leaving the factory to ensure stable operation. We support customization according to excavator tonnage and construction requirements, and provide complete after-sales service including installation guidance, operation training and spare parts supply. With high cost performance and perfect service, YG has won recognition from construction contractors worldwide.
3 Customers Feedback about YG Excavator Vibratory Plate Compactor
Customer 1: Indonesian Road Construction Contractor
We bought YG excavator vibratory plate compactor for road edge and trench compaction. It’s easy to install on our 12-ton excavator, and the vibration force is strong enough to compact gravel and backfill soil perfectly. The adjustable vibration frequency is very practical for different construction materials. The excavator vibratory plate compactor price is much more reasonable than other brands. After 8 months of daily use, there’s no fault, and the wear resistance is excellent. YG’s after-sales team replies quickly to our questions, and we are very satisfied with this purchase.
Customer 2: Australian Municipal Engineering Company
Our team uses YG excavator vibrating plate for municipal sidewalk and foundation pit compaction projects. It’s flexible to operate, especially suitable for narrow construction areas where large compactors can’t enter. The compaction effect is uniform, effectively preventing ground settlement. The product is sturdy and durable, and the hydraulic system runs smoothly. The price is competitive, and the overall cost performance is very high. YG provided detailed operation training videos, and our operators mastered it quickly. We will continue to purchase YG’s excavator attachments in the future.
Customer 3: Brazilian Construction Team
We needed a reliable vibrating plate for excavator to handle embankment and slope compaction. YG’s product meets all our needs, with strong vibration force and stable performance on uneven ground. It’s easy to switch with the excavator bucket, saving a lot of working time. The excavator vibratory plate compactor price is affordable, and the after-sales service is very thoughtful. After half a year of heavy use, the compaction plate is still in good condition. This attachment has greatly improved our construction efficiency and reduced labor costs.
FAQ about YG Excavator Vibratory Plate Compactor
A: It’s compatible with excavators of 4-40 tons, and we can customize the connection interface to match your specific excavator model.
A: Yes. It’s controlled by the excavator’s hydraulic system, and operators can master the operation skills with simple training, no extra professional skills needed.
A: It works well for compacting soil, gravel, sand, backfill and asphalt, suitable for most construction compaction scenarios.
A: Regularly check the hydraulic pipeline and vibration motor, clean the compaction plate after use, and lubricate the connection parts to extend service life.
A: Yes. We provide 1-year warranty, free online technical guidance, and supply all kinds of spare parts at factory prices for long-term use.
Excavator Vibratory Plate Compactor Manufacturer-YG Machinery
YG excavator vibratory plate compactor is a high-quality, cost-effective excavator attachment, including excavator vibrating plate and a vibrating plate for an excavator. It features high efficiency, easy operation, durability, and a reasonable excavator vibratory plate compactor price, covering various construction compaction scenarios. Whether for road construction, trench backfilling, or slope compaction, YG can provide reliable solutions. With perfect pre-sales and after-sales service, we are committed to bringing better products and services to global customers. Contact YG now to get customized parameters and an accurate quotation.
