YG’s concrete wall cutting saw is designed for cutting concrete, reinforced concrete and brick walls. These lightweight cutting heads (38- 39 kg) pair with wall saw hosts for efficient wall saw cutting. YG600TM cuts up to 620mm depth (800- 1400 mm blade), while YG700TM reaches 730mm (800- 1600 mm blade), both with durable gears, adjustable rotation speeds and 20㎡ cutting life per blade—ideal for indoor renovation and heavy-duty construction projects worldwide. If you are interested, please contact YG for a discount.
Concrete Wall Cutting Head Parameters
| Model | YG600TM | YG700TM |
| Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm |
| Center hole of blade | 60mm | 60mm |
| Saw blade life | Cut 20 square | Cut 20 square |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa |
| Max. oil flow rate | 100L/min | 100L/min |
| Gearing | Gear | Gear |
| Rotation speed | 450/900/1350Rpm | 600/850/1400Rpm |
| Dimension(mm) | 400*420*400 | 400*420*400 |
| Weight | 38kg | 39kg |

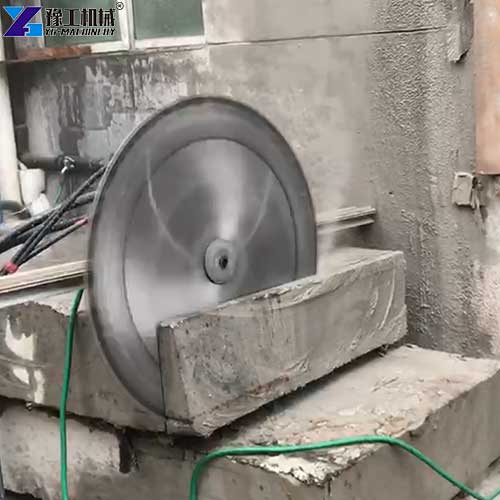

Case 1: American Indoor Renovation Firm
Customer Background
A medium US renovation company (32 employees) in California, specializing in residential/commercial indoor wall openings (door/window cuts, partition removal) for urban apartments and offices. They needed compact, high-precision wall saw machine parts and chose YG’s YG600TM cutting head paired with our electric wall saw after checking concrete wall saw for sale specs.
Core Difficulties
- Old cutting heads had a shallow depth (max 400mm), couldn’t cut thick indoor concrete walls (500mm) in one pass, requiring rework.
- Low rotation speed (only 300Rpm) led to slow cutting (10m/day), with rough cuts needing 2 extra days of polishing per project.
- Indoor projects required low noise/dust, but old tools lacked dust control and were too bulky for narrow spaces.
- Saw blades wore out quickly (only 10㎡ per blade), increasing material costs by 30% monthly.
YG Solution
We paired the YG600TM cutting head (620mm depth, 450/900/1350Rpm adjustable speed, 38kg weight) with our lightweight electric wall saw. Its compact 400420400mm size fits narrow indoor spaces, 180bar max pressure ensures smooth cutting, and 20 m²㎡ blade life reduces replacements. We offered factory-direct pricing, free English training, and customized dust collection accessories for indoor use.
On-Site Problems & Solutions
Initial issue: Thick 500mm walls needed precise depth control. Our team guided setting rotation speed to 900Rpm and max pressure to 180bar, enabling one-pass cutting (no rework). We also taught workers to adjust speed to 450Rpm for tight corners, improving cutting accuracy by 40%. Dust collection accessories reduced indoor dust by 90%, meeting California air standards.
Quantifiable Effects
Daily cutting length rose to 32m (220% increase), project speed up by 220%. A 40m indoor wall opening project was shortened from 4 days to 1.5 days (62.5% faster). Blade replacement frequency cut by 50% (1 blade/20㎡ vs 1/10㎡), saving $600/month in material costs. No rework eliminated 2 days of polishing per project, cutting labor costs by 35%.
Customer Feedback
“YG600TM cutting head is perfect for our indoor projects! It cuts 500mm walls in one pass; the adjustable speed works for tight corners, and it’s super lightweight. The wall saw machine combo is quiet, dust-free and the blade life is amazing. The concrete wall saw for sale price is unbeatable—we’ll buy more for our team!”

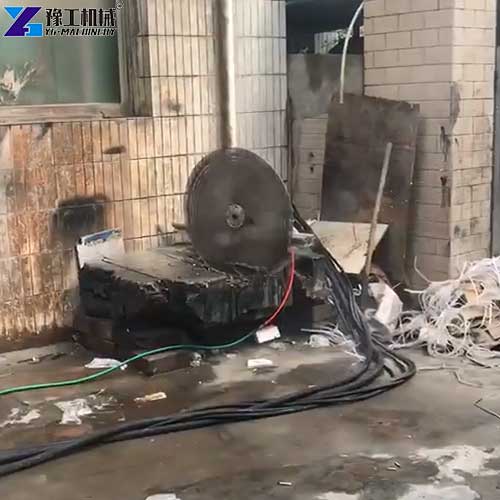

Case 2: Brazilian Construction Company
Customer Background
A large Brazilian construction firm (88 employees) in São Paulo, focusing on commercial building construction and bridge renovation—core work includes cutting 600- 700 mm-thick reinforced concrete walls and bridge beams. They needed heavy-duty wall saw for sale parts and chose YG700TM cutting head paired with our hydraulic wall saw machine.
Core Difficulties
- Old cutting heads had max depth of 550mm, couldn’t handle 700 mm-thick reinforced concrete walls, causing project delays of 7-8 days.
- Low pressure (150bar) and fixed rotation speed led to slow cutting (12cm/min), unable to meet tight project deadlines.
- Saw blades wore out fast in hard reinforced concrete, and remote sites had no access to spare parts, causing 2-3 downtime days/month.
- Bulky cutting heads (50kg+) were hard to transport to remote bridge sites, increasing logistics costs.
YG Solution
We supplied a YG700TM cutting head (730mm depth, 600/850/1400Rpm speed, 39kg weight) paired with a hydraulic wall saw machine. Its 200bar max pressure easily cuts 700mm reinforced concrete, 20㎡ blade life reduces replacements, and compact size (400420400mm) is easy to transport. We offered bulk discounts, free Portuguese on-site training, and a local spare parts warehouse in São Paulo.
On-Site Problems & Solutions
Two issues solved: First, 700mm thick walls needed higher power—our team set rotation speed to 1400Rpm and pressure to 200bar, boosting cutting speed to 35cm/min (191.7% increase). Second, remote sites lacked spare blades—we pre-supplied 5 extra blades and taught workers blade maintenance tips, extending blade life by 10%. Local technicians provided 2-day training on hydraulic system operation.
Effects
Cutting speed increased by 191.7% (12cm/min to 35cm/min), and project speed increased by 191.7%. An 80m bridge beam cutting project was shortened from 25 days to 9 days (64% faster). Blade replacement costs cut by 50%, saving 35,000 BRL/month. Downtime reduced to 0 (from 3 days/month), eliminating 12,000 BRL/breakdown losses. Logistics costs cut by 20% due to lightweight cutting head.
Customer Feedback
“YG700TM is a game-changer! It cuts 700mm reinforced concrete easily; the adjustable speed and high pressure are perfect for our projects. The wall saw machine combo is durable, and the local spare parts support is great. The concrete wall saw for sale is cost-effective—highly recommended to all Latin American construction teams!”
YG Concrete Wall Saw For Sale-Reply within 24 Hours
YG’s concrete wall cutting saw solves global customers’ core pain points—shallow cutting depth, slow speed, high blade costs and poor adaptability. With precise specs 620- 730 mm depth, adjustable rotation speeds, 20 m²㎡ blade life, and lightweight design, these concrete wall saw parts for sale fit both indoor renovation and heavy-duty construction.
YG provides customized combinations, free training, global after-sales support, local warehouses, and 24/7 guidance to ensure efficient, cost-effective wall saw cutting. Whether you need to cut thick indoor walls in the US or heavy reinforced concrete in Brazil, YG has the right solution.
If you’re looking for a reliable wall saw for sale or high-performance concrete wall cutting heads, contact YG Machinery today!
