Automotive manufacturing plants in Mexico handle extremely heavy stamping presses, injection‑molding machines, and assembly‑line modules every single day. Production‑line rearrangement, new‑equipment incoming installation, and periodic machine maintenance all demand reliable heavy‑load material‑handling tools.
Today’s customer testimonial comes from a large‑scale auto‑parts manufacturing plant located in northern Mexico. This facility produces chassis components and automotive interior parts. Frequent workshop layout adjustments require moving machinery up to 60 tons. After comparing multiple suppliers, they ordered the YG 60-ton electric transfer. The 60-ton electric transfer completely transformed how this auto factory completes heavy‑duty equipment relocation tasks, and it quickly became an irreplaceable piece of core workshop equipment. If you are experiencing a similar situation, please contact YG for more details.
Want More Case Studies? Contact YG For More Details
Bottlenecks Faced By A Mexican Automotive Component Factory
This Mexican auto factory covers a large production area. Its core work includes stamping, welding, and assembling automotive spare parts. As market orders keep growing, the plant team must frequently re‑organize production workflows: shifting stamping machines, re‑arranging assembly stations, and clearing space for newly‑arrived production hardware.
Before introducing automated moving solutions, the site team depended on manual jacks, chain hoists, and non‑powered skates to shift massive industrial machines. Moving heavy‑weight units created multiple serious troubles for daily manufacturing.
Moving one 55‑60‑ton stamping press would require 10 or more experienced technicians. Workers spent hours setting up auxiliary supports and rigging accessories. Moving routes had to be carefully marked. The whole operation occupied valuable production time, often delaying subsequent assembly tasks. Labor costs stayed high, and safety risks were always present. Slipping, tilting, or scratching expensive machine bases and concrete workshop floors happened occasionally.
The plant management team started researching handling solutions. They reviewed plenty of electric load-moving skates and heavy-duty machine moving skates on the global market. After checking technical sheets, video demos, and real‑world case references, they decided to invest in the YG 60-ton electric transfer. The 60-ton electric transfer matches their maximum 60‑ton towing requirement perfectly.
Why Manual‑Aided Moving Held Back Production
Before deploying the 60-ton electric transfer, the plant’s traditional moving workflow created four major headaches:
- Very low operating efficiency: Relocating a single heavy stamping machine would consume an entire work shift. Preparation, positioning, slow pushing, and post‑move cleanup took hours. Scheduled production got interrupted frequently.
- Excessive manpower consumption: Each heavy‑machine relocation required a large group of skilled workers. These technicians could not perform their regular manufacturing jobs during moving work, raising overall labor expenditure.
- Outstanding safety hazards: Non‑powered skates rely entirely on human force. Heavy loads may slide out of control. Collisions could damage costly automotive production equipment and threaten staff personal safety. Mexican local factory‑safety rules also impose strict requirements for heavy‑load workshop operations.
- Risk of property damage: Unpowered moving tools are hard to steer precisely. Machine bottoms and concrete ground surfaces suffered scratches and dents, bringing hidden repair costs.
The factory management reached a clear conclusion: intelligent heavy‑duty moving equipment such as the 60 ton electric transfer was necessary to break these limitations.
5 Key Advantages That Won Over The Mexican Auto Factory to YG
When comparing different electric machinery skates, the YG 60-ton electric transfer stood out for several practical industrial‑grade strengths:
- High‑strength load‑bearing structure: 16 mm Q355 steel plate provides solid rigidity. Under full 60‑ton towing weight, deformation will not occur even with repeated heavy‑duty cycles. Eight drive‑wheel distribution spreads pressure evenly and protects the workshop concrete floor.
- Strong power and reliable braking system: Dual‑brake 3000 W motor plus D2T200A dual‑driver controller support stable output under 150 A working current. Instant responsive braking prevents load slipping, critical for automotive‑plant safety standards.
- Large‑capacity lithium‑battery pack: 48 V 100 AH ternary‑lithium battery supports long continuous working hours. It meets the auto‑plant’s requirement for multiple relocation tasks within one working day without frequent charging breaks.

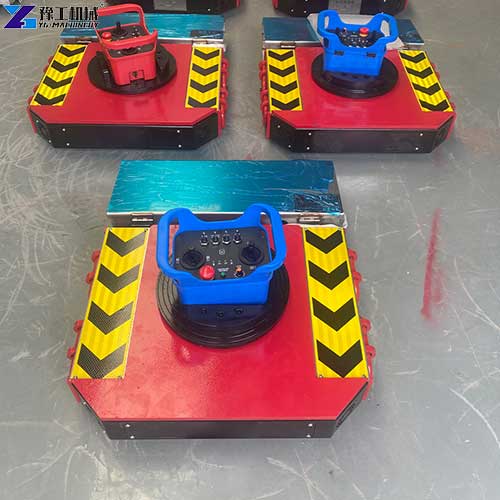

- Remote‑control convenient operation: Operators can stand at a safe distance and complete forward movement, backward travel, and steering operations with wireless remote control. Only one trained worker can finish work that once needed a whole team. It performs well even in relatively crowded production‑line passages.
- Adapt to real‑world workshop conditions: Designed for heavy‑industry continuous use. Maintenance points are easy to access, lowering long‑term service costs compared with many imported electric load moving skates.
Want More Case Studies? Contact YG For More Details
YG Electric Transfer Technical Specifications
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Dimensions（mm） | 500*550*145 | 670*620*165 | 740*640*185 | 810*800*182 | 810*800*182 | 1110*880*185 |
| Motor(2 sets with brake) | 500w | 750w | 1000w | 1 500w | 2000w | 3 000w |
| Controller | Dual driver D2T80A | Dual driver D2T80A | Dual driver D2T100A | Dual driver D2T200A | Dual driver D2T200A | Dual driver D2T200A |
| Battery | 48V 30Ah (ternary lithium ) | 48V 60Ah (ternary lithium or lithium iron phosphate) | 48V 60Ah (ternary lithium or lithium iron phosphate) | 48V 1 20Ah (ternary lithium or lithium iron phosphate) | 48V 1 20Ah (ternary lithium or lithium iron phosphate) | 48V 100Ah (ternary lithium ) |
| working current | 25A | 60A | 60A | 150A | 150A | 150A |
| Maximum towing weight: | 10t | 20t | 30t | 40t | 50t | 60t |
| Plate | 10 mm Q35 5 steel | 10 mm Q35 5 steel | 1 2 mm Q355 steel | 1 6 mm Q355 steel | 1 6 mm Q355 steel | 1 6 mm Q355 steel |
| Drive wheel: | 4 | 4 | 4 | 4 | 4 | 8 |
Want More Case Studies? Contact YG For More Details
Before‑and‑After Performance Comparison: Manual‑Aided Moving VS YG 60-ton electric transfer
| Comparison Item | Traditional Manual‑Aided Moving | YG‑60 electric transfer |
|---|---|---|
| Number of required operators | 8‑10 experienced workers | 1 trained operator |
| Time for moving 60‑ton equipment | 7‑9 hours per machine | 30‑45 minutes per machine |
| Manpower cost for one relocation | Very high, occupies multiple staff shifts | Minimal extra labor cost |
| Safety risk level | High risk of sliding and tilting | Low risk, built‑in reliable brake system |
| Damage risk to machines & floor | Frequent scratches and impact marks | Minimal damage risk, uniform wheel pressure |
| Continuous working capability | Limited by worker physical fatigue | Long-term stable continuous operation |
| Operation complexity | Complex coordination among many workers | Simple wireless remote‑control operation |
Want More Case Studies? Contact YG For More Details
Authentic User Feedback From The Mexican Automotive Plant Manager
“Our automotive parts factory has struggled with heavy‑machine movement for years. When we searched for electric machinery skates for sale, we studied many brands. Finally, we selected YG’s 60-ton electric transfer.
After months of running on‑site, we are satisfied with its performance. The 8‑wheel runs smoothly with our 60‑ton stamping presses. Power output is solid. Braking is trustworthy, which is our top priority for plant safety rules. Just one operator can complete relocation jobs that once needed nearly ten people. The battery lasts long enough for our daily multi‑task moving workload.
Compared with other electric load moving skates and heavy-duty machine moving skates we have seen, this model balances heavy‑load performance and practical‑maintenance requirements. It saves us plenty of labor hours and avoids unplanned production downtime.”
Have a Similar Project? Contact YG For Customized Services.
If your manufacturing facility, auto plant, or processing workshop needs to relocate heavy‑weight equipment, and you are looking for dependable 60-ton electric transfer skates, high‑performance electric load moving skates, robust heavy-duty machine moving skates, practical electric machinery skates, or qualified electric machinery skates for sale, YG Machinery is your reliable supplier.

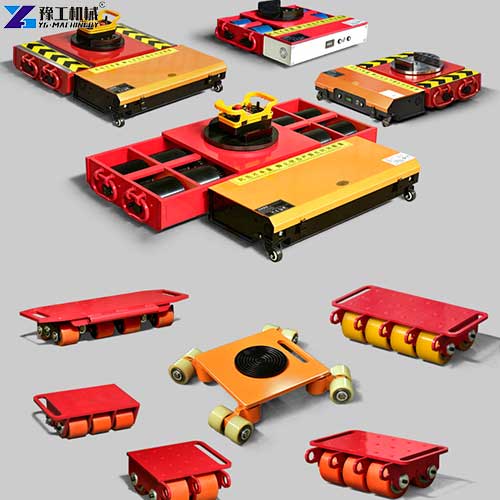

YG product lineup covers 10 ton up to 60 ton electric machinery skates. Each unit adopts industrial‑grade steel, brake‑motor assemblies, and stable lithium‑battery systems. We provide technical guidance, operation manuals, and global after‑sales support.
Get in touch with YG Machinery today to receive your customized equipment proposal. Help your workshop abandon low‑efficiency manual moving workflows, upgrade to intelligent heavy‑load handling, and unlock higher production‑site performance!
