Old urban areas in Cali, Colombia feature extremely narrow streets, dense low-rise buildings, and complex overlapping building structures. After strong earthquakes, collapsed concrete beams, broken floor slabs and twisted steel structures block roadways and bury residential areas. Traditional large truck cranes cannot enter narrow old town lanes at all, while manual dismantling and small tools are too slow and risky, easily triggering secondary collapse of unstable ruins. Local engineering and rescue teams urgently need flexible, compact, high-lifting capacity equipment for precise hoisting and demolition.
This genuine customer experience comes from a local Colombian engineering team responsible for post-earthquake ruin cleaning and structural restoration in Cali Old Town. Faced with impassable narrow streets and precise heavy-component hoisting demands, they purchased the YG 8t electric spider crane with an optional remote control system. It perfectly solved the accessibility problem of large cranes. This 8t electric spider crane achieved zero-distance precise operation in crowded ruins. YG 8t electric spider crane greatly improved rescue and reconstruction efficiency and became the core equipment for old-town post-quake rescue. It avoided secondary collapse risks caused by manual work, proving that compact spider cranes are irreplaceable for urban disaster reconstruction. Want to know more details? Contact YG Machinery!
Want More Case Studies? Contact YG For More Details
Extreme Difficulties in Cali Old Town Post-Earthquake Reconstruction
Cali Old Town is a historic urban area in western Colombia, characterized by narrow winding streets, closely arranged old brick-concrete buildings, and dense overhead pipelines. After the earthquake, most buildings suffered partial collapse, structural deformation, and stacked rubble. The local engineering team undertook official disaster relief and reconstruction work, mainly including clearing collapsed building components, removing dangerous suspended beams, dismantling unstable residual structures, and cleaning blocked road ruins.
Before upgrading equipment, the team faced three fatal construction bottlenecks:
- Large cranes cannot access the site. The street width of Cali Old Town is too narrow, and road surfaces are blocked by collapsed ruins. Conventional truck cranes have large body sizes and cannot drive into the core disaster area, resulting in many rescue points being completely unreachable by large machinery.
- Manual dismantling has huge safety hazards. Relying on manpower and simple tools to pry and move heavy concrete beams is extremely inefficient. More seriously, unstable residual structures are prone to secondary collapse, threatening the safety of construction workers and trapped survivors.
- Ordinary small equipment has insufficient load capacity. Mini cranes on the market have limited boom length and lifting capacity, unable to hoist integral large structural beams and thick floor slabs, which cannot meet formal reconstruction engineering standards.
In order to overcome the site restriction, the team began to screen professional small lifting equipment online. After comparing multiple 8t mini spider crane for sale products and understanding the actual 8t spider crane price configuration differences, they finally customized the YG 8t spider crane with a remote control function, officially putting it into use for post-earthquake rescue work in the old town.
4 Core Pain Points Solved by 8t Electric Spider Crane in Disaster Sites
In the complex Cali Old Town earthquake ruins, the advantages of the 8t small spider crane are fully reflected, precisely targeting all construction pain points:
1. Super narrow body, free access to old town streets
The overall transport size of the YG-8 crane is compact, with no wide body and outrigger occupation restrictions like traditional cranes. It can freely pass narrow old town streets and flexibly shuttle between dense building ruins, reaching dead-end rescue points that large equipment cannot touch.
2. Remote control operation, safer disaster rescue

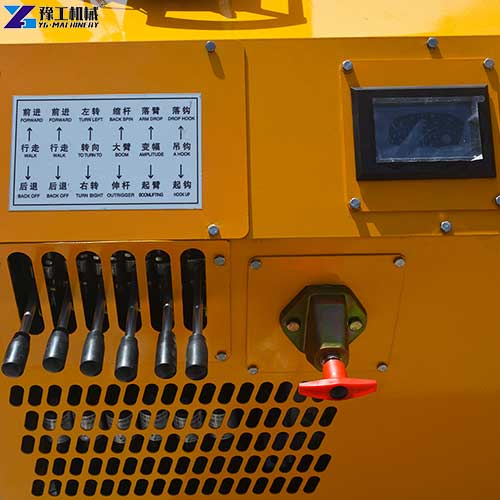

The customer specially selected the remote control configuration. Workers can stand at a safe distance to operate hoisting, telescopic, and rotating actions, avoiding standing under unstable, dangerous structures. It completely solves the safety risk of close-range operation in post-earthquake fragile ruins.
3. Long boom + 360° rotation, precise hoisting
The 5-section pentagonal boom extends steadily up to 12.3m, with a maximum lifting height of 18m and 360° full-angle continuous rotation. It can precisely locate and lift high-altitude suspended dangerous beams, stacked concrete slabs, and heavy structural components, realizing accurate dismantling and fixed-point placement.
4. Strong terrain adaptability, suitable for chaotic ruin sites

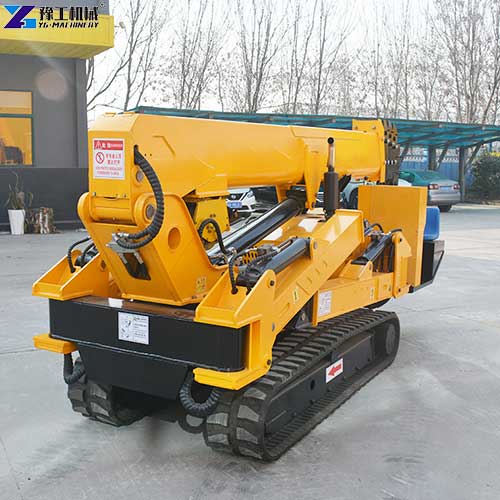

Hydraulic walking system + 36% super climbing ability adapts to uneven ground, rubble slopes, and rugged temporary roads in earthquake-stricken areas. The equipment runs stably without slipping or tilting, ensuring continuous construction in complex terrain.
Want More Case Studies? Contact YG For More Details
YG Electric Spider Crane Core Parameters
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Want More Case Studies? Contact YG For More Details
On-Site Contrast: Traditional Construction VS 8t Electric Spider Crane
| Comparison Item | Traditional Manual + Small Tool Operation | YG 8t electric spider crane (Remote Control Version) |
|---|---|---|
| Site Accessibility | Cannot handle deep, narrow street ruins | Freely access all old-town disaster points |
| Single Heavy Component Handling | 4-6 workers, 2-3 hours per piece | 1 worker remote control, 5-10 minutes per piece |
| Secondary Collapse Risk | Extremely high, manual close operation | Ultra-low, long-distance intelligent operation |
| Working Radius & Height | Only low-level short-distance operation | 16.5m radius, 18m high-altitude precise operation |
| Daily Ruin Clearing Volume | Little progress, slow reconstruction | Efficient continuous operation, progress doubled |
| Worker Safety Coefficient | Poor, frequent hidden dangers | High safety, isolated remote operation |
After using the 8t electric spider crane, the team’s daily ruin-clearing efficiency increased by more than 6 times. Many blocked old-town road sections were cleared in advance, creating safe passage for subsequent rescue teams and material transportation.
Authentic Customer Use Feedback From Colombian Engineering Team
“After the Cali earthquake, the old town reconstruction work almost stalled at the beginning. Large cranes can’t get in; manual work is slow and dangerous. We compared many 8t mini spider cranes for sale and checked the 8t spider crane price repeatedly, finally choosing YG’s 8-ton spider crane with remote control.
This 8t small spider crane completely changed our disaster rescue efficiency. The compact body is tailor-made for narrow old streets. The 18m super high lifting height and 360° rotation let us handle all high-altitude, dangerous structural dismantling work. The wireless remote control is the most practical function for us. We don’t need to get close to dangerous collapsed buildings, greatly protecting the safety of our workers.
The hydraulic walking system adapts to the messy ruin ground perfectly. For urban old-town earthquake rescue and narrow-space reconstruction, this 8t electric spider crane is absolutely the right equipment. We are very satisfied with the machines provided by YG and their service.”
Want More Case Studies? Contact YG For More Details
Words From YG Colombian Buyer: Advice For Other Contractors
If your projects involve old‑city narrow streets, disaster‑zone ruin cleanup, or confined‑space heavy lifting, my real‑world advice can help you avoid costly mistakes when shopping for an 8t electric spider crane.
- Before we got our YG‑8 unit, we underestimated how much site conditions matter. Large truck cranes look powerful on paper, yet they cannot squeeze into narrow urban lanes in Cali. Do not focus only on lifting tonnage. Always double‑check transport dimensions, maximum working radius, and lifting height matching your actual job scenarios. For dangerous demolition and post‑earthquake rescue work, spend the extra budget for the wireless remote‑control option. It lets operators stay away from unstable, collapsing structures and greatly cuts safety risks on site.
- Many buyers only compare 8t spider crane prices. My suggestion: do not chase the lowest price blindly. Focus on boom quality, continuous 360‑degree slewing performance, climbing capacity, and spare‑part supply. On chaotic, uneven ruin ground, stable hydraulic walking and pentagonal boom structure make a huge difference for daily work.
- This 8t electric spider crane has completely changed our reconstruction workflow. It handles heavy concrete beams and large structural components that small machines cannot lift. Our team finishes tasks several times faster than manual work.
To every fellow contractor: if you frequently face limited‑access job sites, an 8‑ton spider crane is a worthy long‑term investment. Talk openly with your supplier about your real‑site challenges, so you get the correct configuration instead of generic standard equipment. Good equipment protects your workers and keeps your project schedules on track.
Looking for an Electric Spider Crane Supplier? Choose YG
If you are engaged in urban old-town renovation, post-disaster ruin cleaning, narrow-space high-altitude hoisting, and precision component installation, and you are looking for a cost-effective 8t spider crane and want to know the latest 8t spider crane price, YG Machinery is your trusted supplier.
Our YG-8 spider crane supports remote control customization, with high lifting height, large operating radius, and strong terrain adaptability. It is the ideal professional equipment for urban narrow-space construction and emergency disaster rescue.
Contact YG Machinery now to get customized solutions and real-time quotations, and improve your urban construction and emergency rescue efficiency!
