The diamond cutting wire saw is a high-precision, multi-functional industrial cutting tool widely used for hard material processing and structural demolition. Different from traditional cutting tools such as wall saws, cutting machines, and grinding wheels, the diamond wire saw adopts flexible steel wire rope embedded with industrial diamond beads as the cutting medium. It relies on high-speed circulating grinding to cut super-hard materials. With flexible bending performance, unlimited cutting depth and ultra-thin cutting gap, it can complete precision cutting in narrow spaces, closed environments and special construction positions where traditional equipment cannot work.

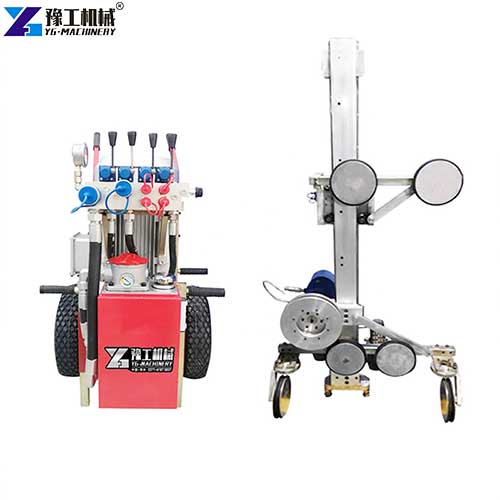

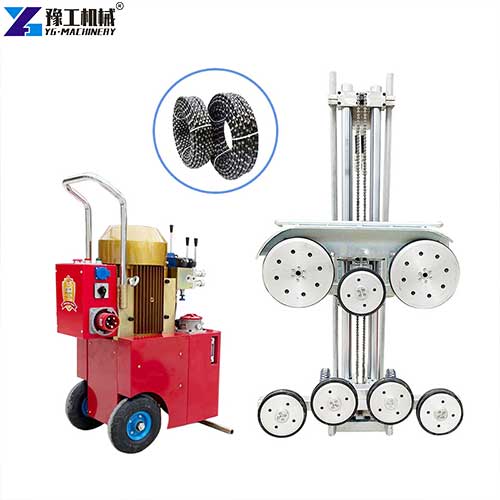

The whole machine is composed of a hydraulic driving host, guide wheels, a tensioning system, and diamond wire rope. It supports no-vibration, no-dust, no-impact static cutting. It is not only suitable for concrete structure demolition, bridge cutting, and road renovation in the construction industry, but also efficient for metal dismantling and stone mining. If you are interested, please contact YG immediately for more information.
Diamond Cutting Wire Saw Parameter
| Wire Saw Wheel | Parameters | Hydraulic Pump Station | Parameters |
| Wire Drive Mode | hydraulic | Rated Output Power | 22/25KW |
| Model Type | HM-40/80 | Working Voltage | 380v 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Station | Gear pump |
| Output Shaft Speed | 350/940/1300r/min | Motor Working Flow | 40-100L/min |
| Maximum Wire Length | 18m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Volume | 16L |
| Wire Saw Wheel | 64kg | Weight | 98kg |
| Motor Weight | 13kg | Dimension(mm) | 650*550*1150 |
| Cutting Type | Transverse and longitudinal cutting | ||
5 Working Principle of Diamond Cutting Wire Saw
1. Tensioning and Positioning
Before operation, wind the diamond cutting wire saw around the outer contour of the target material. The hydraulic tensioning system keeps the diamond wire tight and stable, preventing wire slipping or deviation during high-speed operation. Reasonable wire positioning ensures an accurate cutting track and avoids cutting offset.
2. High-Speed Circulating Operation
The hydraulic motor drives the wire rope to run continuously at an adjustable high speed. The industrial diamond beads fixed on the steel wire act as tiny cutting teeth, forming a stable and continuous grinding force. Different from traditional blade cutting, it uses abrasive grinding instead of rigid impact to separate hard materials.
3. Precision Material Grinding and Cutting
For concrete, steel, and stone materials, diamond beads continuously polish and grind the cutting surface. Layer-by-layer micro-grinding removes material without violent vibration or structural tearing. Whether for thick reinforced concrete or thick metal steel plates, it forms smooth and flat cutting sections.
4. Constant Cooling and Dust Reduction
During long-time cutting, circulating water cooling is adopted to take away the high temperature generated by friction. It prevents diamond bead abrasion and wire rope aging, while effectively inhibiting dust overflow. It ensures continuous, stable operation and an environmentally friendly construction effect.
5. Automatic Feeding and Finishing
The intelligent hydraulic system automatically adjusts tension and feeding speed according to material hardness and cutting resistance. After cutting is completed, the equipment stops automatically and resets, realizing a one-person unattended high-efficiency cutting operation.
6 Core Product Features of Diamond Wire Saw For Metal
1. Static Cutting with Zero Vibration and High Safety
This diamond wire saw for concrete and diamond wire saw for metal adopt pure static grinding cutting. No blasting, no impact, no flying debris during operation. It will not cause structural cracking or foundation loosening of surrounding buildings, greatly improving construction safety, especially suitable for urban dense building areas.
2. Unlimited Cutting Depth and Strong Flexibility
Traditional cutting machines are limited by blade size, while the flexible wire saw has no depth restriction. It can cut ultra-thick concrete walls, large steel structures and super-large stone blocks. The bendable wire rope adapts to various irregular cutting shapes and special curved cutting requirements.
3. Ultra-Smooth Cutting Section and Low Material Loss
The cutting gap of the diamond wire saw is extremely narrow. It produces flat and neat cutting surfaces without rough burrs, basically no secondary trimming work. It greatly reduces material waste, especially suitable for stone mining and high-precision component dismantling.
4. Wide Material Compatibility
One machine meets multiple cutting needs. The diamond cutting wire saw can process reinforced concrete, granite, marble, basalt, and other stone materials, and also cut steel structures, steel pipes, metal equipment, and alloy parts. It perfectly covers building demolition, stone mining, and metal dismantling scenarios.
5. Low-Noise and Environmentally Friendly Construction
The whole running process produces low noise and controlled dust with water cooling. It fully complies with urban environmental protection standards and can work normally in residential areas, school surroundings, and scenic spots where noisy equipment is prohibited.
6. Low Comprehensive Cost and High Cost Performance
Compared with large demolition equipment, the diamond wire saw is more affordable. It has a simple structure, few vulnerable parts, and a long service life of diamond wire rope. It saves labor, time, and secondary processing costs, bringing long-term, stable return on investment.
6 Applications of Diamond Cutting Wire Saw

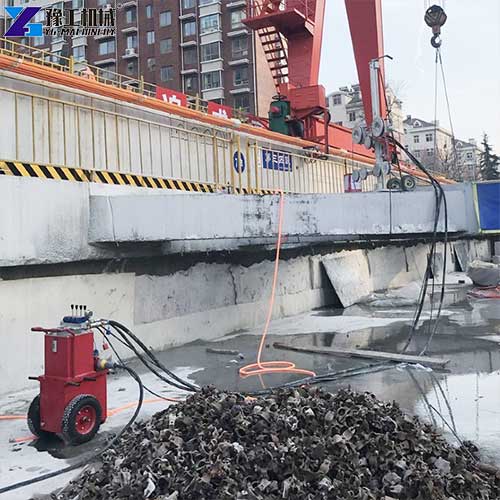

1. Urban Building Renovation and Demolition
It is widely used for partial demolition of old buildings, concrete wall cutting, floor slab removal, and beam column dismantling. It realizes precise partial removal without damaging the intact building structure.

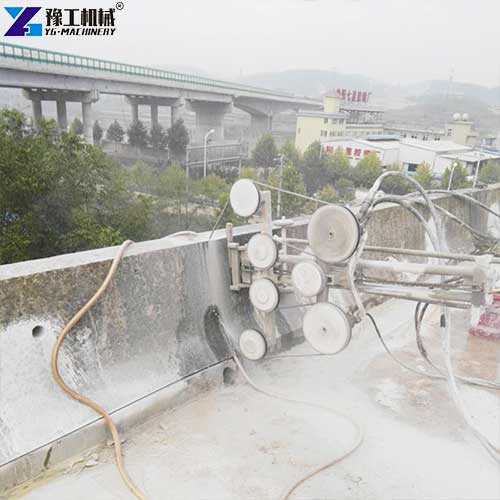

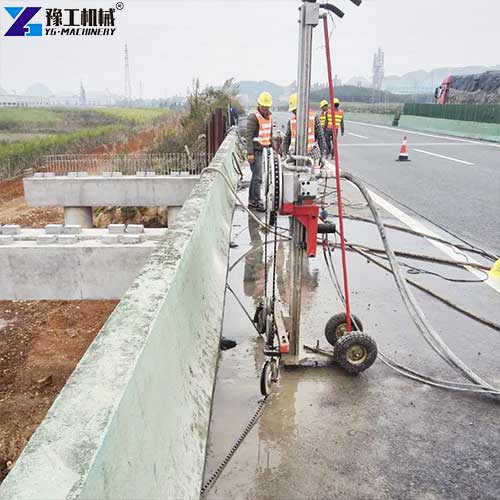

2. Bridge and Road Renovation Engineering
Used for bridge pier cutting, bridge deck dismantling, highway concrete pavement renovation, and expansion construction. It ensures stable cutting quality and does not damage underground road foundation structures.
3. Quarry Stone Mining and Shaping
In stone factories, the diamond wire saw cuts large natural stone blocks neatly, improving the integrity rate of finished stone, reducing waste, and improving the economic benefits of stone mining.
4. Industrial Metal Dismantling
As a professional diamond wire saw for metal, it is used for cutting waste steel structures, thick steel plates, industrial steel pipes, and old mechanical equipment, facilitating factory renovation and metal recycling.
5. Underwater and Special Space Construction
It can adapt to underwater cutting, narrow pipeline trenches, indoor limited space, and closed working environments where large machinery cannot enter, realizing dead-angle-free precision construction.
6. Municipal Engineering and Precision Transformation
Suitable for precision cutting of subway surrounding protection structures, municipal pipe gallery foundation, and landscape stone shaping, meeting high-standard urban civilized construction requirements.
4 FAQs about YG Diamond Wire Saw For Metal
A: It supports almost all hard materials. It can cut various concrete structures, including reinforced concrete (relying on a diamond wire saw for concrete), and complete steel plate, steel pipe, and alloy metal cutting (relying on diamond wire saw for metal), as well as all kinds of natural stone.
A: No. It belongs to static grinding cutting with zero impact vibration. It will not crack surrounding buildings, damage pipelines or cause structural displacement, which is the biggest advantage over traditional hammer breaking.
A: Very easy. The equipment is equipped with an intelligent hydraulic control system. Workers only need to fix the wire position and adjust the speed. One person can complete the whole cutting process, with simple training and a low labor threshold.
A: The wire saw cutting surface is flat and smooth without burrs and cracks. It greatly reduces manual repair work, improves construction efficiency, and improves project acceptance quality.

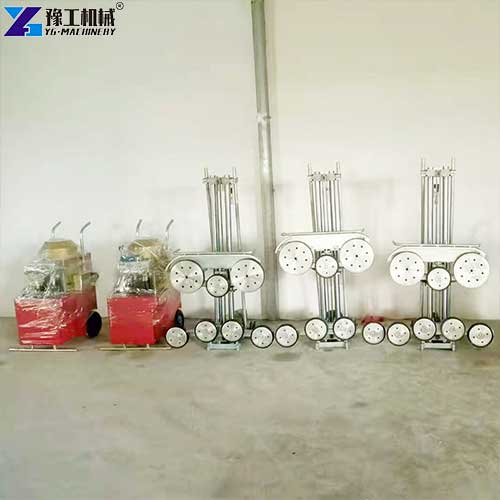

Diamond Wire Saw For Metal Price-Choose YG Machinery
The multi-functional diamond cutting wire saw has become an indispensable precision cutting tool in modern engineering construction. It solves many construction pain points such as limited space, prohibited vibration, high precision requirements, and material waste. Whether you need a diamond wire saw for concrete building demolition or a diamond wire saw for metal industrial dismantling, it delivers stable, safe, and high-efficiency cutting results. With a reasonable diamond wire saw price, low maintenance cost, and wide application range, it is a cost-effective long-term investment for engineering contractors, mining factories, and municipal construction teams. Choosing professional and reliable diamond wire saw equipment can effectively improve your construction quality, shorten the project cycle, and maximize your engineering profit margin. If you are interested, please contact YG for a discount.
