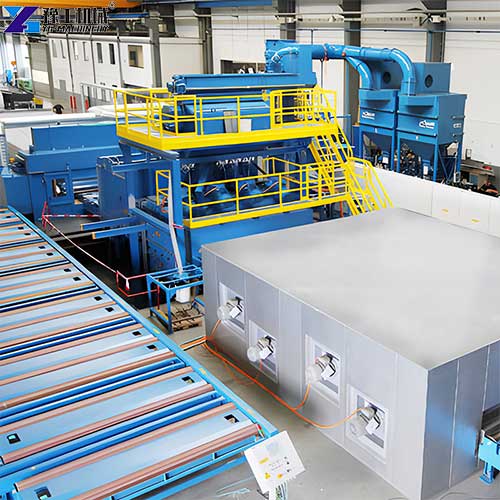

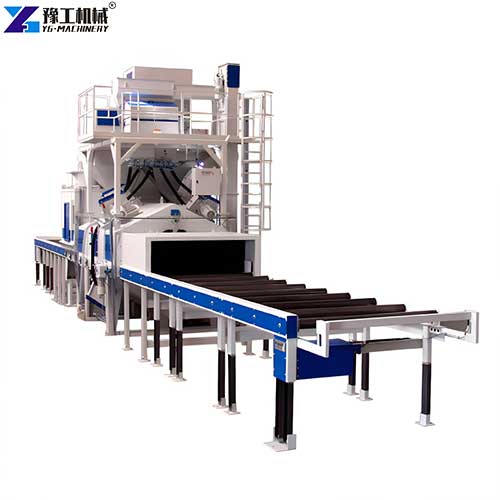

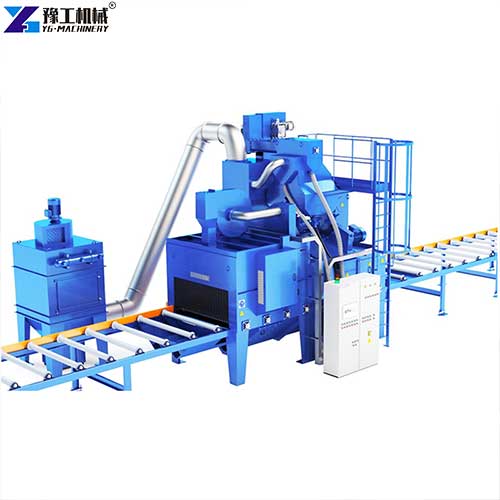

A roller conveyor shot blasting machine is a continuous pass-through automatic surface pretreatment device developed for mass long metal workpieces shot blasting. Unlike intermittent hook shot blasters, this whole series adopts linear roller transmission for one-time non-stop blasting, covering steel plates, H-beams, channel steel, round tubes, and various structural parts. All models integrate a blasting unit, an abrasive circulation system, a pulse dust removal system, and an intelligent control cabinet as an all-in-one unit, with a pipe shot blasting machine adding rotary V-shaped rollers to solve the incomplete outer-wall cleaning of seamless steel pipes. The equipment replaces acid pickling and manual grinding in modern production lines, matching both mass assembly lines and small customized metal processing workshops worldwide.
Working Principle of Roller Conveyor Shot Blasting Machine
All YG conveyor shot blasting machine series share a closed automatic circulation working logic based on centrifugal abrasive impact cleaning. Metal profiles or steel pipes are steadily fed into the sealed blasting chamber via adjustable-speed roller groups and move forward at a fixed, uniform speed. Multiple high-power blast turbines rotate at high speed to eject steel abrasives from multiple angles, stripping rust, oxide scale, and welding slag to form uniform rough surfaces for better coating adhesion. Mixed waste abrasives and dust fall to the bottom hopper, lifted by elevator to sorting equipment; qualified steel shot circulates back to turbines while rust dust is absorbed by matched dust collectors. The pipe shot blasting machine’s rotary rollers spin tubes during conveying to realize full 360° blasting without blind spots, and the whole cycle runs fully automatically after one startup without repeated manual loading.
Roller Conveyor Shot Blasting Machine Parameter
| Parameter | YG-698 | YG-6912 | YG-6915 | YG-6920 | YG-6925 | YG-6930 | YG-6940 |
| The effective cleaningwidth(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| The room feed-insize(mm) | 1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| The length of the workpiece (mm) | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
| The speed of the conveyor(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| The thickness of the cleaningsteel sheet(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-100 |
| The section steelspecification(mm) | 800*300 | 1000*300 | 1500*300 | 2000*300 | 2500*700 | 3000*700 | 4000*300 |
| The quantity of shotblasting(kg/min) | 4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| The first enclosedquantity(kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| Roll brush adjustingheight(mm) | 200 | 200 | 350 | 450 | 600 | 850 | 900 |
| Total power (kW) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
| Airness size(m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
4 Core Product Features of YG Roller Conveyor Shot Blasting Machine
1. Fully Automatic Continuous Conveying
Variable-speed roller feeding realizes non-stop mass processing to greatly cut labor input and lift hourly production capacity.
2. All-Round Uniform Blasting Design
Multi-angle symmetric turbine layout plus rotary roller set for pipe shot blasting machine eliminates all cleaning dead zones on flat and tubular workpieces.
3. Eco-Friendly & Wear-Resistant Configuration
Fully sealed blasting chamber and integrated pulse dust collector meet global emission standards, with high-chromium alloy vulnerable parts extending service life sharply.
4. Flexible Modular Customization
Adjustable roller width, machine length, and turbine quantity support seamless docking with upstream cutting and downstream painting production lines.
4 Main Applications of Roller Conveyor Shot Blasting Machine
1. Steel Structure & Construction Manufacturing

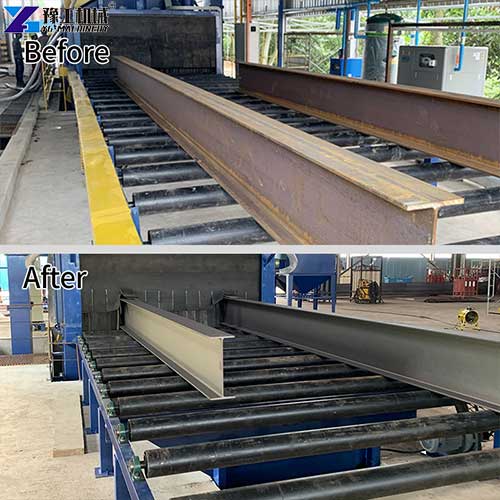

Derusting, stress relief, and pre-coating treatment for H-beams, bridge components, building steel plates, and prefabricated metal accessories.
2. Petrochemical & Pipeline Processing
Special pipe shot blasting machine removes outer wall rust of oil, gas, and water delivery steel tubes to boost anti-corrosion paint adhesion.
3. Heavy Machinery & Foundry Industry
Clear casting sand and welding slag from equipment frames, forged profiles, and long mechanical structural parts for subsequent machining.
4. Shipbuilding, Wind Power & Rail Transit
Surface pretreatment for marine steel, wind tower tubes, and track steel to enhance corrosion resistance in harsh outdoor and marine environments.
Why Choose YG Roller Conveyor Shot Blasting Machine
YG independently develops and produces all key components, including blast turbines, roller conveying frames, and dust removal systems, to control overall equipment quality without unstable third-party spare parts. We provide free one-stop customized design according to customers’ workpiece size, daily output and workshop space, adjusting the pipe diameter processing range and machine layout with no extra design fees. Our global after-sales team arranges overseas on-site installation, commissioning, and worker training, with vulnerable spare parts stocked in overseas warehouses to avoid long production shutdown waiting periods. YG products feature low energy consumption and long maintenance cycles to reduce factories’ long-term running costs significantly.
3 Authentic Customer Feedback about Roller Conveyor Shot Blasting Machine
Customer 1: German Steel Structure Factory
Our factory produces bridge and construction steel structures and previously used old hook-type shot blasters with low efficiency and uneven cleaning results. After purchasing a YG roller conveyor shot blasting machine last year, our hourly output increased by nearly 80% thanks to the continuous through-type roller design. The variable-speed rollers never scratch steel plate surfaces, and the matched dust collector keeps our whole workshop clean all day, stably reaching the Sa2.5 surface standard for all finished products. YG’s overseas engineers finished installation and operation training within 5 days of the machine’s arrival. After one year of daily 20-hour continuous operation, the machine only needs simple regular maintenance without major breakdowns, cutting our painting rework rate effectively, and we plan to buy a second unit this year to expand production.
Customer 2: Mexico Pipeline Manufacturing Plant
We mainly manufacture oil and natural gas seamless steel pipes and struggled with incomplete pipe side-wall blasting before cooperating with YG. The dedicated V-shaped rotary roller set of the YG pipe shot blasting machine delivers a full 360° outer wall cleaning effect far better than our previous imported equipment. The multilingual English control panel lets our ordinary workers master all operations within half a day, and the closed abrasive recycling system saves massive steel shot costs every month. The sturdy machine body runs 20 hours daily without overheating or failure, and overseas warehouse spare parts delivery eliminates long downtime risks. This machine has become the core pretreatment equipment of our pipeline production line, and we sincerely recommend YG to all pipe processing manufacturers.
Customer 3: Southeast Asia Heavy-Duty Foundry
We needed a multi-functional roller shot blasting machine to process both structural steel profiles and small hydraulic tubes, yet most suppliers only supplied single-function equipment. YG customized adjustable roller spacing equipment for us, allowing easy switching between flat steel and tubular workpieces without buying extra machines, saving plenty of workshop space and procurement costs. Blasting intensity can be freely adjusted to prevent thin-wall pipe deformation during processing. After 10 months of non-stop production, alloy turbine blades still maintain great wear resistance with rare replacement needs. YG sales staff reply to all our technical questions quickly via video and email, with thoughtful full-cycle after-sales service that greatly raises our finished product qualification rate and factory profit.
5 FAQs about YG Roller Conveyor Shot Blasting Machine
A: Standard models come with integrated base frames and only need flat, hard ground for placement with no special concrete digging required; large customized long machines only need simple fixing bolts for quick installation.
A: Yes, our professional overseas technical engineers will travel to customers’ factories after machine delivery to complete full installation, parameter debugging, and systematic daily operation & maintenance training.
A: Full customization service is supported. Our engineers adjust machine length, roller width, turbine quantity, and pipe processing range based on your workpiece dimensions, daily output, and limited workshop space with no additional design charges.
A: They are widely used in automobile manufacturing, aerospace, casting, shipbuilding, and construction.
A: Optimized energy-saving blast turbines reduce idle power loss, and the closed shot recycling system avoids repeated abrasive supplement waste. Overall daily power consumption is 20%–30% lower than that of old-fashioned generic shot blasters on the market.
Roller Conveyor Shot Blasting Machine Price-Choose YG Machinery
YG Machinery’s complete product line, including roller conveyor shot blasting machine, roller shot blasting machine, general conveyor shot blasting machine and dedicated pipe shot blasting machine, integrates high automation, stable cleaning performance, environmental protection and low long-term operation cost, covering all mainstream continuous metal surface pretreatment needs across global manufacturing industries. We deliver universal standard models and tailor-made pipe blasting solutions together with full-cycle overseas technical service and spare parts supply for metal processing factories of all scales. If you are interested, please contact YG for a discount.
