Dust is a common problem at construction sites, mines, quarries, demolition projects, and material storage yards. When trucks move, machines operate, or materials are loaded and unloaded, fine dust can rise into the air. It may reduce visibility, affect nearby communities, and create challenges for workers and site managers.

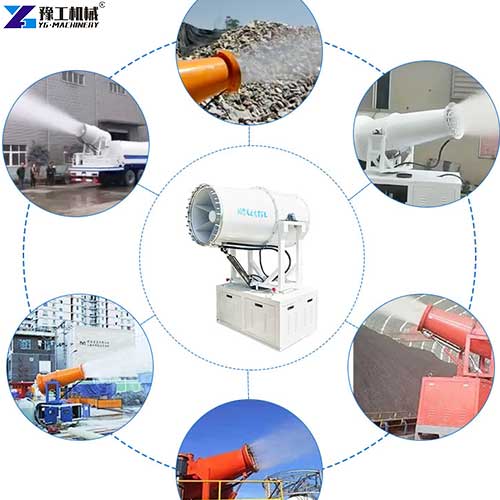

A fog cannon machine is equipment designed to help control airborne dust by spraying fine water droplets into the air. These droplets come into contact with dust particles, making it easier for some particles to combine with water and settle instead of remaining airborne. Unlike ordinary water hoses, a fog cannon can spray water over a larger area and direct the mist toward a specific dust source. Depending on the model, it may be mounted on a trailer, a wheeled frame, a vehicle, or a fixed installation. For any questions, welcome to contact YG Machinery anytime.
Get 12-Month Warranty & 24/7 Technical Support – Learn More

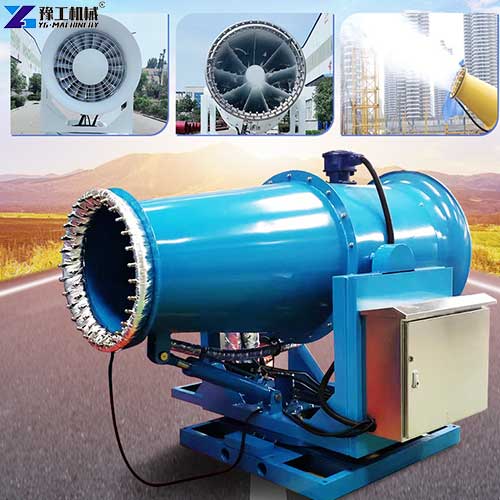

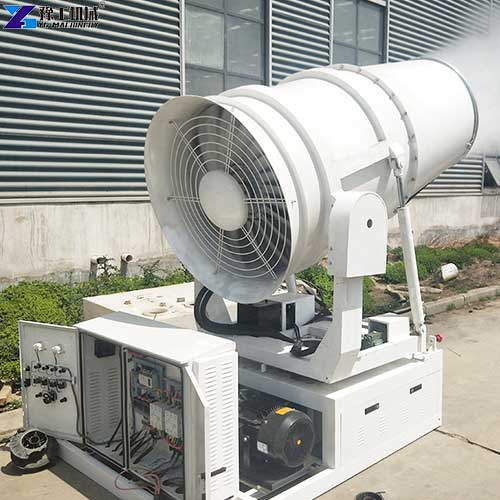

Technical Parameters of Fog Cannon Machine
| Model | YG-20 | YG-30 | YG-40 | YG-60 |
| Spraying distance | 20m | 30m | 40m | 60m |
| Engine | electric | electric | electric | electric |
| Electric | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase |
| Fan motor | 3kw | 3kw | 4kw | 11kw |
| Steering motor | 2*1.5kw | 2*1.5kw | 2*1.5kw | 2*1.5kw |
| Pump motor | 1.5kw | 1.5kw | 2.5kw | 7.5kw |
| Horizontal angle | 360° | 360° | 360° | 360° |
| Vertical angle | Minus10°-55° | Minus10°-55° | Minus10°-55° | Minus10°-55° |
| The nozzle | 8 | 10 | 16 | 22 |
| Cylinder material | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel |
| Bucket | 460L | 480L | 800L | |
| Water consumption | 1000L/h | 1500L/h | 3000L/h | 7500L/h |
| Recycled water pipe | 1400mm | 1400mm | 1400mm | 1400mm |
| The machine size | 1170*940*1700mm | 1170*940*1800mm | 1650*1200*2200mm | 1700*1200*2200mm |
| Weight | 200kg | 250kg | 300kg | 350kg |
Get 12-Month Warranty & 24/7 Technical Support – Learn More
Get 12-Month Warranty & 24/7 Technical Support – Learn More
How Does a Fog Cannon Machine Work?
A fog cannon machine uses water and a spraying system to produce a mist that can be directed toward dusty areas. Most systems combine a water supply, pump, spray nozzles, fan, and control system.
The working process is straightforward.
- Supply water to the machine: Water enters the system from a connected water source or a tank, depending on the machine configuration. A stable water supply is important. If the water flow is insufficient, the machine may not produce the expected mist or may be unable to operate continuously.
- Pressurize the water: A pump moves water through the system and supplies it to the spray nozzles at the required pressure. The pump and water system must match the nozzle design and the machine’s operating requirements.
- Produce fine water droplets: The nozzles break the water into small droplets. These droplets form the visible mist released from the machine. When the mist meets airborne dust, water droplets can attach to dust particles. The particles may become heavier and settle more quickly.
- Use airflow to carry the mist: A powerful fan pushes the mist outward. Depending on the machine design, the spray direction and elevation can be adjusted to target a particular area. This allows the operator to direct the mist toward dust generated by activities such as truck movement, crushing, material transfer, or demolition.
- Adjust spraying to site conditions: The operator can adjust the spraying direction, operating time, and other available controls according to the dust source and weather conditions. Wind direction is especially important. Strong or changing winds can carry droplets away from the target area, so operators may need to change the spray direction or operating schedule.
In simple terms: The pump supplies water, the nozzles create fine droplets, and the fan carries the mist toward the dusty area.
Get 12-Month Warranty & 24/7 Technical Support – Learn More
What Are the Main Features of a Fog Cannon Machine? 5 Features
A fog cannon is designed to control dust across a target area. Its main features depend on the model, but several functions are especially useful for industrial users.
- Long-distance spraying: A fog cannon uses airflow to carry water mist toward a dust source. Depending on the model, the spraying distance may range from around 20 meters to 60 meters or more. Longer range can help cover large yards and open work areas, but the actual effective coverage depends on wind, nozzle performance, installation height, and site layout.
- Adjustable spraying direction: Many models allow the operator to change the horizontal direction and vertical angle. This makes it easier to direct the mist toward different dust sources without constantly moving the entire machine. Before buying, confirm the adjustment range and whether the selected model supports manual, electric, or remote operation.
- Fine water mist: The nozzles produce small water droplets that can interact with airborne dust. Compared with simply spraying large amounts of water onto the ground, mist-based dust control can help target particles suspended in the air. However, water consumption varies by model. Buyers should compare the required water flow with the available supply before choosing a machine.
- Flexible installation options: Depending on the configuration, a fog cannon may be installed on a fixed base, a trailer, or another suitable platform. A fixed unit may be useful for a permanent industrial yard, while a mobile arrangement may suit projects where dust sources move from one area to another.
- Easier dust-control management: Using a dedicated machine can help a site team establish a regular dust-control routine. Operators can direct mist toward loading zones, stockpiles, roads, or other identified sources.
Get 12-Month Warranty & 24/7 Technical Support – Learn More

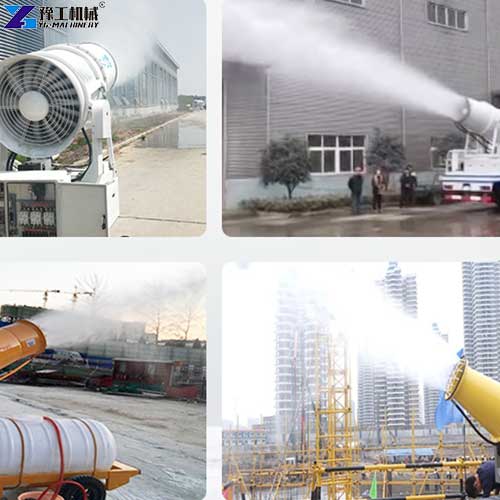

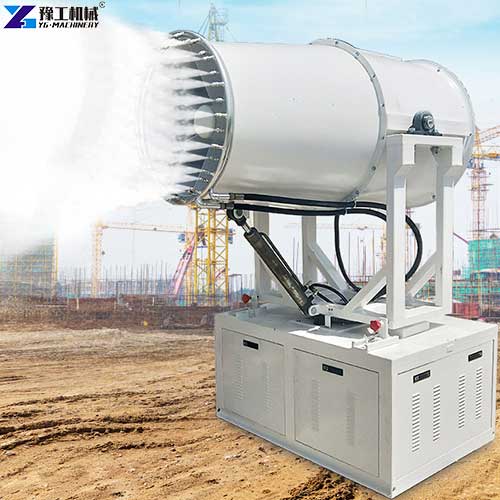

Where Can Fog Cannon Dust Suppression Be Used? 8 Applications
A fog cannon is useful in many outdoor environments where dust becomes airborne during work. The following table summarizes common applications.
| Application | Main dust source | How a fog cannon helps |
|---|---|---|

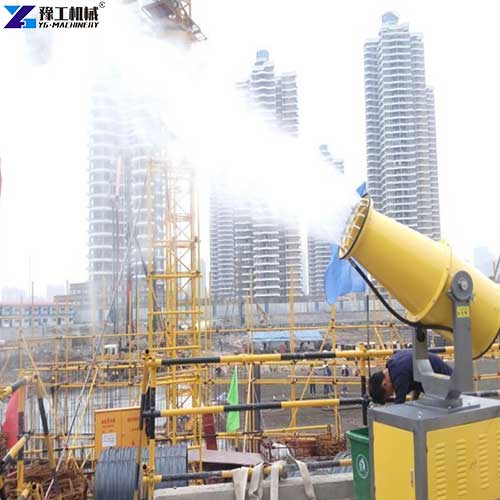

| Construction sites | Excavation, demolition, soil movement | Directs mist toward dusty work areas |
| Mines and quarries | Crushing, drilling, loading, stockpiles | Helps control airborne dust around operations |
| Cement and concrete plants | Material handling and storage | Targets dust near transfer and loading areas |
| Recycling and waste yards | Unloading, sorting, moving dry materials | Helps reduce dust clouds around work zones |
| Ports and bulk storage yards | Loading and unloading bulk materials | Covers open stockpiles and handling areas |
| Road construction | Dry soil, aggregate handling, vehicle movement | Helps suppress dust near roadwork |
| Landfills | Moving and covering dry waste | Adds mist-based control where suitable |
| Industrial yards | Vehicle traffic and outdoor material handling | Supports routine dust management |
The right machine depends on the type of dust, the size of the work area, and the location of the main dust source. A small construction project may not need the same spraying distance or water capacity as a large quarry.
Get 12-Month Warranty & 24/7 Technical Support – Learn More
3 Customer Experiences about YG Fog Cannon Machine
The following are illustrative customer scenarios, not independently verified testimonials. The feedback examples show how customers in different environments might evaluate a fog cannon machine after using it.
Customer 1: New Zealand — Dust Control at a Construction Site
A construction contractor in New Zealand is working on a site where earthmoving equipment and trucks regularly move dry soil. During dry weather, dust rises when vehicles travel along temporary roads and when excavated materials are transferred. The contractor needs a solution that can direct mist toward active work areas without requiring workers to spray every location manually. After reviewing the site’s layout and expected dust sources, the team considers a fog cannon with a suitable spraying distance and adjustable direction.
Customer feedback:
“The biggest advantage is that we can direct the mist toward the areas where dust is being generated. It makes our dust-control work easier to organize, especially when several machines are operating at the same time. We still need to consider wind and water supply, but the equipment gives us another practical way to manage dust on site.”
Customer 2: Saudi Arabia — Dust Suppression at a Bulk Material Yard
A bulk material operator in Saudi Arabia handles dry aggregates and other materials in an open yard. Hot, dry weather and vehicle movement can contribute to airborne dust, particularly during loading and unloading. The operator wants equipment that can cover the main working area while allowing the spray direction to be adjusted as operations change. The team evaluates the expected coverage area, water availability, power supply, and the amount of dust generated during peak activity.
Customer feedback:
“We wanted a system that could reach the working area instead of only wetting the ground close to the machine. Being able to direct the mist toward the stockpile and loading area is useful. In our climate, we also pay close attention to water use and wind conditions, so choosing the right operating settings is important.”
Customer 3: Uzbekistan — Dust Control at a Quarry
A quarry operator in Uzbekistan deals with dust from crushing, aggregate handling, and trucks transporting materials around the site. Dust can become particularly noticeable when the weather is dry, and the equipment is operating continuously. The operator considers a fog cannon as part of a broader dust-control plan. The aim is to direct mist toward the areas where airborne dust is most likely to occur. Before selecting the equipment, the team reviews the distance between the machine and the dust source, the layout of the crushing area, and the available water supply.
Customer feedback:
“We need to control dust in several areas of the quarry, and the location of the dust source changes during the working day. A fog cannon gives us more flexibility to direct the spray where it is needed. We also understand that machine positioning, maintenance, and regular checks are important for consistent operation.”
Get 12-Month Warranty & 24/7 Technical Support – Learn More
How to Choose the Right Fog Cannon Machine? 6 Advice
Before comparing suppliers or requesting a quotation, review the following factors.
- Spraying distance: Choose a range that matches the distance between the machine and the target area. Do not assume that the maximum listed distance guarantees the same performance in strong wind or every operating condition.
- Water consumption: Water consumption can differ significantly between models. Confirm the flow rate, water source, tank capacity if included, and whether continuous operation is required.
- Power supply: Check the voltage, frequency, phase, and total power requirement against your site’s available electrical supply. If a generator is needed, confirm the correct capacity with the supplier.
- Dust type and work area: Fine dust from some processes may behave differently from larger particles or heavy material dust. Explain the material being handled, the location of the dust source, and the size of the target area.
- Mobility and installation: Decide whether the machine should remain in one place or move between work areas. Confirm the base, transportation method, installation requirements, and access for maintenance.
- Maintenance and spare parts: Ask how to clean the nozzles and filters, inspect the pump, maintain the fan, and protect the equipment during storage. Regular maintenance helps reduce interruptions and keeps the spraying system operating as intended.
5 FAQ About Fog Cannon Machines
A: Its main purpose is to help control airborne dust by spraying fine water droplets toward dusty areas. The droplets can interact with airborne particles and help them settle. Actual results depend on site conditions and machine selection.
A: Yes, both standard and industrial fog cannons are shipped with a remote control.
A: Yes, in addition to the nozzles that come with the machine, we can also provide extra nozzles if needed.
A: Yes, it can spray disinfectant or industrial wastewater.
It can spray, but a ceramic pump is needed. If it contains chlorine, a stainless steel pump is needed.
If the raw material is corrosion-resistant, the entire fog cannon machine is made of stainless steel.
Important factors include wind speed and direction, droplet size, water flow, dust particle characteristics, spray distance, and machine positioning. Operators may need to adjust the direction or operating schedule as conditions change.
Factory Direct Fog Cannon Machine-Choose YG Supplier
A fog cannon machine can be a useful part of a dust-control plan for construction sites, quarries, bulk material yards, recycling facilities, and other outdoor industrial operations. By turning water into fine droplets and directing them toward dusty areas, it can help site teams manage airborne dust more efficiently.
However, good results depend on selecting the right model, supplying enough water and power, positioning the machine correctly, and maintaining it regularly. A larger spraying distance alone does not guarantee better performance for every site.
If you are comparing fog cannon machine price options or looking for a practical solution for fog cannon dust suppression, contact YG today.
