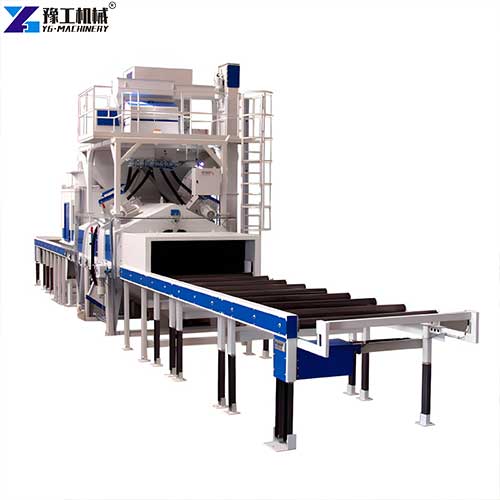

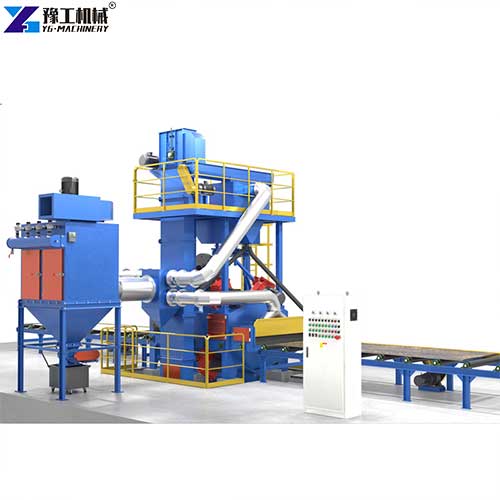

YG steel shot blasting machine is a fully automatic, environmentally friendly, and high-efficiency metal surface pretreatment equipment widely used in global steel processing, machinery manufacturing, pipeline production, and steel structure industries. Different from traditional manual grinding, acid pickling, and single-shot cleaning equipment, this conveyor-type industrial shot blaster adopts a closed circulating centrifugal blasting working system. It is specially designed for batch derusting, oxide scale removal, welding slag cleaning, and surface roughening of long workpieces, including steel plates, H-beams, metal profiles, steel pipes, and various structural steel parts.

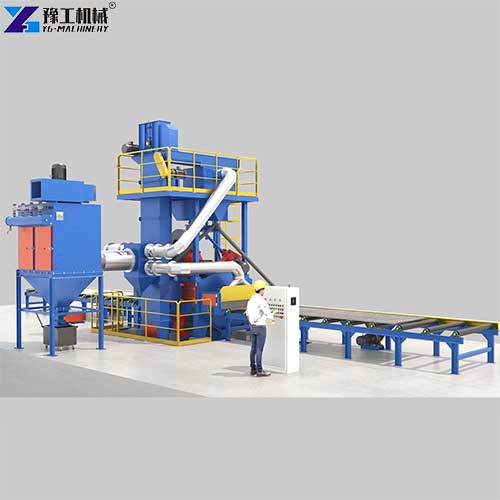

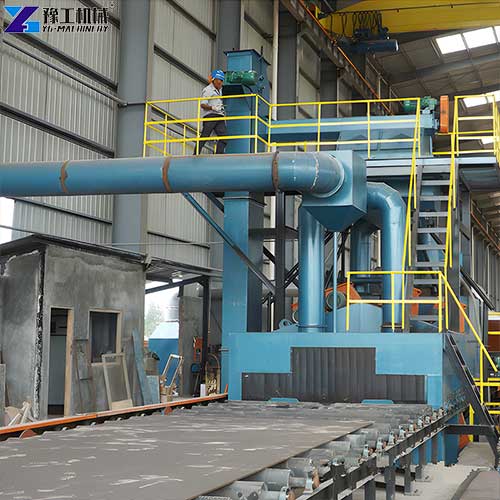

Workpieces are fed into the fully sealed blasting chamber in a stable, continuous manner through adjustable-speed roller groups. High-power blasting turbines eject steel abrasives at high speed from multiple angles to strip rust and impurities, forming a uniform rough surface that greatly improves paint and coating adhesion. After cleaning, the mixed dust and abrasives fall into the bottom hopper, then go through elevator lifting and automatic sorting. Qualified steel shots are recycled for continuous use, while dust and impurities are collected by professional dust removal equipment. If you are interested, please get in touch with YG immediately for more information.
Steel Shot Blasting Machine Parameter
| Parameter | YG-698 | YG-6912 | YG-6915 | YG-6920 | YG-6925 | YG-6930 | YG-6940 |
| The effective cleaningwidth(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| The room feed-insize(mm) | 1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| The length of cleaningThe workpiece (mm) | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
| The speed of the conveyor(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| The thickness of the cleaningsteel sheet(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-100 |
| The section steelspecification(mm) | 800*300 | 1000*300 | 1500*300 | 2000*300 | 2500*700 | 3000*700 | 4000*300 |
| The quantity of shotblasting(kg/min) | 4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| The first enclosedquantity(kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| Roll brush adjustingheight(mm) | 200 | 200 | 350 | 450 | 600 | 850 | 900 |
| Total power (kW) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
| Airness size(m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
6 Core Advantages of YG Steel Shot Blasting Machine
1. Fully Automatic Continuous Conveying Capacity
Equipped with a variable-speed roller feeding system, the conveyor shot blasting machine supports non-stop continuous workpiece conveying and batch mass processing. The whole cleaning process does not require frequent manual feeding, discharging, and repeated positioning. This fully automatic operation greatly cuts labor input on the production line and significantly lifts hourly production capacity. Factories can maintain stable high output during long-hour continuous processing, effectively improving overall workshop production efficiency.
2. All-Round Uniform Blasting Without Dead Zones

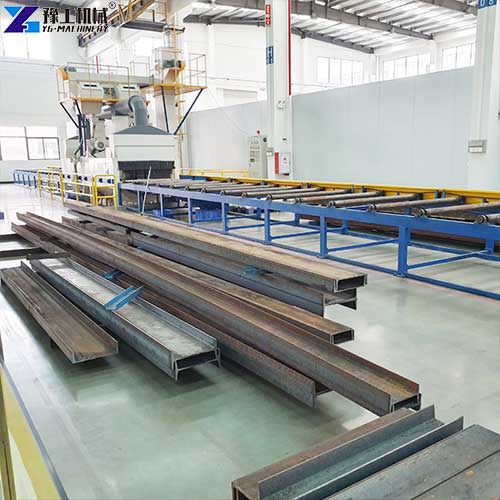

The YG steel shot blasting machine adopts a multi-angle symmetric turbine layout inside the blasting chamber, covering all flat metal surfaces comprehensively. For tubular and circular workpieces, the matched rotary roller set drives steel pipes to rotate continuously during conveying. This dual movement of forward propulsion and autorotation realizes 360° surround blasting, eliminating cleaning dead zones. Whether users process steel plates, profiles, or industrial pipes, the machine can achieve consistent, uniform, and flawless surface cleaning results.
3. Eco-Friendly Structure & Super Wear-Resistant Configuration

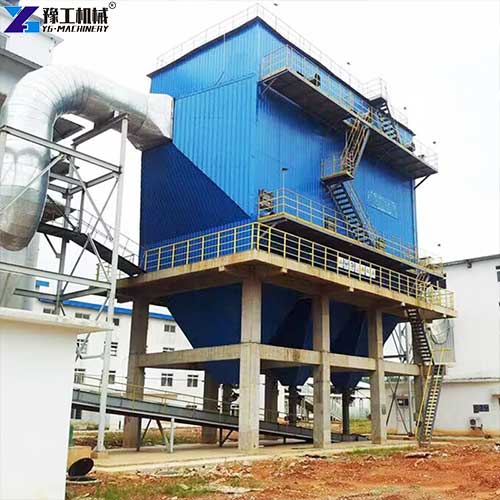

The entire blasting chamber is fully sealed, which effectively prevents steel shot splashing and dust overflow during high-speed operation. Equipped with an integrated pulse dust collector, the machine meets global industrial environmental protection and emission standards, realizing clean and green workshop production. In addition, all vulnerable parts, such as turbine blades and blasting impellers, adopt high-chromium alloy materials. These wear-resistant accessories greatly extend the equipment service life, reduce the need for frequent replacement, and lower long-term operating and maintenance costs.
4. Flexible Modular Customization & Production Line Compatibility

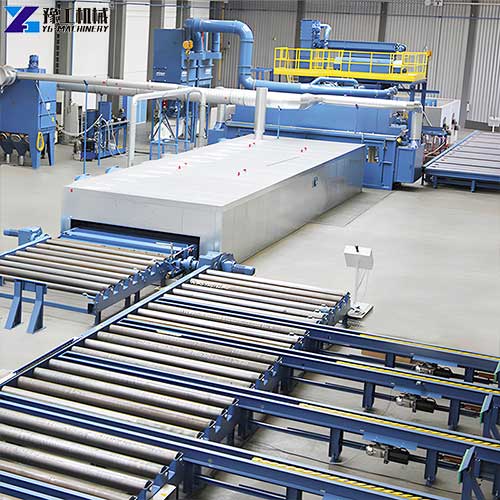

The YG industrial shot blaster features a highly flexible modular design. Users can freely adjust roller width, overall machine length, and turbine quantity according to workpiece size, processing volume, and production requirements. The equipment can perfectly realize seamless docking with upstream cutting machines and downstream painting and spraying production lines. It helps factories form fully automatic integrated processing workflows, greatly improving overall production intelligence and industrialization level.
5. Stable Circulating Abrasive Recycling System
This roller shot blasting machine builds a complete closed abrasive circulation system. After separation and screening, qualified steel shots can be reused repeatedly, reducing abrasive waste and material purchasing costs. The automatic dust removal and impurity removal function ensures stable blasting strength at all times, avoiding the poor cleaning effect caused by mixed impurities.
6. Wide Compatibility for Multiple Workpieces
It is suitable for rust removal and surface pretreatment of various steel materials, including construction steel structures, bridge components, petrochemical steel pipes, wind power tower tubes, mechanical castings, and municipal metal facilities. One machine can meet the diversified processing needs of multiple industries with an extremely high equipment utilization rate.
Why Choose YG Steel Shot Blasting Machine? 5 Reasons
1. Customer Concern 1: Low manual efficiency cannot meet mass orders
Most traditional small factories rely on manual polishing or semi-automatic single cleaning equipment, which cannot support large-batch workpiece processing. It leads to delayed order delivery and limited business expansion.
YG Benefit: The fully automatic continuous conveying design of our conveyor shot blasting machine realizes non-stop assembly line operation. It replaces heavy manual work, greatly improves hourly output, and allows factories to take more bulk orders without adding extra workers.
2. Customer Concern 2: Uneven cleaning effect with dead corners
Many ordinary industrial shot blaster products have unreasonable turbine layout and fixed single-angle blasting, resulting in residual rust and blind spots on pipe surfaces and profile corners, which affects subsequent painting quality.
YG Benefit: YG adopts symmetric multi-angle turbine matching rotary roller rotation technology. It achieves 100% all-round uniform blasting for flat and tubular workpieces, ensuring consistent surface roughness and zero residual impurities, effectively improving finished product qualification rate.
3. Customer Concern 3: Serious dust pollution failing environmental inspection
Many low-cost shot blasting machines have poor sealing and simple dust removal devices, causing serious dust overflow, polluting the workshop environment and easily triggering environmental protection penalties.
YG Benefit: Fully sealed chamber plus professional pulse dust collector ensures zero dust leakage. The equipment fully complies with global environmental protection standards, helping factories pass daily safety and environmental inspections stably.
4. Customer Concern 4: Fast wear of accessories and high maintenance cost
Ordinary shot blasting machines use ordinary iron accessories, which wear out quickly after long-term high-intensity blasting, requiring frequent replacement and causing production shutdown losses.
YG Benefit: Core vulnerable parts are made of high-chromium alloy with super wear resistance. The service life is greatly prolonged, reducing replacement times and long-term maintenance investment.
5. Customer Concern 5: Fixed machine size cannot match personalized production lines
Many universal steel shot blasting machine models have a fixed structure and cannot be adjusted, unable to dock with customers’ existing production lines, resulting in low equipment compatibility.
YG Benefit: YG supports full modular customization. Roller width, machine length, and turbine quantity can be adjusted freely to perfectly connect with customers’ existing cutting, grinding and spraying lines, realizing integrated automatic production.
Steel Shot Blasting Machine Price-Choose YG Machinery
The YG steel shot blasting machine provides a high-efficiency, eco-friendly, and cost-saving surface pretreatment solution for modern metal manufacturing industries. Its automatic continuous conveying, dead-angle-free uniform blasting, wear-resistant configuration, and flexible customization solve almost all common pain points of traditional cleaning equipment. It helps manufacturers reduce labor costs, improve product surface quality, meet environmental standards, and expand production capacity. For steel structure factories, pipeline processing plants, and heavy machinery manufacturers looking for reliable steel shot blasting machine equipment, YG fully automatic shot blasting equipment is a stable, long-term, and high-return production investment that greatly improves market competitiveness. If you are interested, please contact YG for a discount.
