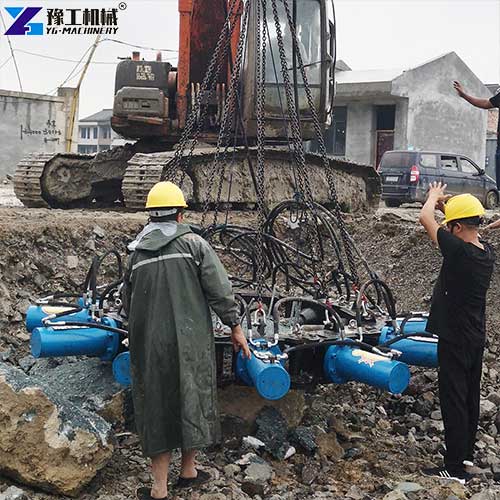

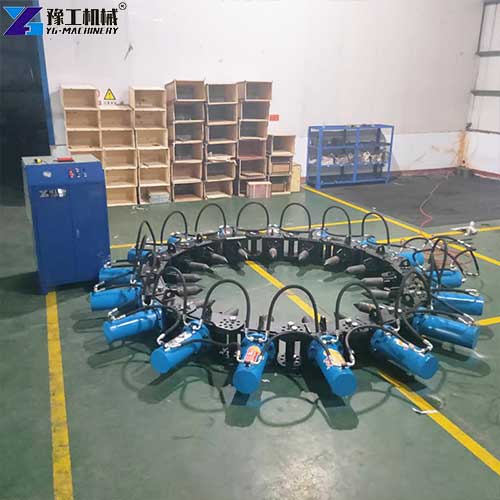

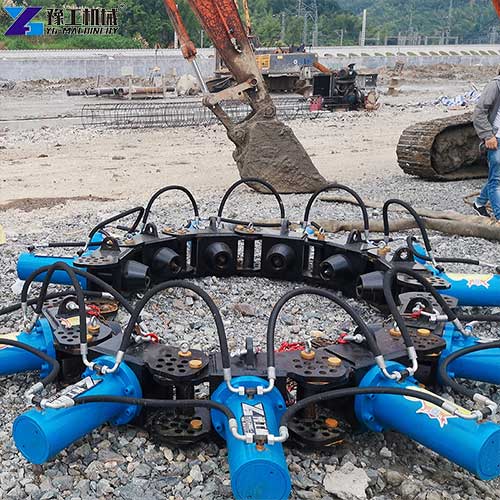

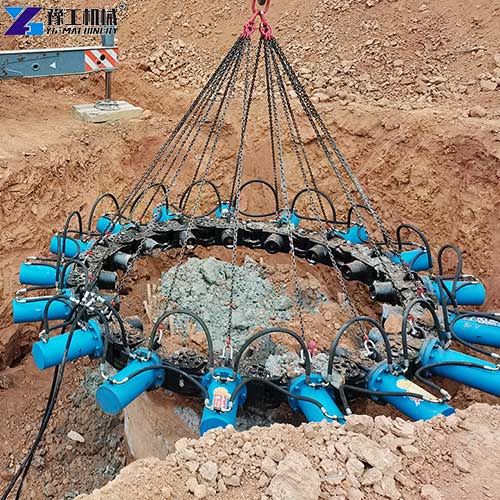

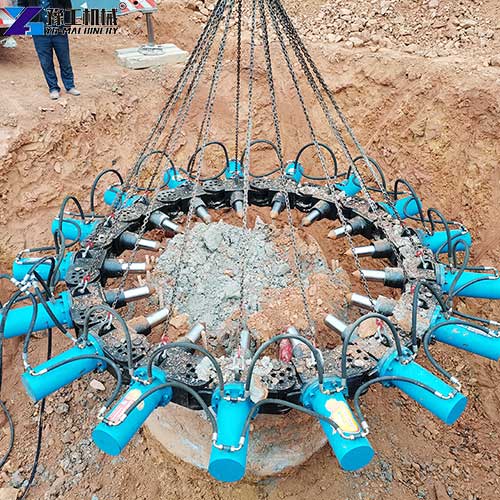

YG pile breaker machine is a hydraulic excavator attachment specially used for cutting redundant concrete pile heads in foundation construction. Available for sale as standard construction equipment, this hydraulic tool replaces traditional manual chipping with pneumatic picks and sledgehammers. Installed on the arms of medium and large excavators, it consists of multiple groups of hydraulic cylinders and high-strength arc-shaped jaws. By applying a uniform hydraulic squeezing force, the equipment crushes excess concrete while completely protecting internal steel bars from bending or damage. Different from impact breakers, it features low vibration, low noise, and a stable breaking effect, fully complying with civilized construction regulations in urban areas. It can be customized to match round piles, square piles, and various pile diameters, widely applied in residential buildings, bridges, highways and municipal infrastructure projects worldwide. If you are interested, please contact YG immediately for more information.
YG Excavator Pile Breaker Parameter
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | A combination of the total weight | ||||||||
6 Core Functions of Pile Breaker Machine

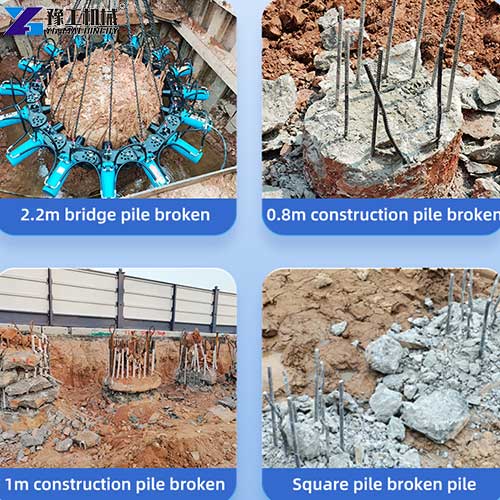

- Efficiently remove surplus concrete pile heads after foundation pouring, ensuring consistent pile elevation to meet design requirements.
- Realize static hydraulic squeezing breaking, keep internal steel bars intact for follow-up connection with upper structures.
- Complete batch pile chipping continuously to shorten the construction period for large-scale foundation projects.
- Control the breaking range precisely to avoid damaging adjacent piles, underground pipelines, and surrounding building structures.
- Reduce safety risks caused by manual high-intensity operation and avoid construction accidents from flying concrete fragments.
- Lower overall labor cost and secondary trimming workload, guarantee one-time acceptance of foundation engineering.
Case 1: Singapore Urban Commercial Building Foundation Project
Customer Background & Identity
The client is a local construction contractor undertaking a commercial complex foundation project in central Singapore. The contractor selected this pile crusher from various pile breakers for sale options to replace traditional manual pile chipping.
Main Construction Difficulties
- Strict Urban Noise and Vibration Control The construction site is surrounded by residential buildings. Manual chipping and impact breakers generate loud noise and strong vibration, which will lead to construction suspension and administrative fines.
- Limited Daily Construction Schedule The project has a tight delivery deadline. Manual operation can only process a small number of piles every day, which cannot meet the batch construction demand.
- High Risk of Reinforcement Damage Unregulated manual knocking easily bends internal steel bars, which will cause project rejection and huge rework costs.
Customized Solution
We supplied the 8-module pile chipping machine with a single-module weight of 2640KG, applicable for 600–800mm pile diameter. It adopts 300KN maximum thrust and 300MPa working pressure to deliver uniform static hydraulic squeezing force. Matched with the customer’s 35-ton excavator, the equipment realizes stable low-vibration breaking without damaging steel bars.
Actual Construction Effects
- Static hydraulic braking meets Singapore’s environmental regulations, avoiding resident complaints and construction shutdown.
- Batch continuous operation greatly improves efficiency, finishing all pile chipping work ahead of the scheduled date.
- Flat fracture surfaces and intact steel bars help the project pass one-time foundation acceptance with zero rework.
Customer Feedback
“This 8-module YG pile breaker machine perfectly fits our piles. Stable hydraulic performance solves our noise and efficiency troubles. It is the most reliable pile crusher we have used for urban construction projects.”

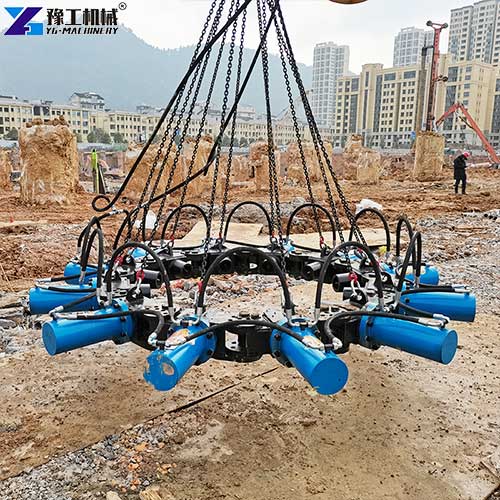

Case 2: Adelaide Australia Highway Bridge Foundation Project
Customer Background & Identity
The Australian customer is a large engineering company responsible for a highway bridge expansion project in Adelaide. The foundation piles are about 800mm in diameter, so they purchased our 9-module YG pile breaker machine with single-module weight 2970KG to finish large-scale pile head cutting.
Main Construction Difficulties
- Large Quantity of Foundation Piles. Hundreds of bridge piles need pile chipping. Manual work cannot support high-volume, continuous construction and may delay the whole highway project.
- Strict Local Structural Safety Standards Australian construction codes forbid any damage to steel reinforcement; unqualified pile treatment will result in heavy economic penalties.
- Near Existing Traffic Facilities Violent impact breaking may trigger ground vibration and damage the original road structure, bringing major safety hazards.
Customized Solution
The 9-module pile chipping machine is designed for 800–1000mm diameter piles, equipped with a stable hydraulic system of 300MPa maximum pressure and 300mm cylinder stroke. Uniform multi-cylinder synchronous squeezing ensures a precise breaking range, perfectly adapting to the customer’s 36-ton excavator for long-hour high-intensity operation.
Actual Construction Effects
- Long-time continuous operation efficiently completes batch pile breaking, guaranteeing the smooth progress of the Adelaide highway project.
- Controlled squeezing force protects all steel bars completely, fully complying with Australian infrastructure acceptance standards.
- Low-vibration operation effectively safeguards the surrounding existing road facilities with no safety incidents.
Customer Feedback
“The 9-module YG pile breaker machine handles our large-diameter bridge piles very well. Powerful and stable performance improves our construction capacity greatly. We will repurchase this pile breaker for sale for our future infrastructure projects.”
YG Pile Breaker Machine Price-Choose YG Machinery
The YG pile breaker machine, professional pile crusher and pile chipping machine, has completely replaced inefficient, risky manual pile chipping methods in modern foundation construction. With matched modular models for different pile diameters, stable 300MPa hydraulic pressure and low-vibration static breaking technology, it delivers standardized pile head cutting, intact steel bar protection and greatly improved construction efficiency. If you are looking for reliable pile breaker for sale to cut labor costs, avoid rework and speed up project progress, choose YG series pile breaker equipment to upgrade your foundation construction efficiency and maximize long-term project profits.
