Road marking is the most basic and critical part of traffic engineering, parking lot construction, community road renovation, and municipal road maintenance. Traditional manual marking and cold paint marking methods have obvious defects such as short service life, uneven lines, easy fading, and low construction efficiency. With the upgrading of global traffic construction standards, thermoplastic marking has become the mainstream standard for formal road engineering. The YG thermoplastic striping machine is a professional and cost-effective thermoplastic road paint machine designed for hot-melt road marking construction. As a mature thermoplastic striping equipment, it integrates material heating, melting, stirring, and precise line marking in one machine. It is widely used in urban roads, highways, factory parking lots, school roads, residential areas, and airport ground marking projects. If you are interested, please contact YG immediately for more information.

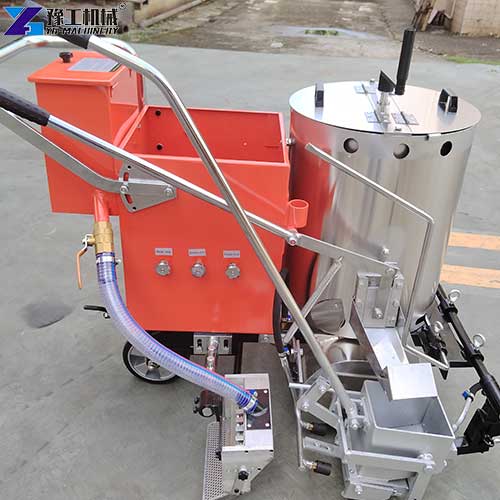

YG Thermoplastic Road Marking Machine
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50- 200 mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50- 200 mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
6 Core Advantages of Thermoplastic Striping Equipment
1. Super Durable Marking Effect with Long Service Life
The biggest advantage of the YG thermoplastic striping machine is its high-quality marking quality. Thermoplastic hot melt paint is heated to 180–220℃ and evenly coated on the road surface. The formed marking line is thick, firm and closely combined with the road base. It is resistant to tire friction, sun exposure and rain erosion. Standard thermoplastic lines can last 2–3 years or longer, while ordinary cold paint lines fade severely within half a year. It greatly reduces repeated construction frequency and later maintenance pressure.
2. High Construction Efficiency Suitable for Batch Projects
This professional thermoplastic road paint machine supports continuous melting and uninterrupted marking operation. The integrated heating and walking design avoids repeated material handling and manual stirring. The machine can complete hundreds of meters of standard straight lines, curved lines and special pattern lines per hour. Whether for large highway reconstruction or intensive parking lot marking, it can greatly shorten the construction cycle and ensure timely project delivery.
3. Precise Line Formation with Standard Appearance
Manual marking and low-end equipment often cause uneven line width, irregular edges and uneven paint thickness. The thermoplastic striping equipment adopts precise mechanical sizing structure and stable material discharging system. The line width is uniform, the edge is straight and smooth, and the thickness is consistent. It fully meets municipal engineering acceptance standards, effectively reducing rework rate and improving project qualification rate.
4. Strong Environmental Adaptability & Stable Operation
Different from cold paint construction limited by temperature and weather, thermoplastic marking can be constructed normally in low temperature and dry seasons. The heating system of YG thermoplastic striping machine melts paint evenly without coking or agglomeration. The whole machine is equipped with anti-vibration and anti-blocking structure, adapting to asphalt roads, cement roads and slightly uneven ground. It maintains stable marking effect in various complex outdoor environments.
5. High Safety & High Visibility with Reflective Function
Formal thermoplastic marking machines support synchronous spreading of reflective glass beads during marking. The embedded glass beads make the road lines have strong reflective effect at night and in rainy weather, greatly improving road traffic safety. This standardized construction effect is mandatory for highway and municipal bidding projects, which ordinary small marking tools cannot achieve.
6. Low Long-Term Failure Rate & Easy Maintenance
The overall structure of thermoplastic striping equipment is simple and durable, with few vulnerable parts. The heating system is stable, the discharge pipeline is not easy to block, and daily cleaning and maintenance are very convenient. Compared with high-pressure spraying equipment that is easy to leak and block, thermoplastic marking machines have longer service life and lower later maintenance costs.
5 Benefits of Purchasing a Thermoplastic Road Paint Machine
1. Greatly Reduce Comprehensive Construction Costs
Although the initial thermoplastic road marking machine price is slightly higher than cold paint tools, the long-term comprehensive cost is much lower. Thermoplastic lines do not need frequent repainting, saving a lot of paint materials and labor costs. One-time standard construction avoids repeated repairs and rework losses, significantly improving project profit margins.
2. Improve Project Competitiveness & Bidding Qualification
Most formal municipal, highway, and traffic engineering projects clearly require a thermoplastic hot-melt marking effect. Owning a professional YG thermoplastic striping machine allows construction teams to undertake high-standard official projects that small teams cannot complete. It effectively improves enterprise qualification, enriches engineering cases, and enhances market competitiveness.
3. Save Labor & Simplify Construction Process
Traditional marking requires multiple workers to stir, load paint, position, and draw lines separately. The integrated thermoplastic road paint machine realizes automatic melting and uniform discharging, requiring only 1–2 workers to complete the whole process. It greatly reduces labor dependence, solves the problem of difficult recruitment and high labor costs, and improves overall construction efficiency.
4. Stable Construction Quality & Good Reputation
Mechanical thermoplastic marking has stable and uniform quality, no color difference, no missing lines, and no uneven thickness. The finished lines are beautiful, standard and durable, helping construction teams obtain high customer satisfaction, accumulate good word-of-mouth, and win more repeat orders and long-term cooperation projects.
5. Wide Application & High Equipment Utilization

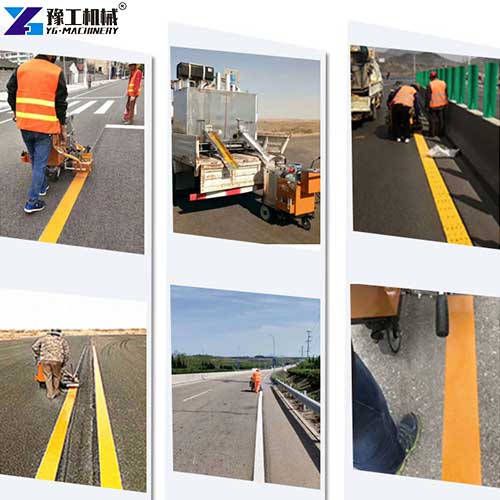

This thermoplastic striping equipment is suitable for all scenarios, including urban roads, highways, factory parks, shopping mall parking lots, school and community roads, warehouse passages and traffic warning lines. The equipment can operate all year round without seasonal restrictions, with a high utilization rate and fast return on investment.
6 Key Points to Consider When Buying Thermoplastic Road Marking Machine
1. Match Machine Model with Project Demand

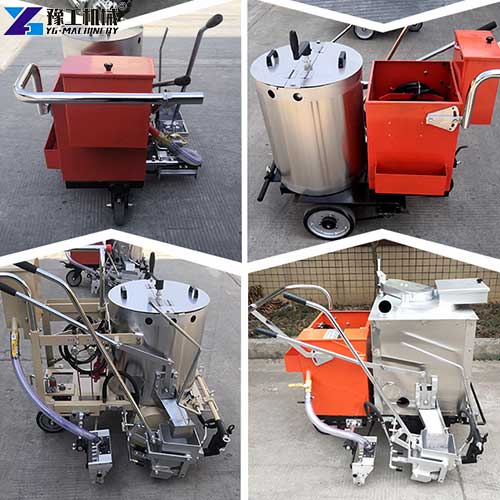

Before purchasing, confirm your main construction scenarios. Small hand-push YG thermoplastic striping machine is suitable for parking lots, communities and small-area marking projects. Large walking or driving type thermoplastic equipment is suitable for long-distance highway and municipal road batch construction. Reasonable model selection avoids insufficient power or equipment overmatching waste.
2. Focus on Heating System Performance
The core of the thermoplastic road paint machine is the heating and melting system. High-quality equipment adopts uniform heating design with anti-coking function, which can melt paint evenly without burning the material. Inferior machines have uneven heating, resulting in paint agglomeration, blocked discharge and uneven line color, seriously affecting construction quality.
3. Check Discharging Precision & Line Control Structure
Pay attention to the material outlet valve and sizing baffle structure. High-standard thermoplastic striping equipment supports free adjustment of line width and thickness, with sensitive switch control and no paint leakage. Stable discharging precision ensures straight lines and neat edges, meeting official engineering acceptance requirements.

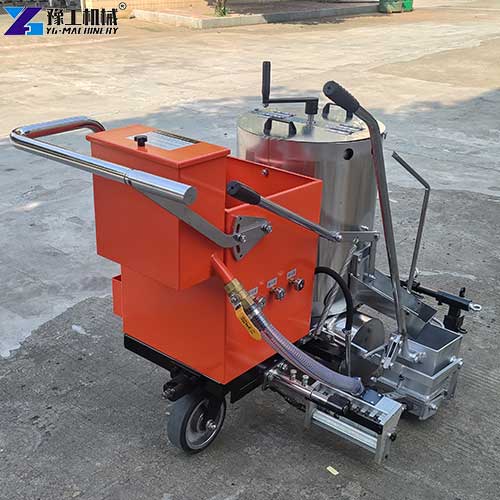

4. Compare Thermoplastic Road Marking Machine Price with Overall Cost Performance
Do not simply pursue the lowest thermoplastic road marking machine price. Low-cost equipment usually has thin steel structure, unstable heating system and easy damage of vulnerable parts, leading to frequent failure and high maintenance cost in the later stage. It is necessary to comprehensively evaluate frame stability, heating efficiency, wearing parts quality and after-sales service to select high cost-performance equipment.
5. Confirm Material Tank Capacity & Continuous Working Ability
According to daily construction workload, select the appropriate paint tank capacity. Large-capacity tanks support long-time continuous operation and reduce frequent feeding times, greatly improving construction progress. At the same time, check the heat preservation performance of the tank to ensure the paint keeps constant temperature and fluidity during long-time operation.
6. Verify After-Sales Service & Technical Support
Thermoplastic marking equipment needs professional debugging and daily maintenance. Choose regular manufacturers that provide operation guidance, installation debugging, wearing parts supply and long-term warranty service. Perfect after-sales support can avoid construction shutdown losses caused by equipment failure.

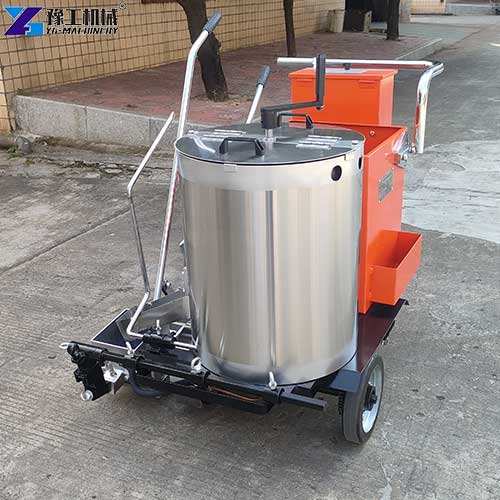

Thermoplastic Striping Machine Price-Choose YG Machinery
As the mainstream equipment of modern traffic marking engineering, the YG thermoplastic striping machine replaces traditional manual and cold paint marking methods. With durable marking effect, high construction efficiency, stable quality, and low comprehensive cost, the thermoplastic road paint machine brings huge economic benefits to construction teams. By rationally evaluating thermoplastic road marking machine price, matching project needs, and focusing on core equipment performance, buyers can purchase high-quality, high-cost-performance marking equipment to achieve long-term stable profit growth in road marking projects. If you are interested, please contact YG for a discount.
