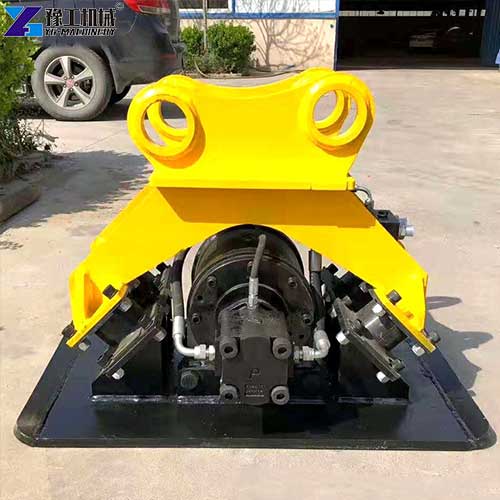

The excavator vibrating plate compactor is a practical hydraulic attachment specially designed for excavators, widely used in various construction compaction works. As a hot-selling construction tool listed as excavator vibrating plate compactor for sale in global markets, it perfectly solves the problem that large road rollers cannot work in narrow, complex or uneven construction sites.

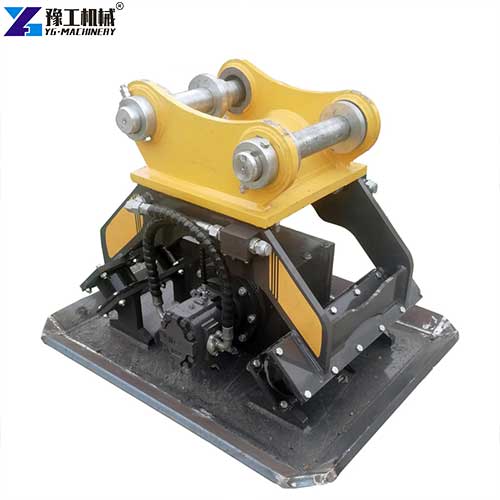

Different from traditional handheld compactors and fixed road rollers, this attachment is directly mounted on the excavator’s arm, using the excavator’s own hydraulic system as the power source. It has strong adaptability, flexible operation, and high compaction efficiency, and can be used together with excavators to realize integrated excavation, backfilling, and compaction construction. The YG excavator vibrating plate compactor is made of high-strength, wear-resistant steel plates, with a sturdy structure and long service life. It can adjust vibration frequency and force according to different construction materials, is suitable for compacting soil, gravel, backfill, and asphalt, and has become an essential attachment for modern engineering construction teams. If you are interested, please contact YG immediately for more information.
Excavator Vibrating Plate Compactor Parameter

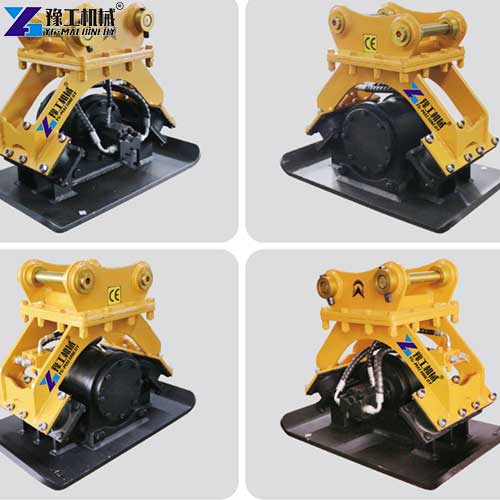

| Model | YG-32 | YG-50 | YG-80 | YG-107 |
| Vibration force(KN) | 40 | 65 | 110 | 150 |
| Excitation frequency(RPM) | ≥2000 | ≥2000 | ≥2200 | ≥2200 |
| Working pressure(MPA) | 15 | 15 | 15 | 15 |
| Maximum flow(L/min) | 60 | 100 | 160 | 160 |
| Suitable excavators(T) | 4-9 | 10-18 | 20-27 | 30-40 |
| Length/width/height(mm) | 900*550*750 | 1160*700*930 | 1350*900*1000 | 1350*900*1050 |
| Machine weight(KG) | 380 | 550 | 920 | 1050 |
| Hit area(mm) | 900*550 | 1160*700 | 1350*900 | 1350*900 |
7 Working Process of Excavator Vibrating Plate Compactor
1. Installation and Connection
First, connect the vibrating plate for excavator to the excavator’s arm through a quick connector, ensuring the connection is firm and stable. Then connect the hydraulic oil pipes of the attachment to the excavator’s hydraulic system, which is the core power source for the compactor to work. This installation process is simple and fast, and one worker can complete it in about 15 minutes without additional tools.
2. Pre-Operation Inspection
Before starting work, the operator needs to check the tightness of the hydraulic pipes, the fixing state of the compaction plate and the working condition of the internal vibration motor. At the same time, adjust the excavator’s hydraulic pressure according to the construction material (such as soft soil, gravel or asphalt) to ensure the compactor can output appropriate vibration force.
3. Positioning the Compaction Plate
Operate the excavator’s arm to lift the excavator vibrating plate and move it to the position that needs compaction. Then slowly lower the plate to make it closely attached to the ground surface, ensuring there is no gap between the plate and the ground. This step is crucial to ensure uniform compaction and avoid partial loose areas.
4. Starting Vibration and Compaction
Start the excavator’s hydraulic system to drive the internal vibration motor of the compactor to run at high speed, generating strong and uniform vibration force. The vibration force is transmitted from the compaction plate to the ground, making the soil, gravel or backfill particles rearrange and densify quickly, expelling air and water from the material to achieve compaction.
5. Adjusting Vibration Parameters
According to the actual compaction effect and site conditions, the operator can adjust the vibration frequency and force of the excavator vibrating plate compactor at any time. For soft soil, lower vibration frequency and larger force are more suitable; for hard gravel or asphalt, higher frequency can achieve better compaction results.
6. Moving and Continuous Compaction
After completing the compaction of one area, operate the excavator’s arm to lift the compaction plate slightly, move it to the next adjacent area, and repeat the compaction process. Ensure that each compaction area overlaps slightly with the previous one to avoid missed compaction and ensure the overall compaction quality of the ground.
7. Stopping Work and Cleaning
After the compaction work is finished, first turn off the vibration function of the compactor, then lift the plate with the excavator’s arm and move it to a flat and safe place. Finally, clean the soil, gravel and other debris on the compaction plate and hydraulic pipes to prevent blockage and corrosion, which can extend the service life of the equipment.
8 Wide Applications of Excavator Vibrating Plate Compactor

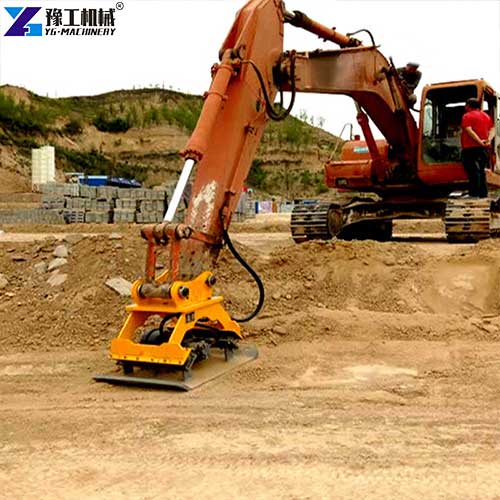

1. Road & Highway Construction
This is one of the most common application scenarios for the excavator vibrating plate compactor. It is mainly used for compaction of road foundations, subgrades and asphalt pavements, especially for narrow sections, road edges, and corners where large road rollers cannot enter. It can ensure the compaction density of the road edge, prevent the edge from collapsing and cracking, and improve the overall service life of the road. In highway construction, it is also used for compaction of the subgrade in mountainous areas with complex terrain.
2. Trench & Foundation Backfilling
When laying utility pipelines, sewage pipelines or building foundation pits, after backfilling soil or gravel into the trenches and pits, the vibrating plate for excavator is used for compaction. This can effectively prevent the backfill from settling, avoid pipeline damage or foundation subsidence caused by uneven ground, and ensure the stability of the underground and building structures. It is especially suitable for narrow trenches where small compactors are difficult to operate.
3. Slope & Embankment Compaction
For slopes, embankments, retaining wall backfills and river bank reinforcement projects, the excavator vibrating plate shows excellent adaptability. The excavator’s flexible arm can drive the compactor to work on slopes of different angles, and the high-frequency vibration can compact the soil on the slope firmly, preventing soil erosion and slope collapse. It is widely used in water conservancy projects and road embankment construction.
4. Municipal & Garden Construction
In municipal construction, it is used for compaction of sidewalks, square grounds, and garden greening areas. It can compact the ground evenly without damaging the surrounding green plants and municipal facilities, meeting the compaction requirements of small and medium-sized municipal projects. For example, after laying sidewalk bricks, it can compact the base soil to ensure the flatness and stability of the sidewalks.
5. Construction Site Foundation Compaction
Before building houses, factories or other buildings, the excavator vibrating plate compactor for sale is used for compaction of the construction site foundation. It can densify the loose soil on the foundation, improve the bearing capacity of the ground, and lay a solid foundation for the subsequent construction of the building, avoiding building subsidence and cracking caused by unstable foundations. It is suitable for both large construction sites and small residential building construction.
6. Airport & Port Construction
In airport runway renovation and port terminal construction, the compactor is used for compaction of the subgrade and pavement base. It can ensure the high compaction density of the ground, meeting the strict requirements of airports and ports for ground bearing capacity and flatness. For narrow areas around airport runways and port container yards, it can replace large equipment to complete precise compaction work.
7. Rural Road & Farmland Water Conservancy Construction
In rural road construction, especially in remote mountainous areas where large rollers are difficult to reach, the vibrating plate for excavator is an ideal compaction tool. It can compact the rural road subgrade and pavement, improving the traffic conditions of rural areas. In farmland water conservancy projects, it is used for compaction of irrigation canal banks and reservoir embankments, preventing water seepage and bank collapse, and protecting farmland irrigation.
8. Demolition Site Renovation
After building demolition, the construction site will produce a lot of construction waste and loose soil. The excavator vibrating plate compactor can compact the waste and soil mixture on the site, making the site flat and solid, providing a good foundation for the subsequent renovation and reuse of the site. It can also be used for compaction of the ground around demolition buildings to ensure the safety of the construction site.

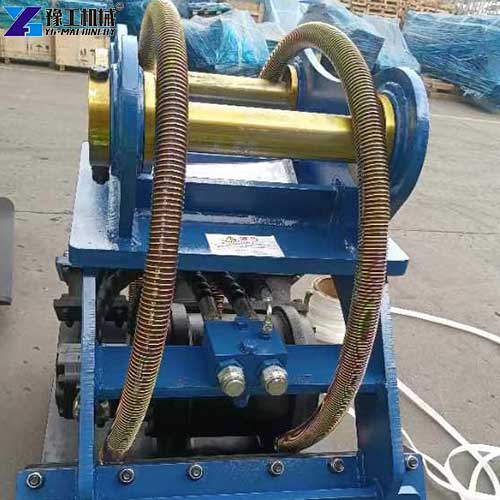

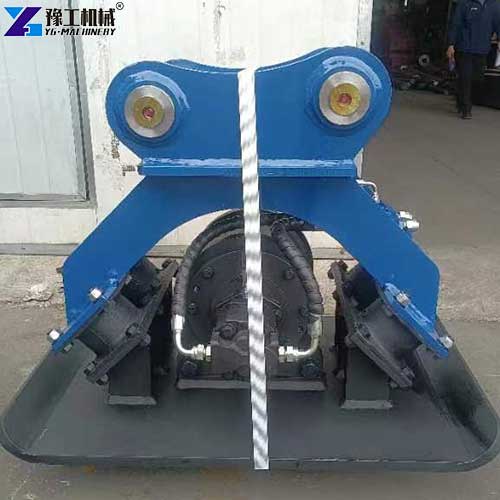

Excavator Vibrating Plate Compactor price-Choose YG Machinery
The excavator vibrating plate compactor is a multi-functional, high-efficiency construction attachment that integrates flexibility, adaptability, and practicality. It uses hydraulic drive and high-frequency vibration technology to complete compaction work in various complex construction environments that large equipment cannot reach, effectively improving construction efficiency and compaction quality. Whether it is road construction, municipal engineering, foundation backfilling or slope reinforcement, the excavator vibrating plate can play an important role.

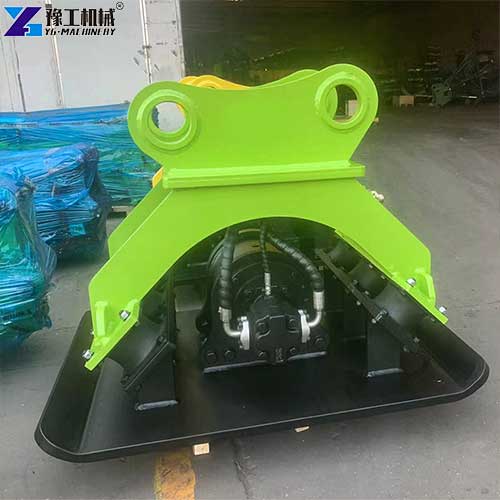

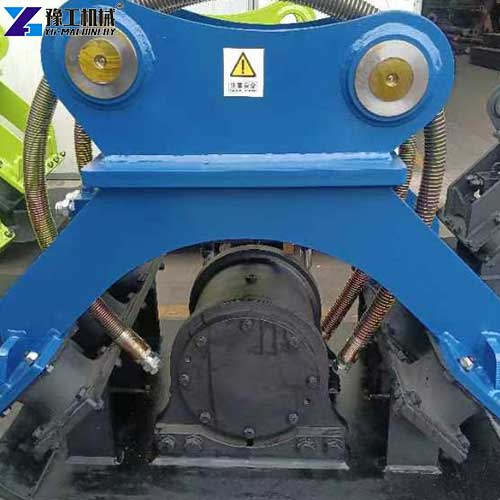

As a reliable supplier of vibrating plate compactors for sale, YG’s products have sturdy structures, adjustable vibration parameters and easy operation, which can meet the compaction needs of different construction scenarios. It can be matched with various models of excavators, reducing the investment in additional construction equipment and lowering construction costs. For engineering construction teams, choosing a high-quality excavator vibrating plate compactor is a wise decision to improve construction efficiency, ensure project quality, and expand construction scope. It will become your right-hand man in all kinds of compaction construction and help you complete projects efficiently and safely. If you are interested, please contact YG for a discount.
